Techfine VS 400–1600 W PWM off-grid inverter: Verify Battery, PV and Load Configuration
This page organizes the current source table for the Techfine VS 400–1600 W PWM off-grid inverter. 400–1,600 W table members; 12/24 V routes; PWM charger. It does not turn a family range, voltage label or inverter/charger headline into a complete off-grid system design.

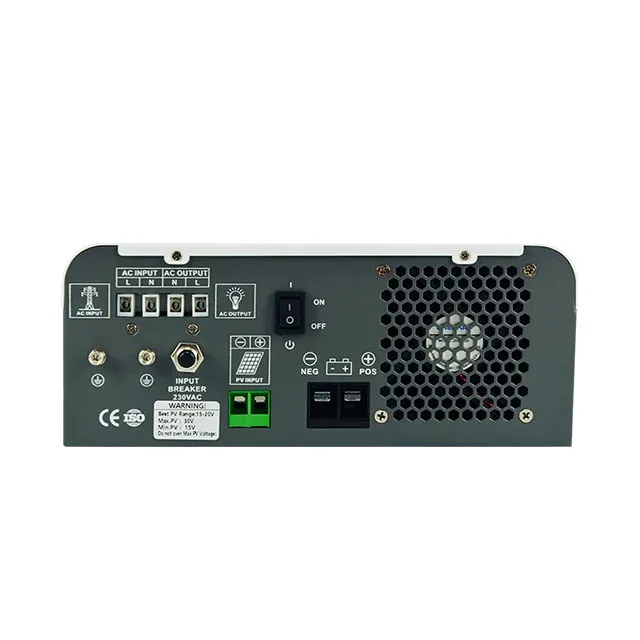

Current source route: VS 400–1600 W PWM off-grid inverter.
Current source parameter table
This table is preserved from the current source record. Read it with the identity, compatibility and document boundaries below; unresolved conflicts are not corrected by assumption.
| Model | VS0512AP5 | VS0812AP5 | VS1012AP5 | VS1512/24AP5 | VS2024AP5 |
|---|---|---|---|---|---|
| AC Input | |||||
| AC Input voltage | 220VAC(standard) | ||||
| Input voltage range | 154-264VAC±5V(Nor Mode) 185-264VAC±3V(UPS Mode) | ||||
| Input frequency | 50/60Hz±5% | ||||
| AC Mode Output | |||||
| Out put power | 500VA 400W | 800VA 640W | 1000VA 800W | 1500VA 1200W | 2000VA 1600W |
| AC model output Voltage | 220V±10% | ||||
| Battery Mode Output | |||||
| Battery model output frequency | The output frequency under the mains is the same as the input frequency | ||||
| Battery model output voltage | 220VAC±3% | ||||
| Battery model output frequency | 50HZ or 60HZ±1% | ||||
| Battery model output wave | Pure sine wave | ||||
| Battery | |||||
| Battery type | External lead-acid battery, Gel battery, water battery or Lithium battery | ||||
| Battery voltage | 12VDC | 12/24VDC | 24VDC | ||
| Battery charging voltage | 13.7VDC | 13.7/27.4VDC | 27.4VDC | ||
| Battery charging voltage range | 154-275VAC±5V | ||||
| PV Input | |||||
| Maximum PV array power | 800W | 12V:800W 24V:1600W | 24V:1600W | ||
| Solar input voltage range | 12V: PWM 15V-50VDC | 24V: PWM 30V-105VDC | |||
| Maximum PV Display Open Circuit Voltage | 12V: PWM 50VDC | 24V: PWM 105VDC | |||
| Maximum solar charging current | 60A | ||||
| Charging | |||||
| Maximum AC Charge Current | 13A | 21A | 27A | 40A / 20A | 27A |
| Transfer & Protection | |||||
| Transfer time | ≤10ms(UPS Mode) / ≤20ms(INV Mode) | ||||
| load peak ratio | (MAX)3:1 | ||||
| Protective function | Under the mains: input over current fuse Under inverter: overload protection, short circuit protection, Iow voltage protection. (with battery anti-reverse connection board) | ||||
| Display & Notification | |||||
| Status Display | You can view parameters such as AC voltage, AC frequency, PV voltage, PV current, output voltage, output frequency, battery voltage, load current and other parameters by turning the page keys. | ||||
| Voice prompt | Low battery protection buzzer long beep Low battery buzzer beeps every second Machine fault buzzer beeps Overload buzzer beeps When the overload is less than 130%, the buzzer will sound every second, and the output will be turned off after 30S. When the overload is greater than 150%,the output will be turned off after 300mS. | ||||
| Environmental | |||||
| Operating temperature | -10℃~50℃ | ||||
| Storage temperature | -15℃~45℃ | ||||
| Relative Humidity | -10℃~90℃ no condensation | ||||
| Noise | ＜45dB | ||||
Current document status
Request the exact model/suffix, nameplate, manual, PV/battery settings, wiring diagram, protection schedule and destination evidence before quotation release.
Current table evidence
Keep power, battery and AC rows on the same selected member
An off-grid inverter must be selected against actual loads, PV strings, battery current and site wiring.
Member route
400–1,600 W table members; 12/24 V routes; PWM charger
PV and charger
Confirm MPPT or PWM type, PV cold Voc, operating window, PV watts, charge current and each exact-model limit.
Battery route
Confirm nominal voltage, chemistry, BMS/current limits, charge settings, temperature and the exact approved battery configuration.
AC and load route
Confirm input/source, output voltage/phase, continuous and surge loads, generator, transfer/bypass behavior, neutral and grounding.
Off-grid RFQ checks
Six checks before finalizing the inverter
Define the whole electrical route rather than selecting from a headline VA or watt number.
Exact code
Request model/suffix, nameplate and the applicable table row.
Load duty
List continuous watts/VA, power factor, motor start current, surge duration and critical circuits.
Battery
Fix voltage, chemistry, capacity, BMS, charge/discharge current, reserve and temperature.
PV
Provide module data, cold Voc, series/parallel layout, charger type and protection.
AC source and output
Confirm voltage, frequency, phase, generator, bypass/transfer, outlets and wiring.
Evidence
Request manual, wiring, settings, protection, supplied accessories, compliance evidence, warranty and commercial terms.
System boundaries
An inverter charger is not a complete off-grid system
Final performance and safety depend on the selected member plus PV, battery, load, protection and installation design.
Family boundary
Do not transfer watts, PV input, battery voltage, transfer time or optional functions across family members.
Battery compatibility
Voltage or lithium wording does not prove BMS pairing, current limits, charge settings or warranty approval.
PV and protection
Rated PV watts do not replace cold-Voc, MPPT/PWM, string protection, cable, isolator, SPD and grounding checks.
AC behavior
UPS, bypass, split-phase and generator labels require the exact manual and a load-specific acceptance test.
Continue the system review
Prepare an evidence-based off-grid RFQ
Record real loads, battery and PV inputs before asking for a final configuration.
Off-grid inverter FAQ
Questions to close before quotation
The exact member and installation design remain decisive.
Which rating applies to this VS 400–1600 W PWM off-grid inverter?
Use the exact quoted model and its table row. The current family record is 400–1,600 W table members; 12/24 V routes; PWM charger.
Can any same-voltage battery be used?
No. Confirm battery chemistry, BMS, current, charge settings, temperature and exact-model approval.
Does the inverter headline prove backup or generator compatibility?
No. Confirm source, bypass/transfer, load surge, AC wiring and generator behavior from the exact manual.
What documents should the RFQ include?
Request exact datasheet/manual, nameplate, wiring, PV/battery settings, protection schedule, compliance evidence, BOM and warranty.
Prepare a verified VS 400–1600 W PWM off-grid inverter RFQ
Send load schedule, AC source, PV string, battery/BMS, operating environment and destination evidence requirements.
