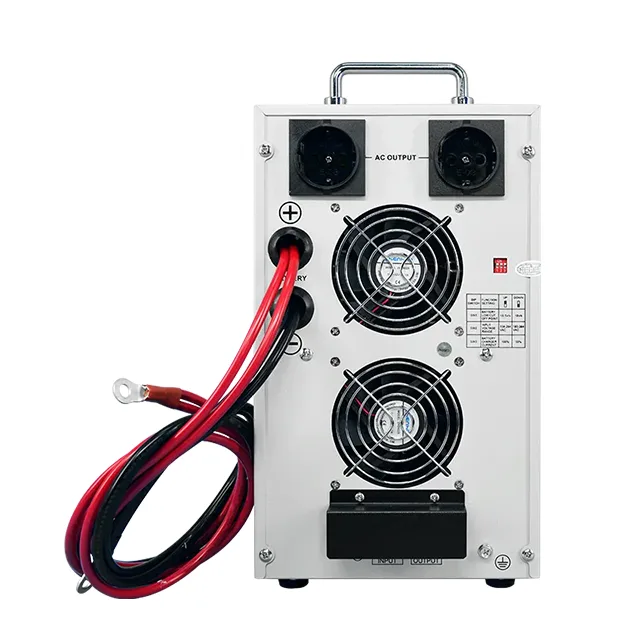

HB-series | 2kVA–10kVA pure sine wave power inverter charger

Off Grid Solar InverterModel evidence review

Techfine HB 2–10 kVA inverter charger: Verify Battery, PV and Load Configuration

Name: Techfine HB 2–10 kVA inverter charger: Verify Battery, PV and Load Configuration
Brand: Techfine

This page organizes the current source table for the Techfine HB 2–10 kVA inverter charger. 1.6–8 kW table members; 12/48 V routes. It does not turn a family range, voltage label or inverter/charger headline into a complete off-grid system design.

Displayed family: HB 2–10 kVA inverter charger

Current table route: 1.6–8 kW table members; 12/48 V routes

Scope: Off-grid inverter/charger family; exact model required

RFQ evidence: Manual, nameplate, wiring and battery settings required

Build Your RFQ

Current source route: HB 2–10 kVA inverter charger.

Downloads

hb-series brochure.pdf (PDF brochure / document)

Current source parameter table

This table is preserved from the current source record. Read it with the identity, compatibility and document boundaries below; unresolved conflicts are not corrected by assumption.

Model	HB2024F	HB3024F	HB3048F	HB5048F	HB10048F
AC Input
AC input voltage	220V/110V
Input voltage range	220V:154-264VAC±3V( Normal mode) 185-264VAC±3V(UPS mode) 110V:77-132VAC±3V( Normal mode) 92-132VAC±3V( UPS mode)
Input frequency	50/60Hz±5%
AC Mode Output
Output rated power	1600W	2400W	2400W	4000W	8000W
AC Mode output voltage	The Same As Input Voltage
AC Mode output frequency	The Same As Input Frequency
Battery Mode Output
Battery Mode output voltage	220VAC±10%(110VAC±10%)
Battery Mode output frequency	50HZ or 60HZ±1%
Battery Mode output wave	Pure Sine Wave
Battery & Charging
Battery type	Lead Acid Battery/water Battery/lithium Battery
Battery voltage	12V	48V
Battery charging voltage	13.75VDC	54VDC
Max AC charging current	20A	30A	15A	22A	56A
Battery charging voltage range	150-280VAC
System Operation
Transfer time	≤10ms
Load peak ratio	(MAX)3:1
ECO Mode(w)	15W	16W	16W	23W	32W
Display & Alarm
Protection	Overload /Short circuit/Low voltage/Battery reverse connection protection
Status display	AC voltage/AC frequency/Output frequency/Battery voltage/Load current
Audible alarm	Low battery protection buzzer long beep Low battery buzzer every second Overload buzzer long Overload less than 130%, buzzer every second; overload more than 150%, after 300ms, it will turn off Machine fault buzzer long
Environmental Conditions
Working temperature	0°C~40°C
Storage temperature	-15°C~45°C
Relative temperature	-10°C~90°C No condensation
Noise	＜45dB
Mechanical
Dimention(mm)	385190382	552190382
Net weight (kg)	14.6	17.2	17.85	22	36.1

Current document status

Request the exact model/suffix, nameplate, manual, PV/battery settings, wiring diagram, protection schedule and destination evidence before quotation release.

Current table evidence

Keep power, battery and AC rows on the same selected member

An off-grid inverter must be selected against actual loads, PV strings, battery current and site wiring.

Member route

1.6–8 kW table members; 12/48 V routes

PV and charger

Confirm MPPT or PWM type, PV cold Voc, operating window, PV watts, charge current and each exact-model limit.

Battery route

Confirm nominal voltage, chemistry, BMS/current limits, charge settings, temperature and the exact approved battery configuration.

AC and load route

Confirm input/source, output voltage/phase, continuous and surge loads, generator, transfer/bypass behavior, neutral and grounding.

Off-grid RFQ checks

Six checks before finalizing the inverter

Define the whole electrical route rather than selecting from a headline VA or watt number.

Exact code

Request model/suffix, nameplate and the applicable table row.

Load duty

List continuous watts/VA, power factor, motor start current, surge duration and critical circuits.

Battery

Fix voltage, chemistry, capacity, BMS, charge/discharge current, reserve and temperature.

PV

Provide module data, cold Voc, series/parallel layout, charger type and protection.

AC source and output

Confirm voltage, frequency, phase, generator, bypass/transfer, outlets and wiring.

Evidence

Request manual, wiring, settings, protection, supplied accessories, compliance evidence, warranty and commercial terms.

System boundaries

An inverter charger is not a complete off-grid system

Final performance and safety depend on the selected member plus PV, battery, load, protection and installation design.

Family boundary

Do not transfer watts, PV input, battery voltage, transfer time or optional functions across family members.

Battery compatibility

Voltage or lithium wording does not prove BMS pairing, current limits, charge settings or warranty approval.

PV and protection

Rated PV watts do not replace cold-Voc, MPPT/PWM, string protection, cable, isolator, SPD and grounding checks.

AC behavior

UPS, bypass, split-phase and generator labels require the exact manual and a load-specific acceptance test.

Continue the system review

Prepare an evidence-based off-grid RFQ

Record real loads, battery and PV inputs before asking for a final configuration.

Battery and backup sizing guide

Define usable energy, power, reserve and temperature assumptions.

Review sizing inputs →

Remote power planning

Map PV, inverter, battery, generator, loads and protection into one scope.

Review system scope →

Off-grid inverter FAQ

Questions to close before quotation

The exact member and installation design remain decisive.

Which rating applies to this HB 2–10 kVA inverter charger?

Use the exact quoted model and its table row. The current family record is 1.6–8 kW table members; 12/48 V routes.

Can any same-voltage battery be used?

No. Confirm battery chemistry, BMS, current, charge settings, temperature and exact-model approval.

Does the inverter headline prove backup or generator compatibility?

No. Confirm source, bypass/transfer, load surge, AC wiring and generator behavior from the exact manual.

What documents should the RFQ include?

Request exact datasheet/manual, nameplate, wiring, PV/battery settings, protection schedule, compliance evidence, BOM and warranty.

Prepare a verified HB 2–10 kVA inverter charger RFQ

Send load schedule, AC source, PV string, battery/BMS, operating environment and destination evidence requirements.
