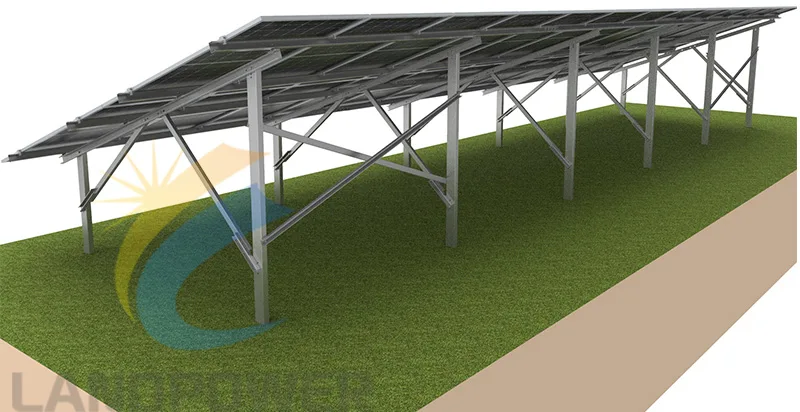

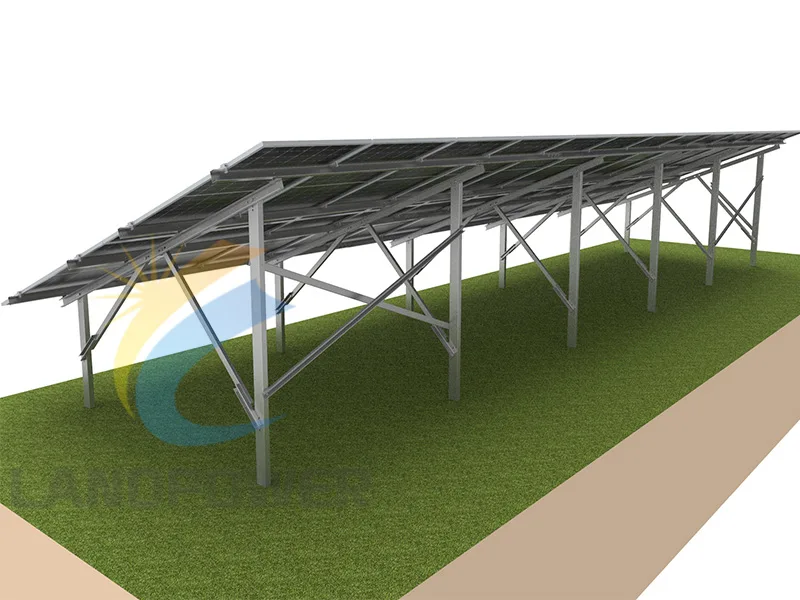

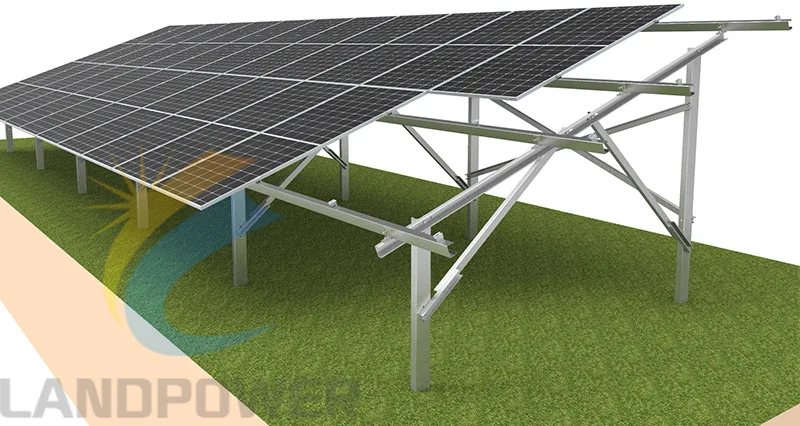

Pile Driven Steel Ground Mount Structure

This Pile Driven Steel Ground Mount Structure is made with MG-Al-Zn (similar with Magnelis or ZAM) coated steel represents a significant advancement over traditional hot-dip galvanized (HDG) materials for ground solar mounting systems. Superior Corrosion Protection , the innovative coating delivers up to 5 times better corrosion resistance than standard galvanized steel. This pile mounting structure also highlight its lower cost per watt.

TECHNICAL INFORMATION

Install site ： Open Field

Wind Load: Up to 60m/s

Snow load: <1.4KN/m2

Module Type: Framed or Frame-less

Module Arrangement: Portrait or Landscape

Tilt Angle:0-65 deg. Design on request

Foundation: Pile Driven

Main Material ： Zn-Al-Coated Steel

Anti-corrosive: Zn-Al-Coated Steel

Certificate: CE Approved

Standard ： En 1090, AS/NZS 1170,DIN 1055, IBC 2006 and other international Standard

Warranty ： 12 years warranty and twenty- year service life

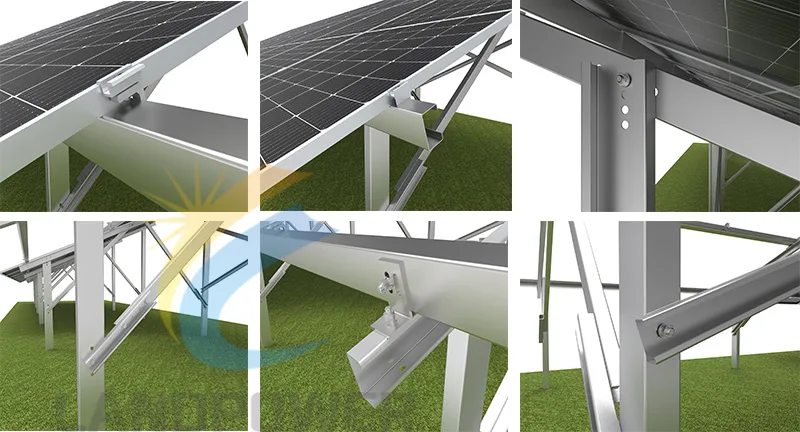

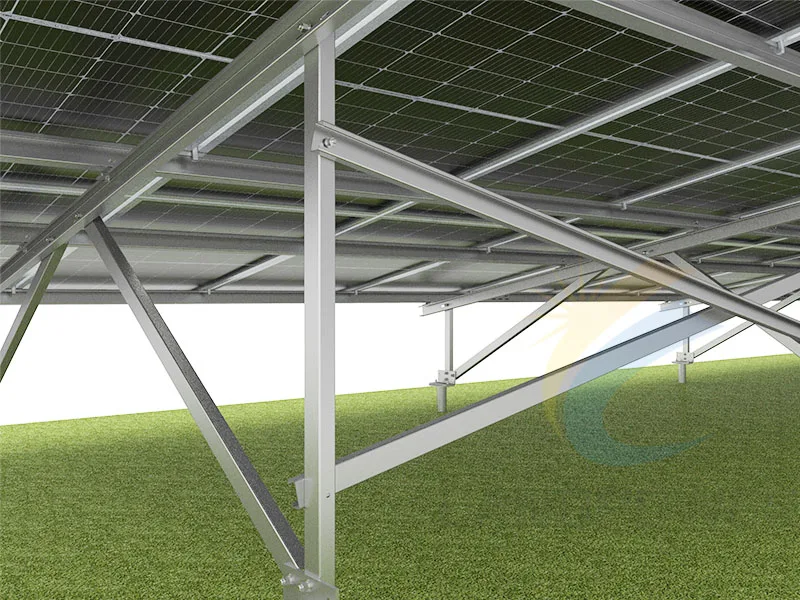

Detail Structure of Pile Ground Mounting Systems

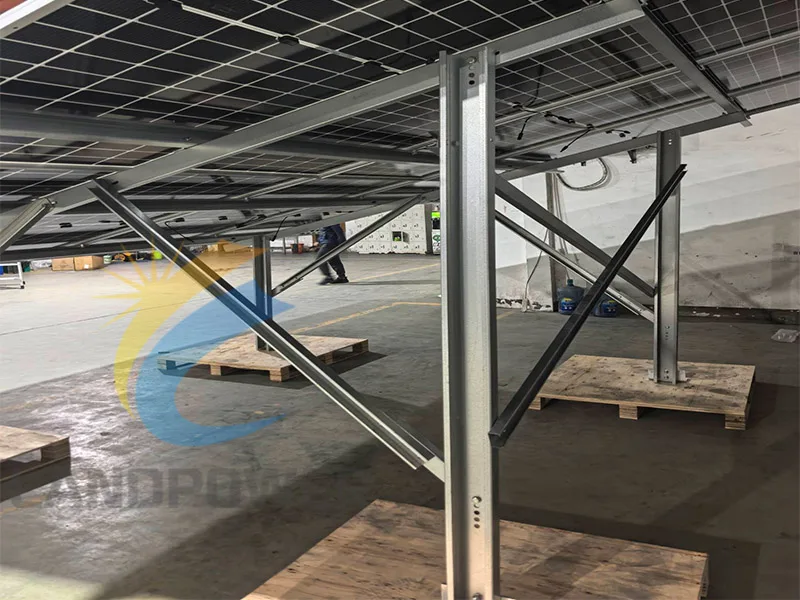

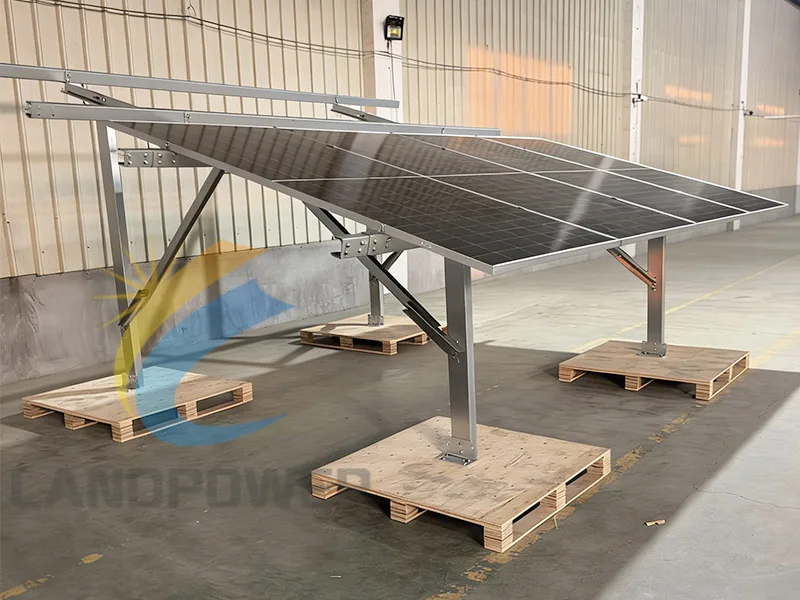

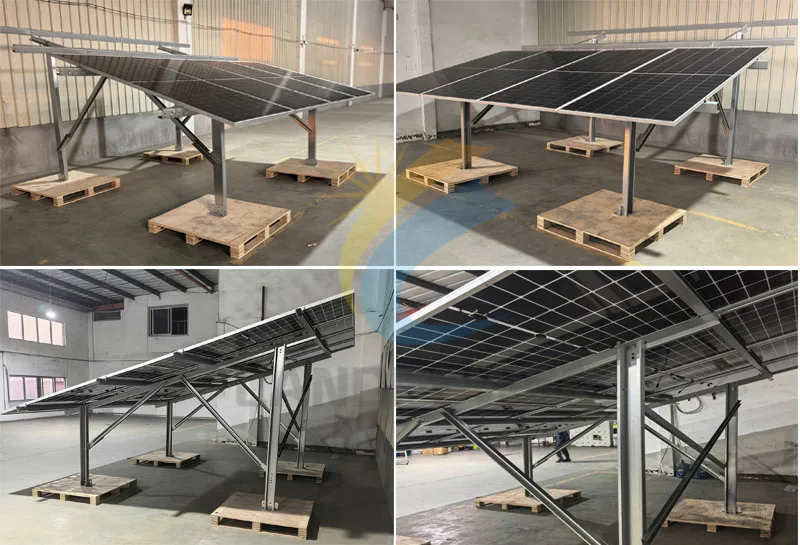

This steel ground mounting system has passed strict pull-out testing, making it ideal for many different project sites. Check out the Test Video:

Mg-Al-Zn coated steel offers three main advantages over hot-dip galvanized steel:

Superior corrosion resistance - It performs over 10 times better in salt spray tests due to magnesium's role in forming dense protective layers that block further corrosion.

Enhanced mechanical durability - The coating is harder and more resistant to stone chipping. Damage pits are shallower, and red rust appears much later than with traditional zinc coatings.

Better edge protection - It provides superior protection at cut edges and confined areas where standard galvanized steel typically fails first.

These advantages stem from magnesium's ability to stabilize protective corrosion products and buffer pH at the steel surface, resulting in significantly longer service life.
