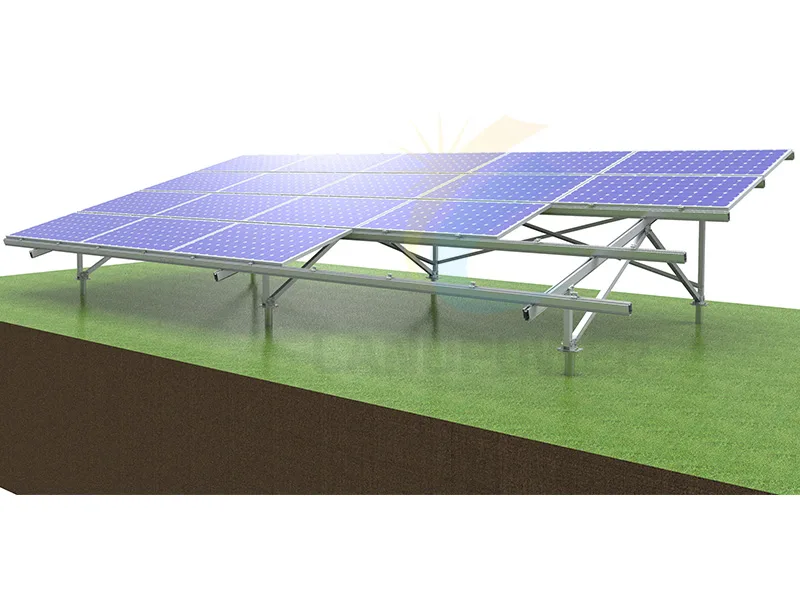

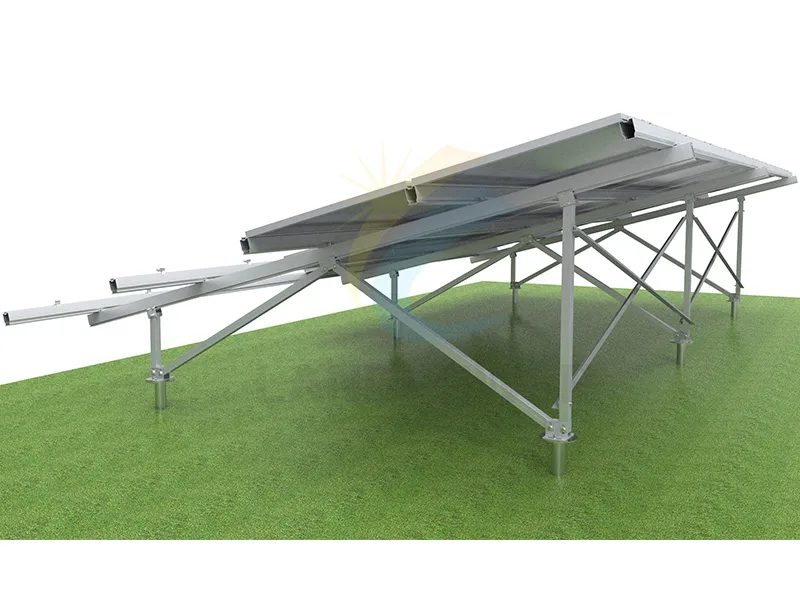

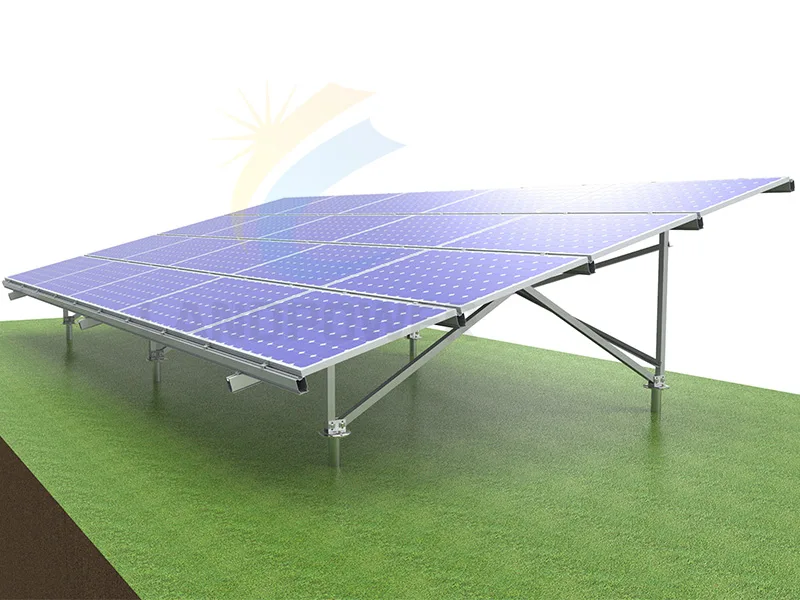

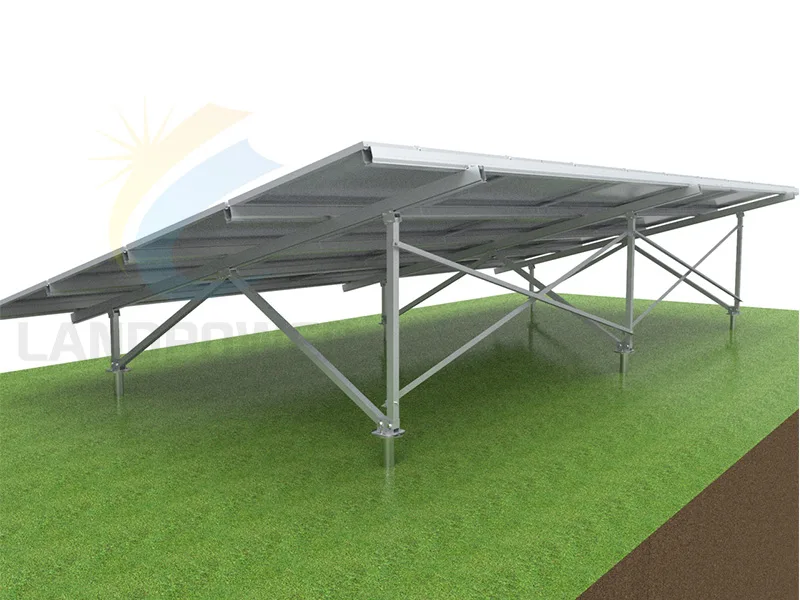

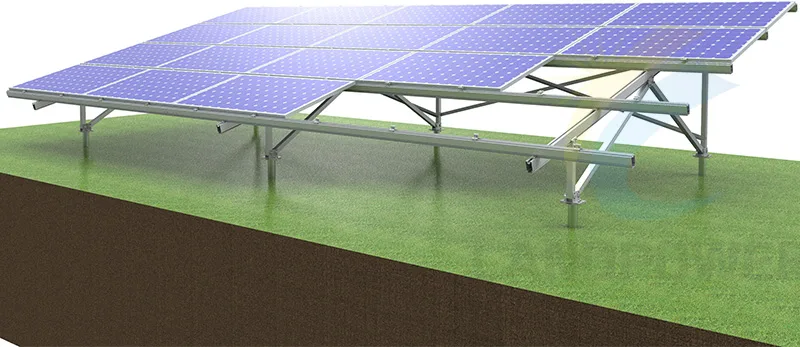

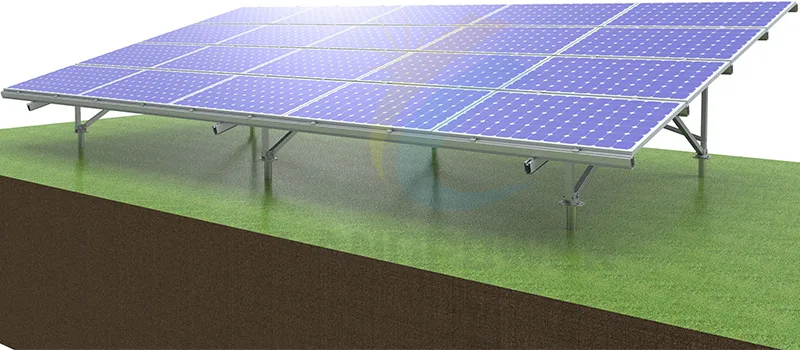

Aluminium Ground Mounting Landscape
The Landscape Aluminum Ground Mounting are good on anti-corrosion,and less after service problem, most of parts are pre-assembled for fast installation, save cost and they with superior aesthetics.
Item No
LP-GMA-L01
MOQ
1PCS
Color
Black,Silver
Lead Time
7-15days
Product Details

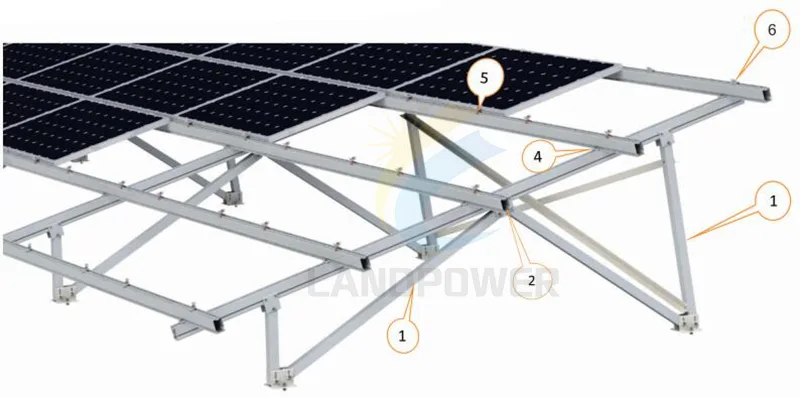

The Aluminum Ground Mounting are anodized with A2 fasteners,it is very good mounting material for anti-corrosion,less after service problem,which more long lifespan for using. The triangle supports are design to be foldable and the most of part are pre-assembled in the factory,so it is quite easy and fast on the installation, save labour cost,it is also cost-effective mounting structure with superior aesthetics.
TECHNICAL INFORMATION
Install site ：Open Field
Module Type: Framed or Frame-less
Module Arrangement:Portrait or Landscape
Tilt Angle:0-65 deg. Design on request
Foundation:Ground Screw or Concrete
Main Material ：Aluminum 6005-T5& Stainless steel A2(304)
Color: Silver,Black or Customized
Anti-corrosive: Anodized aluminum & stainless steel,EPDM
Standard ：En 1090, AS/NZS 1170,DIN 1055, IBC 2006 and other international Standard
Warranty：12 years warranty and twenty- year service life

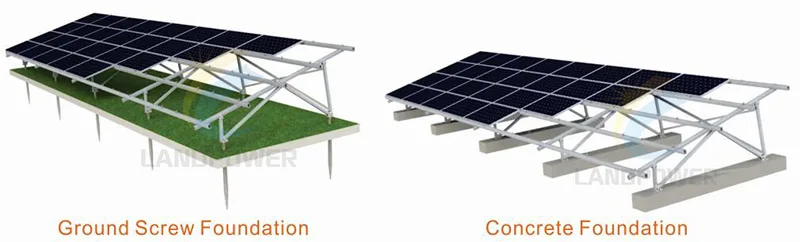

TWO FOUNDATION OPTIONS:
THE GROUND MOUNTING STRUCTURE INSTALLATION VIDEO DEMO.:
THE MW PROJECTS FOR REFERENCE:
