Aluminium Ground Mounting Portrait
The Aluminium Ground Mounting Rack are simple and easy mounting solution for large scale commercial solar PV installation, with anodized aluminum part and stainless steel fasteners,the structure are cost-effective.
Item No
LP-GMA-P01
MOQ
1 PCS
Color
Black,Silver
Lead Time
7-15days
Product Details

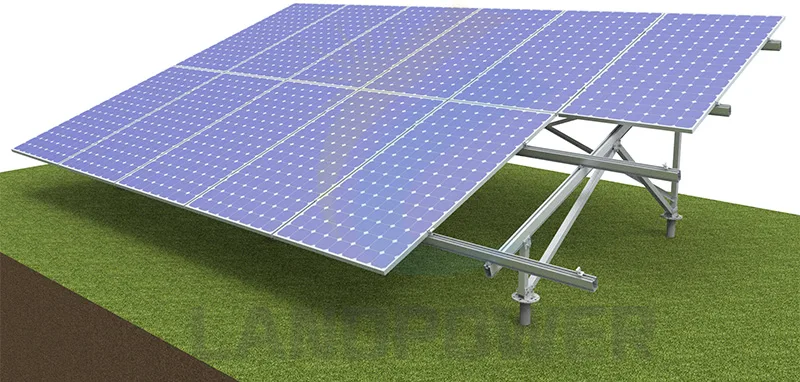

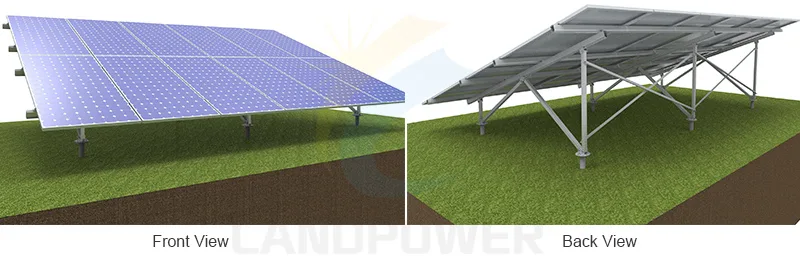

The Portrait Aluminium Ground Mounting is designed for large scale solar plant installation. There are less components,and components is pre-assembled to make the mounting structure easy and reduce installation time,which actually make the cost low.The material of system are aluminium and with anodized film,the accessories are assembled with stainless steel fasteners,the ground mount are at high quality with super aesthetic.
TECHNICAL INFORMATION
Install site ： Open Field
Module Type: Framed or Frame-less
Module Arrangement:Portrait
Tilt Angle:0-65 deg. Design on request
Foundation:Ground Screw or Concrete
Main Material ： Aluminum 6005-T5& Stainless steel A2(304)
Color: Silver,Black or Customized
Anti-corrosive: Anodized aluminum & stainless steel,EPDM
Standard ： En 1090, AS/NZS 1170,DIN 1055, IBC 2006 and other international Standard
Warranty ： 12 years warranty and twenty- year service life

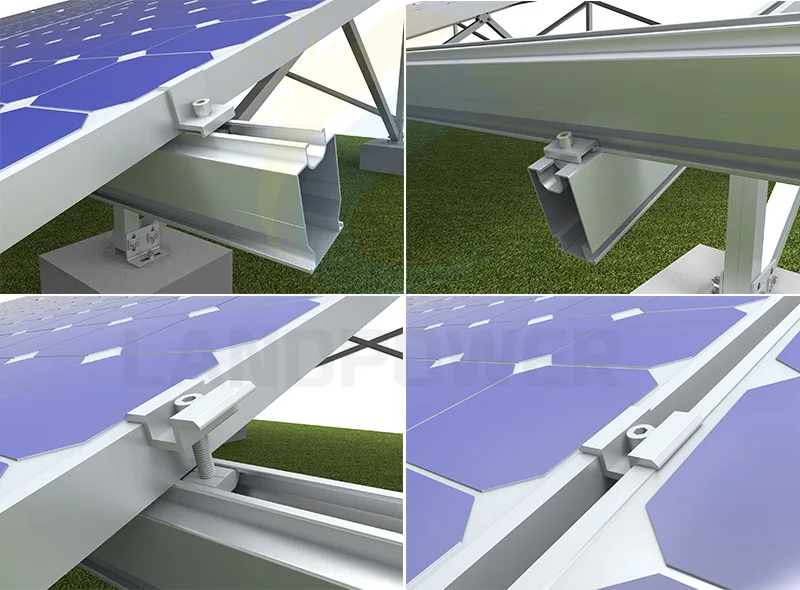

Main Components of The Ground Structure

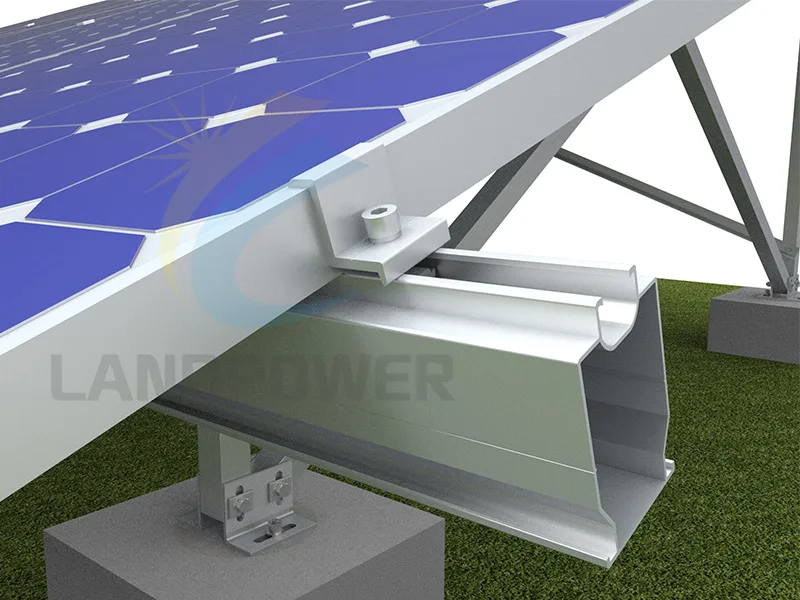

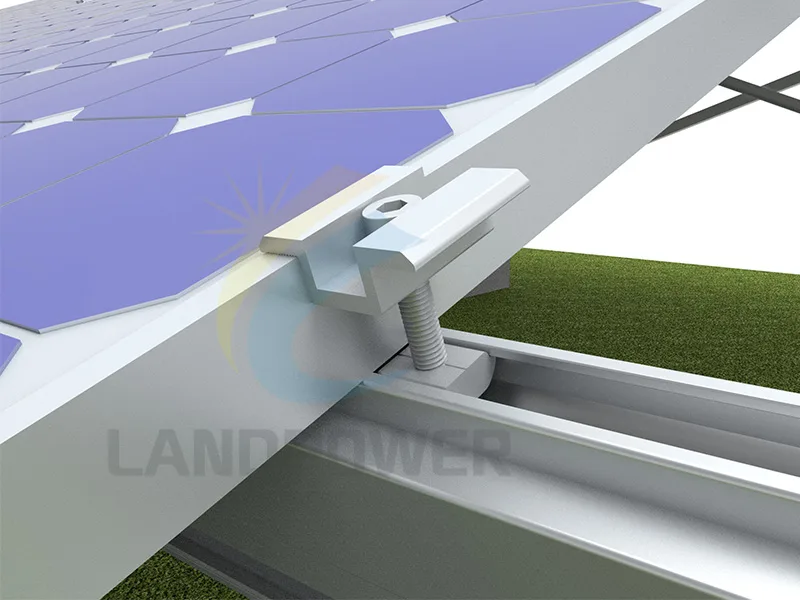

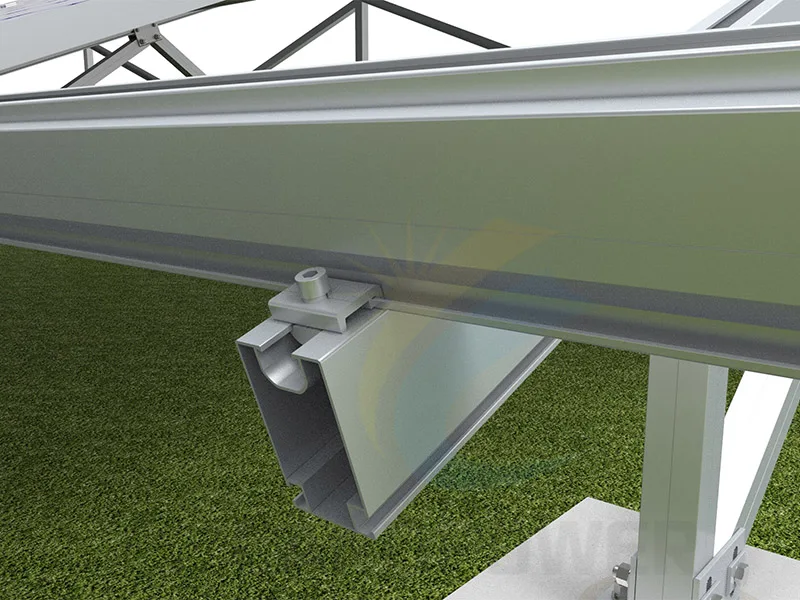

There are few components such as middle clamps, end clamps, and pre assembled triangular brackets; Installing of the system is fast and simple.

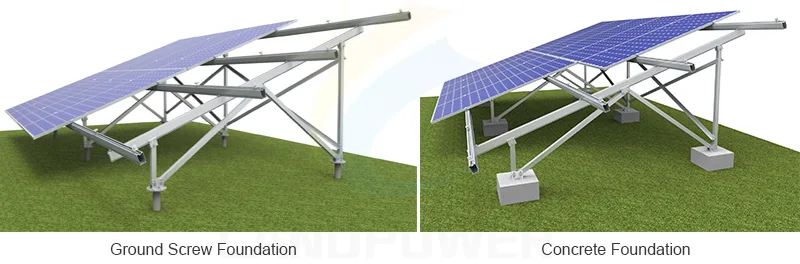

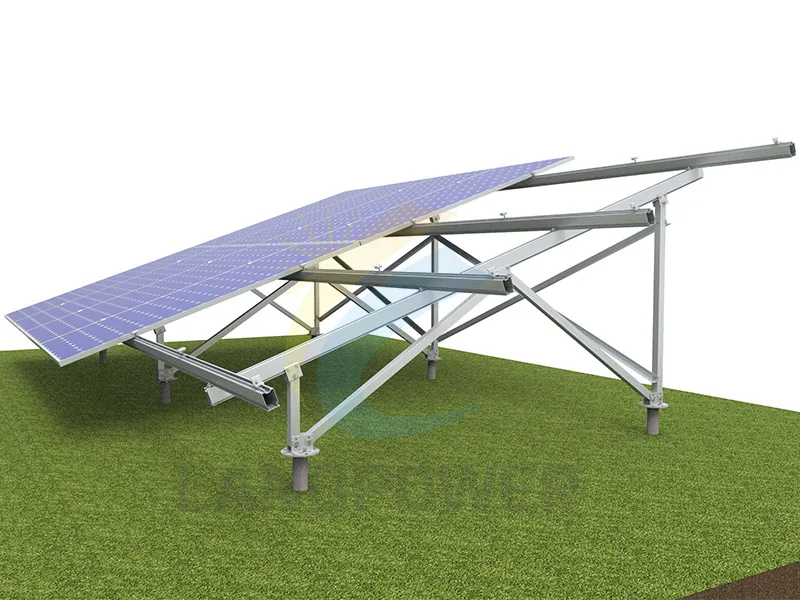

There are two aluminum ground mounting base s options , concrete foundation or grounding screw.
Video of Installation
MW Groud Mounted Project Reference
