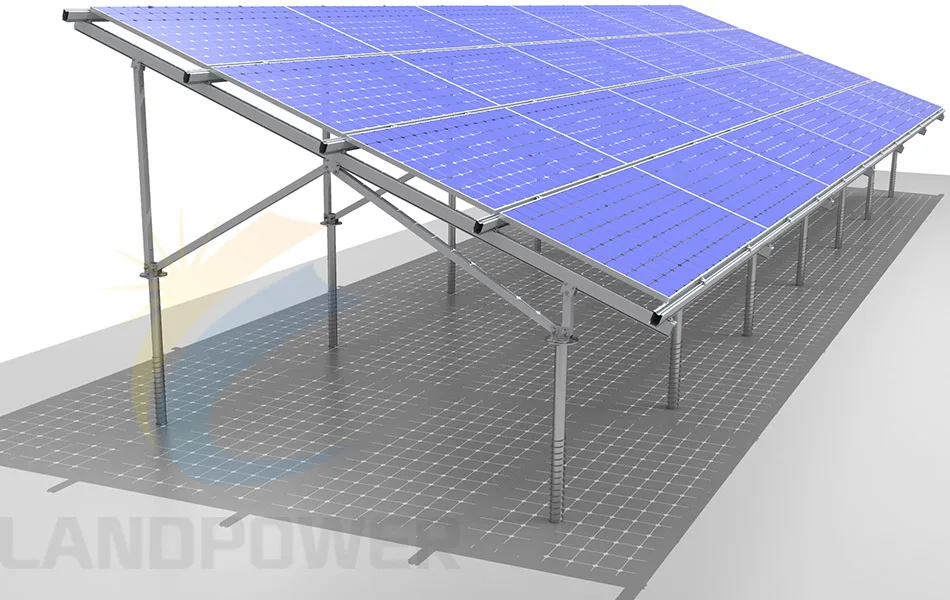

Bifacial Solar Panel Ground Mounting Structure

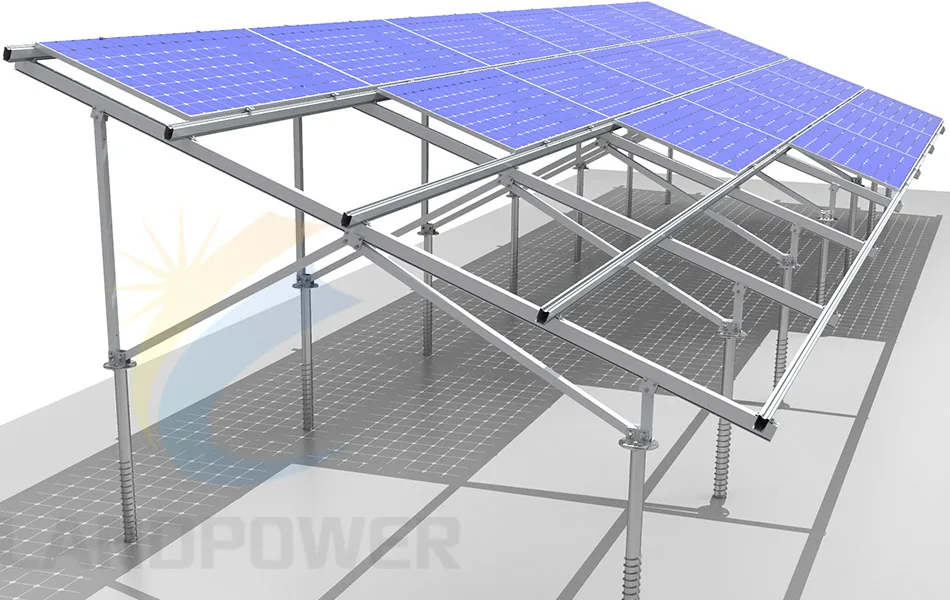

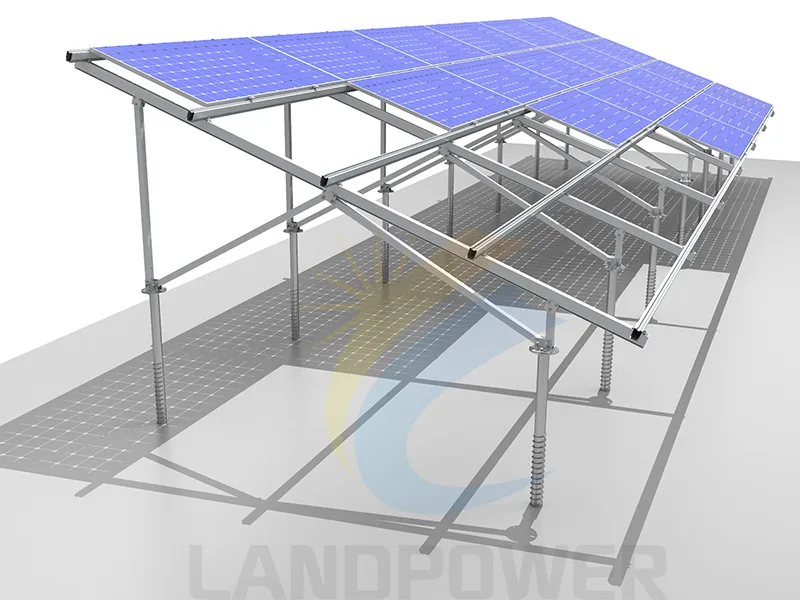

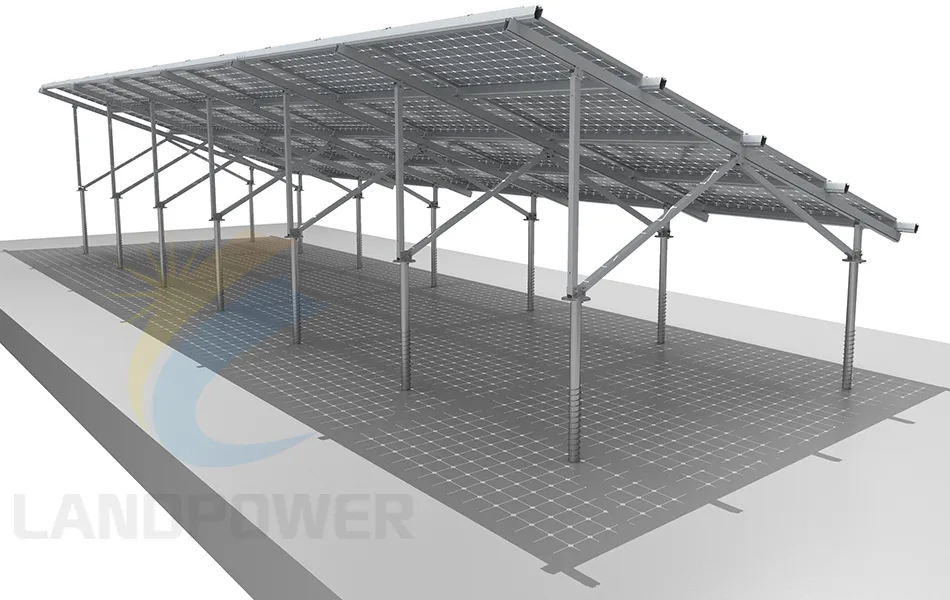

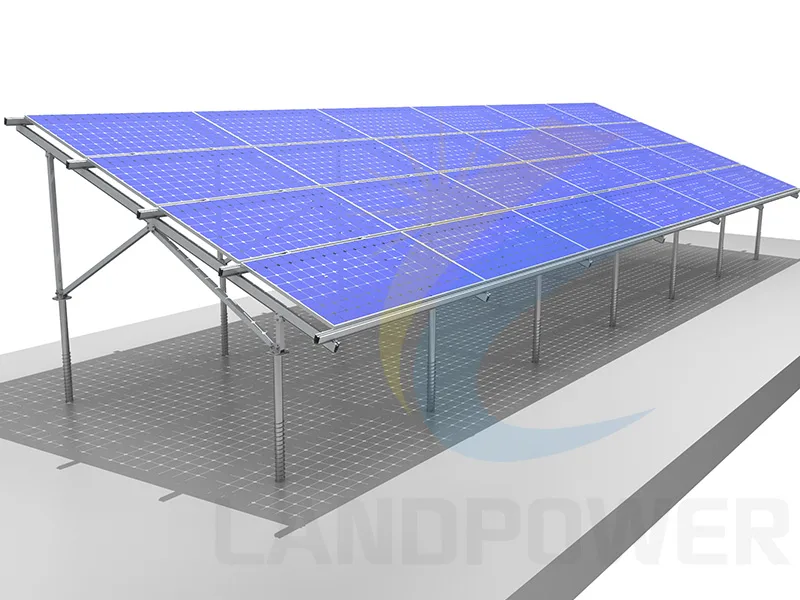

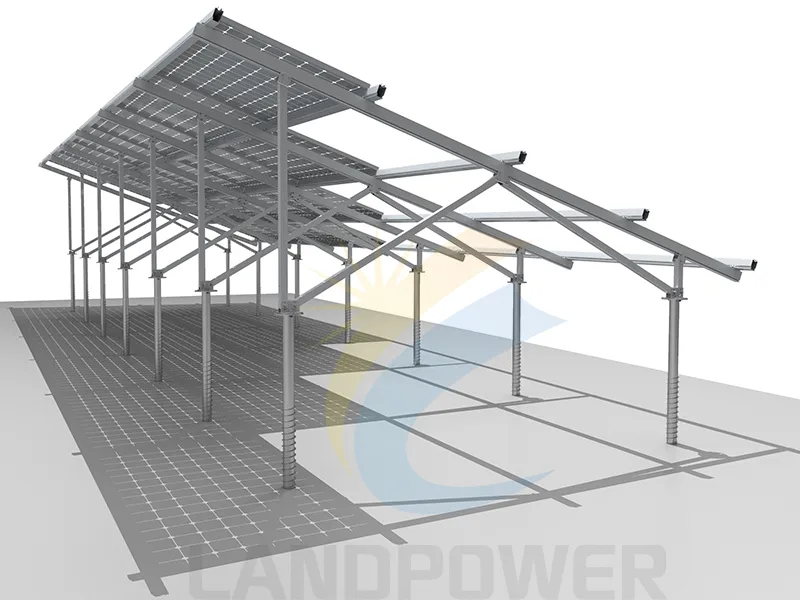

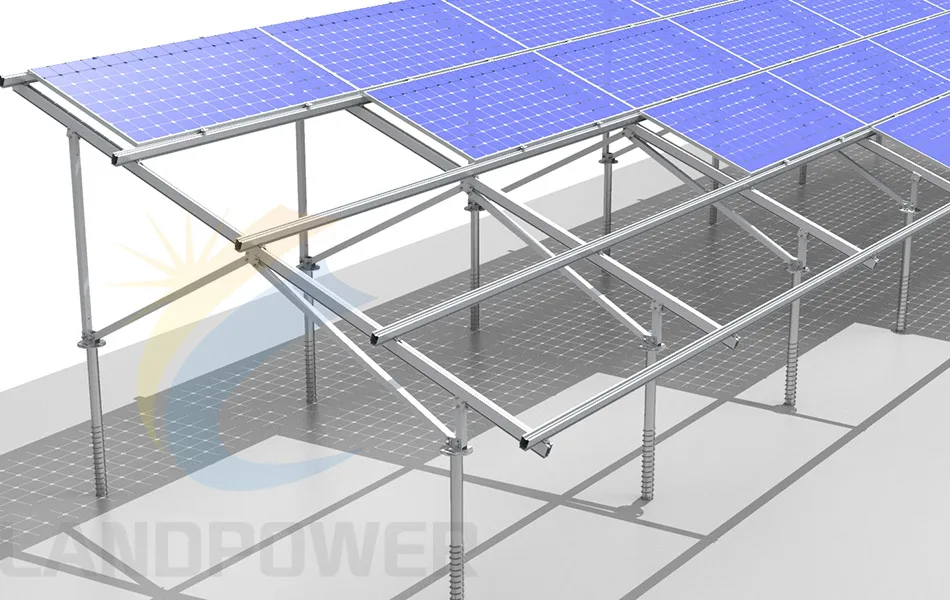

Bifacial Solar Panel Ground Mounting Structure is specially designed according to the characteristic of bifacial solar panel which requests no shading from front and back of panel. Our bifacial solar panel mounting solutions allow sunshine not only directly come from front side of panel and also capture sunlight on rear sides of panels. The bifacial solar PV mounting is pre-assembled, fast to install, and made of high quality of aluminum alloy. It is simple and cost-effective mounting solutions for Bi-Facial solar panels.

TECHNICAL INFORMATION

Install site ： Open Field

Wind Load: Up to 60m/s

Snow load: <1.4KN/m2

Module Type: Framed or Frame-less

Module Arrangement: Landscape

Tilt Angle:0-65 deg. Design on request

Foundation: Ground Screw or Concrete

Main Material ： Aluminum 6005 T5

Anti-corrosive: Anodized

Standard ： En 1090, AS/NZS 1170,DIN 1055, IBC 2006 and other international Standard

Warranty ： 12 years warranty and twenty- year service life

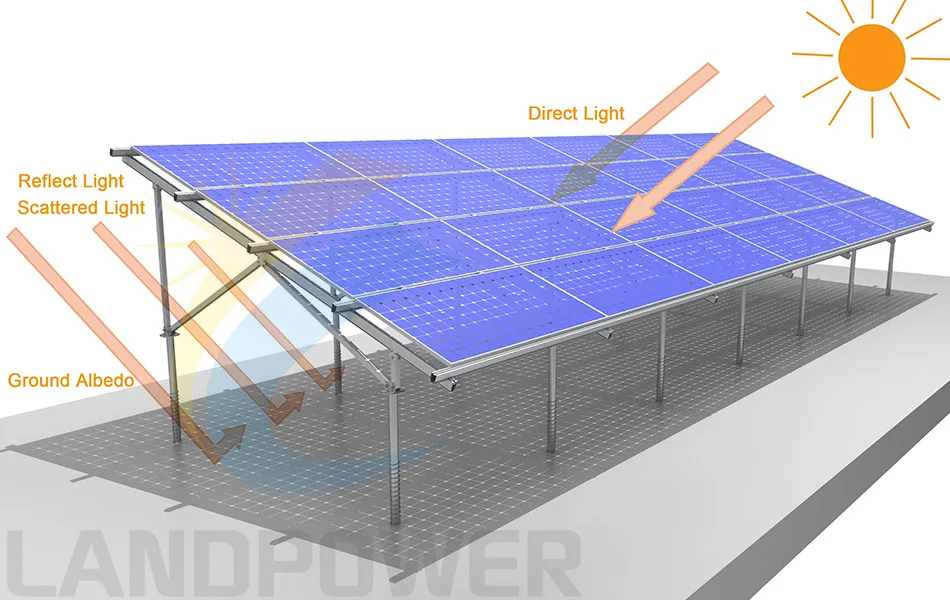

The mounting structure ensure no shading on both rear and front sides of panel, it allow the bifacial panel to capture direct light from front side, and can get the reflect and scattered light from ground or nearby surfaces. The bifacial mounting system is helpful to harness additional sunlight and increases their efficiency.

Overview of the Bi-facial Solar Panel Mounting System

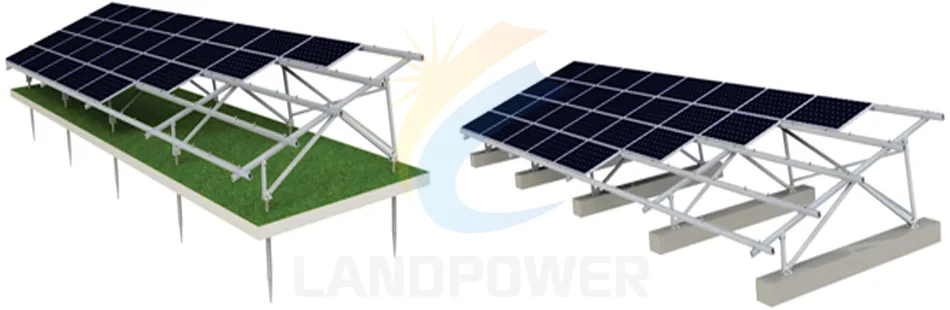

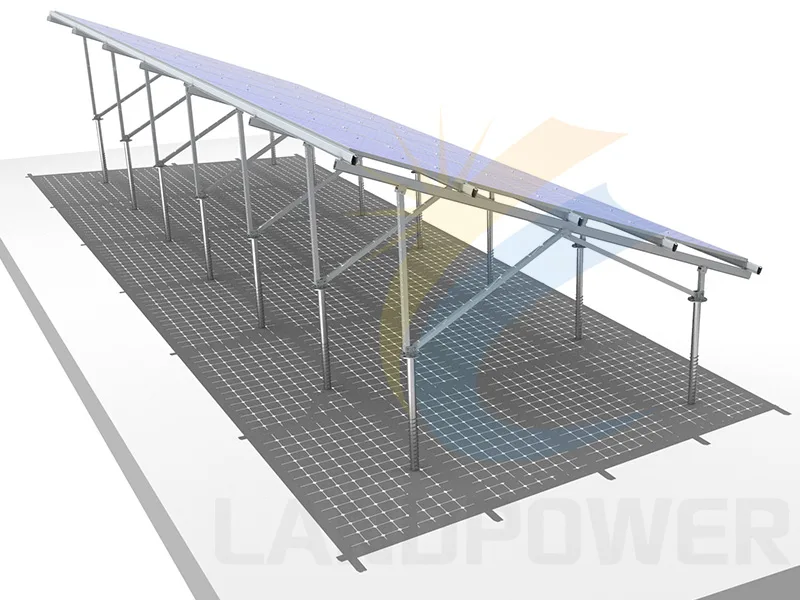

There are two foundation options for the Bifacial Panel Structure, it can be using ground screw as foundation, which faster to install and save labor cost. Alternatively, the concrete block and concrete foundation can be used as well.

(Ground Screw) (Concrete Block)
