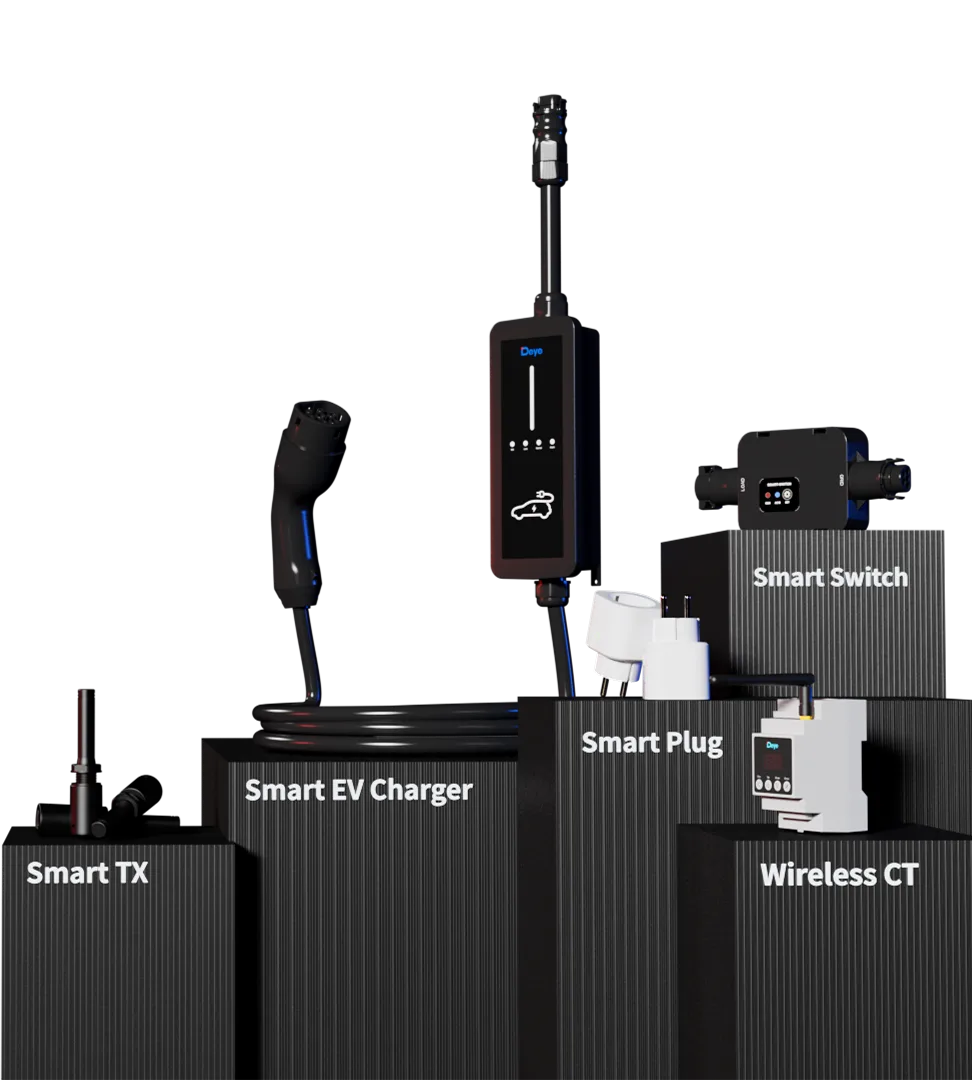

Wireless energy management system

Downloads

Overview

Model	SUN-SMART-CT01
Electrical param
Connection Type	L1/N(Single phase)，L1/L2/L3/N(Three phase)
CT	Secondary current: 50mA
Operation Voltage	85~300V a.c.(L-N)
Rated Frequency/Range	50Hz(45Hz-55Hz)/60Hz(55Hz-65Hz)
Self Consumption Power	≤2W
AC voltage withstand	4KV/1min
Accuracy
Voltage	±0.1V
Current	±0.01A
Frequency	±0.01Hz
Power	±1W
Communication and Display
Communication Interface	Lora/RS485
Lora Communication Distance	≈200m(Barrier free)
Display	LCD
Display Data	Voltage、Current、Active power、Reactive power、Frequency、Power Factor、Energy
General Data
Operation Temperature	-40 to +60℃
Operation Humidity	0-75%
Ingress Protection(IP) Rating	IP20
Altitude	≤4000
Mounting	DIN-Rail Mounting
Size	53x96x64mm
Weight	0.15kg
Warranty	5 Years
Certification standards	IEC/EN 61010-1

Model	SUN-SMART-TX01
Electrical Parameters
Input Voltage	DC 5V
Communication
Communication Model	LoRa
Communication Distance	≈200m(Barrier free)
Basic Parameters
Operating Temperature Range	-40 to +60℃
Permissible Ambient Humidity	0-100%
Ingress Protection(IP) Rating	IP20(After installation IP65)
Allowable Altitude	≤4000
Product size (WxHxD)	137.8x31.3x31.3mm
Weight	45.8g
Warranty	2 Years
Standard	IEC/EN 62368-1
LoRa Parameters
Frequency Range	863MHz-870MHz
Antenna	Built-in
Antenna Gain	0.56dBi

Model	SUN-SMART-SWITCH01P3
Electrical Parameters
Voltage Range	94-238Va.c.(Phase voltage)
Connection Type	L1/N(single phase), L1/L2/L3/N(three phase)
Maximum Current	25A a.c.(Phase current)
Frequency and Range	50Hz(45Hz-55Hz)/ 60Hz(55Hz-65Hz)
Connection	Connector plug-in type
Communication
Communication Model	LoRa
Lora Communication Distance	≈200m(Barrier free)
Basic Parameters
Working Temperature Range	-40 to +45°C
Allow Environmental Humidity	0-100% RH
Ingress Protection(IP) Rating	IP65
Protection level	CLASS I
Allowable altitude	≤4000m
Product size (WxHxD)	96.7x204.7x37.7mm
Weight	0.4kg
Warranty	5 Years
Standard	IEC/EN 61010-1
Lora Parameters
Frequency Range	863MHz-870MHz
Antenna	Internal antenna
Antenna Gain	1.58dBi@868MHz

Model	SUN-SMART-PLUG01-F
Electrical Parameters
Rated voltage	220-250V a.c.
Maximum current	16A a.c.
Frequency and Range	50Hz(45Hz-55Hz)/60Hz(55Hz-65Hz)
Connection	Plug-type
Communication
Communication Model	LoRa
Lora Communication Distance	≈200m(Barrier free)
Basic Parameters
Working Temperature Range	-40 to +60°C
Ingress Protection(IP) Rating	IP20
Protection level	CLASS I
Allowable altitude	≤3000m
Product size (WxHxD)	51.2x51.2x64mm
Weight	0.08kg
Warranty	5 Years
Standard	VDE 0620-2-1;EN 61058
LoRa
Frequency Range	863MHz-870MHz
Antenna	Internal antenna
Antenna Gain	0.3.23dBi@868MHz

Model	SUN-EVSE11K01-EU-AC	SUN-EVSE22K01-EU-AC
Product Parameter
Input Voltage/Range (V)	230/400	230(single phase), 230/400(three phase)
Connection Mode	3L+N+PE	L+N+PE,3L+N+PE
Input Current (A)	16	32
Input Frequency/Range	50/45-55, 60/55-65
Maximum Output Power (kW)	11	7(single phase)/ 22(three phase)
Starting Method	plug And Charge /Charge After Scanning/Schedule Chargin
Equipment Protection
Over Temperature Protection	Yes
Low Temperature Protection	Yes
Over Voltage Protection	Yes
Under Voltage Protection	Yes
Short Circuit Protection	Yes
Over Load Protection	Yes
Earth Fault Protection	Yes
Leakage Current Protection	DC 6mA
Surge Protection Level	TYPE II
General Data
Operating Temperature Range (°C)	-40 to +55
Permissible Ambient Humidity	5%~95% No condensation
Permissible Altitude (m)	<3000
Noise (dB)	≤25
Ingress Protection(IP) Rating	IP 66
Cabinet Size (WxHxD mm)	104x264x57.5
Weight (kg)	3.7
Gun Cable Length (m)	4.2
Number Of Charging Guns	1
MTBF	100,000h
Safety EMC/Standard	EN IEC 61851-1:2019, IEC 61851-1:2017, EN 300 220-2 V3.1.1:2017, EN 300 328 V2.2.2:2019, EN IEC 62311:2020 EN 301 489-1 V2.2.3:2019, EN 301 489-3 V2.3.2:2023, EN 301 489-17 V3.3.1:2024, EN IEC 61000-6-1:2019 EN IEC 61000-6-3:2021, EN IEC
Interface
Communication Mode	LoRa/Wi-Fi/BLE
