MECD
The MECD communications gateway collects and delivers modular performance data in real time, for comprehensive monitor and manage of your solar system, optimizing the performance of your solar system. With built-in quick shutdown application, the MECD is able to control the microinverter connected shutdown immediately when the dry contact is activated.
Send InquiryOverview
MECD The MECD communications gateway collects and delivers modular performance data in real time, for comprehensive monitor and manage of your solar system, optimizing the performance of your solar system. With built-in quick shutdown application, the MECD is able to control the microinverter connected shutdown immediately when the dry contact is activated.
Product Highlights
Features

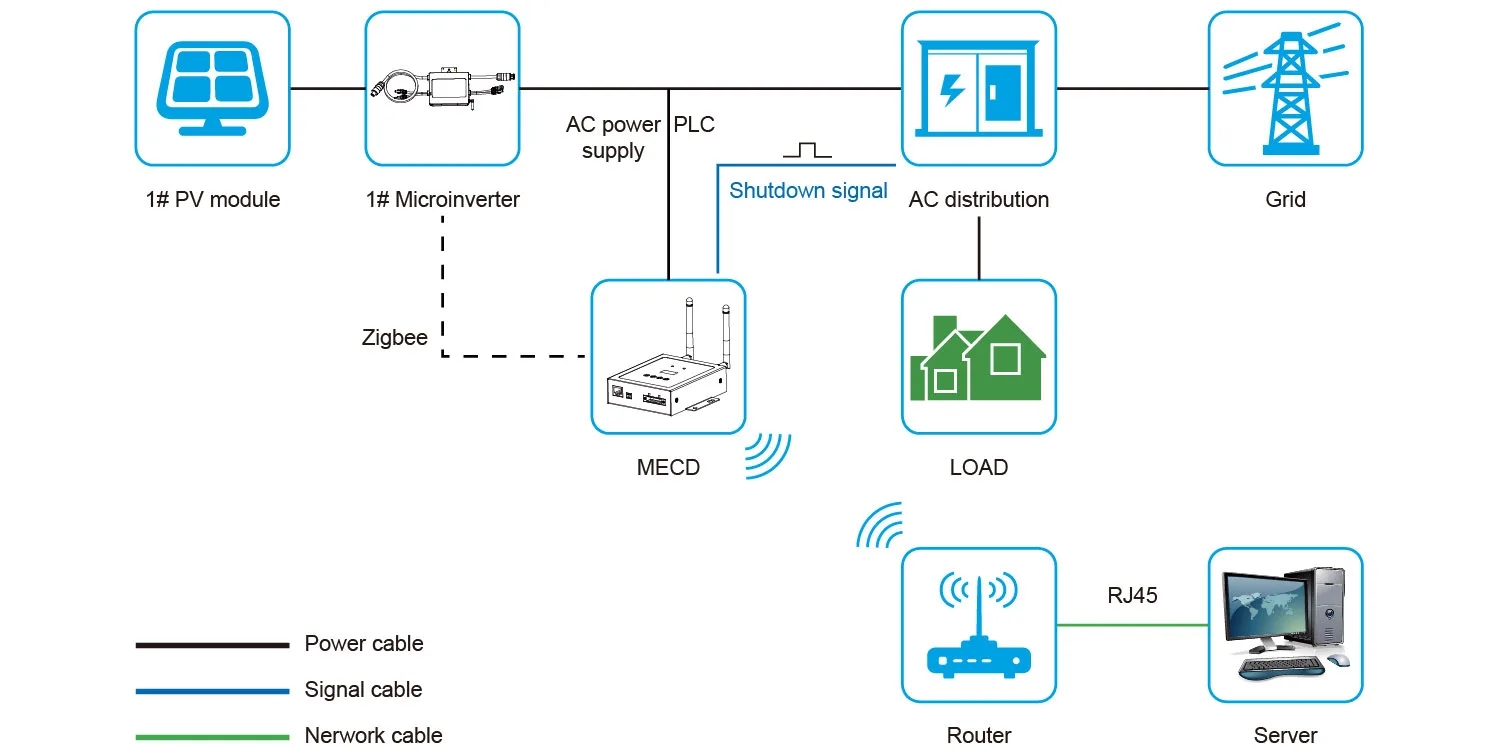

Built-in Zigbee, PLC and WIFI modular.
Suitable for single-phase and three-phaseapplications.
Enables remotely monitoring and management.
OLED display and buttons, easy operation.
Compact design and light in weight.
Support quick shutdown remotely.
Robust design, 3 years warranty.
Specifications
| Model | MECD |
|---|---|
| Communication interface | |
| Communication method | Zigbee, PLC |
| Max. number of inverters connected | 5、10、20、32 (Max.) |
| Communication to router | WIFI |
| WIFI wireless security | WEP, WPA2-PSK |
| RS485 | Reserved |
| Max. distance (free space) | PLC 300m; Zigbee 100m (Max. straight-line distance) |
Power Supply
| Power Supply | |
|---|---|
| AC power supply | 100 to 240V AC, 50/60Hz |
| Power consumption | 5W typical, 10W Maxinum |
Mechanical Data
| Mechanical Data | |
|---|---|
| Dimenstions (L/H/W) in mm | 133.6×132×35.5 mm |
| Weight (kg) | 0.3 |
| Operation temperature range | -20~+50℃ |
| Mounting method | Wall-mounted |
| Display | OLED and LED indicators |
Features
| Features | |
|---|---|
| Grid type | Single phase/three phase |
| Digital Input | Control device connection |
Other
| Other | |
|---|---|
| Compliance | IEC60950, IEC61000-6-2, FCC Part15 Class B / Class C |
| Warranty | 3 years |
