Overview

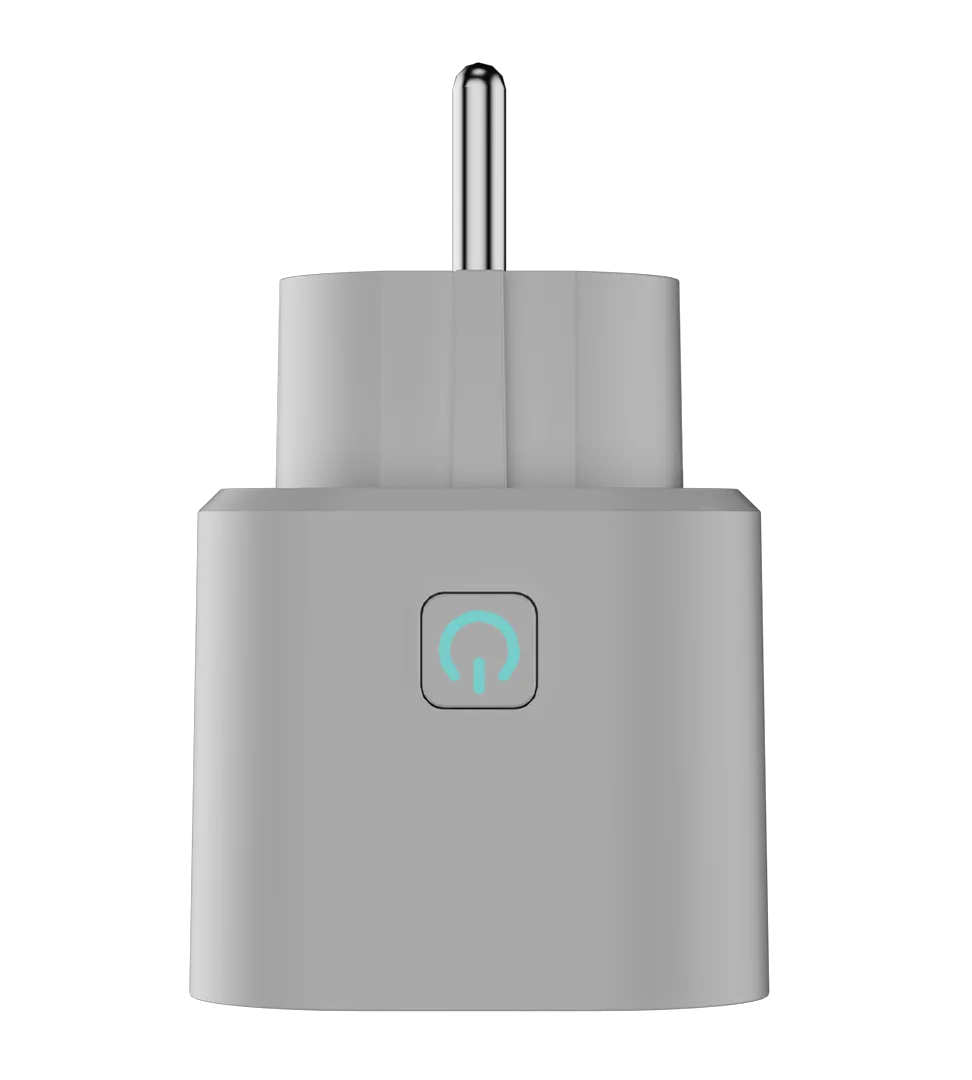

Smart Plug
Product Highlights
Features
01

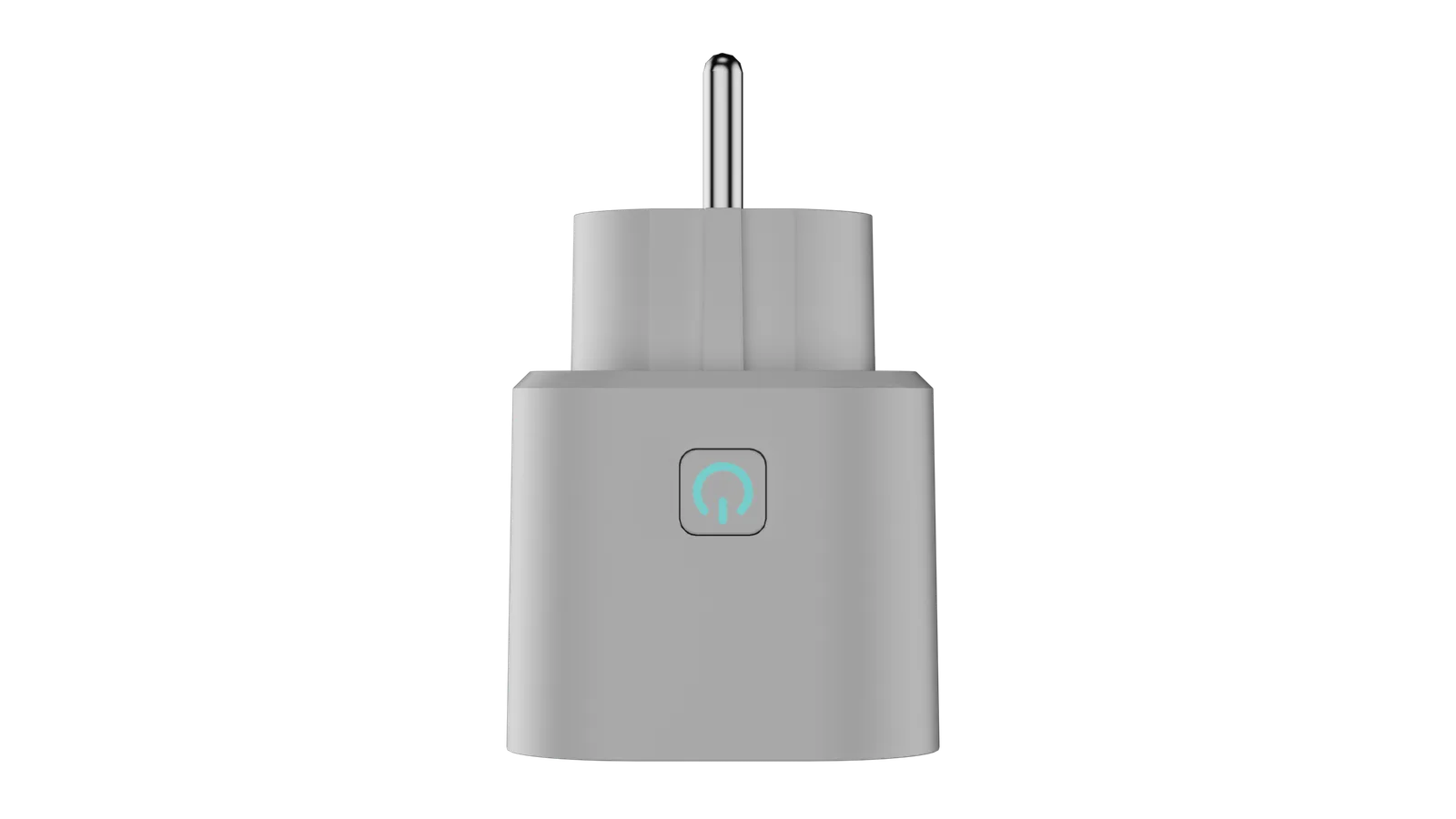

Low latency
02

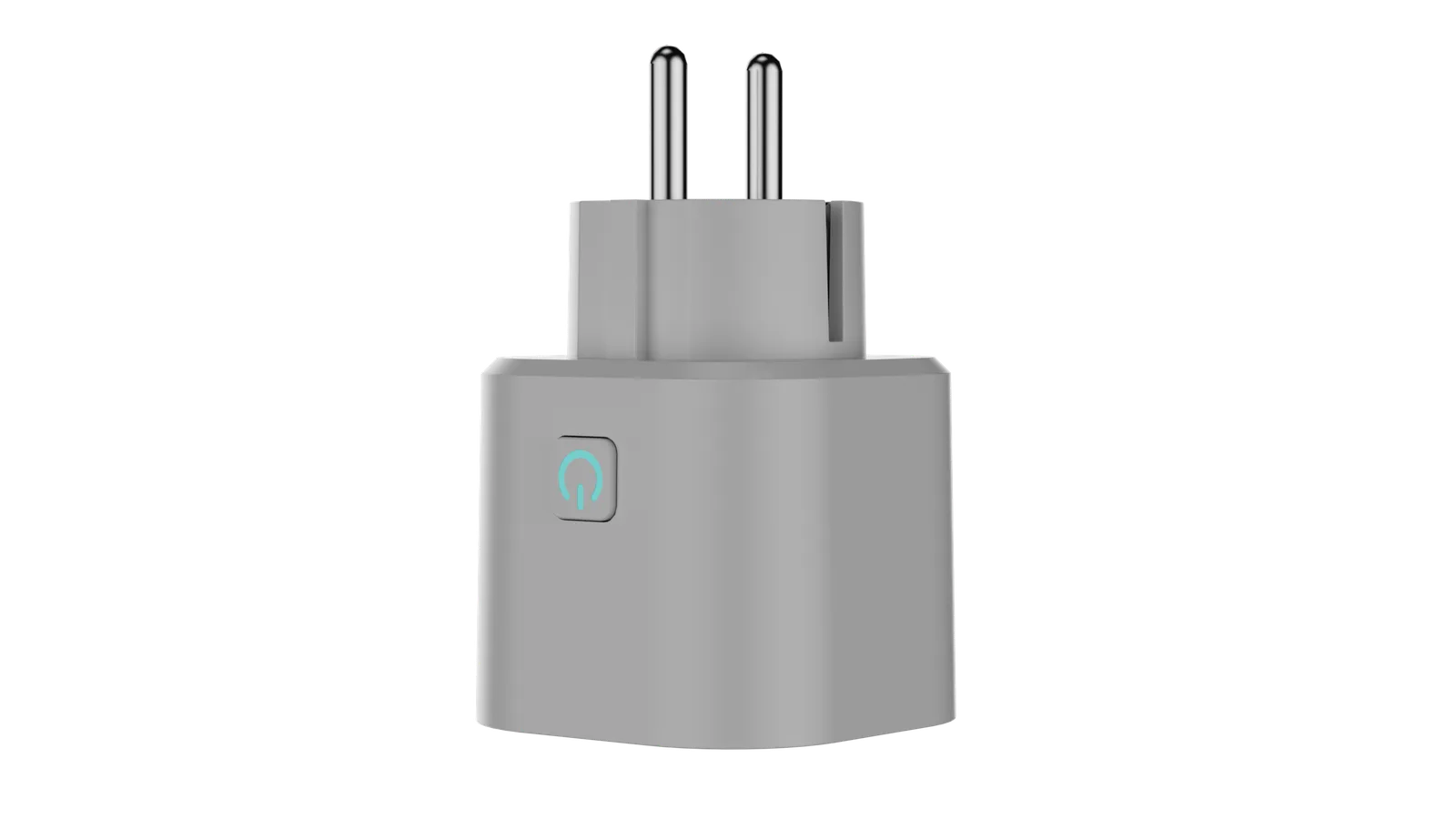

Long-range communication
03

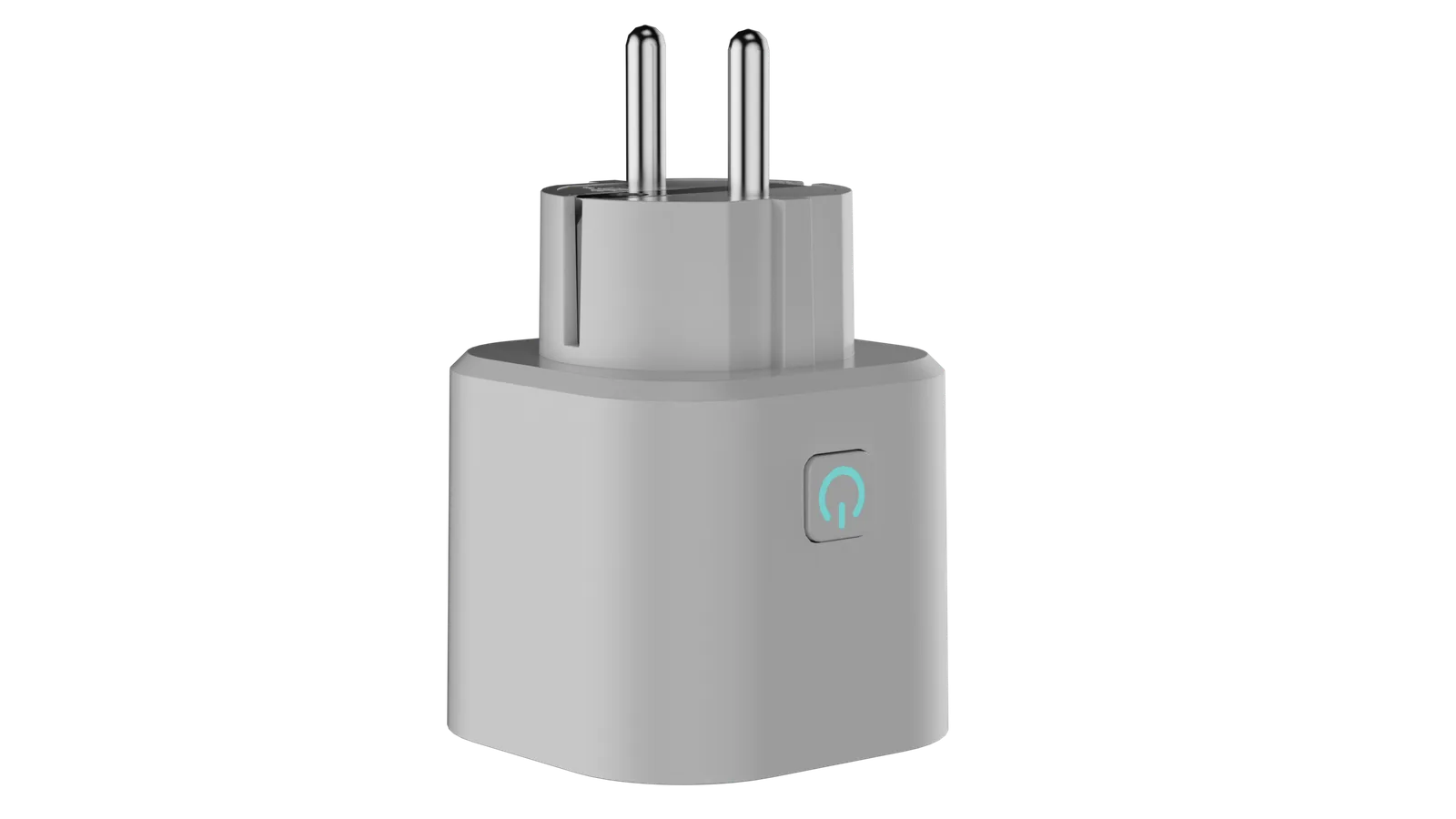

Offline operation
04

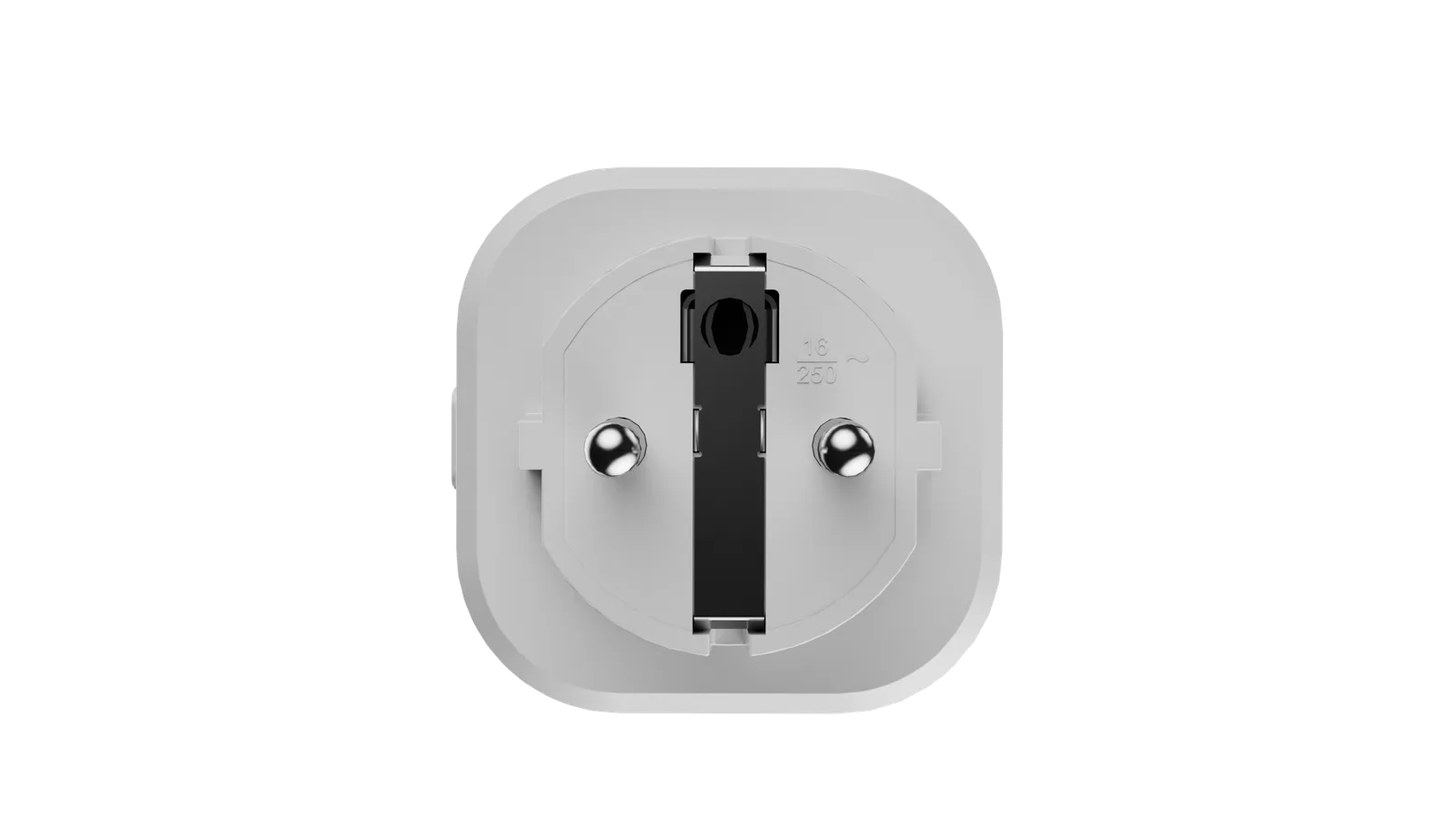

Plug in for instant smart upgrade
05
Custom strategies by time, SOC & grid status
06
Real-time power monitoring and control via Deye Cloud
07
Easily define critical and non-critical loads
08
Class I protection and multiple electrical safeguards
09
Flame-retardant housing
Specifications
| Model | SUN-SMART-PLUG01-F |
|---|---|
| Electrical Parameters | |
| Rated voltage | 220-250V a.c. |
| Maximum current | 16A a.c. |
| Frequency and Range | 50Hz(45Hz-55Hz)/60Hz(55Hz-65Hz) |
| Connection | Plug-type |
| Communication | |
| Communication Model | LoRa |
| Lora Communication Distance | ≈200m (Barrier free) |
| Basic Parameters | |
| Working Temperature Range | -40 to +60°C |
| Allow Environmental Humidity | 0-95%RH |
| Ingress Protection (IP) Rating | IP20 |
| Protection Level | CLASS I |
| Allowable Altitude | ≤3000m |
| Product size (WxHxD) | 51.2x51.2x64mm |
| Weight | 0.08kg |
| Warranty | 5 Years |
| Standard | VDE 0620-2-1; EN 61058 |
| LoRa Parameters | |
| Frequency Range | 863MHz-870MHz |
| Antenna | Internal antenna |
| Antenna Gain | 0.3.23dBi@868MHz |
