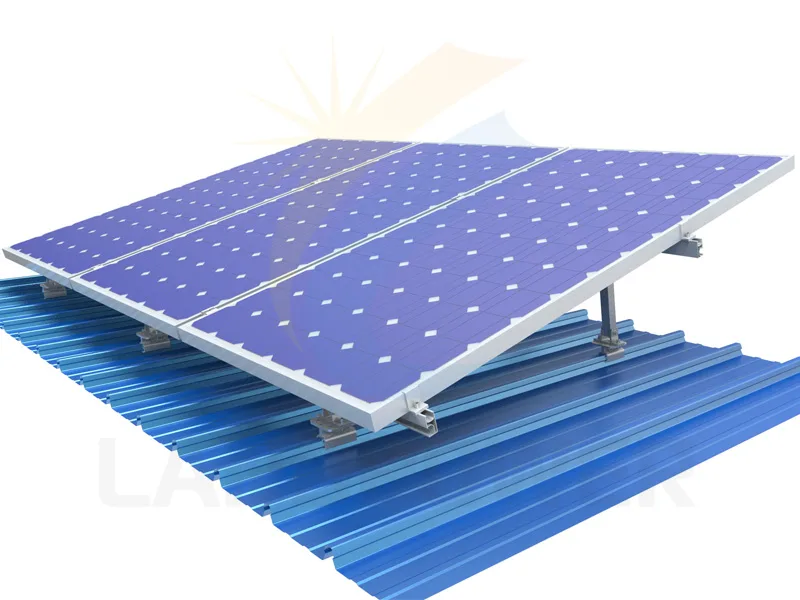

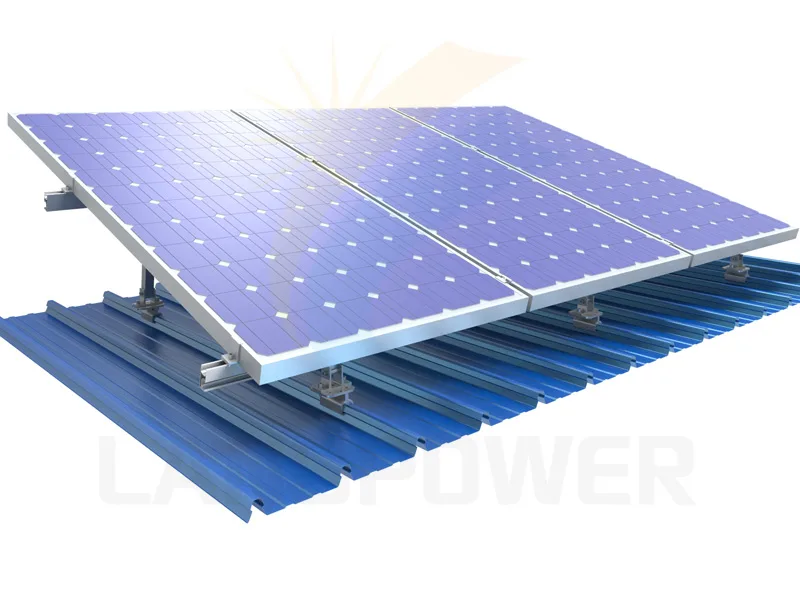

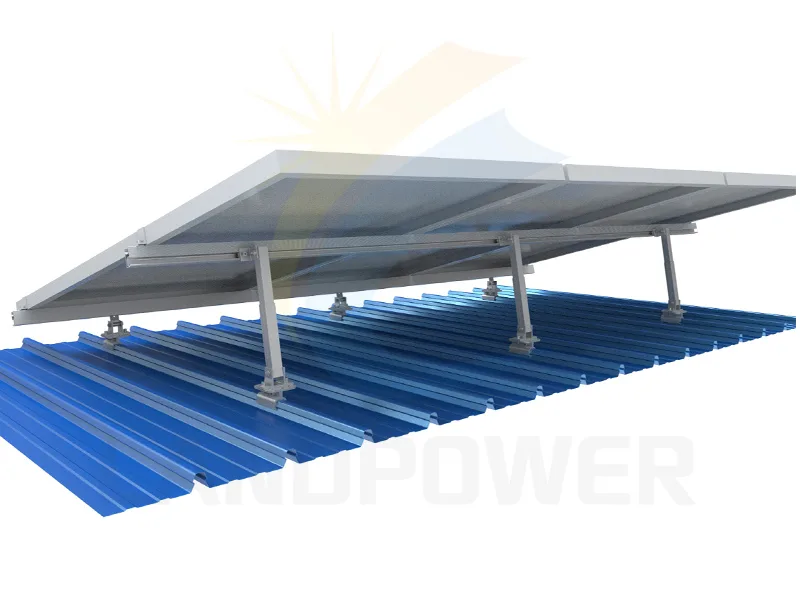

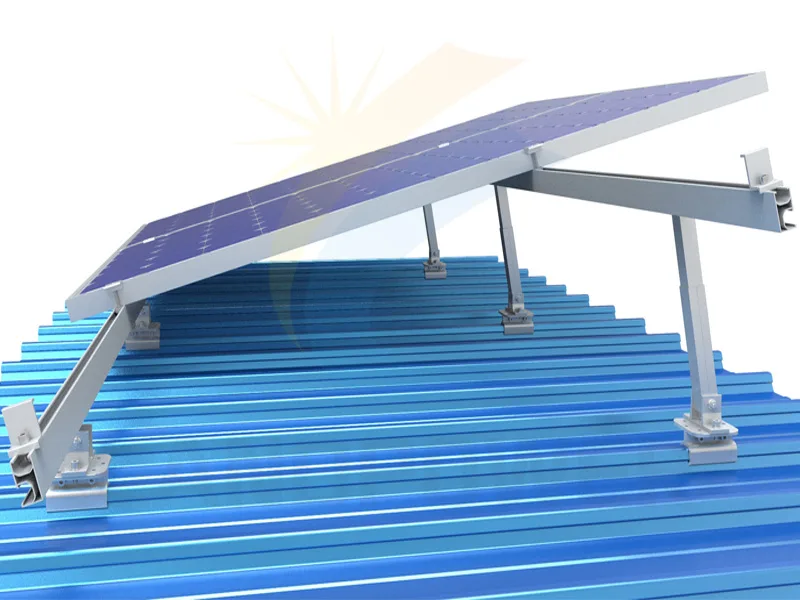

Angle Adjustable Tilt Solar Roof Mounting

Angle Adjustable Tilt Solar Roof Mounting allows to tilt up adjustable angle on corrugated roof sheet, trapezoidal roof sheet or other metal roof and flat roof. The angle adjustable range are available at 10-15 degree,15-30 degree, and 30-60 degree, you can set up your ideal angle according different places and different seasons. By using together with metal roof attachments or mini rail, the tilt solar mounting can be installed in almost all kind of metal roof. It is easy and quick to install with competitive price.

TECHNICAL INFORMATION

Install Site: Trapezoidal, Corrugated Metal Roof or Flat Roof

Tilt Angle: 10-60 degree

Building Height: Up to 20m

Max Wind Speed: <60m/s

Standard: AS/NZS 1170, EN 1090

Material: High Class Aluminum alloy Al 6005 T5 and Stainless Steel 304

Color: Natural and Customized

Warranty: 12 years and 25 years lifespan

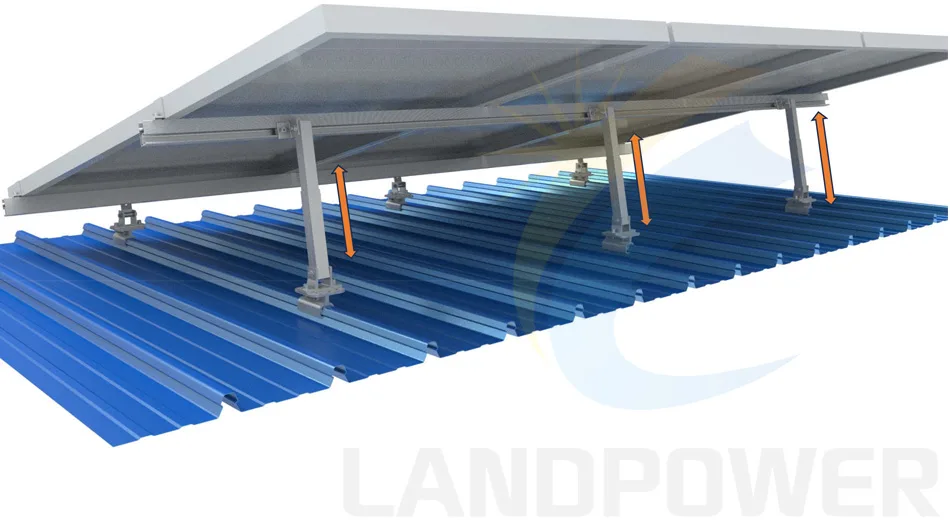

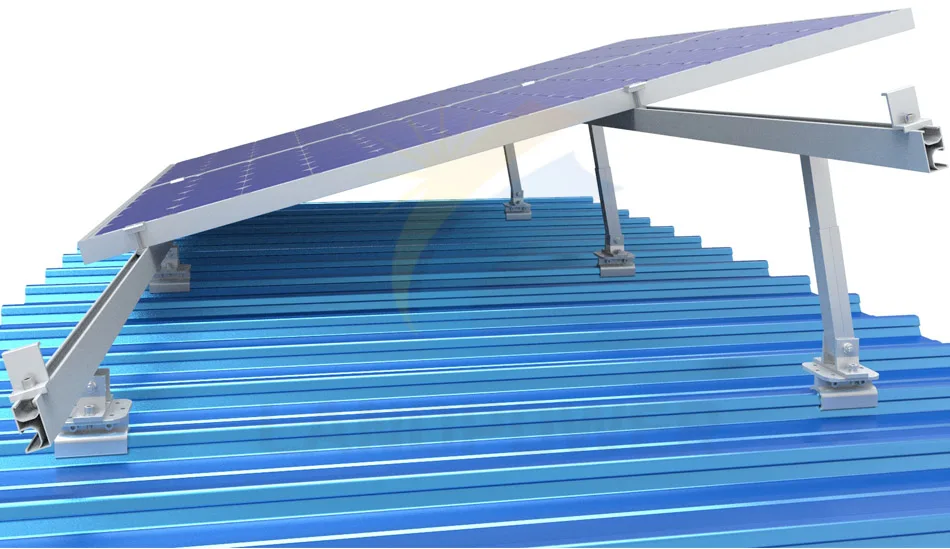

Adjustable Tilt Angle:

The angle adjustable range are available at 10-15 degree,15-30 degree, and 30-60 degree, you can set up your ideal angle according different places and different seasons.

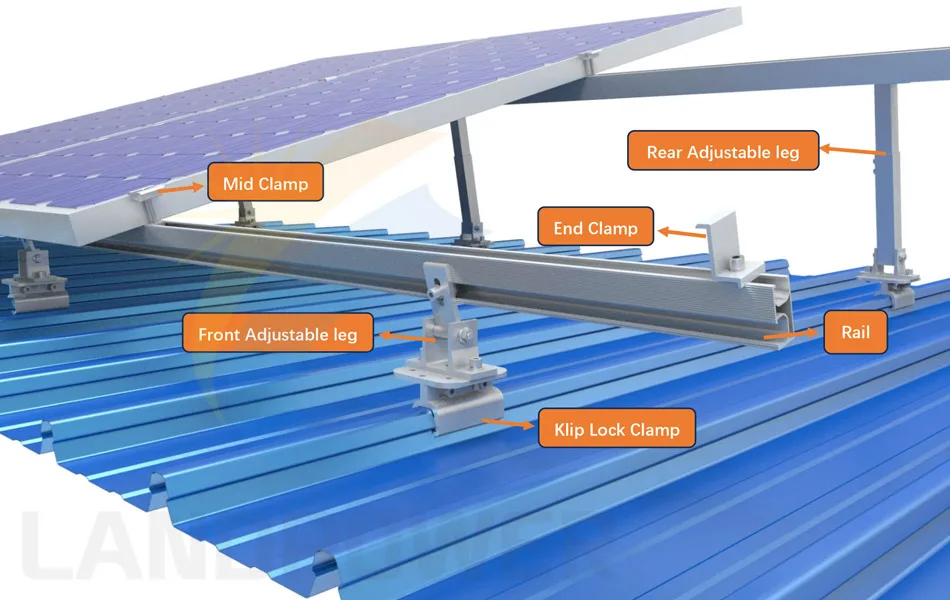

Main Component(with Metal Roof Attachment)

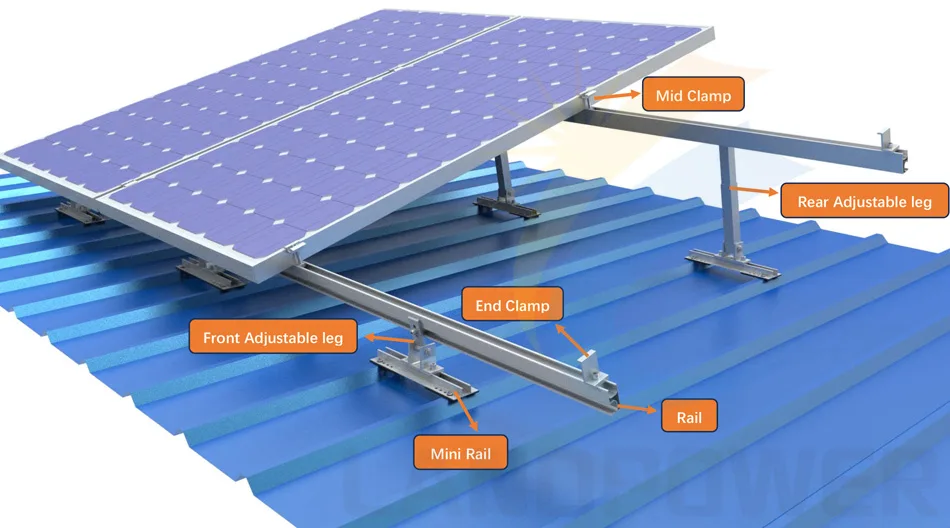

Angle Tilt Mounting with Mini Rail

By using with Mini Rail, the tilt angle mounting are widely installed on trapezoidal and corrugated metal roofs, more flexible on installation.
