Adjustable Solar Panel Mounting
Adjustable Solar Panel Mount Brackets , with Foldable Tilt Legs on Any Flat Surface for RV, Roof, Boat, Any Off-Grid Systems
Item No
LP-AT-T2
MOQ
1Pcs
Color
Black,Silver
Lead Time
7-15days
Product Details

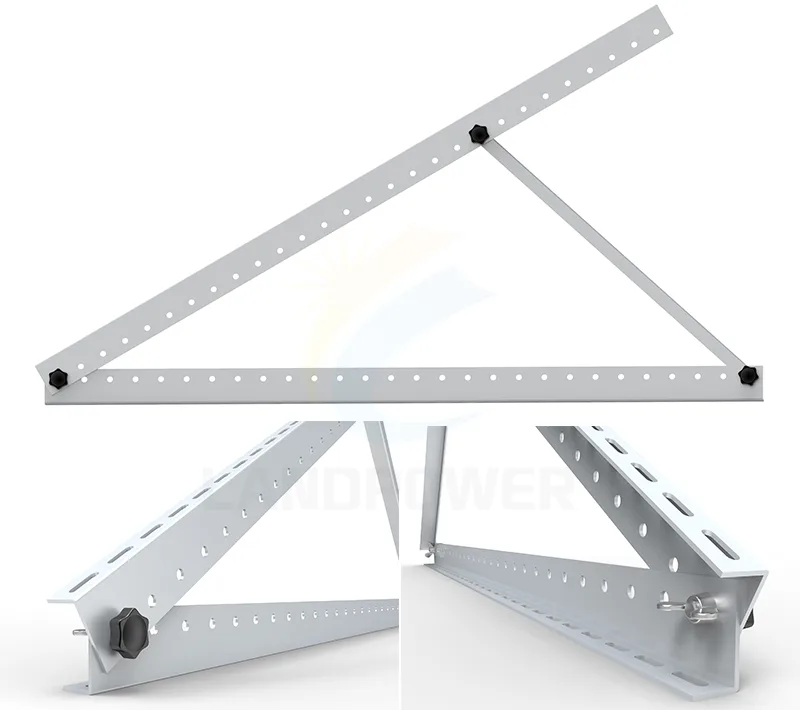

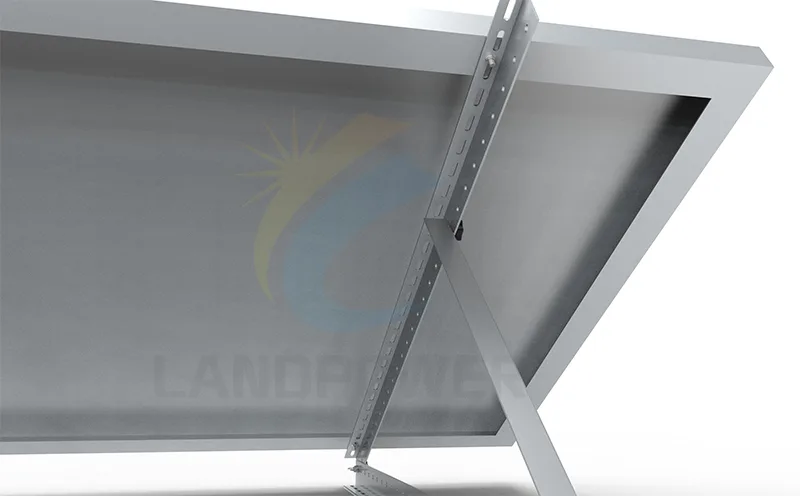

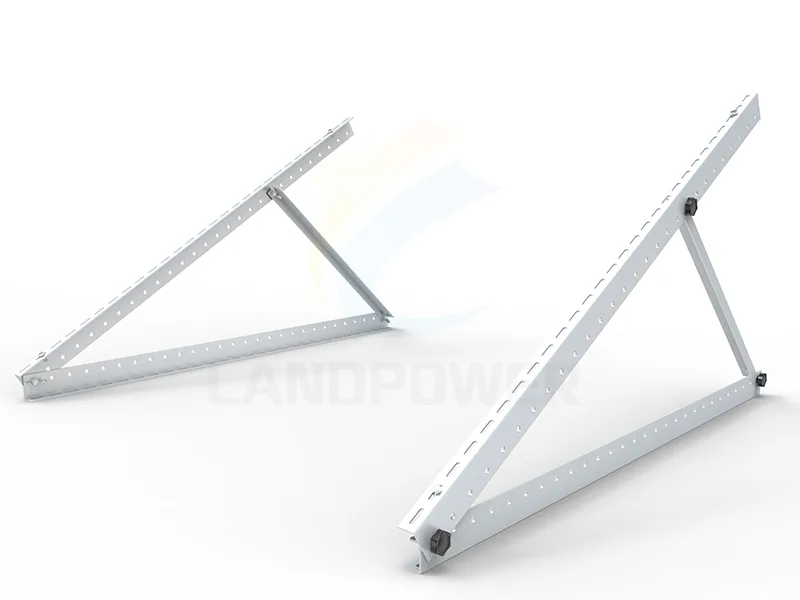

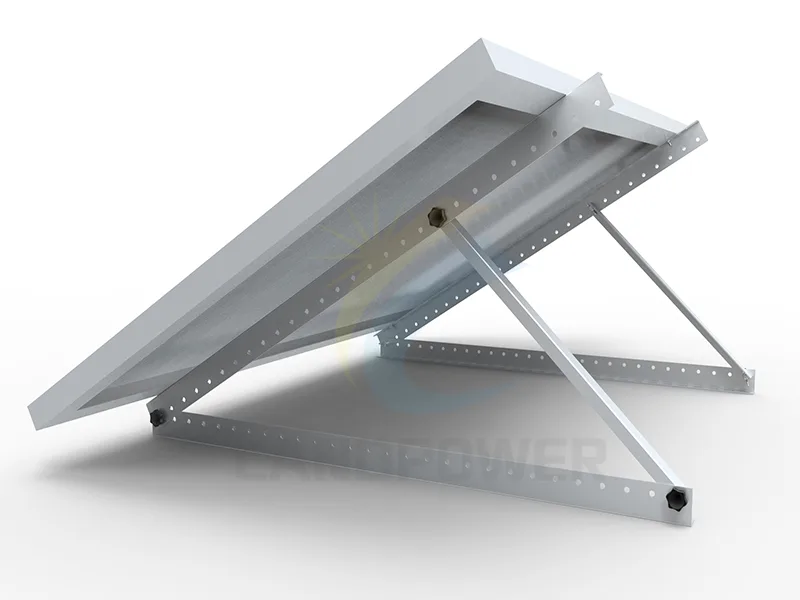

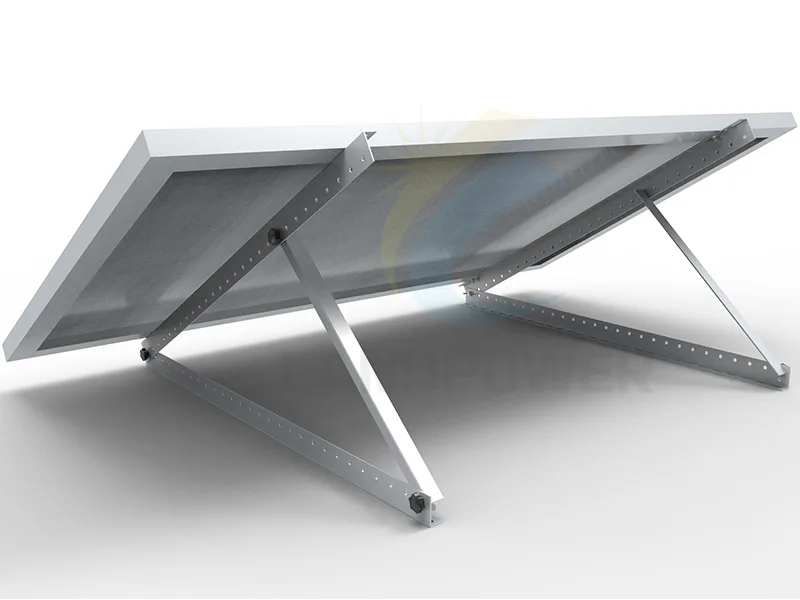

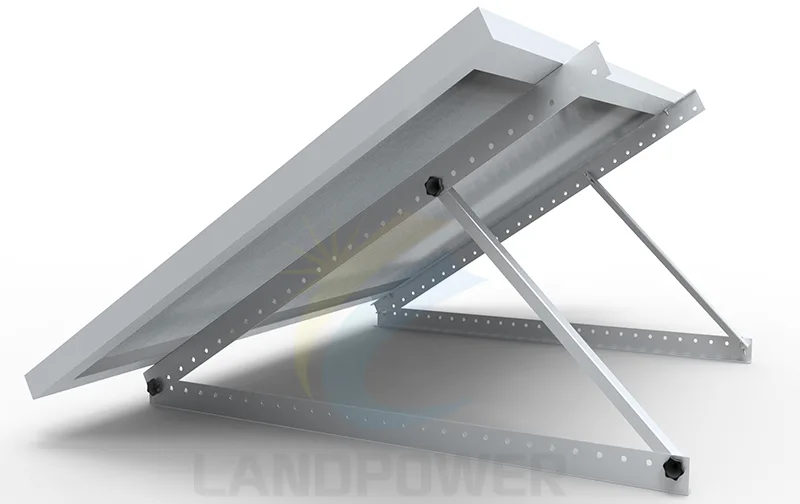

The Angle adjustable solar mounting is easy and simple structure to mount single panel,it allow tilt of angle from 0-60 degree. The adjustable solar panel mounting brackets is designed for off-grid solar systems. Widely used on RV, marine, trailer, camper, boat, marine, flat roofs, ground, garages, motorhome, shed or other flat surfaces. Quick assembly with stainless steel fasteners and lot of precise hole placement for different tilt angle.
TECHNICAL INFORMATION
Install site ： U se d on top of an RV or other flat surface.
Tilt Angle ： Flushed with the roof （ 10~60 deg ）
Building Height ： Up to 20 m
Max Wind Speed ： <60m/s
Snow Load ： <1.4KN/m2
Standard ： EN 1090, AS/NZS 1170 and other international Standard
Material ： Aluminum alloy Al6005-T5& Stainless steel 304 (A2),EPDM
Color: Natural or Customized
Anticorrosive: Anodized aluminum & stainless steel
Warranty ： 12 years warranty and twenty- year service life.
We engineer and design Solar Racking/Mounting Hardware for specific solar projects, there may not list all thedetails of racking in the web,therefore,
