Trapezoidal Roof Short Rail Mounting Systems
Pitched Roof MountingPitched Metal Roof Mounting

Trapezoidal Roof Short Rail Mounting Systems

The Short Rail Mounting System is simple and quick mounting solution for placing solar panel on trapezoidal roof,just only Short Rail,Mid Clamp and End Clamp,quite easy for installation.

Item No

LP-SR-TR

MOQ

1

Color

Silver,Black

Lead Time

7-15 days

Weight

default

Request Quote

Product Details

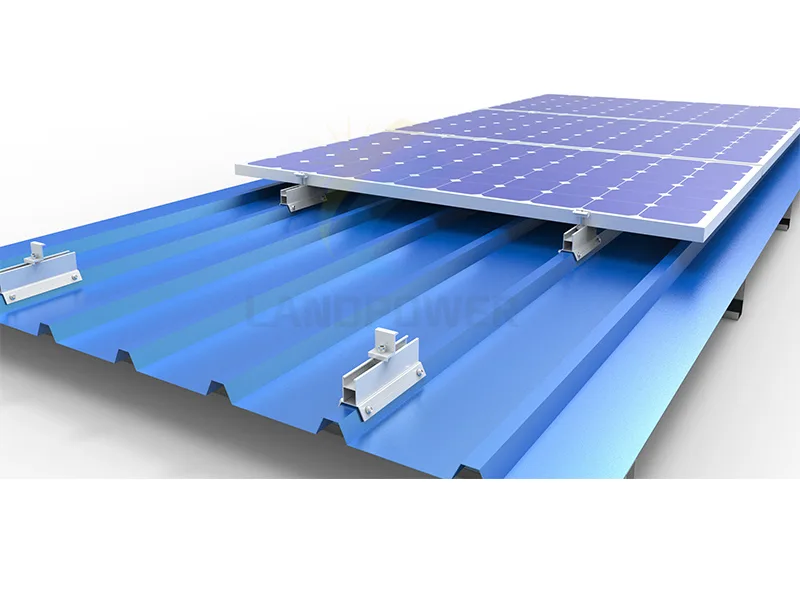

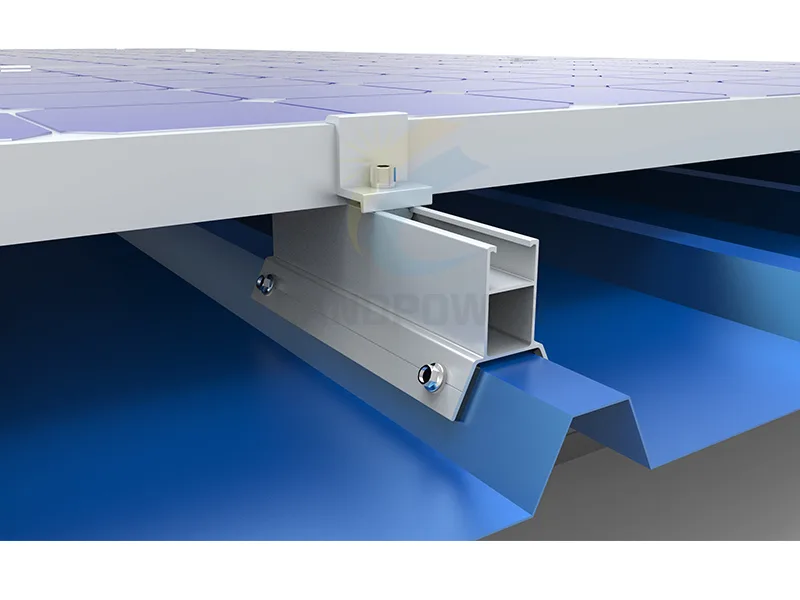

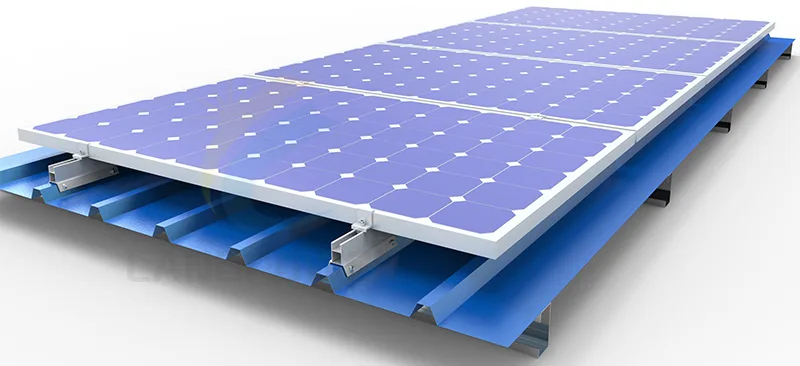

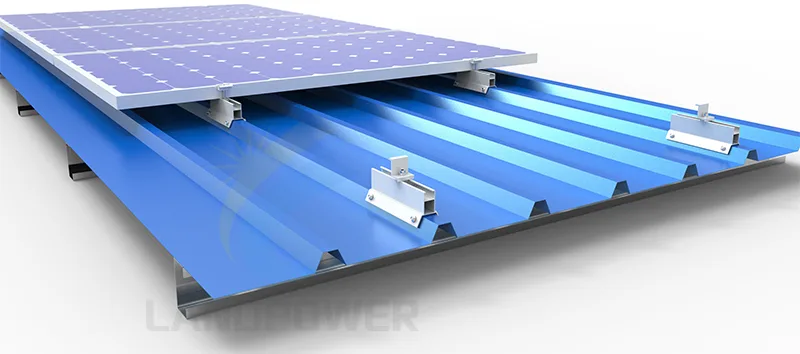

Trapezoidal Roof Short Rail Mounting System is a revolutionary solar roof mounting solution that sets the standard on trapezoid steel sheet roofs.The whole system contains only 3 components, it is compact, simple and very quick to install.It remains the most cost-effective solar roof mounting system for metal roof .

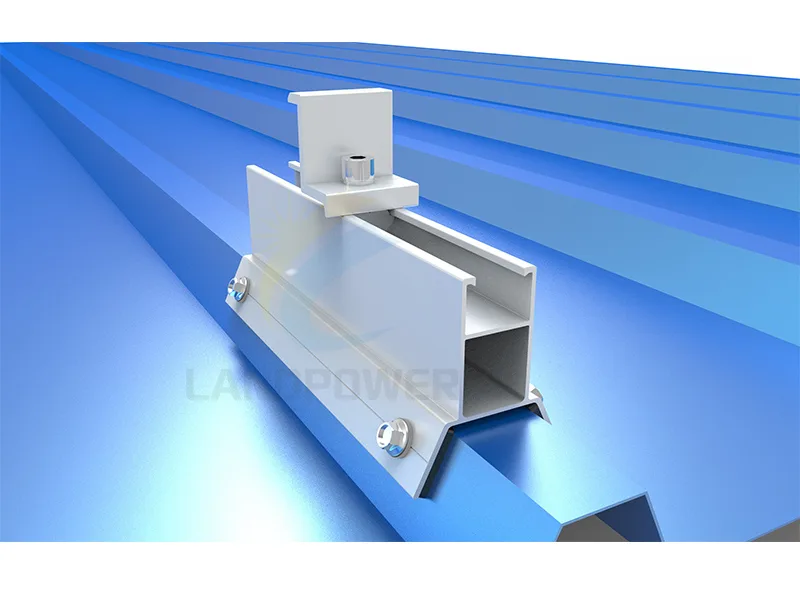

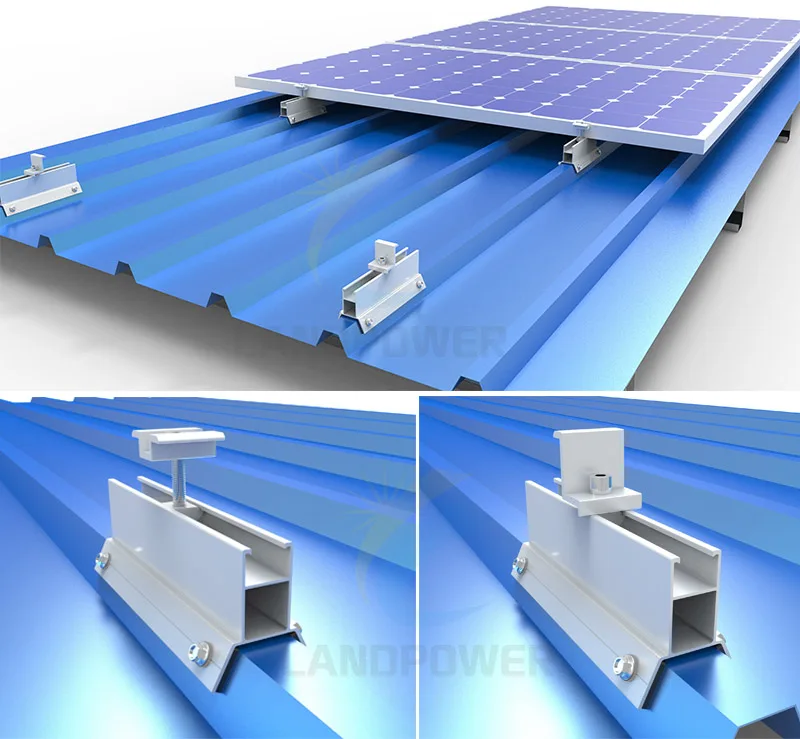

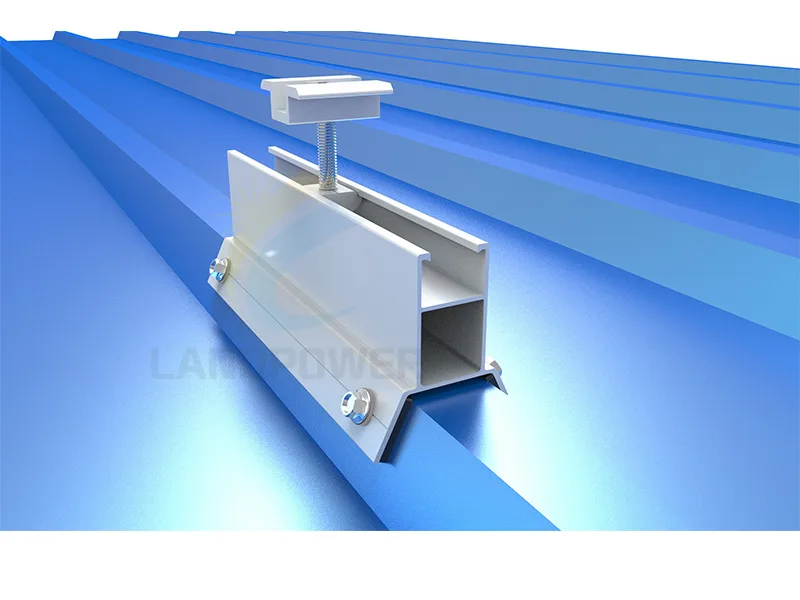

The Short Rail Set Manin Components

TECHNICAL INFORMATION Install site ： Trapezoidal Roof Sheet Metal Tilt Angle ： Flushed with the roof （ 10~60 deg ） Building Height ： 20 m Max Wind Speed ： <60m/s Snow Load ： <1.4KN/m2 Standard ： En 1090, AS/NZS 1170 and other international Standard Material ： Aluminum 6005-T5& Stainless steel A2( 304 ),EPDM Color: Silver,Black or Customized Anti-corrosive : A nodized aluminum & stainless steel Warranty ： 12 years warranty and twenty- year service life

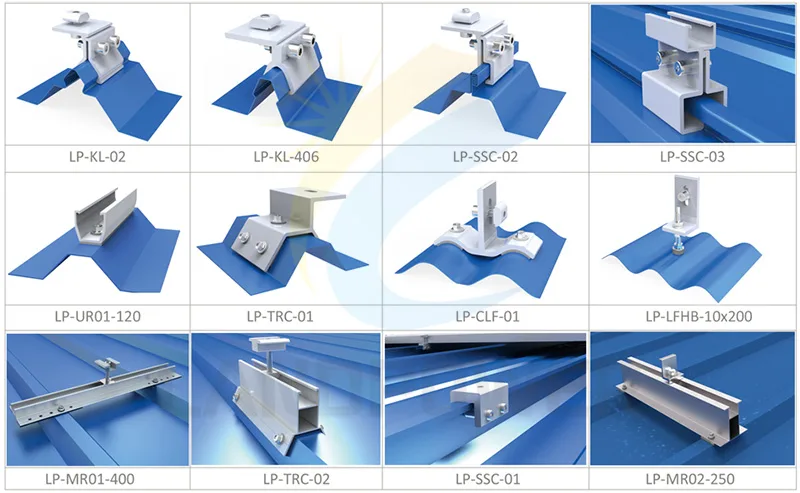

Other Metal Roof Attachment

PROJECT REFERENCE(Please click): Project Trapezoidal Roof Short Rail Mounting System

trapezoidal roof solar mounting
trapezoidal metal roof clamps
Trapezoidal Sheet Metal Roof Solar Clamps
trapezoidal solar mounting
Trapezoidal Roof clamp

Specifications

Technical Specifications
Install siteTrapezoidal Roof Sheet Metal
Tilt AngleFlushed with the roof （ 10~60 deg ）
Building Height20 m
Max Wind Speed<60m/s
Snow Load<1.4KN/m2
StandardEn 1090, AS/NZS 1170 and other international Standard
MaterialAluminum 6005-T5& Stainless steel A2( 304 ),EPDM
ColorSilver,Black or Customized
Anti-corrosiveA nodized aluminum & stainless steel
Warranty12 years warranty and twenty- year service life
