Standing Seam Metal Roof U Clamp Mounting Systems

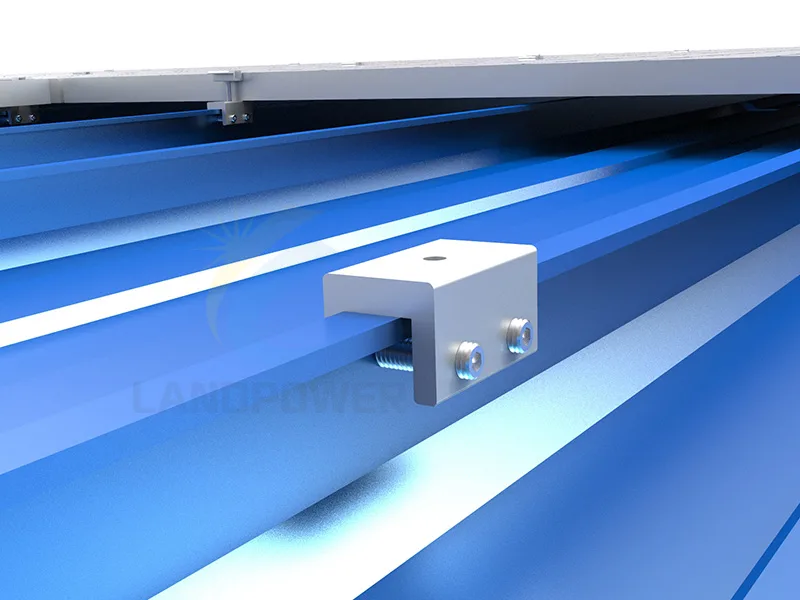

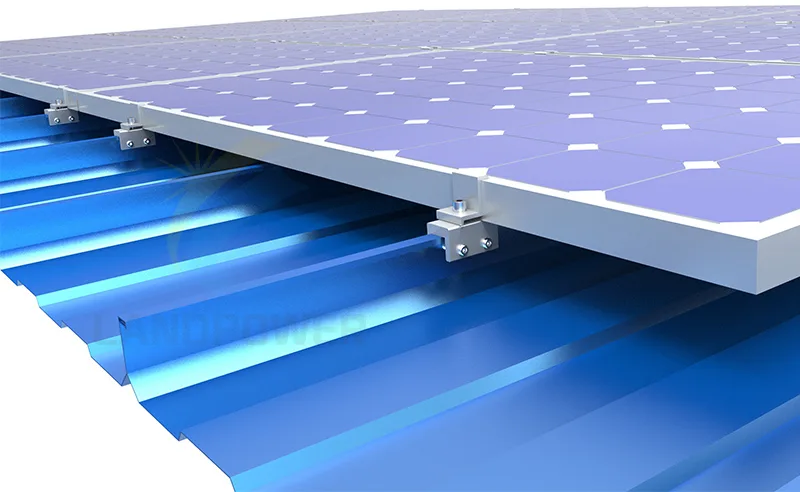

Standing Seam Roof U Clamp Mounting is simple,easy and fast mounting solution for standing seam metal roof,no drill ,no premature corrosion on roof.It is simple,just U Clamp roof attachment,end clamp and mid clamp with A2 (304) fasteners. The system can achieve stable and strong connection between the roof support structure and solar modules with modular Patented design. Pre-assembled kits save the installation time and cost on site.

TECHNICAL INFORMATION Install site ： Standing Seam Roof Sheet Metal Tilt Angle ： Flushed with the roof（10~60 deg） Building Height ： 20 m Max Wind Speed ： <60m/s Snow Load ： <1.4KN/m2 Standard ： En 1090, AS/NZS 1170 and other international Standard Material ： Aluminum 6005-T5& Stainless steel A2(304 ) Color: Silver,Black or Customized Anti-corrosive: anodized aluminum & stainless steel Warranty ： Ten years warranty and twenty- year service life

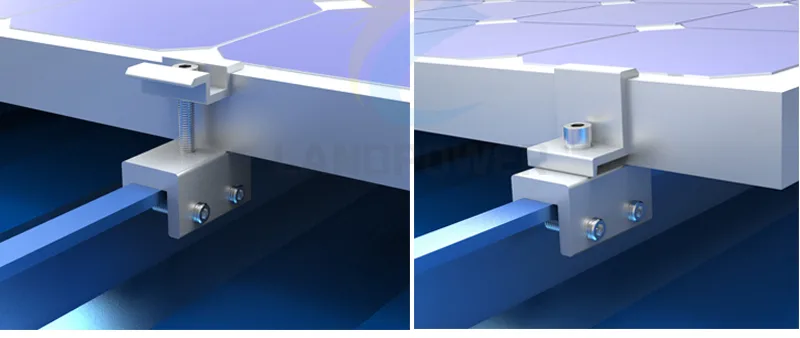

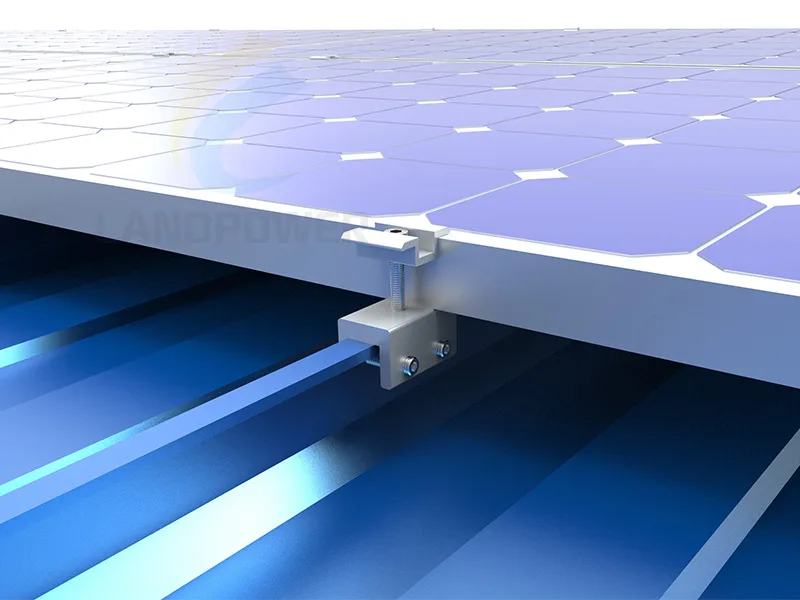

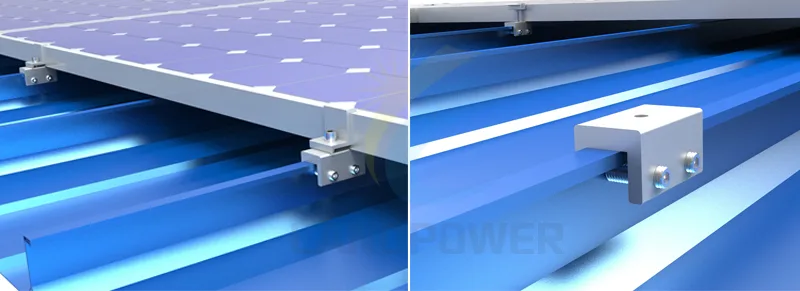

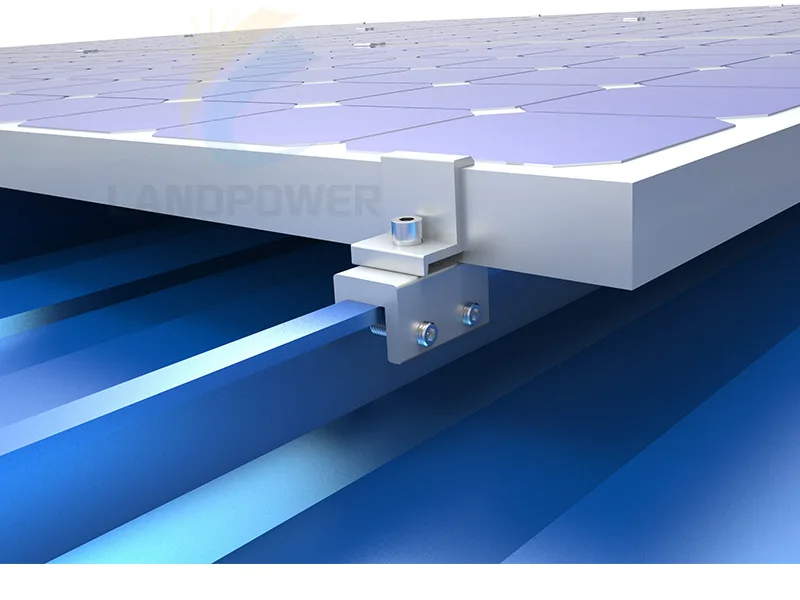

Simple, fast Standing seam clamps for metal roof systems,just U clamp roof attachment,Mid Clamp,End Clamp.

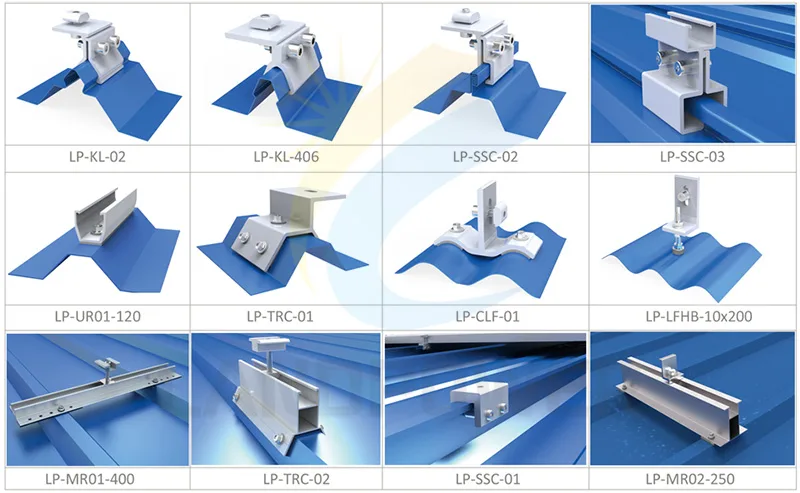

Other Metal Roof Clamp Reference
