Tile Roof Mounting with 40*40 Rail
European style tile roof solar mounting are with mounting rail 40*40mm , with adjustable end clamp and adjustable tile roof hook, suitable for most of tile roof in European markets,and the mounting component can be black anodized with beautiful looking.
Item No
LP-TREU-02
MOQ
1PCS
Color
Black,Silver
Lead Time
7-15 days
Product Details
The Tile Roof Solar Mounting is frequently used in EU, the click-in nut design makes the system are easy and fast for installation, 40*40 mounting rail enhance the strength of the structure. With alternative adjustable end clamp, makes the system universal for 30-35mm solar panels. Conveniently to keep stock and distribution.
TECHNICAL INFORMATION Install site ： Tile Roof Tilt Angle ： Flushed with the roof （ 10~60 deg ） Building Height ： 20 m Max Wind Speed ： <60m/s Snow Load ： <1.4KN/m2 Standard ： En 1090, AS/NZS 1170 and other international Standard Material ： Aluminum 6005-T5& Stainless steel A2(304),EPDM Color: Silver,Black or Customized Anti-corrosive: Anodized aluminum & stainless steel Warranty ： 12 years warranty and twenty- year service life

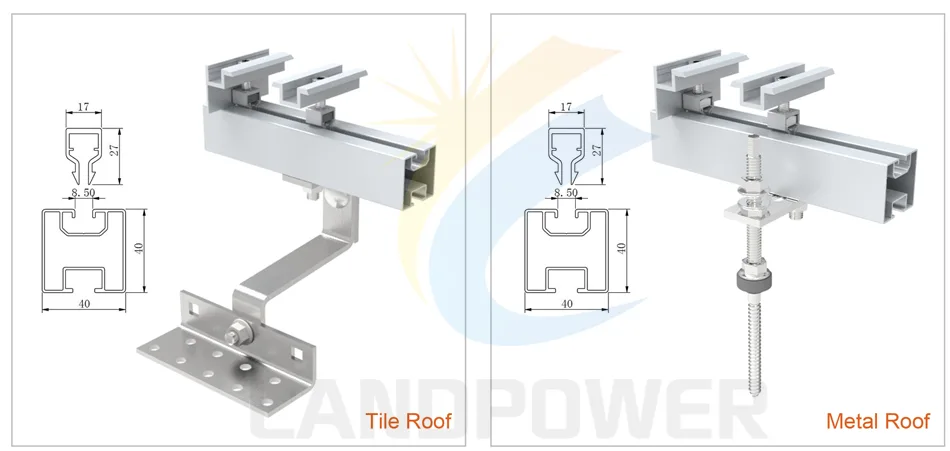

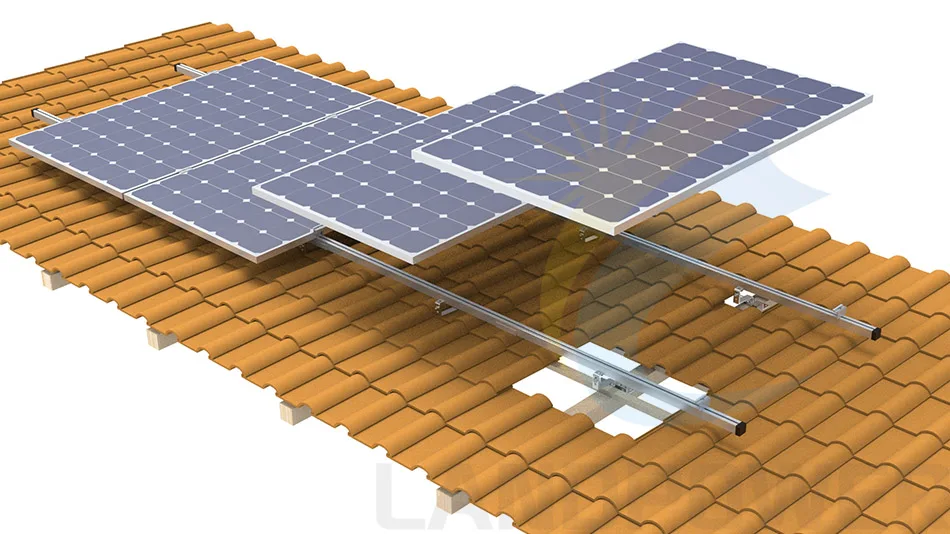

Details of the System

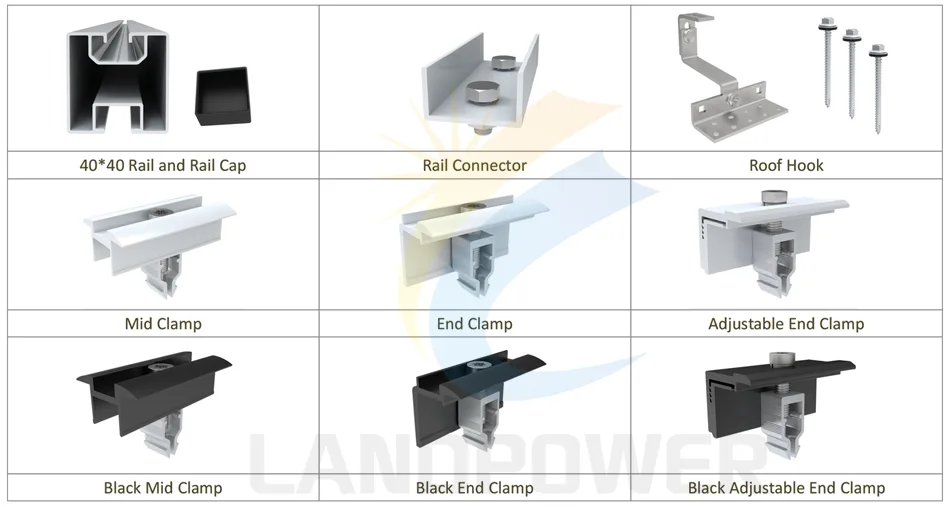

Main Components of the 40*40 Rail Tile Roof Mounting

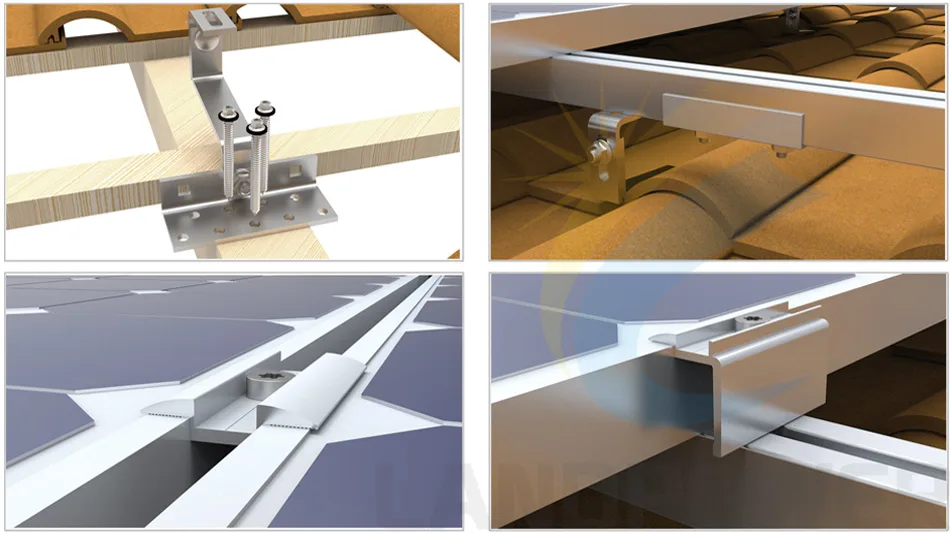

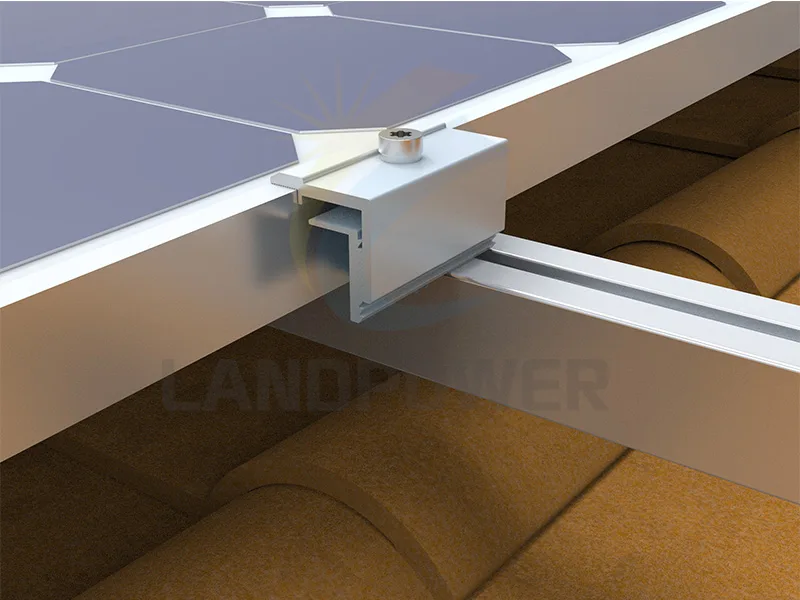

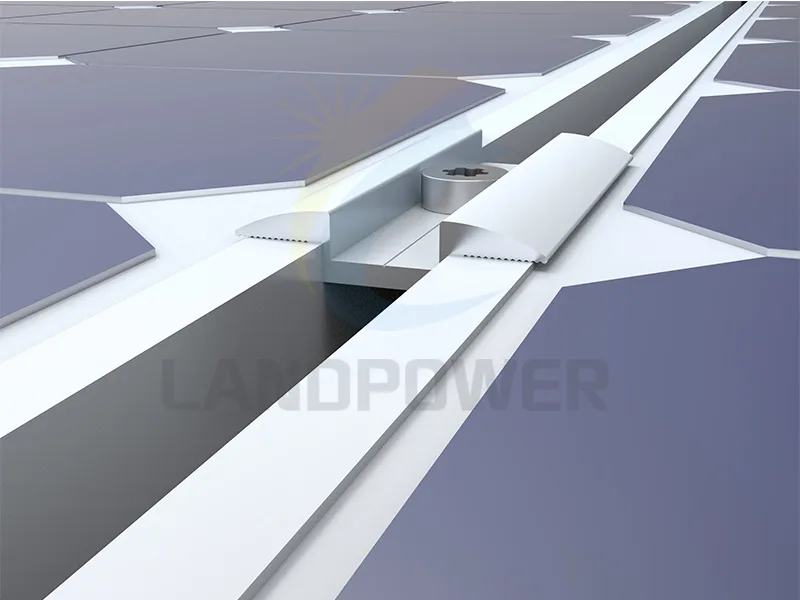

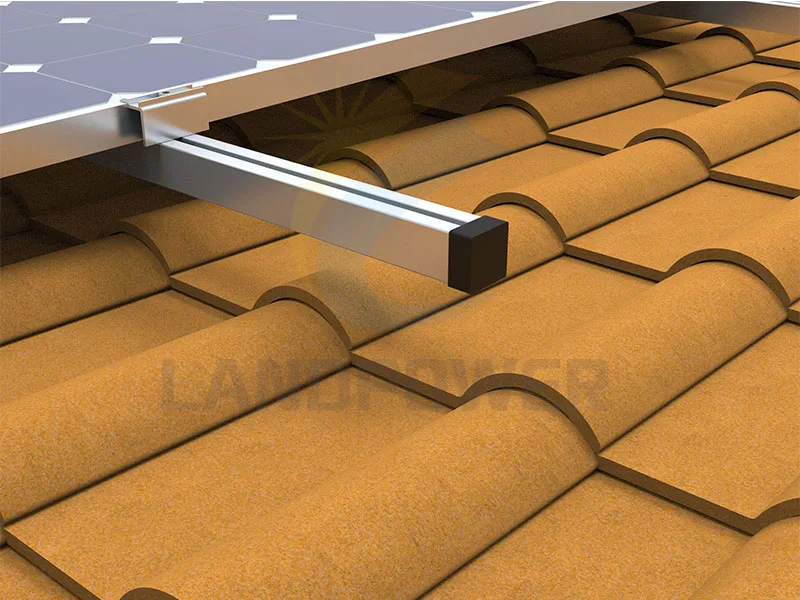

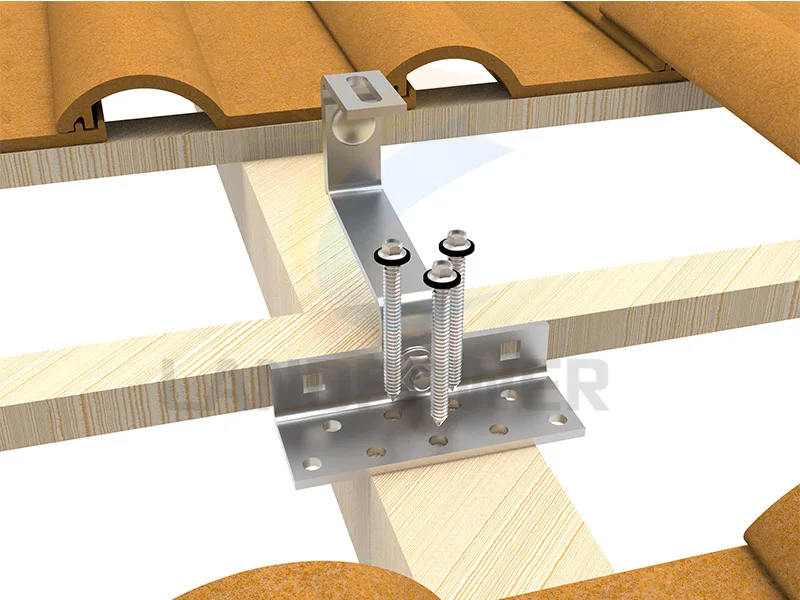

The Installation of the Tile Roof Mount
We have various mounting rail, end clamp, mid clamp, and fixed roof hook, adjustable roof hook for different places, if you have specific request, feel free to let us know.
Specifications
| Install site | Tile Roof |
|---|---|
| Tilt Angle | Flushed with the roof （ 10~60 deg ） |
| Building Height | 20 m |
| Max Wind Speed | <60m/s |
| Snow Load | <1.4KN/m2 |
| Standard | En 1090, AS/NZS 1170 and other international Standard |
| Material | Aluminum 6005-T5& Stainless steel A2(304),EPDM |
| Color | Silver,Black or Customized |
| Anti-corrosive | Anodized aluminum & stainless steel |
| Warranty | 12 years warranty and twenty- year service life |
