Mini Rail Metal Roof Solar Mounting

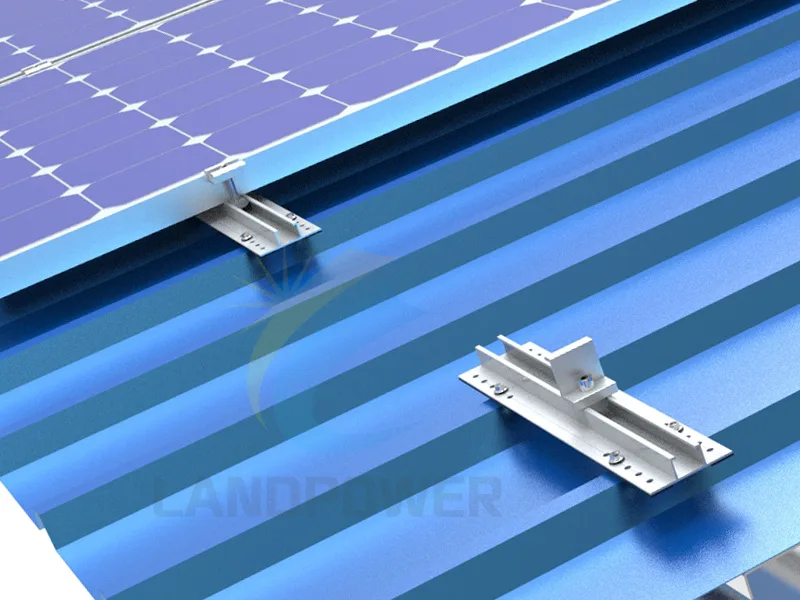

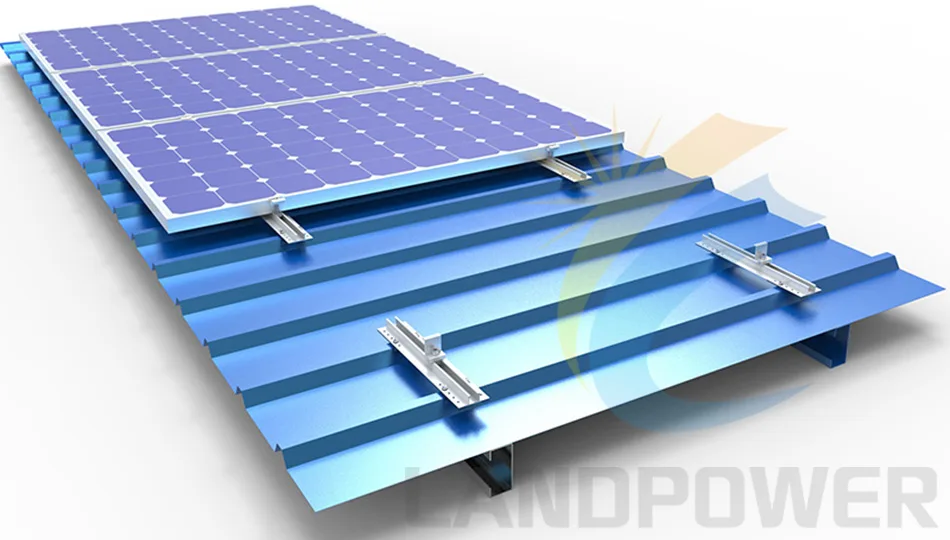

Mini Rail is simple solar mounting solution for metal roof,less components,just only come with mid clamp,end clamp and earthing accessories.It is economical and fast mounting structure for metal roof.
Item No
LP-MR01-400
MOQ
70PC
Color
Silver,Black
Lead Time
7-15days
Product Details
The Mini Rail Set is coming with short rail,4 thread tapping screw with sealing washer. The aluminum Mini rail are with adhesive rubber pad,specially designed for installing solar panel on trapezoidal sheet metal roofs,simple structure for fast installation.
Main Mini Rail Set Components:
TECHNICAL INFORMATION Install site ：Trapezoidal Sheet Metal Tilt Angle ：Flushed with the roof （10~60 deg） Building Height：20 m Max Wind Speed：<60m/s Snow Load：<1.4KN/m2 Standard ：En 1090, AS/NZS 1170 and other international Standard Material ：Aluminum 6005-T5& Stainless steel A2(304) EPDM Color: Silver,Black or Customized Anti-corrosive: anodized aluminum & stainless steel
Warranty：Ten years warranty and twenty- year service life

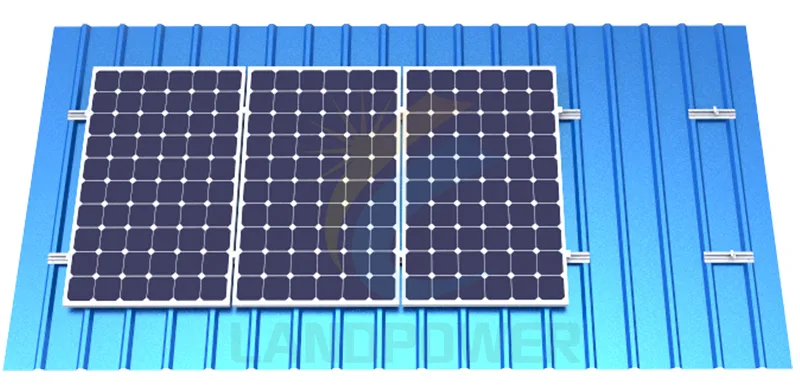

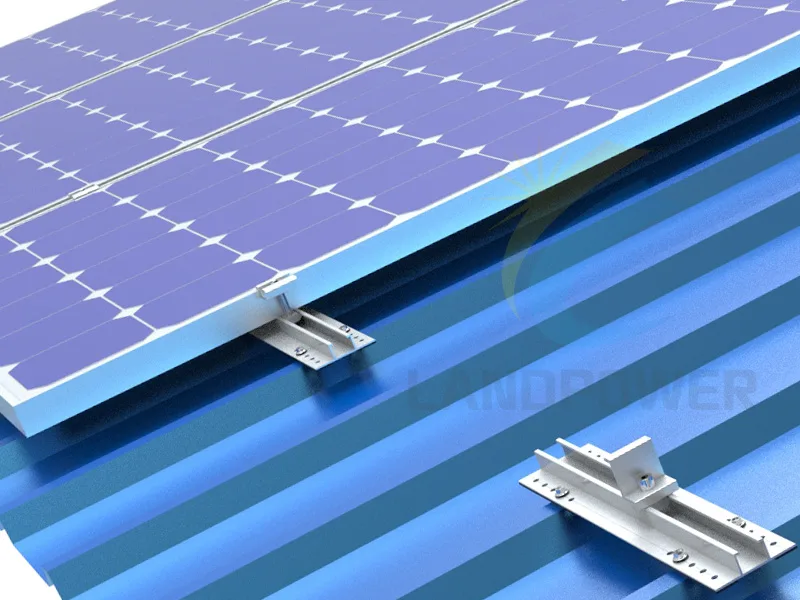

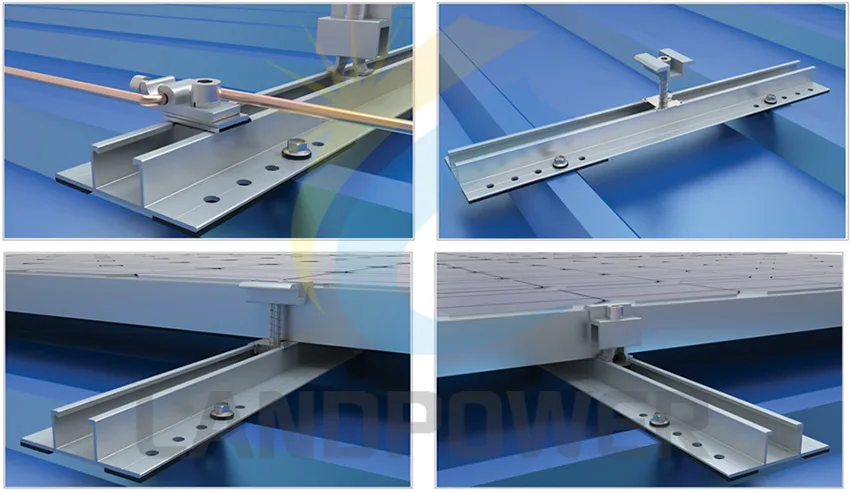

Mini Details for Trapezoidal Roof:

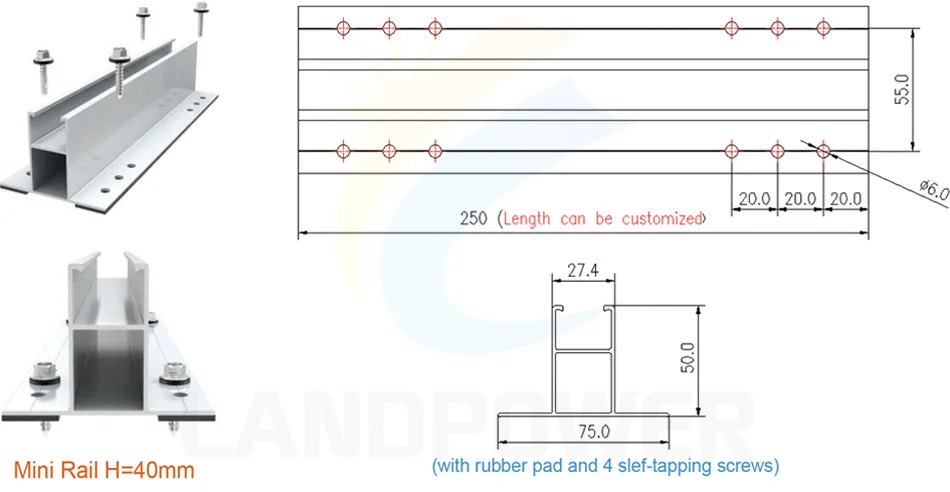

Mini Rail Dimension:
Higher Mini Rail Option

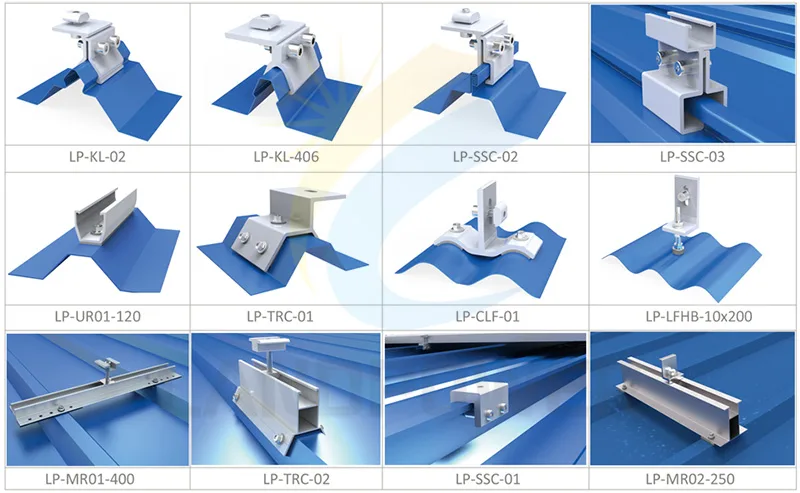

Other Metal Roof Attachment
Specifications
| Install site | Trapezoidal Sheet Metal |
|---|---|
| Tilt Angle | Flushed with the roof （10~60 deg） |
| Building Height | 20 m |
| Max Wind Speed | <60m/s |
| Snow Load | <1.4KN/m2 |
| Standard | En 1090, AS/NZS 1170 and other international Standard |
| Material | Aluminum 6005-T5& Stainless steel A2(304) EPDM |
| Color | Silver,Black or Customized |
| Anti-corrosive | anodized aluminum & stainless steel |
