Adjustable Roof Hook Tile Roof Solar Mounting
Landpower is engineering many types of tile roof hooks for most types of tiles,like flat tile, slate tile and romania tile. They are cost-effective and easy to install.
Item No
LP-TREU-01
MOQ
1PCS
Color
Silver,Black
Lead Time
7-15 days
Product Details
Landpower Tile Roof Solar Mounting are coming with aluminum rail,mid/end clamp,splice,earthing lug, and stainless steel roof hook,earthing clip,earthing cable etc.We have different type of rails and roof hooks(fixed roof hook,adjustable roof hook) for different occasions and different roof type like flat tile,slate tile and romania tile etc.
TECHNICAL INFORMATION Install site ： Tile Roof Tilt Angle ： Flushed with the roof （ 10~60 deg ） Building Height ： 20 m Max Wind Speed ： <60m/s Snow Load ： <1.4KN/m2 Standard ： En 1090, AS/NZS 1170 and other international Standard Material ： Aluminum 6005-T5& Stainless steel A2(304),EPDM Color: Silver,Black or Customized Anti-corrosive: Anodized aluminum & stainless steel Warranty ： 12 years warranty and twenty- year service life
The Main Tile Roof Mounting Components are as below:

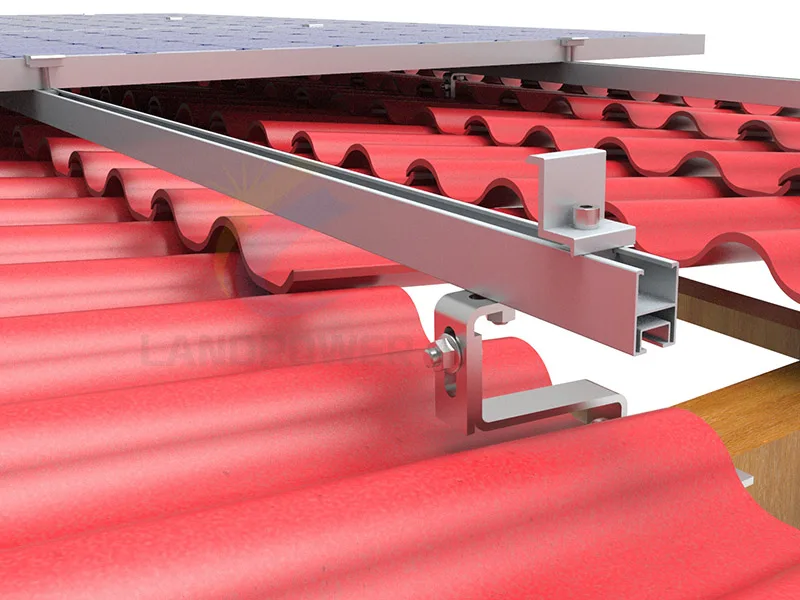

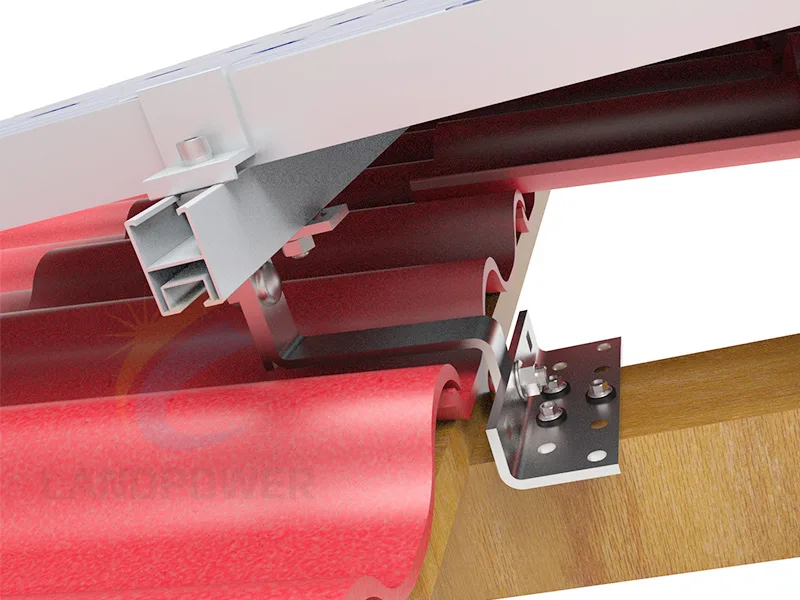

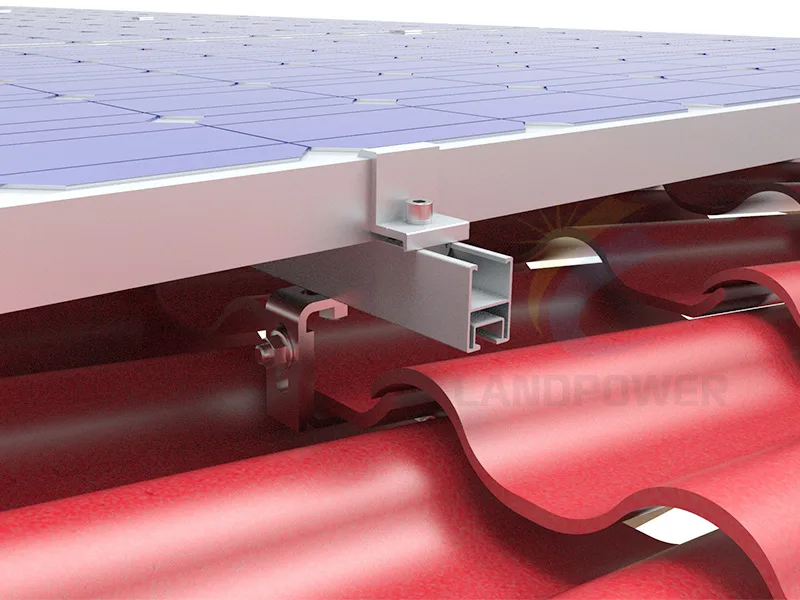

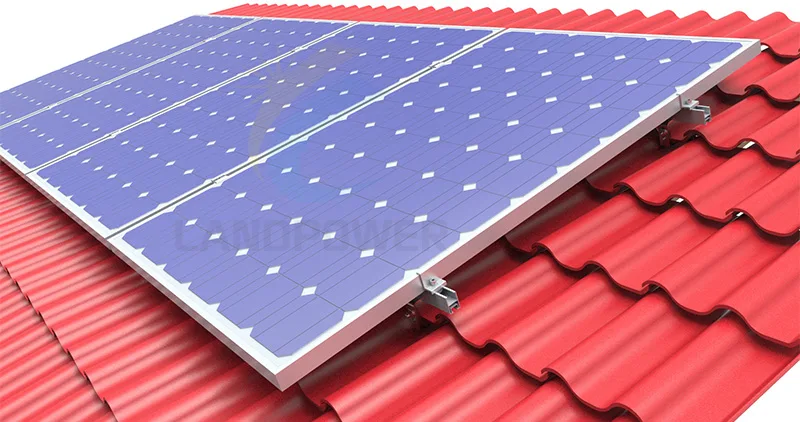

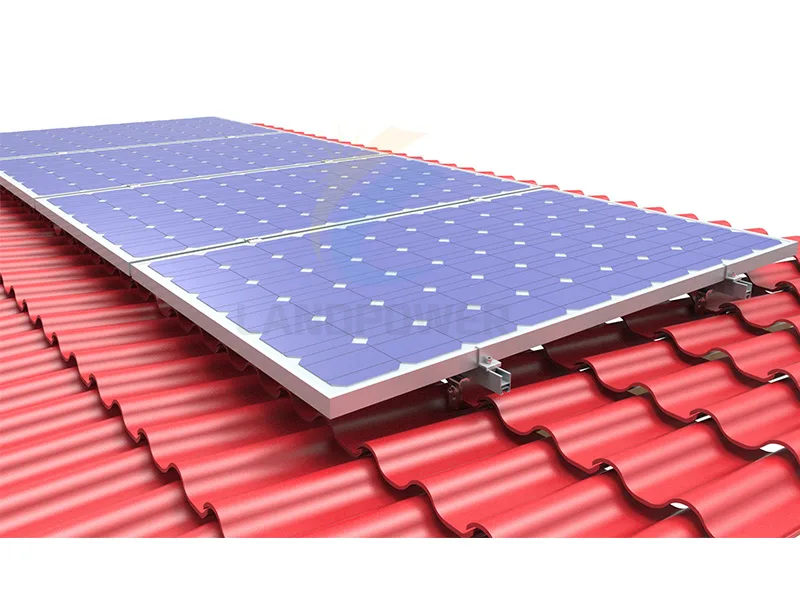

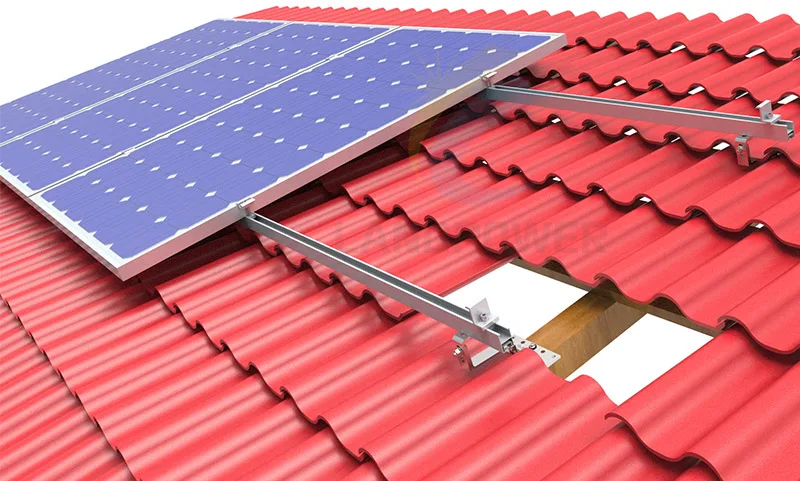

The tile roof mounting structure demo.:

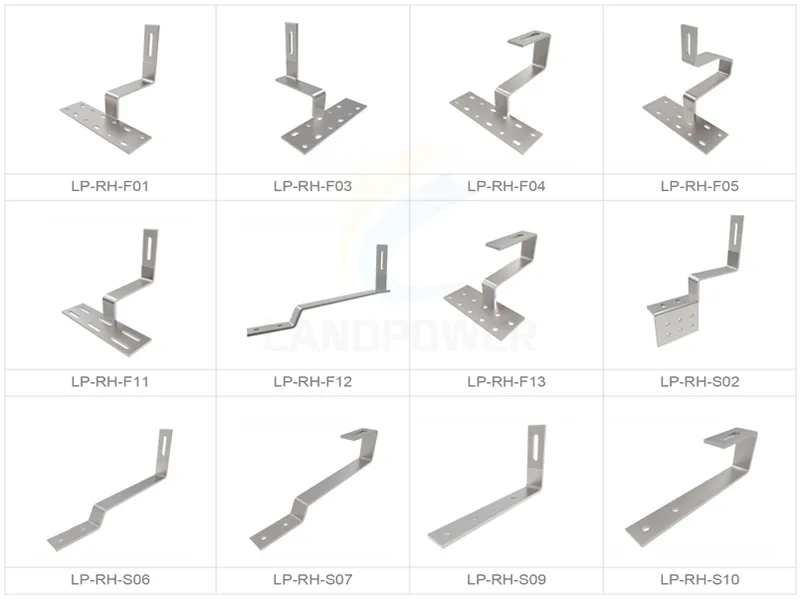

Various adjustable or fixed tile roof hooks for different types of tiles:

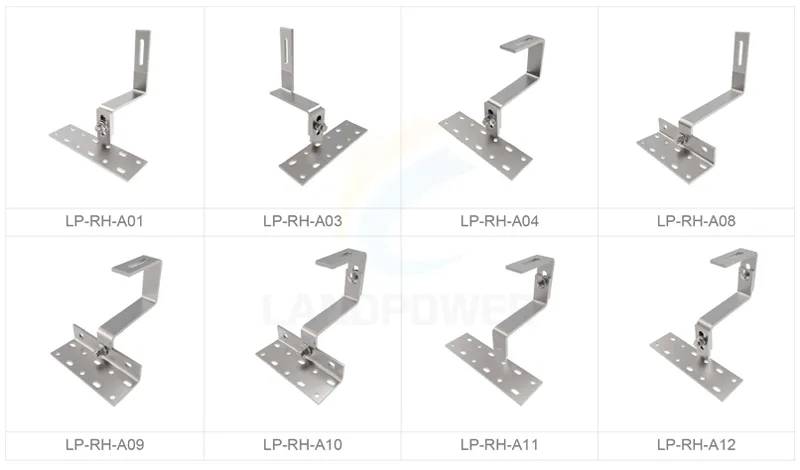

Adjustable Roof Hook:
Specifications
| Install site | Tile Roof |
|---|---|
| Tilt Angle | Flushed with the roof （ 10~60 deg ） |
| Building Height | 20 m |
| Max Wind Speed | <60m/s |
| Snow Load | <1.4KN/m2 |
| Standard | En 1090, AS/NZS 1170 and other international Standard |
| Material | Aluminum 6005-T5& Stainless steel A2(304),EPDM |
| Color | Silver,Black or Customized |
| Anti-corrosive | Anodized aluminum & stainless steel |
| Warranty | 12 years warranty and twenty- year service life |
