Universal flat roof solar mounting
Universal flat roof solar mounting structure are best solution for large solar panel to fix in long side or short side of solar panel, few components, and easy to install and keep stock
Item No
LP-FF-U
MOQ
1 PCS
Color
Silver and Black
Lead Time
7-15 days
Product Details

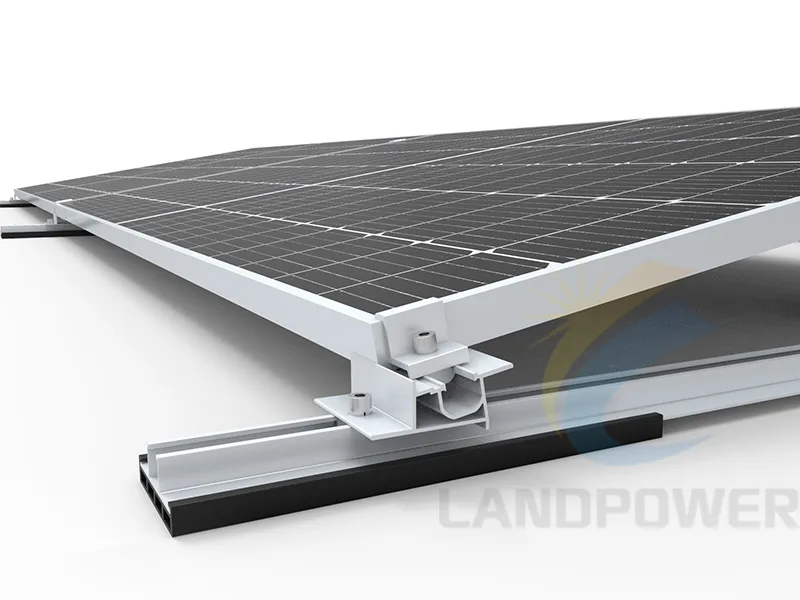

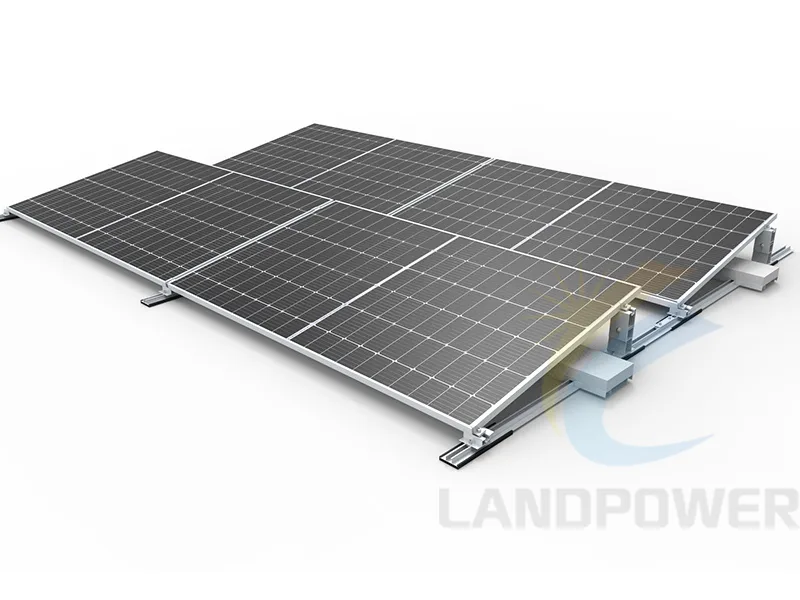

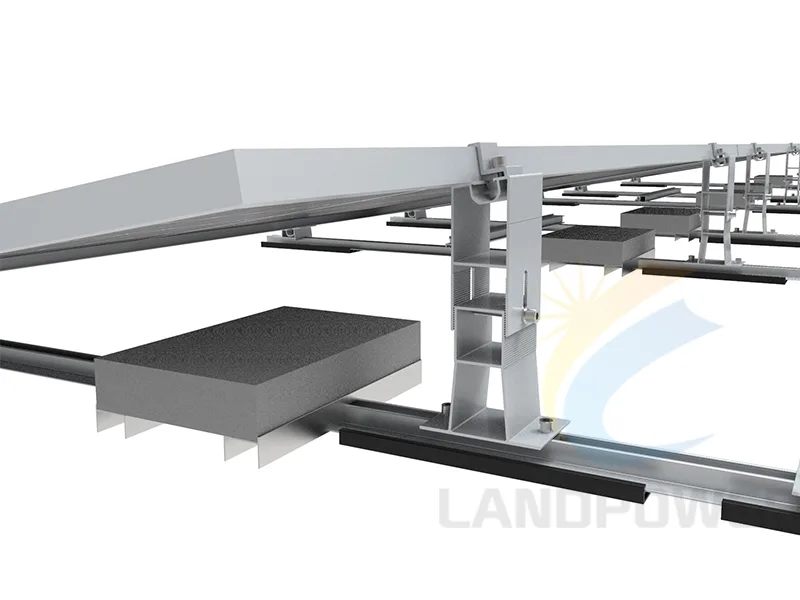

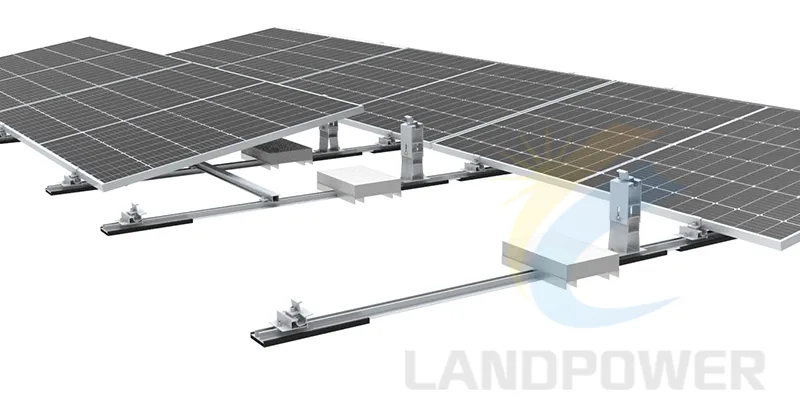

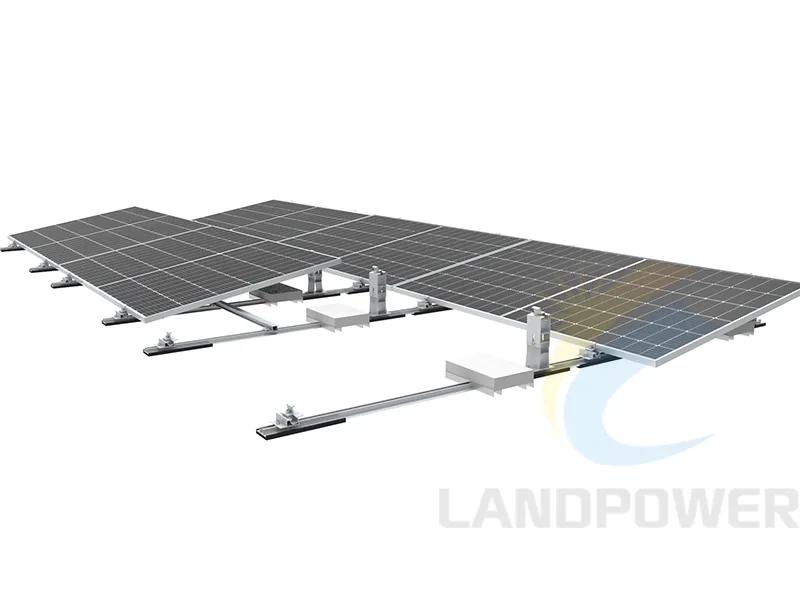

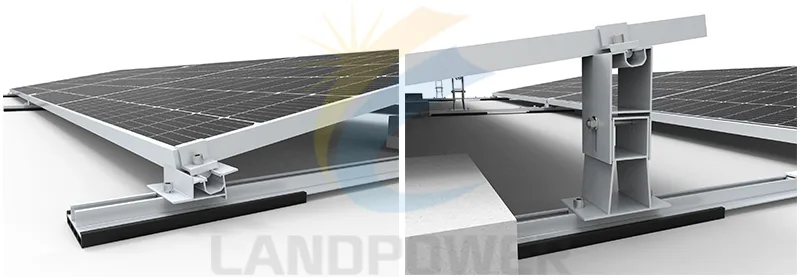

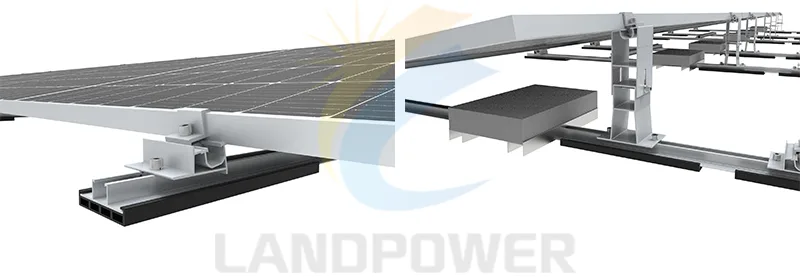

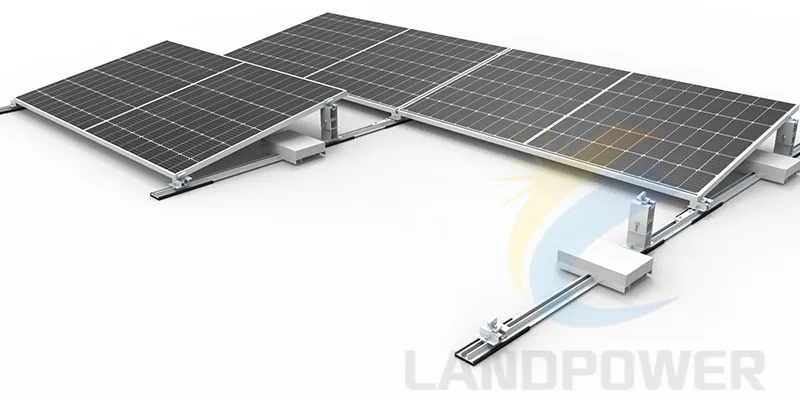

Universal Flat Roof Solar Mounting Structure is design for fixing on long side frame of panel and short side frame of solar panel. It can be used for all the panel If come with our exchange end clamp or our universal end clamp. Just few components for fast installation.
TECHNICAL INFORMATION
Install Site: Flat Roof or Metal Roof
Tilt Angle: 10 degrees
Panel Orientation: Soth facing or East West
Building Height: Up to 20m
Max Wind Speed: <60m/s
Standard: AS/NZS 1170, EN 1090
Material: High Class Aluminum alloy Al 6005 T5 and Stainless Steel 304
Color: Natural and Customized
Warranty: 12 years and 25 years lifespan
