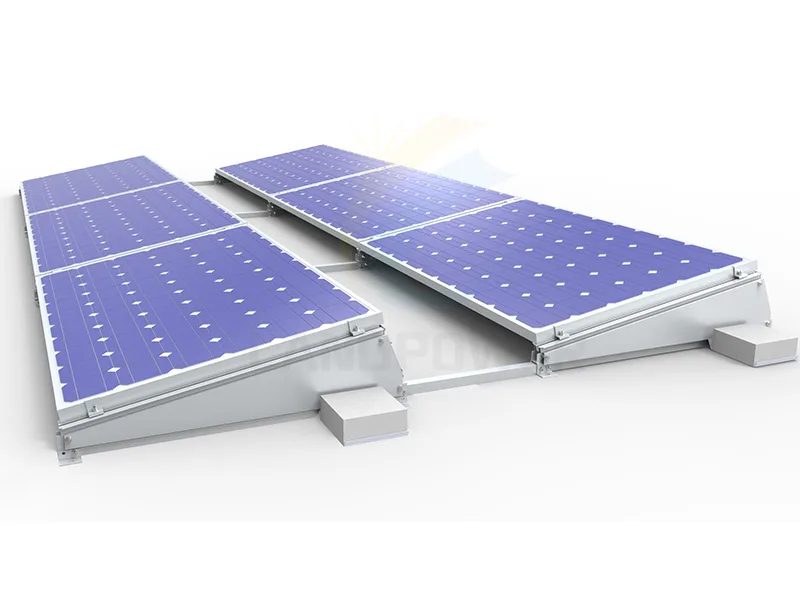

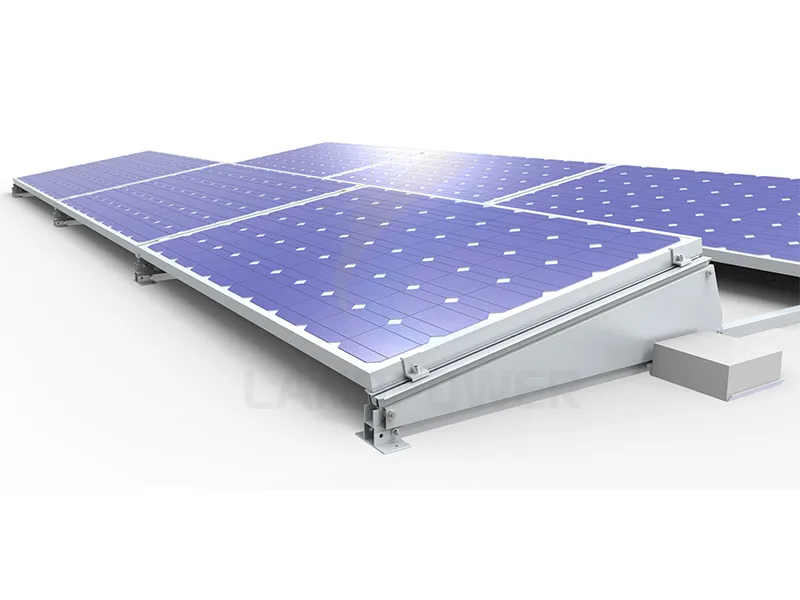

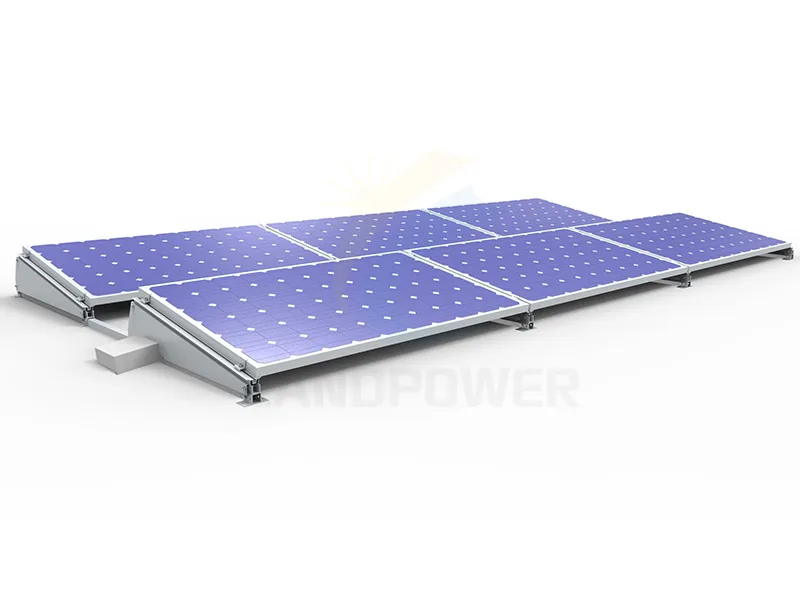

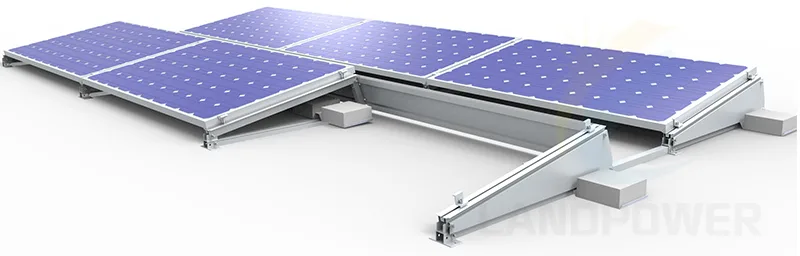

Ballasted Flat Roof Mounting Landscape

Landpower Landscape Flat Roof Solar Mounting is easy and fast ballasted flat roof structure for concrete roofs,bitumen roof and membrane roof,or other similar flat roofs. It come only pre-assembled triangles,mid clamp,end clamp,connection tube,and ballasted plates.The triangle is flexible,by adding some parts,the angle will be adjustable,it can come with angle 5 degrees,10 degrees,15 degrees,20 degrees,25 degrees,or designed to be adjustable.

TECHNICAL INFORMATION

Install site ： Flat Roof

Tilt Angle ： Flushed with the roof （ 10~60 deg ）

Building Height ： Up to 20 m

Max Wind Speed ： <60m/s

Snow Load ： <1.4KN/m2

Standard ： EN 1090, AS/NZS 1170 and other international Standard

Material ： Aluminum alloy Al6005-T5& Stainless steel 304 (A2),EPDM

Color: Natural or Customized

Anticorrosive: Anodized aluminum & stainless steel

Warranty ： 12 years warranty and twenty- year service life

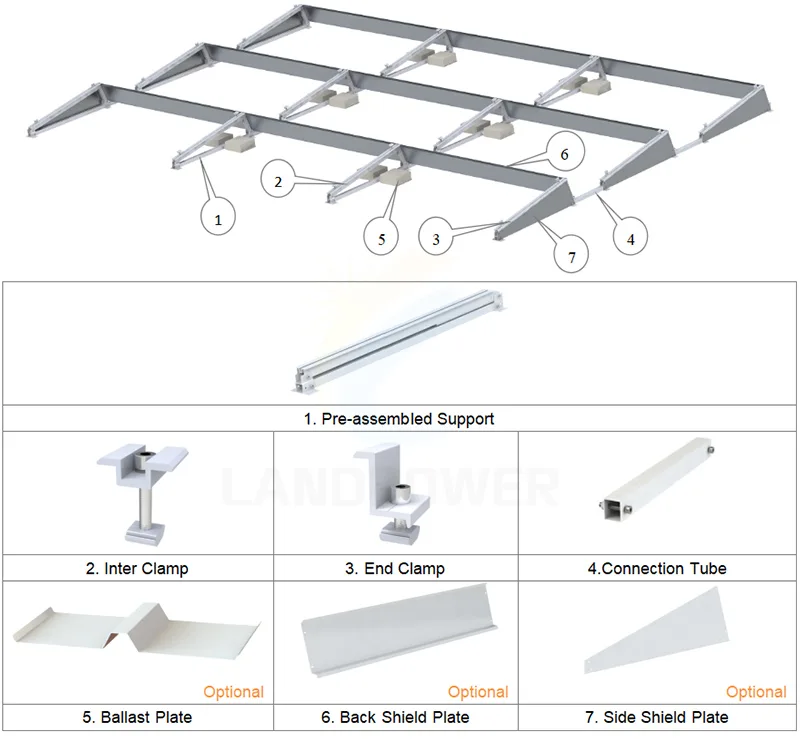

Main parts for the Landscape Flat Roof Mounting Structure:

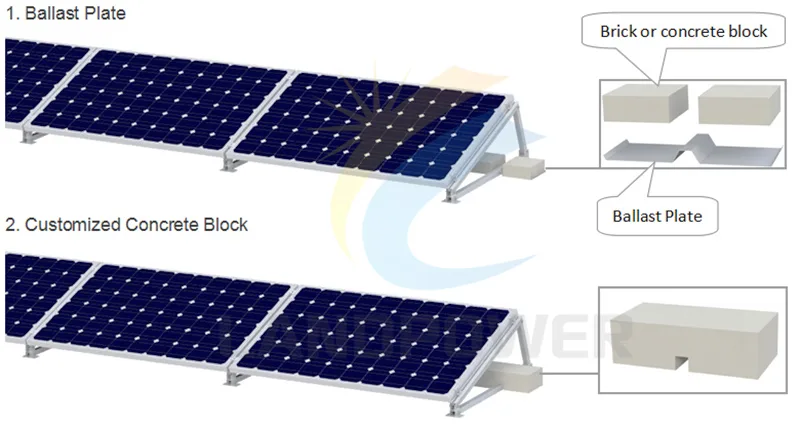

Foundation for the Ballasted Mounting Systems:

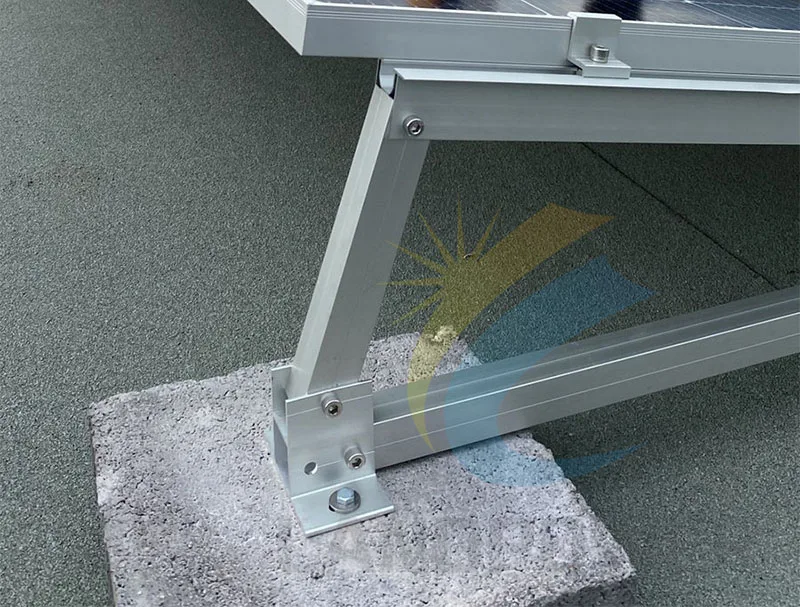

3.Fixing to Ballasted Concrete Blocks:

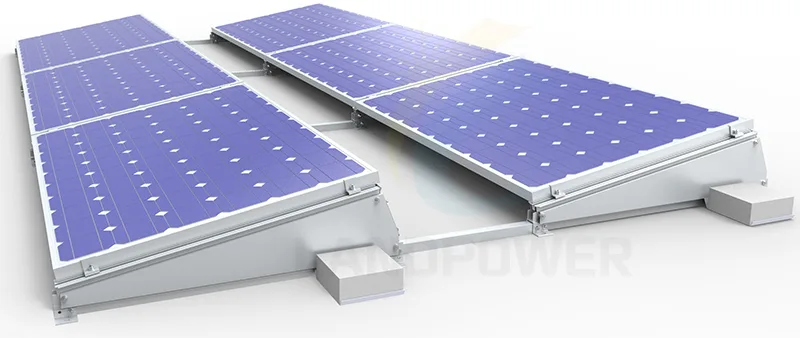

The installation Demo. for Landscape Ballasted Flat Roof Solar Mounting:

The aluminum triangle are with more functions:1,by adding some part, the angles will adjustable.2,by adding a short connection tube,the triangles can use as east west orientation.3,the triangles with rail,can make place the panel in portrait. 4,By using with mini rail,this systems can be used on trapezoidal roof,corrugated roof as well.
