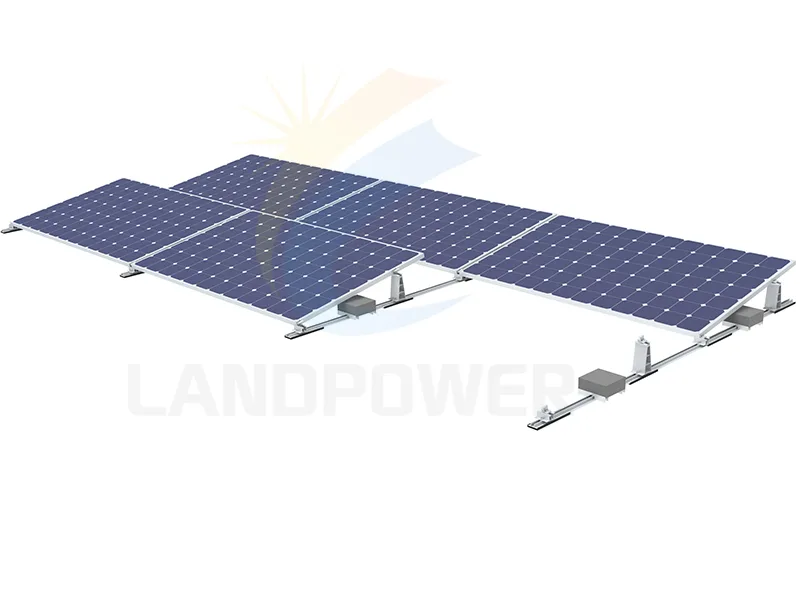

New Flat Roof Solar Mounting

The New Flat Roof Solar Mounting System comes with both a south orientation and east west orientation configuration and they are delivered with pre-assembled mounting accessories, quick and simple to use. They are just few components and the components are made from premium material like base rail, front and rear support, mid and end clamp. It is easy and cost-effective flat roof mounting solution.

TECHNICAL INFORMATION

Install Site: Flat Roof or Metal Roof

Tilt Angle: 10 degrees

Panel Orientation: Soth facing or East West

Building Height: Up to 20m

Max Wind Speed: <60m/s

Standard: AS/NZS 1170, EN 1090

Material: High Class Aluminum alloy Al 6005 T5 and Stainless Steel 304

Color: Natural and Customized

Warranty: 12 years and 25 years lifespan

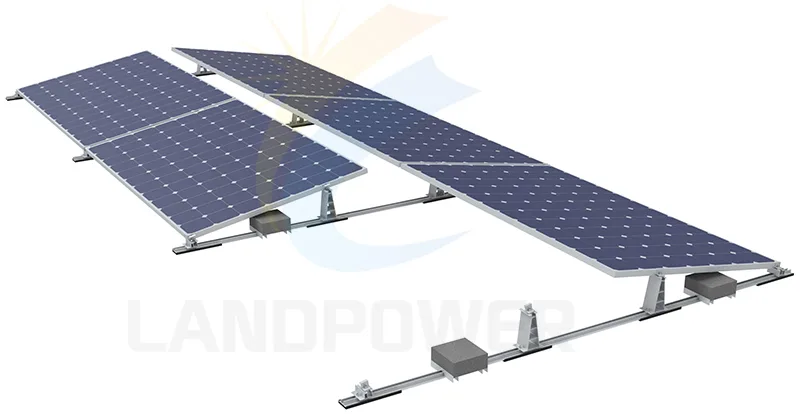

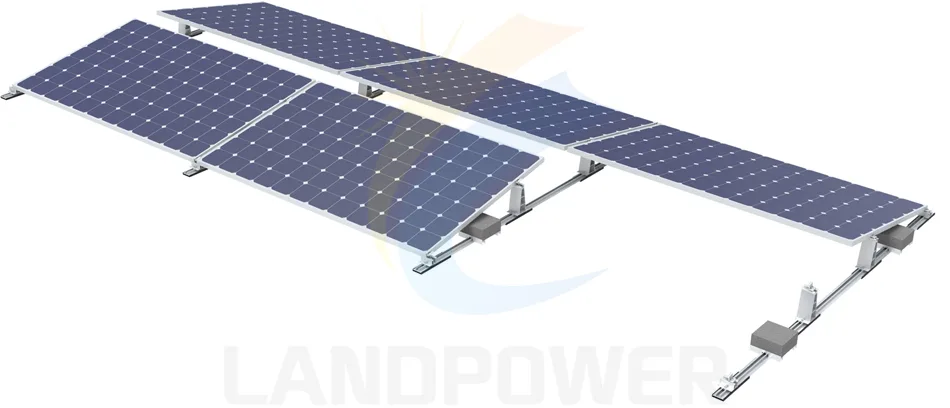

East and West Orientation

The mounting system are flexible and applicable to east and west orientations, just by using the same components, it is easy and fast mounting system for tilt 10 degrees installation. Conveniently to keep stock and distribution for landscape and east/west installation. The mounting have below advantages:

1, Maximize roof arrays.

2, Minimize shading spaces.

3, Achieve higher yields.

4, Less number of components, quick mounting

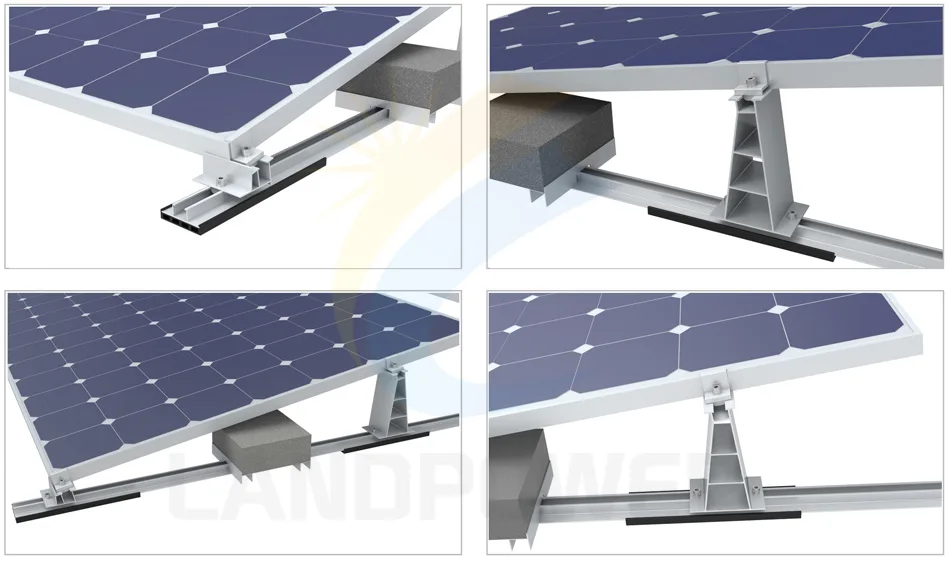

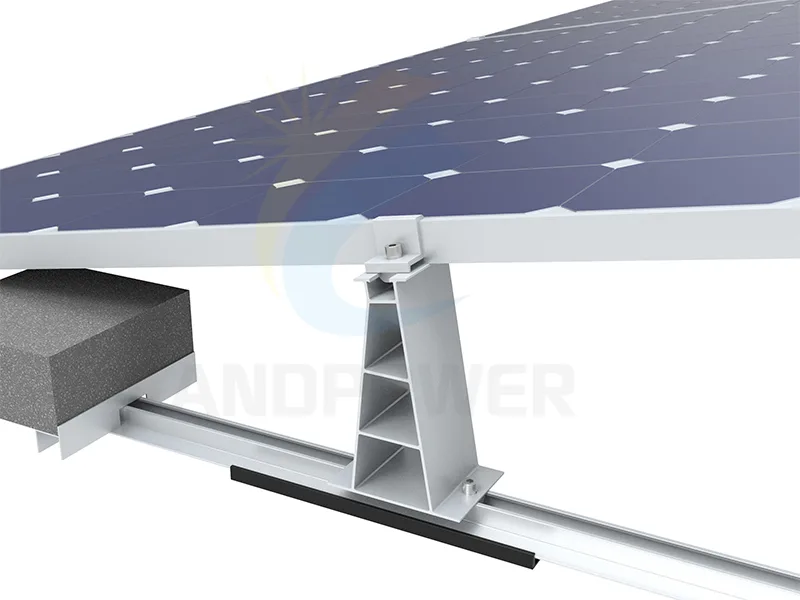

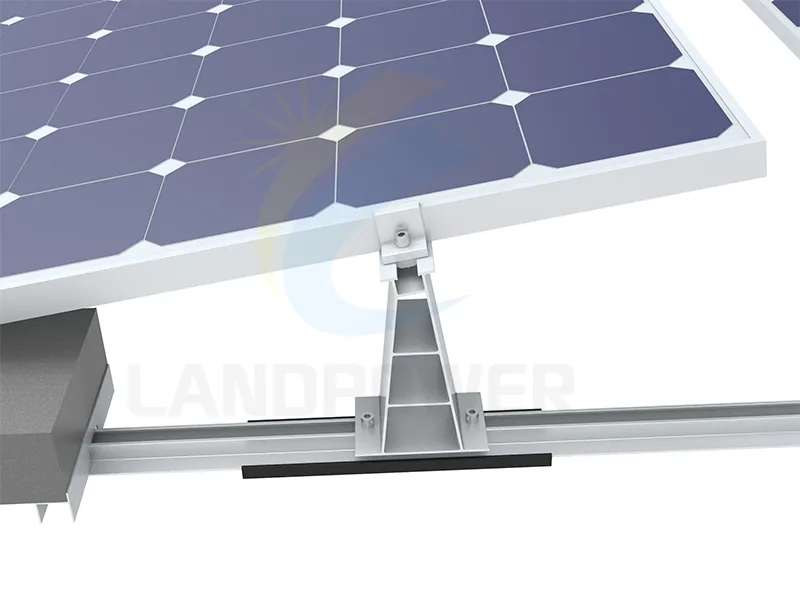

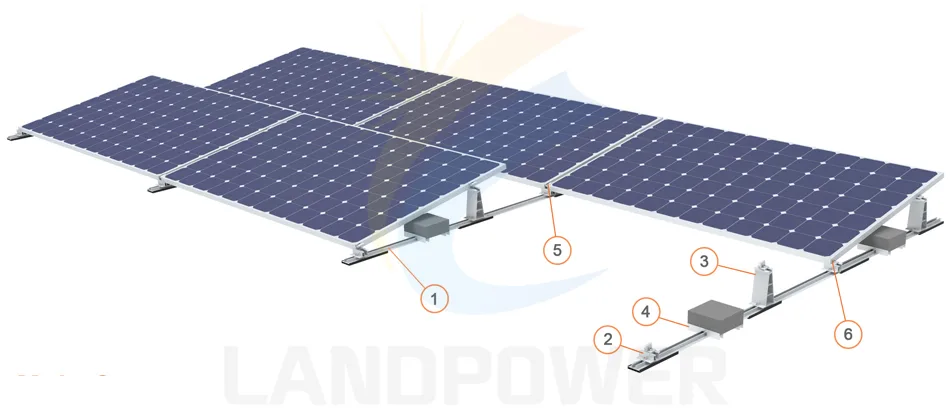

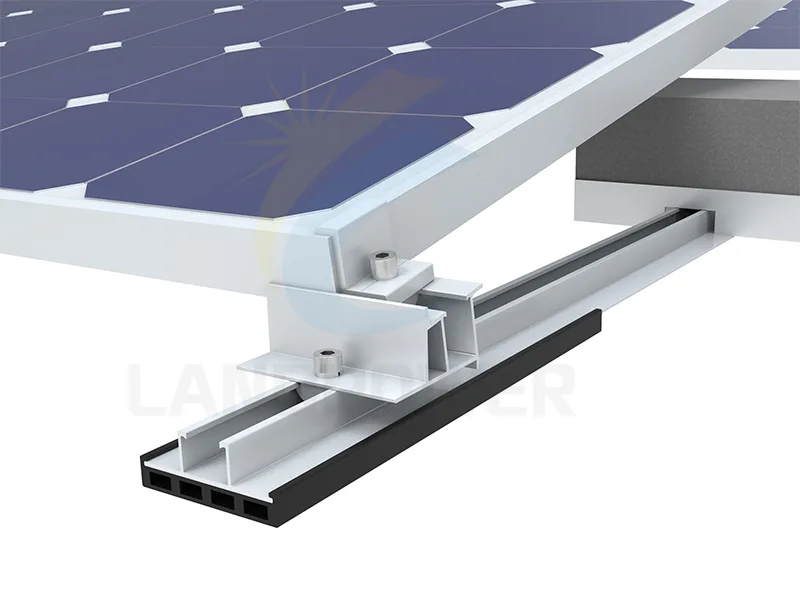

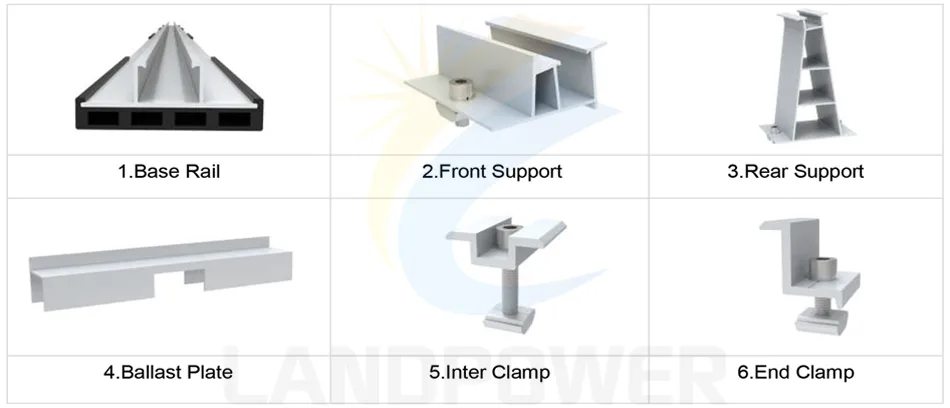

Details of the Flat Roof Mounting
