Flat Roof Tilt Up Solar Mounting Portrait

The Flat Roof Tilt-up Portrait mounting is easy and quick solution for pitched and flat roofs.The triangle can be fixed angle or angle adjustable for range 10-45 degrees.It is coming with few standardized pre-assembled components which e nable systemic storage and flexible application possibilities .

TECHNICAL INFORMATION

Install site ： Flat Roof

Tilt Angle ： Flushed with the roof （ 10~ 45 deg ）

Building Height ： Up to 20 m

Max Wind Speed ： <60m/s

Snow Load ： <1.4KN/m2

Standard ： EN 1090, AS/NZS 1170 and other international Standard

Material ： Aluminum alloy Al6005-T5& Stainless steel 304 (A2),EPDM

Color: Natural or Customized

Anticorrosive: Anodized aluminum & stainless steel

Warranty ： 12 years warranty and twenty- year service life

The Solar Flat Roof Mounting just come with few components as below,it is eay to keep stores.

1,Various options for roof connections.

Directly to flat roof with anchors,Ballasted with concrete foundation or using ballasted plate.

2,The tilt angle can be adjustable.

By adding inner tube component,the tilt angles can be adjustable 10-17 degrees,17-30 degrees,30-45 degrees.

3,Few components requested.

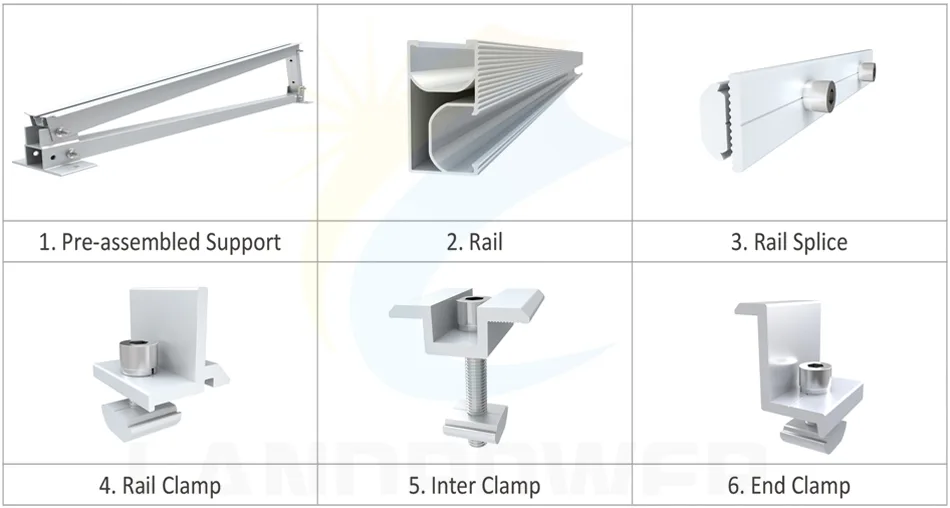

Just with main components triangle,mid/end camps,rail and rail connector. Easy to keep stocks.

There are economic solution for flat roof tilt up mounting,just take the tube from the triangle,the solution will be more saving cost.
