Flat Roof Ballast Solar Mounting for Large Solar Panel

The Flat Roof Ballast Solar Mounting for Large Solar Module (panel) is design for big solar panels with fixing points on Long Side of solar panel, stronger for installing large modules in high wind and snow areas. The long side fixing methods make the structure more strength, and the triangle can be adjustable in angle. There are three options in ballasted ways.

TECHNICAL INFORMATION

Install Site: Flat Roof or Metal Roof

Tilt Angle: 5-20 degrees

Panel Orientation: Soth facing or East West

Building Height: Up to 20m

Max Wind Speed: <60m/s

Standard: AS/NZS 1170, EN 1090

Material: High Class Aluminum alloy Al 6005 T5 and Stainless Steel 304

Color: Natural and Customized

Warranty: 12 years and 25 years lifespan

1, Fixing point can be on the short side or long side of solar panel.

2, Triangles can be fix or adjustable in tilt angles.

3, Suitable for large solar panel installation.

4, Three options of ballasted ways.

5, Suitable for southing-facing or east/west facing.

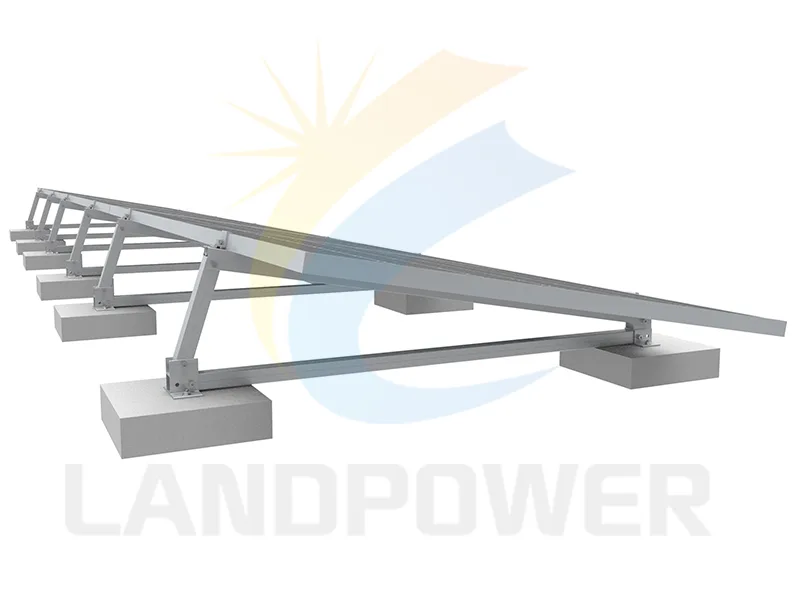

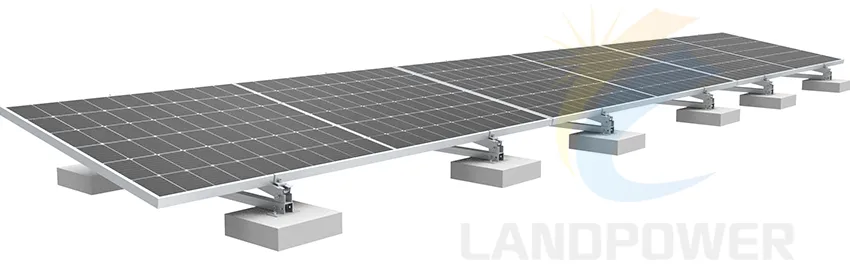

Southing-Facing Ballasted Mounting,fixing point on longside for large solar panel:

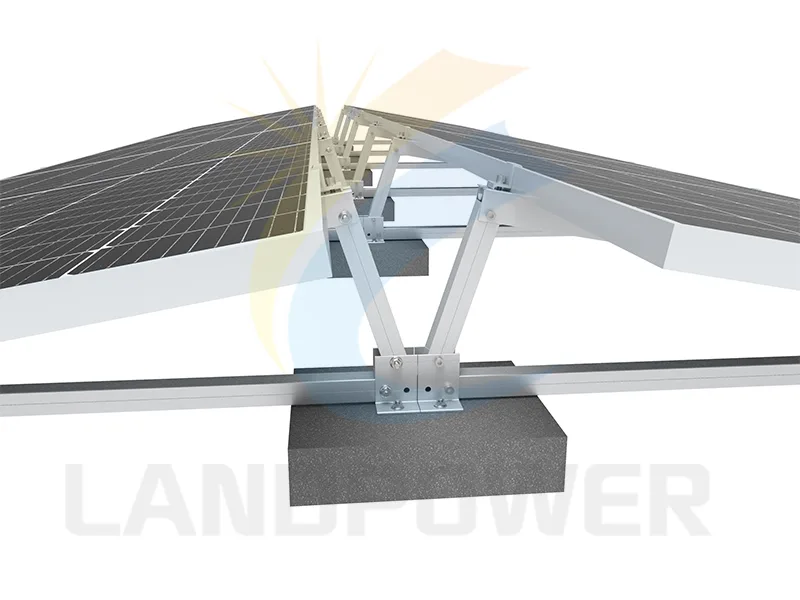

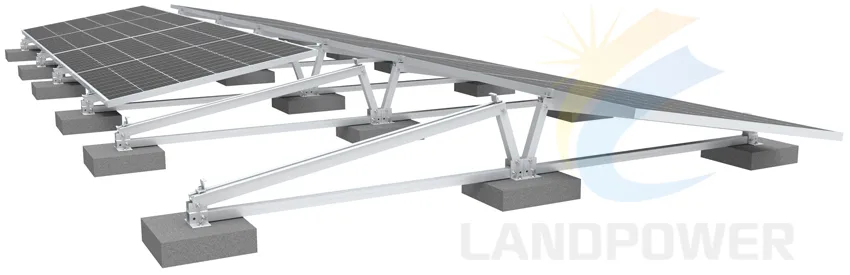

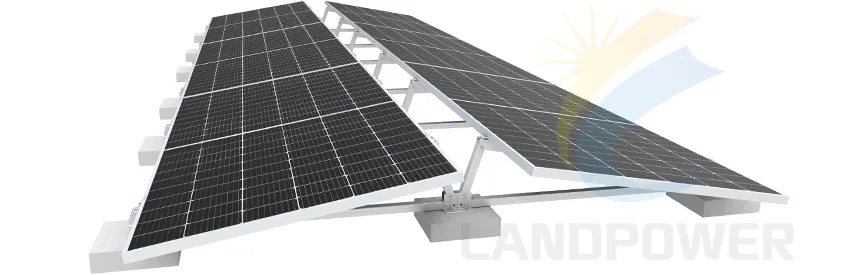

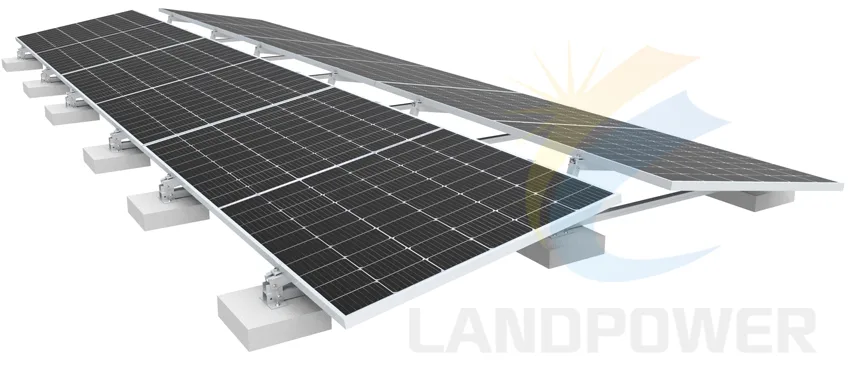

East-West Ballasted Mounting,fixing point on longside for large solar panel:

The triangles also can be used to fix on short side of solar panel in landscape,portrait,or east west. Please click here: short side ballast solar mounting

Project reference( click here ) : Long side Ballsted Mounting Structure for large solar panel
