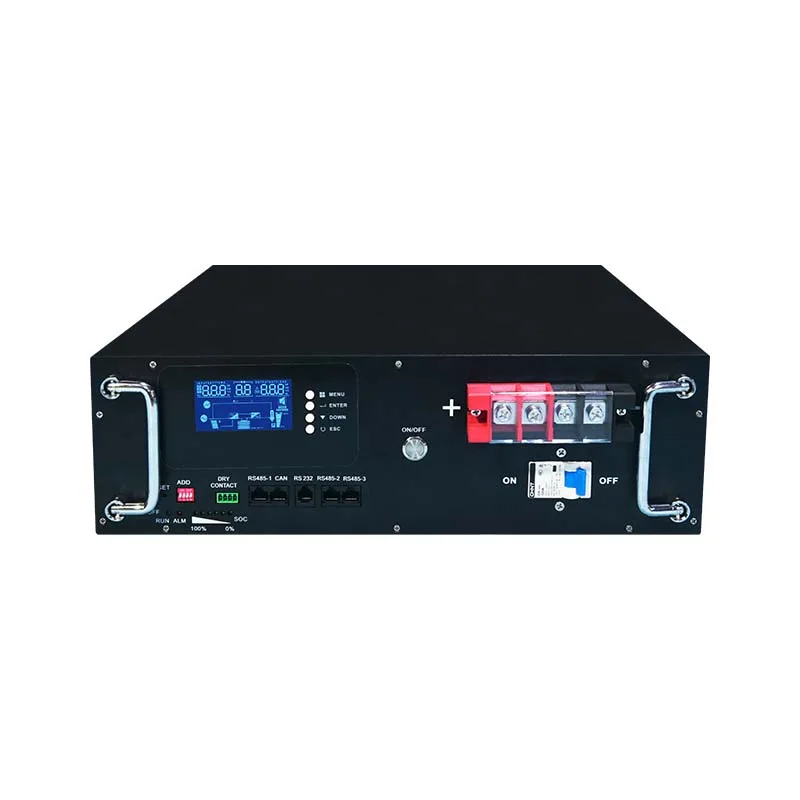

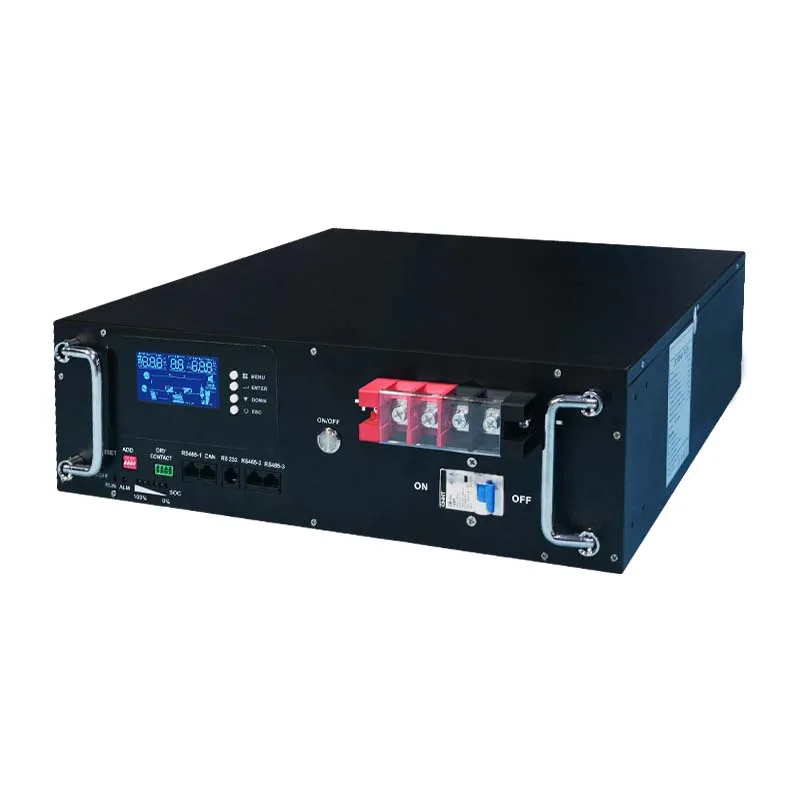

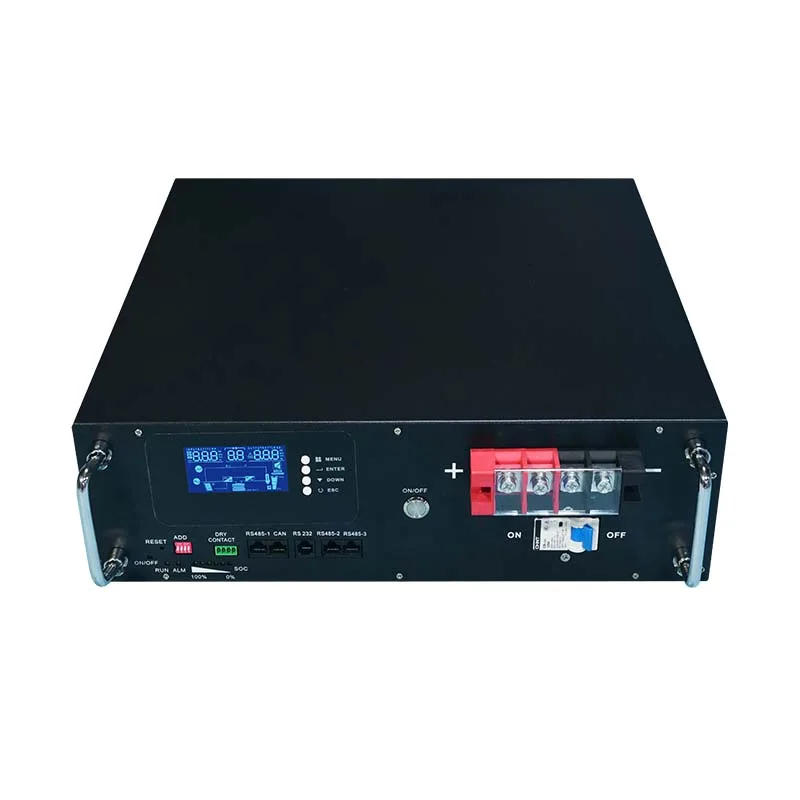

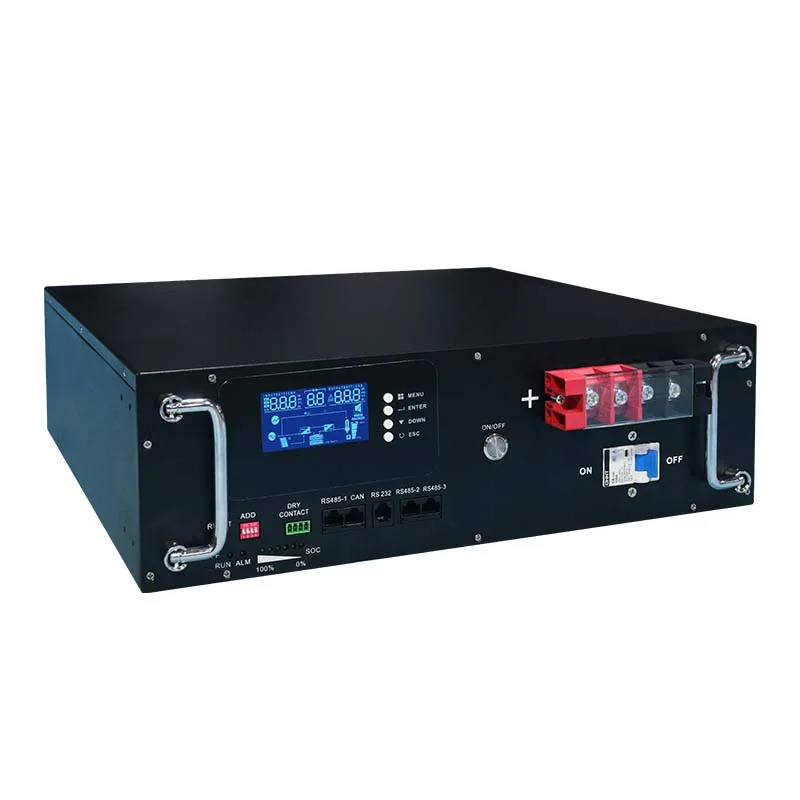

Techfine LR 51.2 V rack LiFePO4 battery: Verify Battery and System Scope
This page organizes the current source table for the Techfine LR 51.2 V rack LiFePO4 battery. 100/230 Ah members; 5.12/11.776 kWh table routes. It does not convert a family energy value into usable system energy, runtime, inverter compatibility or a complete supplied system.
Current source route: LR 51.2 V rack LiFePO4 battery.
Current source parameter table
This table is preserved from the current source record. Read it with the identity, compatibility and document boundaries below; unresolved conflicts are not corrected by assumption.
| Model | LR100AH 51.2V | LR230 512 |
|---|---|---|
| Basic Specifications | ||
| Available Capacity | 5120Wh | 11776Wh |
| Cell Chemistry | LiFePO₄ | |
| Rated Voltage | 51.2VDC | |
| Voltage Range | 43.2V ~ 58.4VDC | |
| Maximum Output Power | 5120W | 10240W |
| Charging & Discharging | ||
| Maximum Continuous Discharge Current | 100A | 200A |
| Maximum Charging Voltage | 58.4V ±0.2VDC | |
| Recommended Charging Voltage | 57.6V ±0.2VDC | |
| Recommended Charging Current | 50A | 115A |
| Low Power Mode | Self-consumption ≤50mA, low-power mode ≤200μA | |
| Charging Current Limitation Function | 10A | 20A |
| Protection Features | ||
| Charging Over-current Long-delay Protection | BMS100: >105A alarm, >110A / 1s protection BMS200: >205A alarm, >210A / 1s protection | |
| Discharge Instant Over-current Protection | BMS100: ≥150A / 100ms BMS200: ≥250A / 100ms | |
| Over-voltage Protection Recovery | Discharge current >1A release (51.2V battery: 59.2V over-voltage protection) | |
| Over-discharge Protection Recovery | Reactivated when charger is connected (51.2V battery: 43.2V recovery) | |
| Charging Over-current Protection Recovery | Charge current >1A release | |
| Discharge Over-current Protection Recovery | Discharge current >1A release | |
| Short-circuit Protection | Supported; automatically released during charging | |
| MOS High-temperature Protection | MOS over-temperature protection | |
| Cell Temperature Protection | Cell low-temperature protection (-20°C) Cell high-temperature protection (70°C) | |
| Environmental Temperature Alarm | Low-temperature alarm: -20°C High-temperature alarm: 75°C | |
| Cell Failure Protection | Single-cell voltage difference >1V | |
| Display & Performance Indicators | ||
| Display | LCD display (optional LCD display available) | |
| Depth of Discharge (DOD) | ≥95% | |
| System Expansion & Communication | ||
| Module Connection | 1–15 modules | |
| Communication | Standard RS232, RS485, CAN | |
| Protection Level | IP21 | |
| Battery Life & Reliability | ||
| Cycle Life (Standard Charge & Discharge at Room Temperature) | ≥5000 cycles | ≥6000 cycles |
| Environmental Conditions | ||
| Operating Temperature Range | Discharge: -10°C ~ +50°C Charge: 0°C ~ +60°C | |
| Storage Temperature | 1 month: 0°C ~ 35°C ≤1 month: -20°C ~ +45°C | |
| Mechanical & Installation | ||
| Terminal Type | M6 | |
| Physical Protection | Open-circuit protection | |
| Installation Method | Rack-mounted (compatible with wall-mounted installation) | |
Current document status
Request the exact member datasheet, nameplate, BMS/communication schedule, current limits, wiring, supplied BOM, transport evidence and warranty before release.
Current source evidence
Keep energy, voltage and current on the same member
Battery selection requires the exact electrical member and the connected inverter/system design.
Member route
100/230 Ah members; 5.12/11.776 kWh table routes
Energy and runtime
Nominal Wh does not establish usable energy or runtime; confirm discharge rate, cutoff, reserve, temperature and conversion losses.
BMS and compatibility
Voltage and LiFePO4 chemistry do not prove inverter/BMS communication, firmware, current limits or warranty compatibility.
System/BOM scope
For all-in-one routes, confirm whether battery, inverter, PV input, cables, protection, enclosure, commissioning and installation items are included.
Storage RFQ checks
Six checks before finalizing the battery or ESS
Define the selected member, electrical interfaces, operating duty and delivered scope.
Exact model
Request full model/suffix, revision, nameplate and table row.
Energy and power
Confirm nominal/usable energy, continuous/peak power/current, discharge limits, cutoff, reserve and temperature.
BMS and inverter
Confirm CAN/RS485 or other protocol, firmware, approved inverter list, settings and fault behavior.
PV and AC scope
For ESS, confirm PV/MPPT, AC input/output, grid/backup mode, loads, protection and transfer path.
Mechanical and safety
Confirm rack/case, terminals, cable, grounding, ventilation, transport, fire/site requirements and installation responsibilities.
Evidence and supply
Request manual, wiring, certificates for exact model/destination, BOM, warranty, packing, lead time and substitution controls.
Storage boundaries
A battery or all-in-one headline is not a complete project guarantee
Final capacity, compatibility, backup and grid behavior require the exact member and project-specific design.
Family-member boundary
Do not transfer energy, voltage, current, cycle, BMS or mechanical data across members.
Usable energy boundary
Nominal capacity differs from usable energy due to DoD, current, temperature, cutoff, losses and reserve.
Compatibility boundary
BMS pairing, firmware and inverter approvals require written exact-model evidence.
ESS scope boundary
All-in-one wording does not establish delivered PV, AC, battery, cables, protection, installation or grid-approval scope.
Continue the storage review
Prepare an evidence-based storage RFQ
Use existing sizing guidance to state the actual load, energy, power and system scope.
Storage FAQ
Questions to close before quotation
Exact member documents and project interfaces determine the final answer.
Which member applies to this LR 51.2 V rack LiFePO4 battery?
The current table route is 100/230 Ah members; 5.12/11.776 kWh table routes. Request the exact selected code, nameplate and latest table before quotation.
Can nominal Wh be used as backup runtime?
No. Runtime requires usable DoD, load, power limits, conversion losses, cutoff, reserve, temperature and battery condition.
Will it work with any same-voltage inverter?
No. Confirm BMS protocol, firmware, current/power limits, settings and the exact-model compatibility approval.
What should the RFQ include?
Request exact datasheet/manual, BMS interface, wiring, current limits, certificates/transport files, BOM, warranty and delivery scope.
Prepare a verified LR 51.2 V rack LiFePO4 battery RFQ
Send load, energy/autonomy target, inverter or ESS topology, PV/AC route, destination and required documents.
