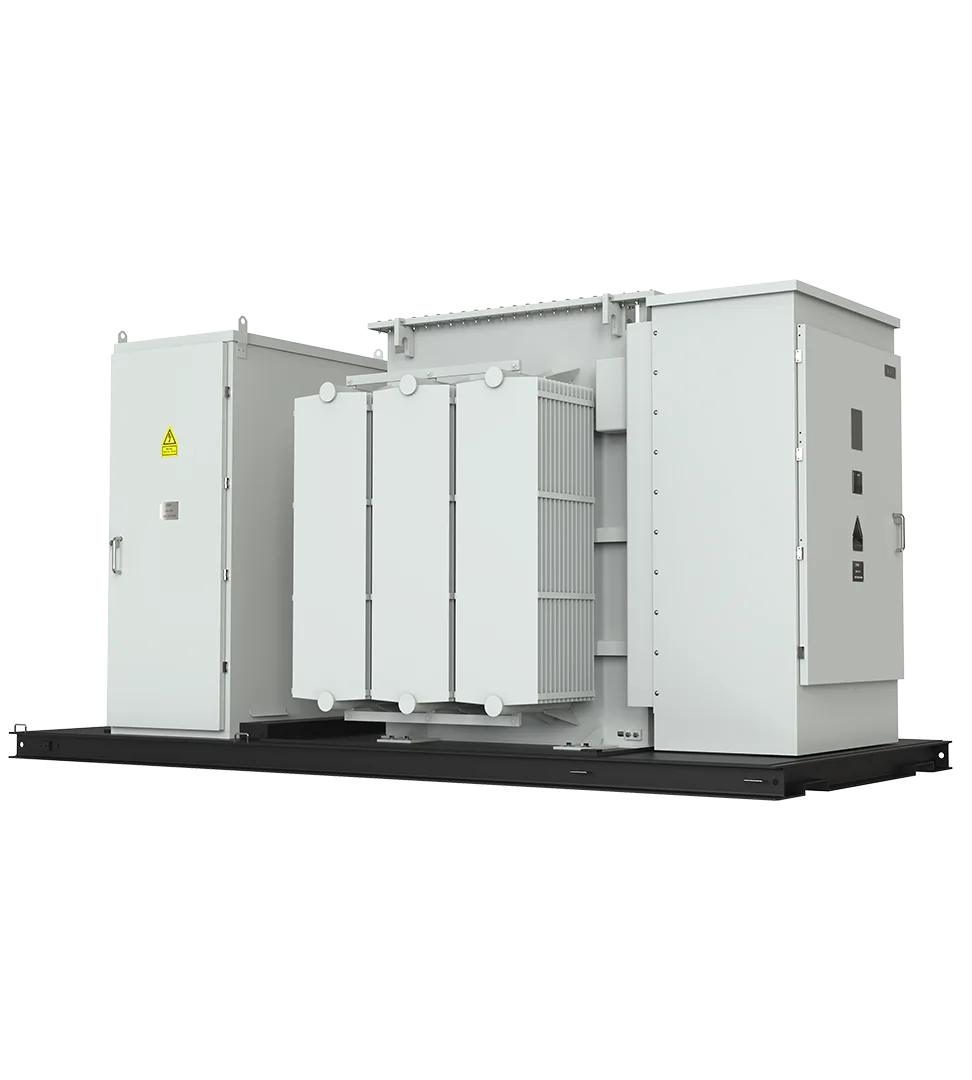

Solis-4200-MV Skid Solution
Solis' Skid Solution supports larger scale projects to simplify implementation and work seamlessly with our 1500 VDC PV string inverters (250-350kW). We reduce complexity by placing all supportive architecture for your large project on a single skid. This MW Station can serve up to 4.2MW sites with a 20-foot container delivery for easy transport, with additional options built in like an AC combiner for optimum flexibility.
Safe Efficient Smart Economic
Safe Efficient Smart Economic
Solis-4200-MV Skid Solution
Solis' Skid Solution supports larger scale projects to simplify implementation and work seamlessly with our 1500 VDC PV string inverters (250-350kW). We reduce complexity by placing all supportive architecture for your large project on a single skid. This MW Station can serve up to 4.2MW sites with a 20-foot container delivery for easy transport, with additional options built in like an AC combiner for optimum flexibility.
Datasheet Download More Downloads
Solis-4200-MV Skid Solution
Solis-4200-MV Skid Solution
Leading Features Bullets
Streamline costs with integrated container delivery PLC Communication integrated into the skid LV busbar, transformer and MV cabinet placed independently Simplify operations and maintenance with a full-frontal maintenance design Power transformers with breaker panel and GFDI receptacle are integrated The modular and skid design of MW equipment makes systems easier to replace and manage Convenient installation when the MV Station is lifted to the foundation, only low voltage and MV cables need to be connected Options include a 2.80-3.15 MW Transformer 12.47-34.5/0.8kV Dy1, Dy11 and Ygyg and 4.2MW Transformer 34.5/0.8kV Dy1, Dy11 and Ygyg
Product Details
60 Hz
Frequency
3312 A
Max. input current
WiFi/GPRS
Real time monitoring
4200 kVA
Rated output
Type 3R
Ingress protection
App Store
IOS/Android
