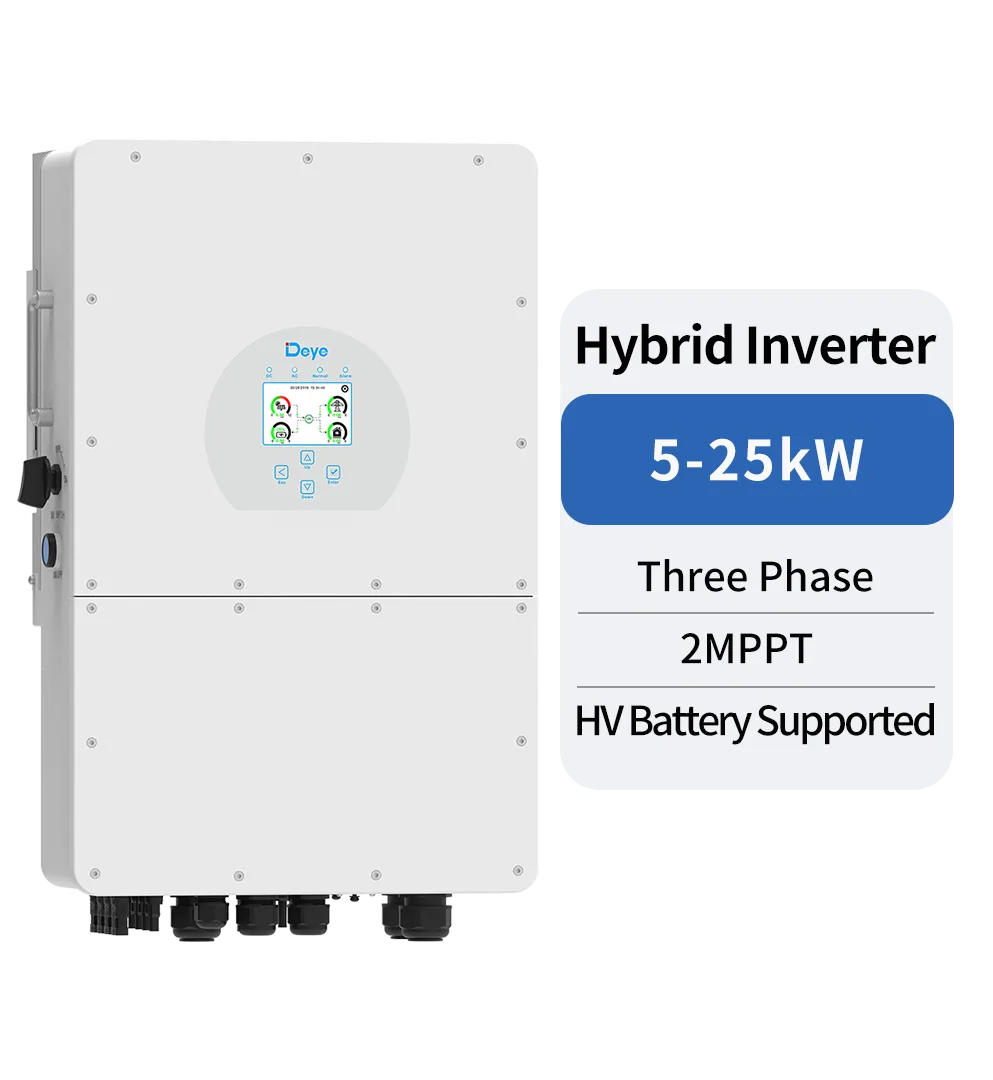

SUN-5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2 Three Phase Hybrid Inverter | 5-25kW | 2 MPPT | HV Battery Supported
Product Highlights
Features
01

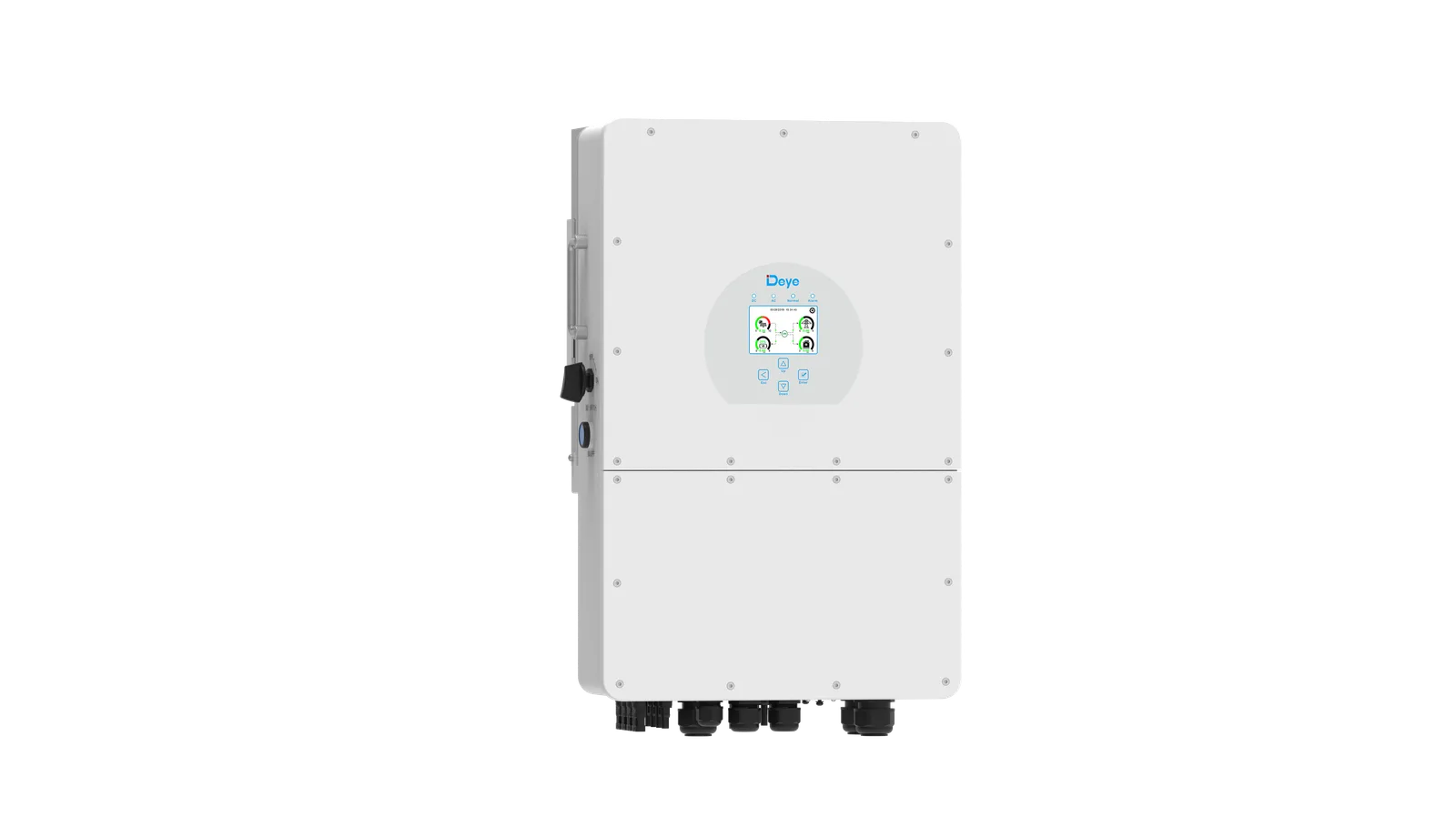

100% unbalanced output
02

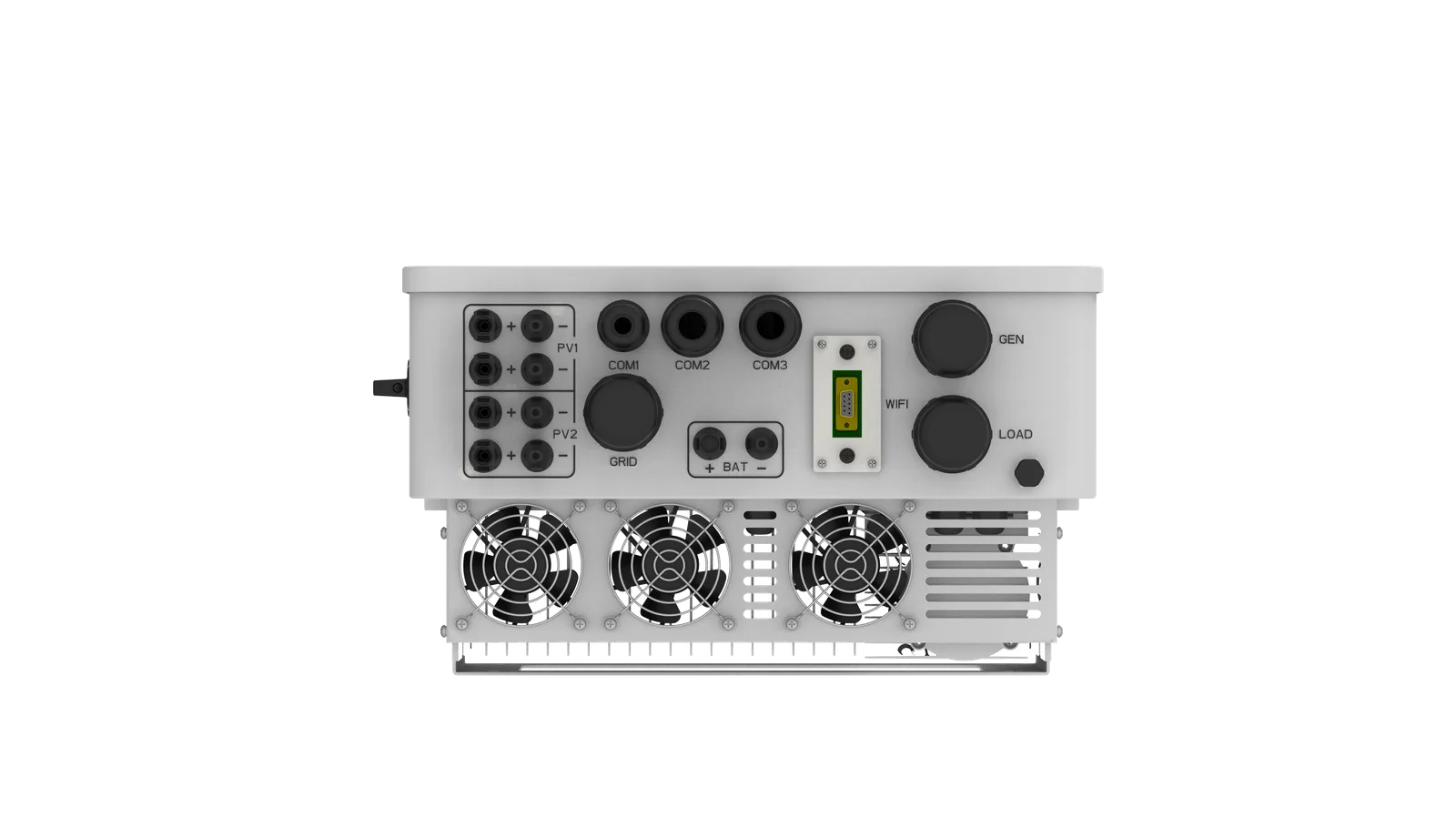

AC couple to retrofifit existing solar system
03
*Max. 10 pcs parallel for on-grid and off-grid
04

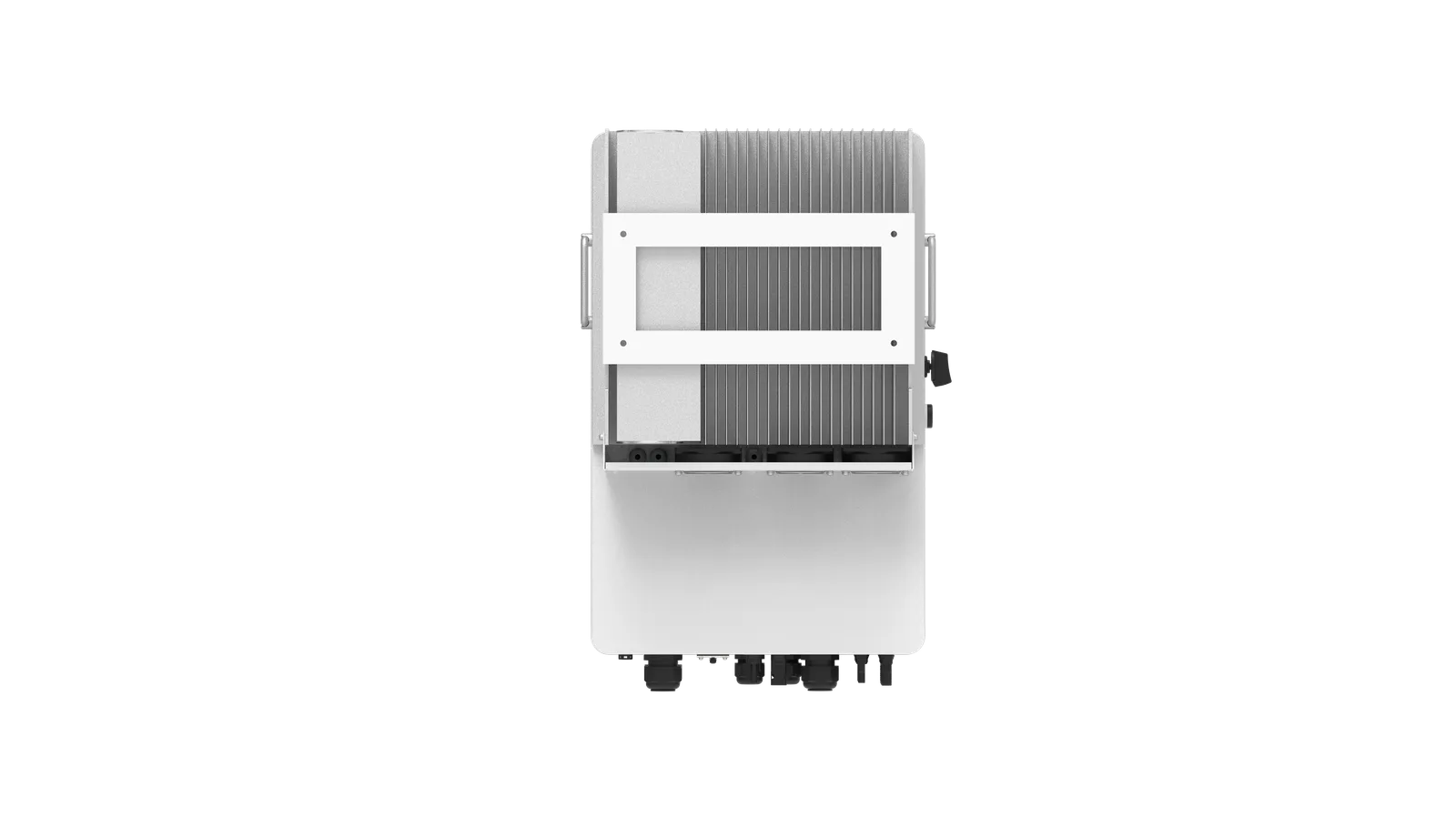

operation; Support multiple batteries parallel
05

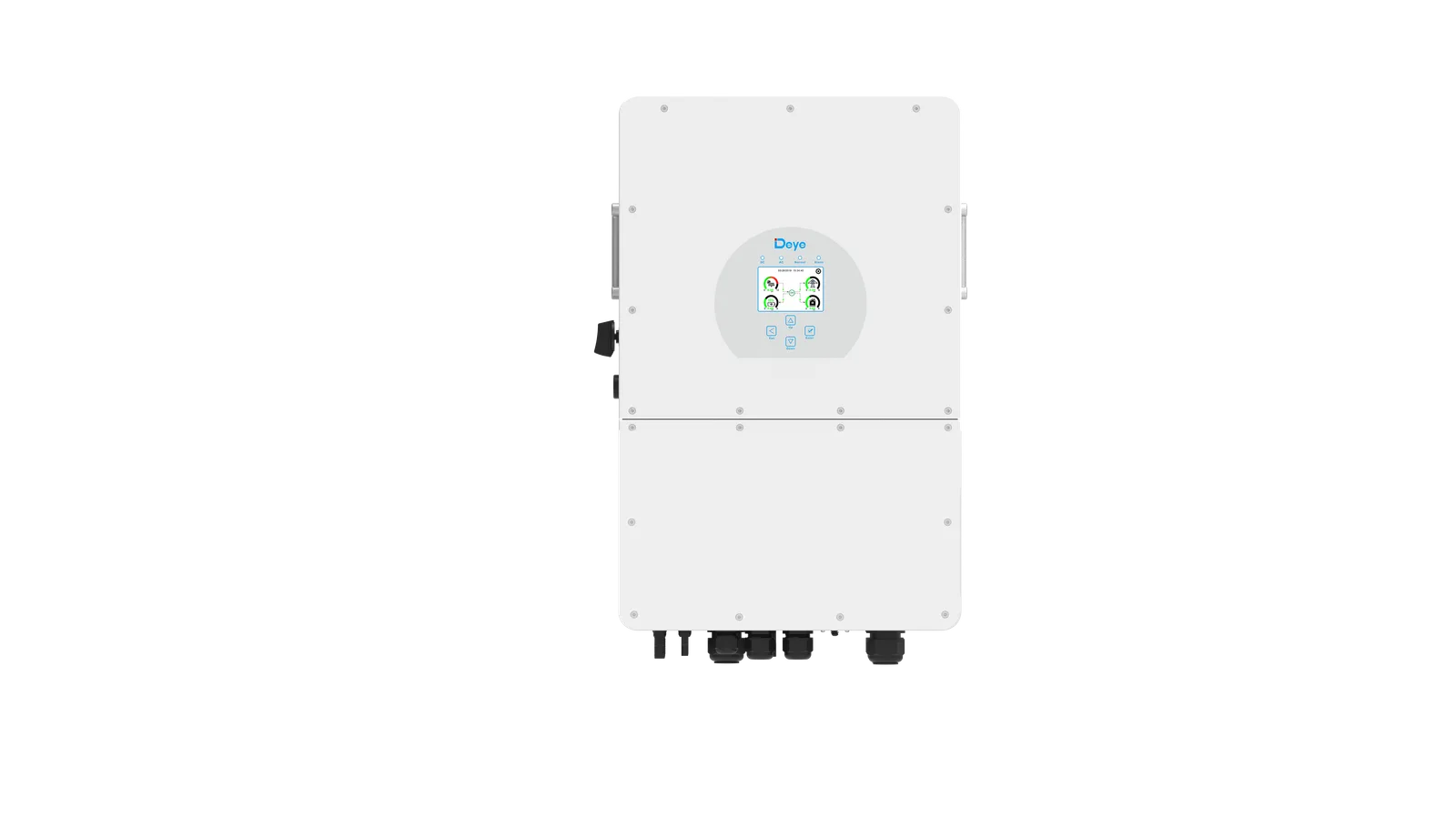

Max. charging/discharging current of 50A
06
High voltage battery, higher effificiency
07
6 time periods for battery charging/discharging
08
Support storing energy from diesel generator
Specifications
| Model | SUN-5K -SG01HP3-EU-AM2 | SUN-6K -SG01HP3-EU-AM2 | SUN-8K -SG01HP3-EU-AM2 | SUN-10K -SG01HP3-EU-AM2 | SUN-12K -SG01HP3-EU-AM2 | SUN-15K -SG01HP3-EU-AM2 | SUN-20K -SG01HP3-EU-AM2 | SUN-25K -SG01HP3-EU-AM2 |
|---|---|---|---|---|---|---|---|---|
| Battery Input Data | ||||||||
| Battery Type | Lithium-ion | |||||||
| Battery Voltage Range(V) | 160-700 | |||||||
| Max.Charging Current(A) | 30 | 30 | 37 | 50 | ||||
| Max.Discharging Current(A) | 30 | 30 | 37 | 50 | ||||
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | |||||||
| Number of battery input | 1 | |||||||
| PV String Input Data | ||||||||
| Max. PV Access Power (W) | 10000 | 12000 | 16000 | 20000 | 24000 | 30000 | 40000 | 50000 |
| Max. PV Input Power (W) | 8000 | 9600 | 12800 | 16000 | 19200 | 24000 | 32000 | 40000 |
| Max. PV Input Voltage (V) | 1000 | |||||||
| Start-up Voltage（V） | 180 | |||||||
| MPPT Voltage Range（V） | 150-850 | |||||||
| Rated DC Input Voltage(V) | 600 | 700 | ||||||
| Max Input Short-Circuit Current（A） | 30+30 | 39+30 | 39+39 | |||||
| Max Operating PV Input Current（A） | 20+20 | 26+20 | 26+26 | |||||
| No.of MPP Trackers/No.of String Per MPP Tracker | 2/1+1 | 2/2+1 | 2/2+2 | |||||
| AC Input/Output Data | ||||||||
| Rated AC Input/Output Active Power（W） | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 | 20000 | 25000 |
| Max AC Input/Output Apparent Power （VA） | 5500 | 6600 | 8800 | 11000 | 13200 | 16500 | 22000 | 27500 |
| Peak Power (off-grid)（W） | 1.5 times of rated power,10s | |||||||
| Rated AC Input/Output Current（A） | 7.6/7.3 | 9.1/8.7 | 12.2/11.6 | 15.2/14.5 | 18.2/17.4 | 22.8/21.8 | 30.4/29 | 37.9/36.3 |
| Max AC Input/Output Current（A） | 8.4/8 | 10/9.6 | 13.4/12.8 | 16.7/16 | 20/19.2 | 25/24 | 33.4/31.9 | 41.7/39.9 |
| Max Continuous AC Passthrough (grid to load)（A） | 40 | 80 | ||||||
| Rated Input/Output Voltage/Range(V) | 220/380V，230/400V 0.85Un-1.1Un | |||||||
| Grid Connection Form | 3L+N+PE | |||||||
| Rated Input/Output Grid Frequency/Range | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz | |||||||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | |||||||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | |||||||
| DC Injection Current | <0.5%ln | |||||||
| Efficiency | ||||||||
| Max Efficiency | 97.6% | |||||||
| Euro Efficiency | 97.0% | |||||||
| MPPT Efficiency | ＞99% | |||||||
| Equipment Protection | ||||||||
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection | |||||||
| Surge Protection Level | TYPE II(DC),TYPE II(AC) | |||||||
| Interface | ||||||||
| Communication Interface | RS485/RS232/CAN | |||||||
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | |||||||
| LCD/LED Display | LCD | |||||||
| General Data | ||||||||
| Operating Temperature Range | -40 to +60℃, >45℃ Derating | |||||||
| Permissible Ambient Humidity | 0-100% | |||||||
| Permissible Altitude | 2000m | |||||||
| Noise | ≤ 55 dB(A) | |||||||
| Ingress Protection(IP) Rating | IP 65 | |||||||
| Inverter Topology | Non-Isolated | |||||||
| Over Voltage Category | OVC II(DC),OVC III(AC) | |||||||
| Cabinet size（W*H*D）[mm] | 408*638*237（Excluding connectors and brackets） | |||||||
| Weight[kg] | 30.5 | |||||||
| Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | |||||||
| Type Of Cooling | natural cooling | Intelligent air cooling | ||||||
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105 | |||||||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||||||
