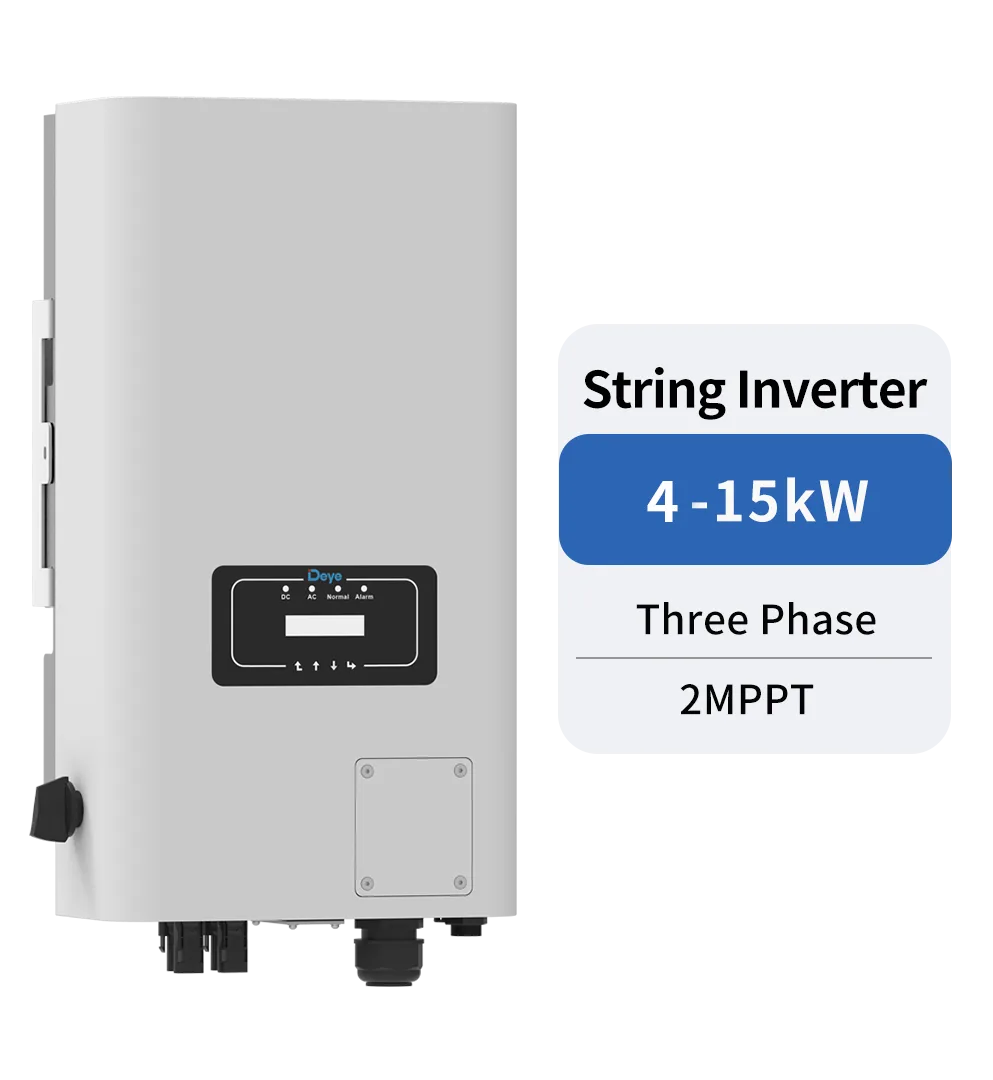

String InverterThree Phase String Inverter4-15kW
SUN-4/5K-G06P3-EU-AM2 / SUN-8K-G06 / SUN-10/15K-G05(Bangladesh)
Three Phase | 4-15kW | 2 MPPT
Three Phase4-15kW2 MPPT
Downloads
Overview
SUN-4/5K-G06P3-EU-AM2 / SUN-8K-G06 / SUN-10/15K-G05(Bangladesh) Three Phase | 4-15kW | 2 MPPT
Product Highlights
Features
01
2 MPP tracker, Max. efficiency up to 98.5%
02

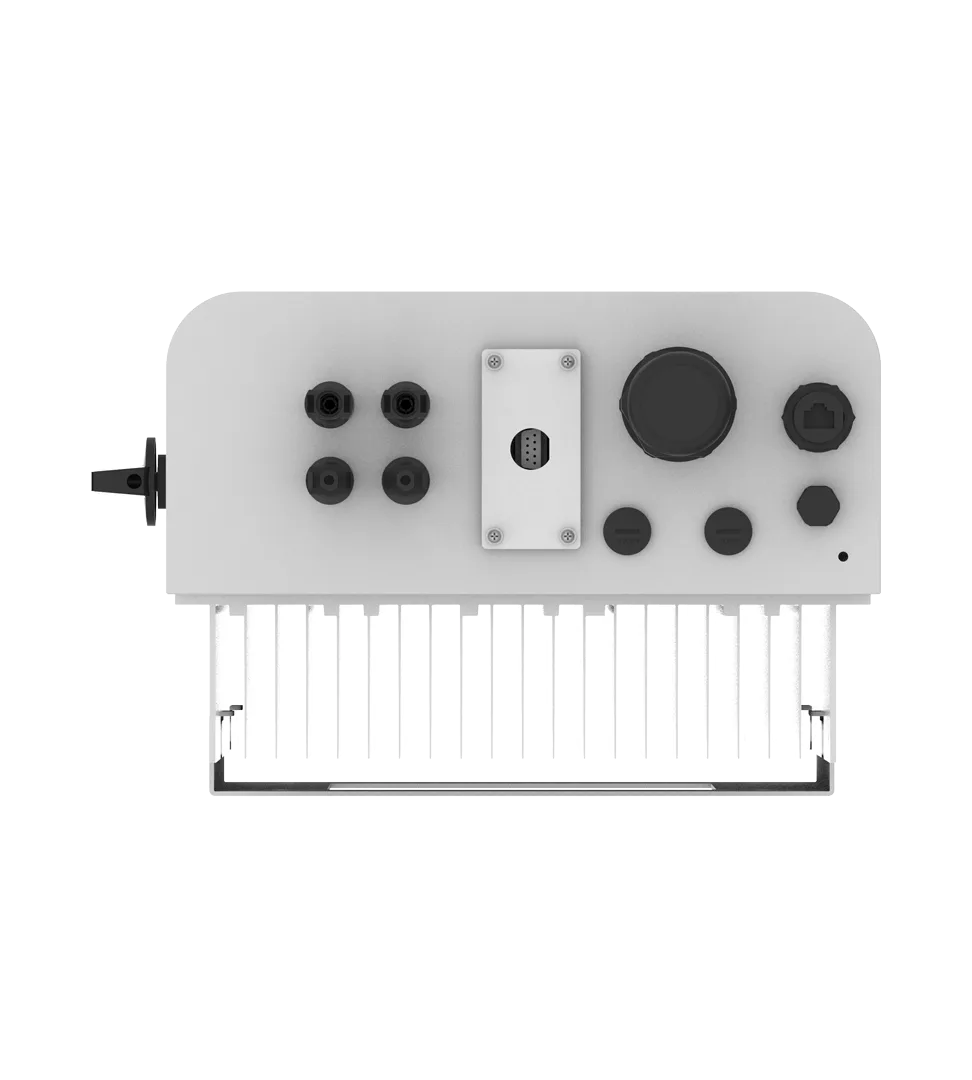

Zero export application, VSG application
03

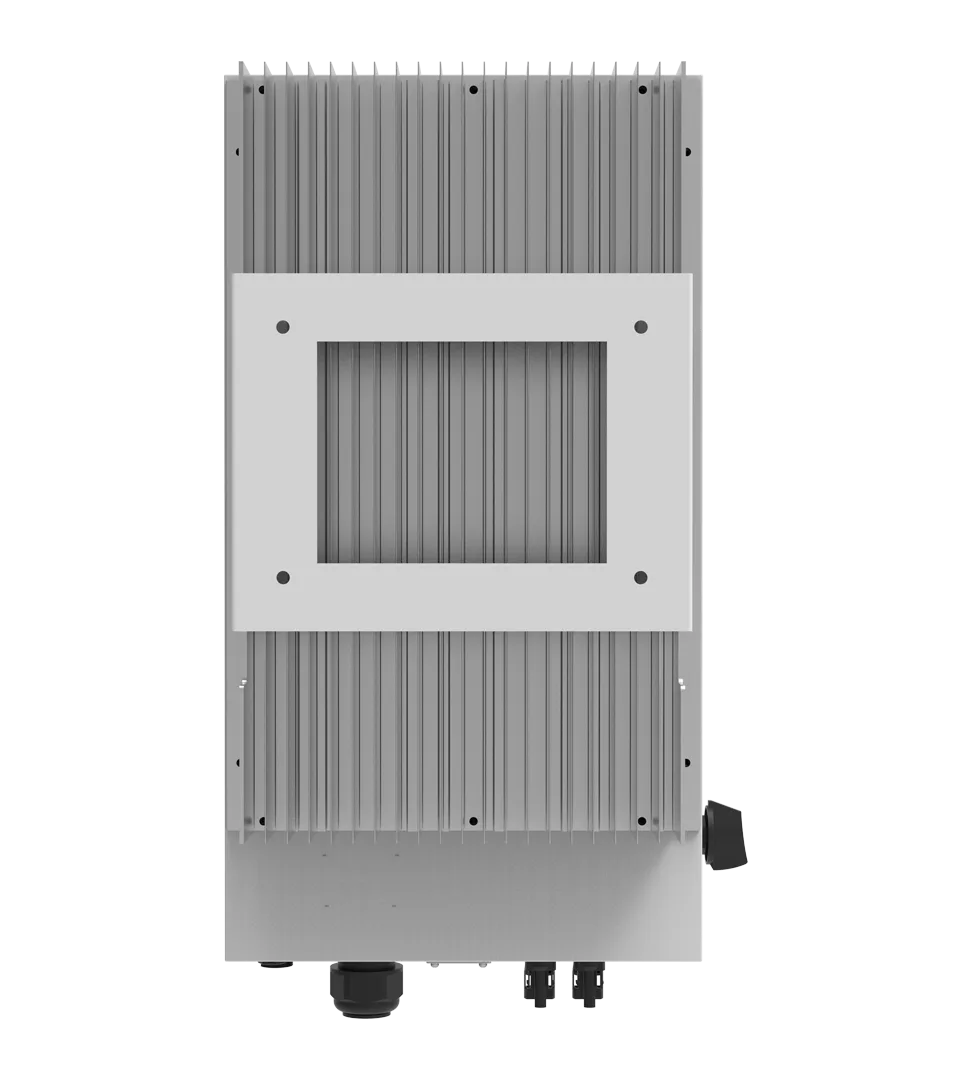

String intelligent monitoring (optional)
04
Wide output voltage range
05
Anti-PID function (Optional)
Specifications
| Model | SUN-4K-G06P3-EU-AM2 | SUN-5K-G06P3-EU-AM2 | SUN-8K-G06P3 | SUN-10K-G05 | SUN-15K-G05 |
|---|---|---|---|---|---|
| PV String Input Data | |||||
| Max. PV Input Power (kW) | 6 | 7.5 | 12 | 15 | 22.5 |
| Max. PV Input Voltage (V) | 1100 | ||||
| Start-up Voltage (V) | 140 | ||||
| MPPT Voltage Range (V) | 120-1000 | ||||
| Rated PV Input Voltage (V) | 600 | ||||
| Max. Operating PV Input Current (A) | 13+13 | 13+26 | |||
| Max. Input Short Circuit Current (A) | 19.5+19.5 | 19.5+39 | |||
| No. of MPP Trackers/ No. of StringsperMPP Tracker | 2/1+1 | 2/1+2 | |||
| AC Output Side | |||||
| Rated AC Output Active Power (kW) | 4 | 5 | 8 | 10 | 15 |
| Max.AC Output Apparent Power (kVA) | 4.4 | 5.5 | 8.8 | 11 | 16.5 |
| Rated AC Output Current (A) | 6.1/5.8 | 7.6/7.3 | 12.2/11.6 | 15.2/14.5 | 22.8/21.8 |
| Max. AC Output Current (A) | 6.7/6.4 | 8.4/8 | 13.4/12.8 | 16.7/16 | 25/24 |
| Rated Output Voltage/Range (V) | 220/380V, 230/400V 0.85Un-1.1Un | ||||
| Grid Connection Form | 3L/N/PE | ||||
| Rated Output Grid Frequency/Range(Hz) | 50/45-55, 60/55-65 | ||||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||||
| Total Current Harmonic Distortion THDi | <3% | ||||
| DC Injection Current | <0.5%ln | ||||
| Efficiency | |||||
| Max. Efficiency | 98.1% | 98.2% | 98.3% | 98.5% | |
| Euro Efficiency | 97.5% | 97.6% | 97.8% | 98% | |
| MPPTEfficiency | >99% | ||||
| Equipment Protection | |||||
| DC Reverse Polarity Protection | Yes | ||||
| AC Output Overcurrent Protection | Yes | ||||
| AC Output Overvoltage Protection | Yes | ||||
| AC Output Short Circuit Protection | Yes | ||||
| Thermal Protection | Yes | ||||
| Insulation Impedance Detection | Yes | ||||
| DC Component Monitoring | Yes | ||||
| Arc Fault Circuit Interrupter (AFCI) | Optional | ||||
| Anti-islanding Protection | Yes | ||||
| Residual Current Detection | Yes | ||||
| Surge Protection Level | TYPE II(DC),TYPE II(AC) | ||||
| DC Switch | Yes | ||||
| Interface | |||||
| Communication Interface | RS485/RS232 | ||||
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | ||||
| General Data | |||||
| Operating Temperature Range (°C) | -25 to +60℃, >45℃ Derating | ||||
| Permissible Ambient Humidity | 0-100% | ||||
| Permissible Altitude (m) | 4000m | ||||
| Noise (dB) | <45 | ||||
| Ingress Protection(IP) Rating | IP 65 | ||||
| Inverter Topology | Non-Isolated | ||||
| Over Voltage Category | OVC II(DC), OVC III(AC) | ||||
| Cabinet Size (WxHxD mm) | 283×525×178 (Excluding Connectors and Brackets) | 283×525×188 | |||
| Weight (kg) | 11.5 | 12 | |||
| Warranty | 5 Years | ||||
| Type of Cooling | Natural Cooling | ||||
| Grid Regulation | IEC 61727, IEC 62116,CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98,G99,VDE-AR-N 4105 | ||||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||
