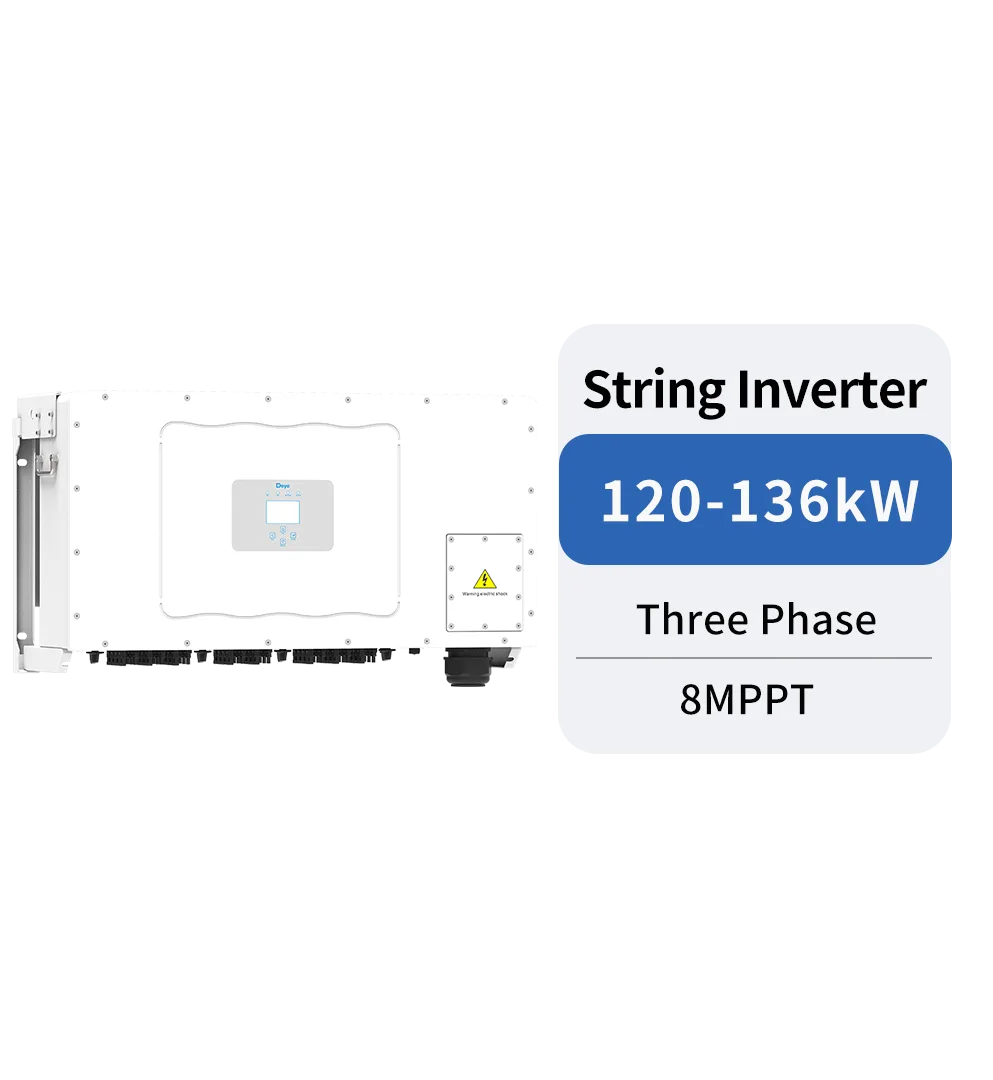

String InverterThree Phase String Inverter120-136kW
SUN-120/125/130/135/136K-G01P3-EU-AM8
Three Phase | 120-136kW | 8 MPPT
Three Phase120-136kW8 MPPT
Downloads
Overview
SUN-120/125/130/135/136K-G01P3-EU-AM8 Three Phase | 120-136kW | 8 MPPT
Product Highlights
Features
01
8 MPP trackers, Max. efficiency up to 98.8%
02

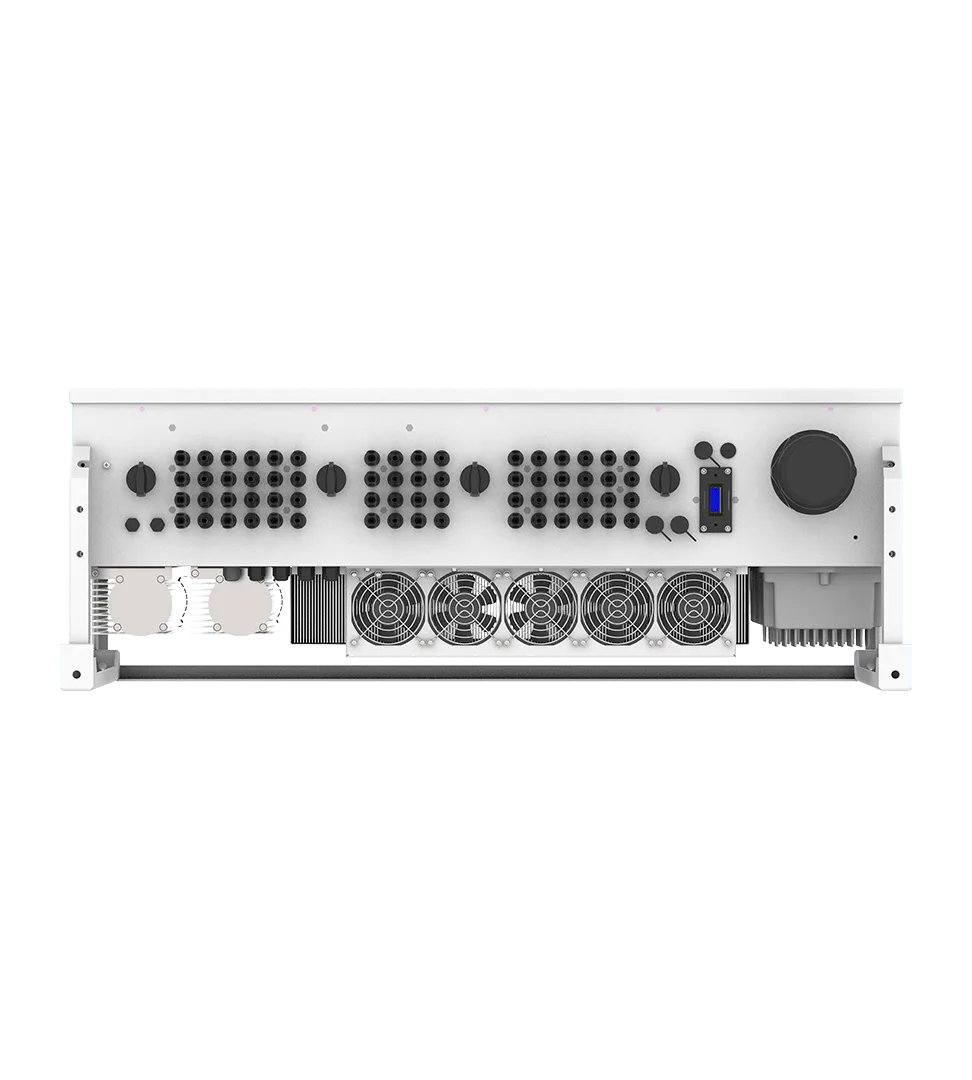

Zero export application, VSG application
03

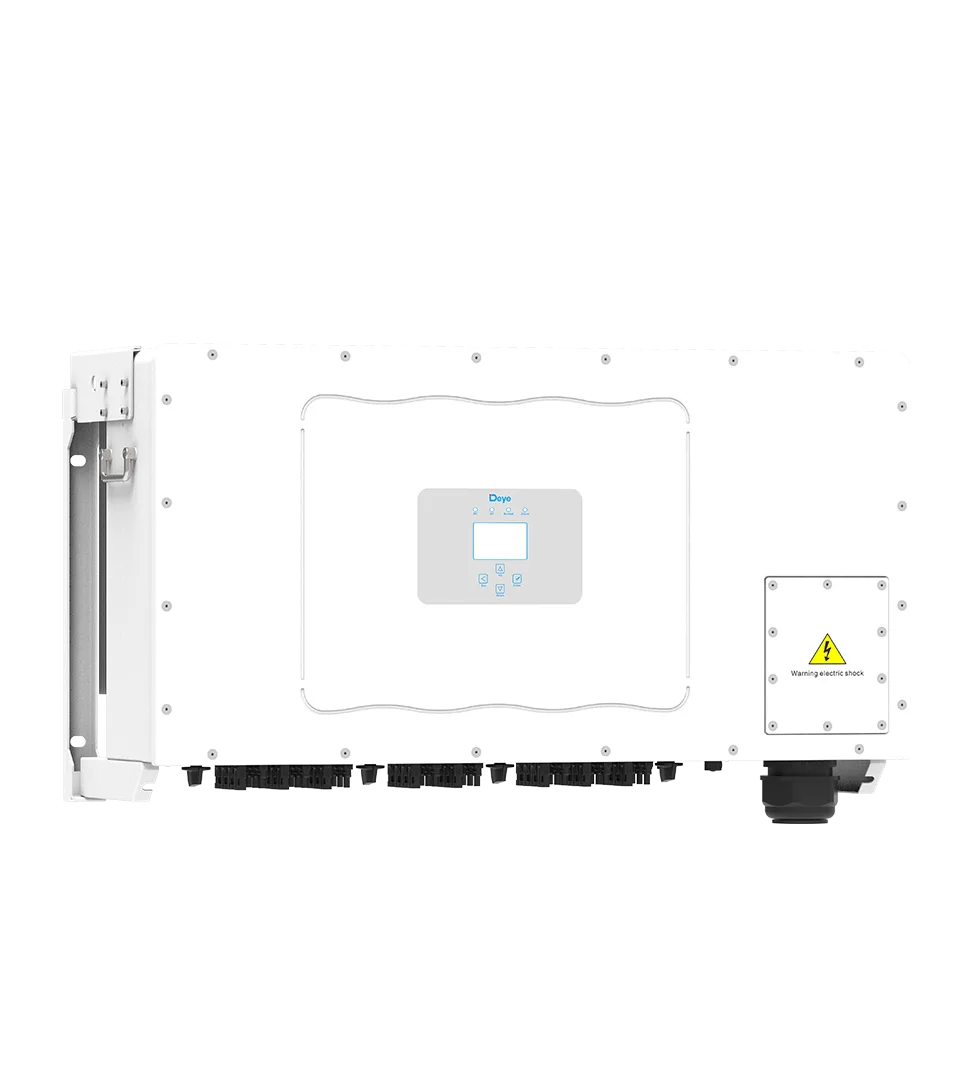

String intelligent monitoring (optional)
04

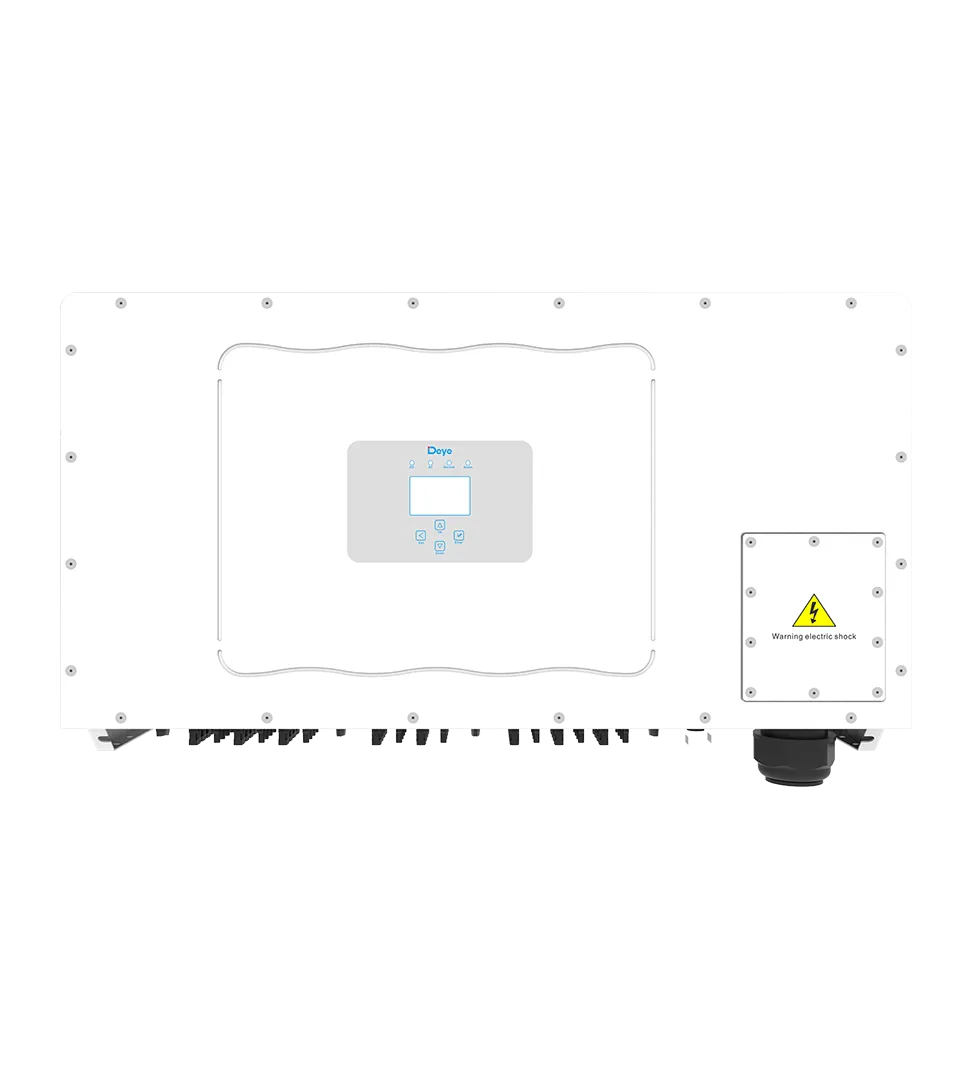

Wide output voltage range
05

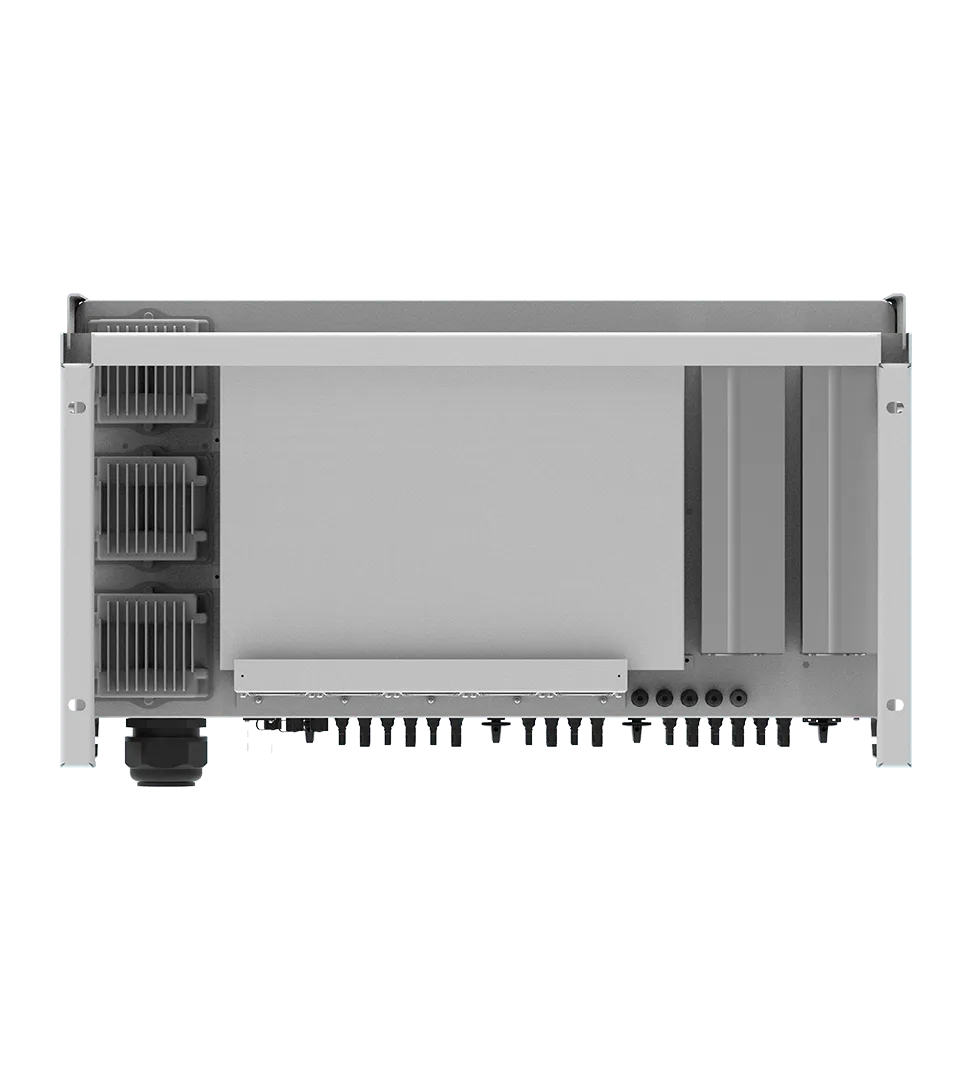

Anti-PID function (Optional)
06
Type II DC/AC SPD
Specifications
| Model | SUN-120K-G01P3 | SUN-125K-G01P3 | SUN-130K-G01P3 | SUN-135K-G01P3 | SUN-136K-G01P3 |
|---|---|---|---|---|---|
| PV String Input Date | |||||
| Max. PV Input Power(kW) | 180 | 187.5 | 195 | 202.5 | 204 |
| Max. PV Input Voltage(V) | 1100 | ||||
| Start-up Voltage(V) | 250 | ||||
| MPPT voltage range(V) | 200-1000 | ||||
| Rated PV Input voltage(V) | 600 | ||||
| Max. Input Short Circuit Current (A) | 60+60+60+60+60+60+60+60 | ||||
| Max. Operating PV Input Current(A) | 40+40+40+40+40+40+40+40 | ||||
| No. of MPP Trackers/No. of Strings per MPP Tracker | 8/4+4+4+4+4+4+4+4 | ||||
| AC Output Side | |||||
| Rated AC Output Active Power(kW) | 120 | 125 | 130 | 135 | 136 |
| Max. AC Output Apparent Power(kVA) | 132 | 135 | 135 | 135 | 136 |
| Rated AC output current (A) | 181.9/174 | 189.4/181.2 | 197/188.5 | 204.6/195.7 | 206.1/197.2 |
| Max. AC Output Current(A) | 200/191.4 | 204.6/195.7 | 204.6/195.7 | 204.6/195.7 | 206.1/197.2 |
| Rated output voltage/range (V) | 220/380V, 230/400V 0.85Un-1.1Un | ||||
| Grid Connection Form | 3L+N+PE | ||||
| Rated Output Grid Frequency/range(Hz) | 50/45-55, 60/55-65 | ||||
| Power Factor Adjustment Range | 0.8 leading to 0.8lagging | ||||
| Total Current Harmonic Distortion THDi | <3% | ||||
| DC Injection Current | <0.5%ln | ||||
| Efficiency | |||||
| Max. Efficiency | 98.80% | ||||
| Euro Efficiency | 98.20% | ||||
| MPPT Efficiency | ＞99% | ||||
| Equipment Protection | |||||
| DC Reverse Polarity Protection | Yes | ||||
| AC Output Overcurrent Protection | Yes | ||||
| AC Output Overvoltage Protection | Yes | ||||
| AC Output Short Circuit Protection | Yes | ||||
| Thermal Protection | Yes | ||||
| Insulation Impedance Detection | Yes | ||||
| DC Component Monitoring | Yes | ||||
| Arc Fault Circuit Interrupter (AFCI) | Optional | ||||
| Anti-islanding Protection | Yes | ||||
| Residual Current Detection | Yes | ||||
| Surge Protection Level | TYPE II(DC),TYPE II(AC) | ||||
| DC Switch | Yes | ||||
| Interface | |||||
| Communication Interface | RS485/RS232 | ||||
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | ||||
| General Data | |||||
| Operating Temperature Range (°C) | ‘-25 to +60℃, >45℃ Derating | ||||
| Permissible Ambient Humidity | 0~100% | ||||
| Permissible Altitude (m) | 4000m | ||||
| Noise (dB) | ≤ 65 | ||||
| Ingress Protection(IP) Rating | IP 65 | ||||
| Inverter Topology | Non-Isolated | ||||
| Over Voltage Category | OVC II(DC),OVC III(AC) | ||||
| Cabinet Size (WxHxD mm) | 1006mm*516mm*325.5mm（Excluding connectors and brackets） | ||||
| Weight [kg] | 103 | ||||
| Warranty | 5 years | ||||
| Type Of Cooling | Intelligent air cooling | ||||
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | ||||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||
