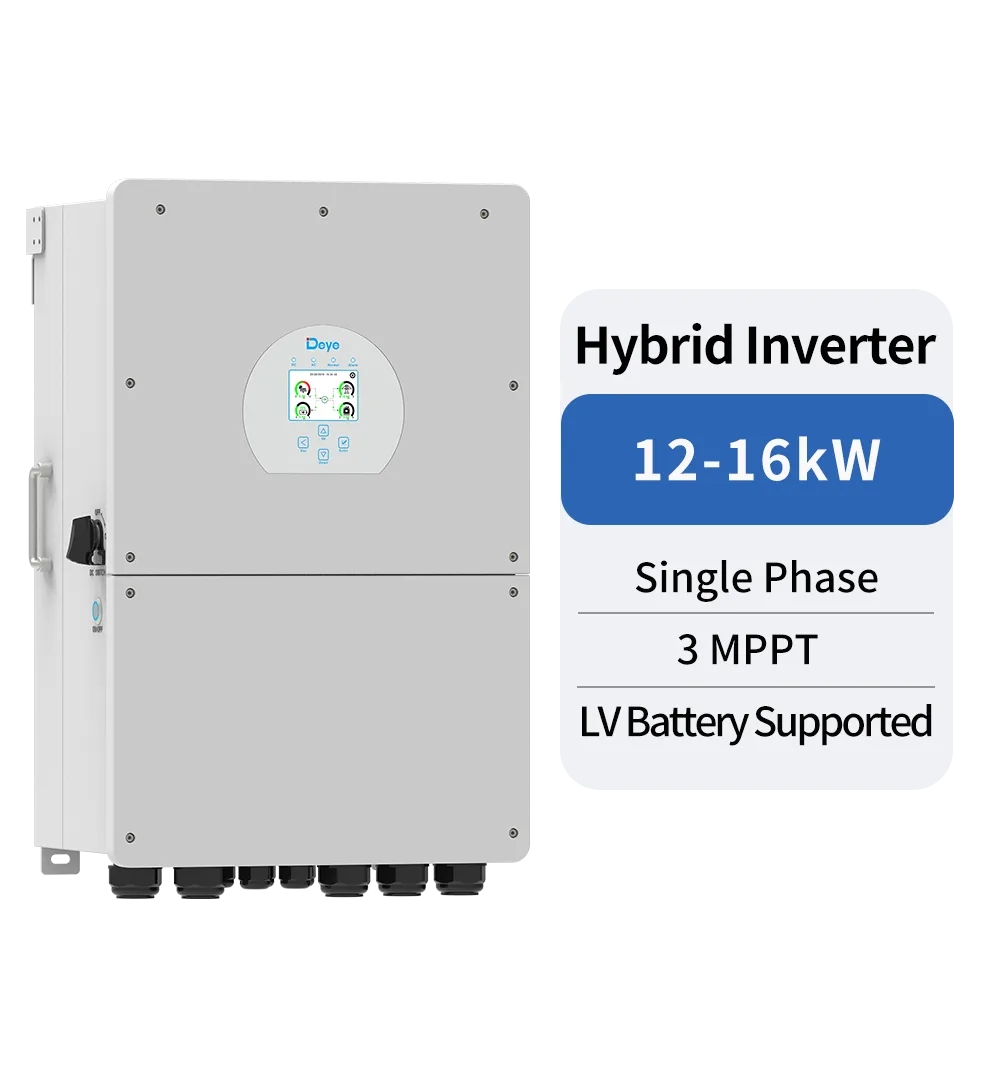

Hybrid InverterSingle Phase Low Voltage Hybrid Inverter12-16kW
SUN-12/14/16K-SG01LP1-EU
Single Phase Hybrid Inverter | 12-16kW | 3 MPPT | LV Battery Supported
Single Phase Hybrid Inverter12-16kW3 MPPTLV Battery Supported
Downloads
Overview
SUN-12/14/16K-SG01LP1-EU Single Phase Hybrid Inverter | 12-16kW | 3 MPPT | LV Battery Supported
Product Highlights
Features
01

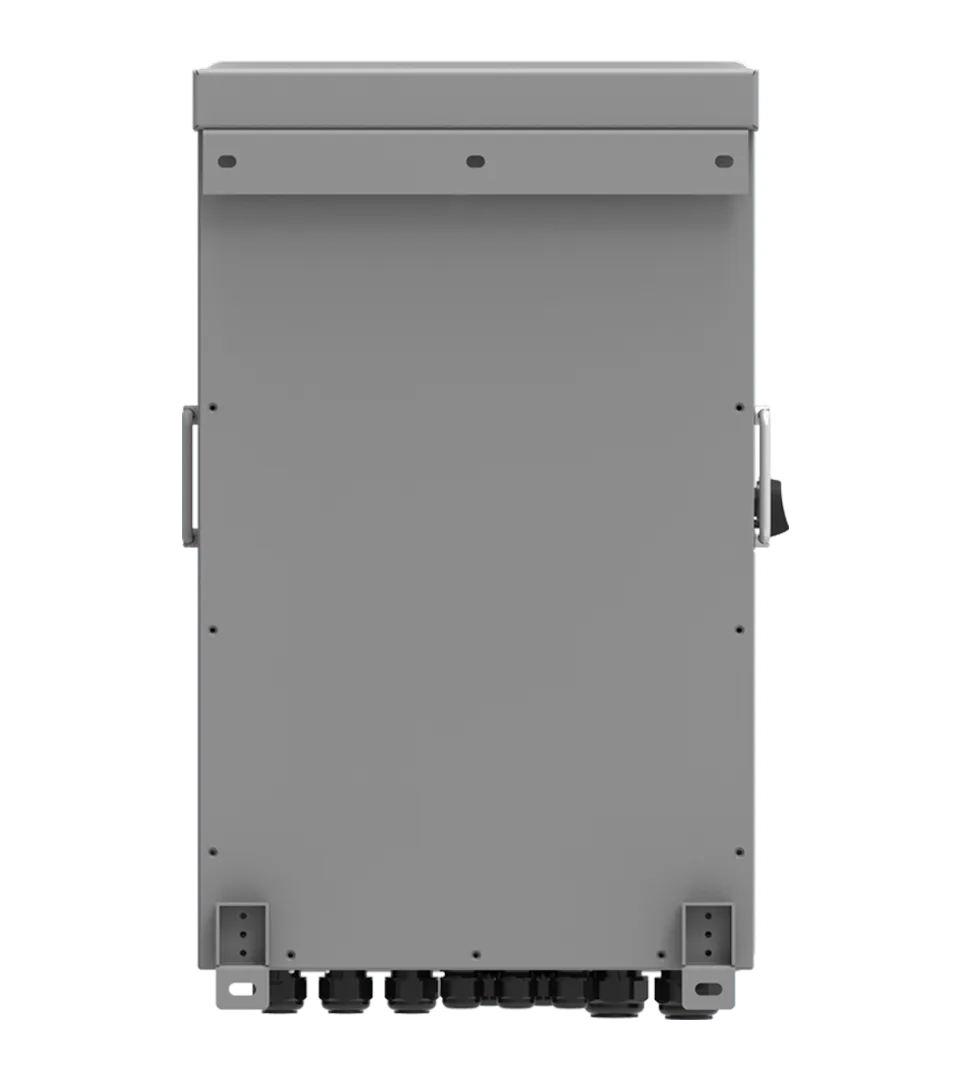

Colorful touch LCD, IP65 protection degree
02

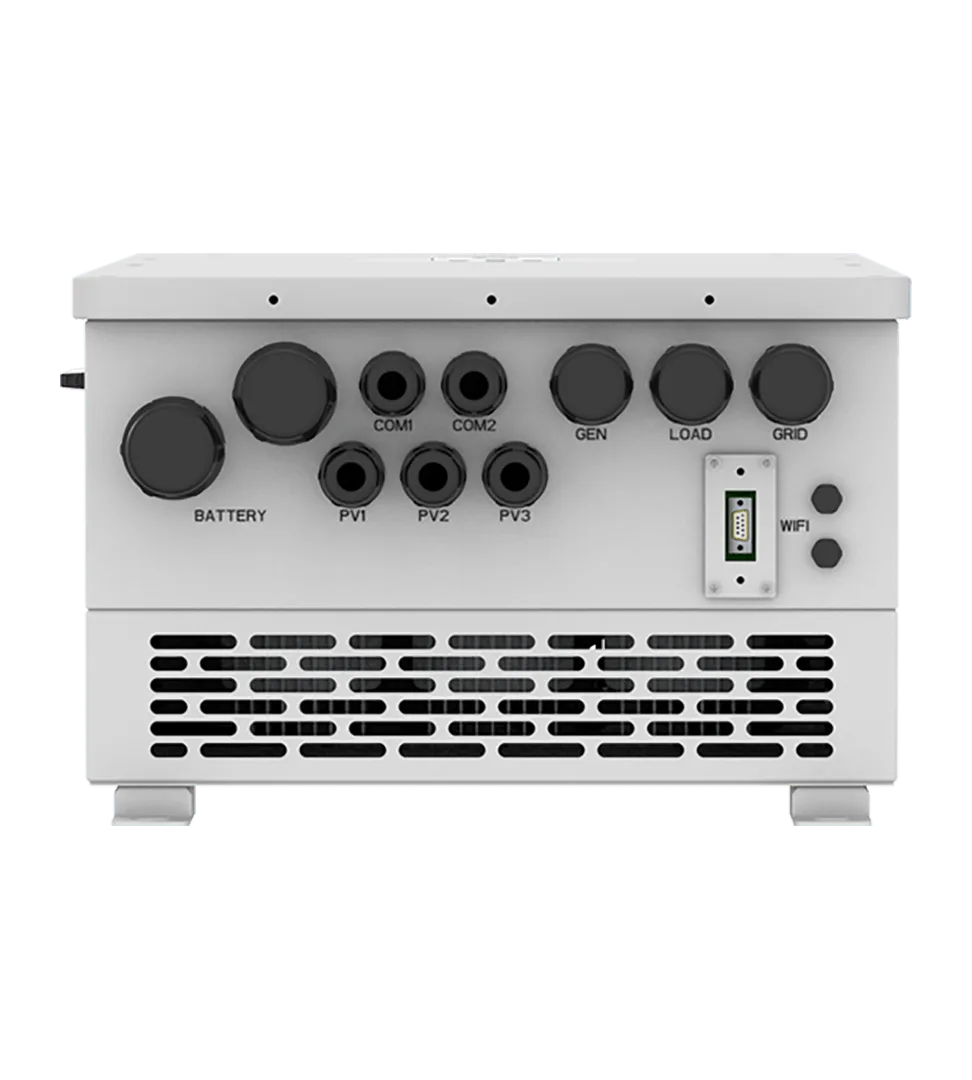

6 time periods for battery charging/discharging
03

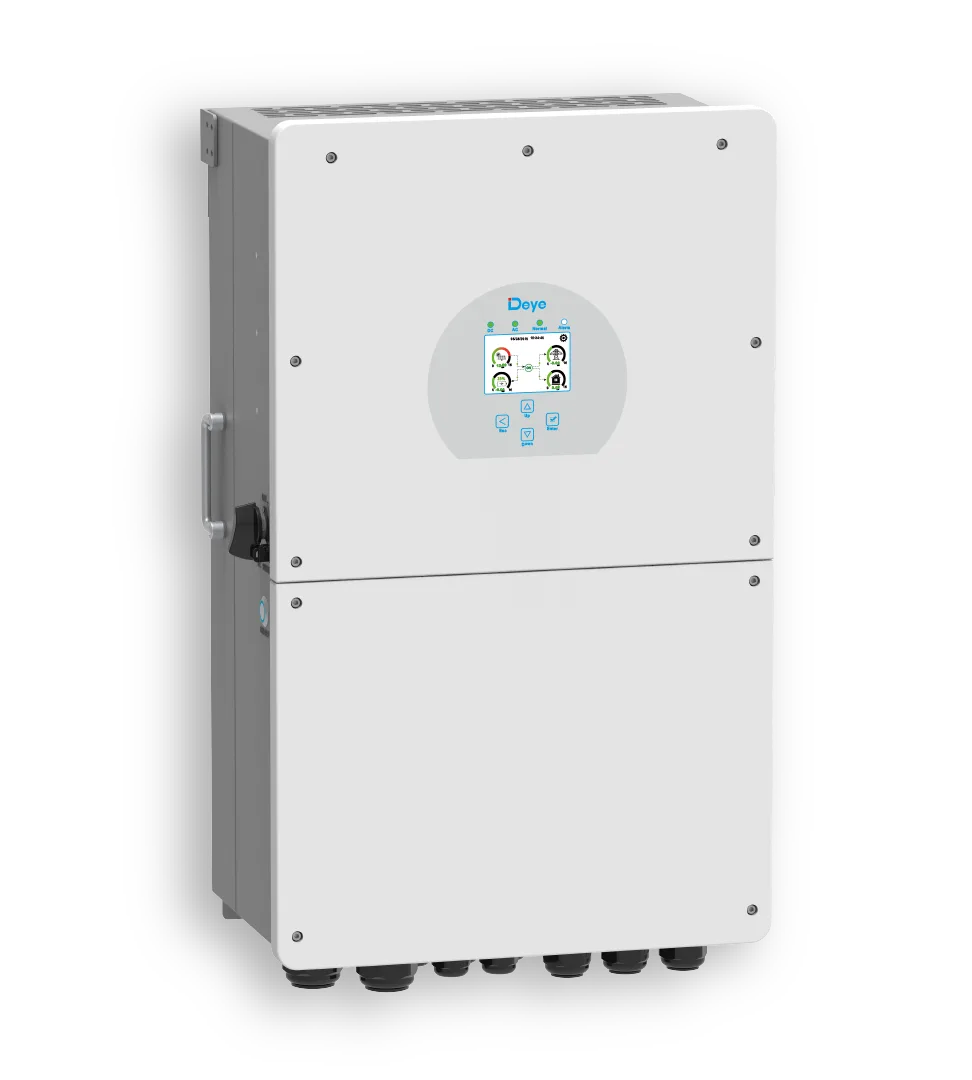

Max. charging/discharging current of 290A
04

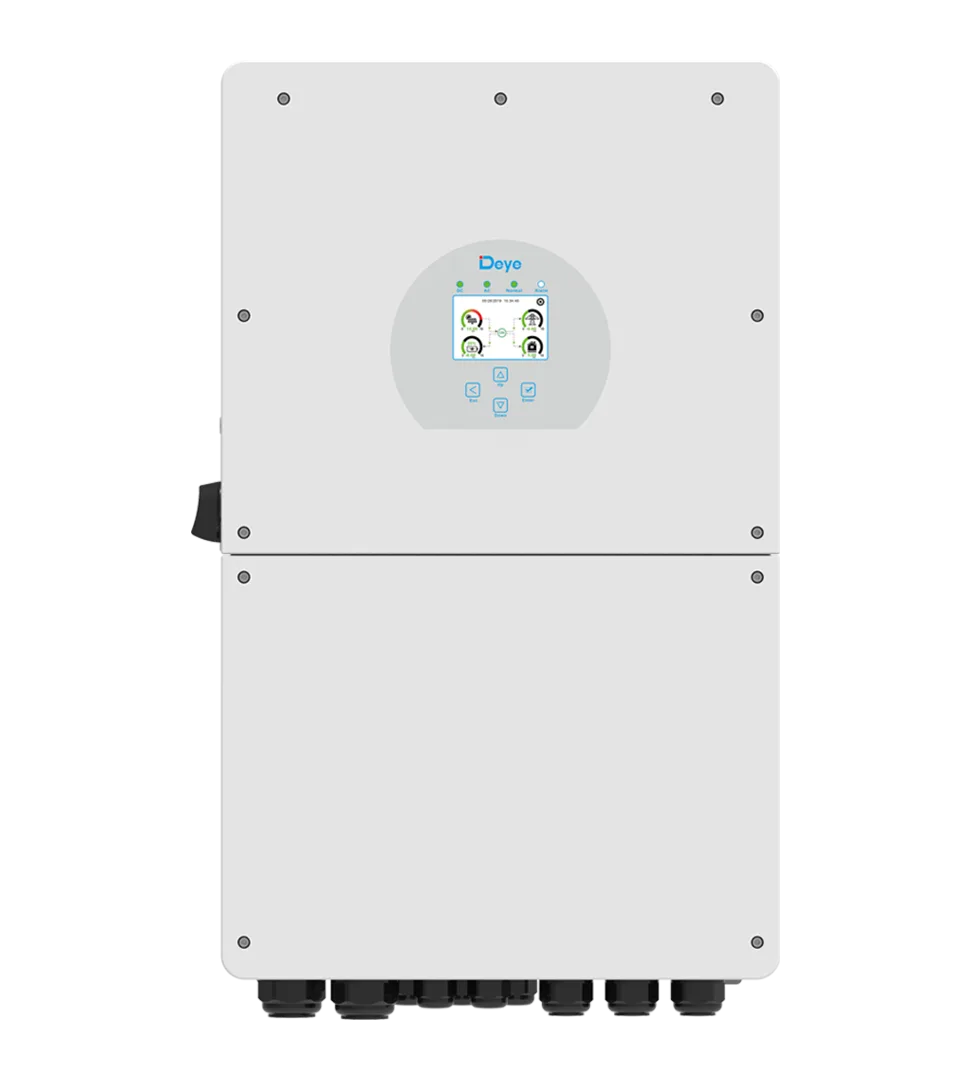

Support storing energy from diesel generator
05
AC couple to retrofifit existing solar system
06
Max. 16 pcs parallel for on-grid and off-grid
07
operation; Support multiple batteries parallel
Specifications
| Model | SUN-12K-SG01LP1-EU | SUN-14K-SG01LP1-EU | SUN-16K-SG01LP1-EU |
|---|---|---|---|
| Battery Input Data | |||
| Battery Type | Lead-acid or Lithium-ion | ||
| Battery Voltage Range(V) | 40-60 | ||
| Max.Charging/Discharging Current(A) | 220 | 250 | 290 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||
| Number of battery input | 2 | ||
| PV String Input Data | |||
| Max. PV Access Power (W) | 24000 | 28000 | 32000 |
| Max PV Input Power（W） | 19200 | 22400 | 25600 |
| Max PV Input Voltage（V） | 500 | ||
| Start-up Voltage（V） | 125 | ||
| MPPT Voltage Range（V） | 150-425 | ||
| Rated PV Input Voltage(V) | 370 | ||
| Max Operating PV Input Current（A） | 32+32+32 | ||
| Max Input Short-Circuit Current（A） | 60+60+60 | ||
| No.of MPP Trackers/No.of Strings MPP Tracker | 3/2+2+2 | ||
| AC Input/Output Data | |||
| Rated AC Input/Output Active Power（W） | 12000 | 14000 | 16000 |
| Max AC Input/Output Apparent Power （VA） | 13200 | 15400 | 17600 |
| Rated AC Input/Output Current（A） | 54.5/52.2 | 63.6/60.9 | 72.7/69.6 |
| Max AC Input/Output Current（A） | 60/57.4 | 70/67 | 80/76.5 |
| Max Continuous AC Passthrough (grid to load)（A） | 100 | ||
| Peak Power (off-grid)（W） | 2 times of rated power,10s | ||
| Power Factor Adjustment Range | 0.8 leading-0.8lagging | ||
| Rated Input/Output Voltage | 220/230V 0.85Un-1.1Un L+N+PE | ||
| Rated Input/Output Grid Frequency/Range(Hz) | 50/45-55, 60/55-65 | ||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | ||
| DC Injection Current | <0.5%ln | ||
| Efficiency | |||
| Max. Efficiency | 97.6% | ||
| Euro Efficiency | 96.5% | ||
| MPPT Efficiency | ＞99% | ||
| Equipment Protection | |||
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection | ||
| Surge Protection Level | TYPE II(DC),TYPE II(AC) | ||
| Interface | |||
| LCD/LED Display | LCD | ||
| Communication Interface | WIFI, RS485, CAN | ||
| General Data | |||
| Operating Temperature Range(℃) | -40 to +60℃, >45℃ Derating | ||
| Permissible Ambient Humidity | 0~100% | ||
| Permissible Altitude | 2000m | ||
| Noise(dB) | ＜45 | ||
| Ingress Protection(IP) Rating | IP 65 | ||
| Inverter Topology | Non-Isolated (solar), Isolated (battery) | ||
| Over Voltage Category | OVC II(DC),OVC III(AC) | ||
| Cabinet size（W*H*D）[mm] | 464*763*282（Excluding Connectors and Brackets） | ||
| Weight[kg] | 52 | ||
| Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | ||
| Type Of Cooling | Intelligent Air Cooling | ||
| Grid Regulation | IEC 61727,IEC 62116,NRS 097 | ||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||
