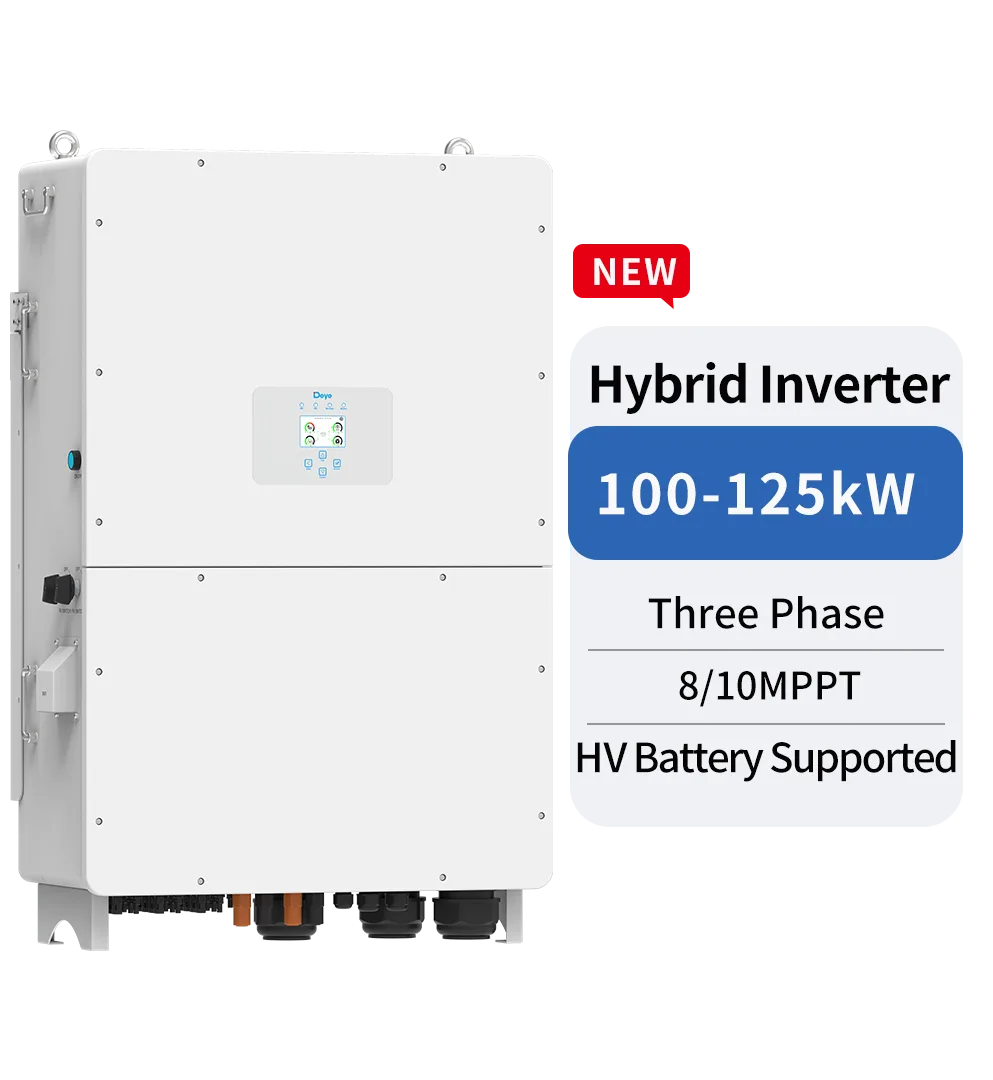

Hybrid InverterThree Phase High Voltage Hybrid Inverter100-125kW
SUN-100/125K-SG02HP3-EU-GM8/GM10
Three Phase Hybrid Inverter | 100-125kW | 8/10 MPPT | HV Battery Supported
Three Phase Hybrid Inverter100-125kW8/10 MPPTHV Battery Supported
Send InquiryOverview
SUN-100/125K-SG02HP3-EU-GM8/GM10 Three Phase Hybrid Inverter | 100-125kW | 8/10 MPPT | HV Battery Supported
Specifications
| Model | SUN-100K-SG02HP3-EU-GM8 | SUN-100K-SG02HP3-EU-GM10 | SUN-125K-SG02HP3-EU-GM10 |
|---|---|---|---|
| Battery Input Data | |||
| Battery Type | Lithium-ion | ||
| Battery Voltage Range(V) | 160-1000 | ||
| Max. Charging/Discharging Current (A) | 100+100 | ||
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||
| Number of battery input | 2 | ||
| PV String Input Data | |||
| Max. PV Access Power (W) | 200000 | 200000 | 250000 |
| Max PV Input Power（W） | 160000 | 160000 | 200000 |
| Max PV Input Voltage（V） | 1000 | ||
| Start-up Voltage（V） | 180 | ||
| MPPT Voltage Range（V） | 150-850 | ||
| Rated PV Input Voltage(V) | 650 | ||
| Max. Operating PV Input Current (A) | 42+42+42+42+42+42+42+42 | 42+42+42+42+42+42+42+42+42+42 | |
| Max. Input Short-Circuit Current (A) | 63+63+63+63+63+63+63+63 | 63+63+63+63+63+63+63+63+63+63 | |
| No.of MPP Trackers/No.of String Per MPP Tracker | 8/2+2+2+2+2+2+2+2 | 10/2+2+2+2+2+2+2+2+2+2 | |
| AC Input/Output Data | |||
| Rated AC Input/Output Active Power（W） | 100000 | 100000 | 125000 |
| Max AC Input/Output Apparent Power （VA） | 110000 | 110000 | 135000 |
| Rated AC Input/Output Current（A） | 151.6/145.0 | 151.6/145.0 | 189.4/181.2 |
| Max AC Input/Output Current（A） | 166.7/159.5 | 166.7/159.5 | 204.6/195.7 |
| Max Continuous AC Passthrough (grid to load)（A） | 250 | ||
| Peak Power (off-grid) (W) | 1.5 times of rated power, 10s | ||
| Power Factor Adjustment Range | 0.8 leading-0.8 lagging | ||
| Rated input/output voltage | 220/380V, 230/400V 0.85Un-1.1Un 3L+N+PE | ||
| Rated Input/Output Grid Frequency/Range | 50/45-55, 60/55-65 | ||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | ||
| DC Injection Current | <0.5%ln | ||
| Efficiency | |||
| Max Efficiency | 98.70% | ||
| Euro Efficiency | 98.10% | ||
| MPPT Efficiency | ＞99% | ||
| Equipment Protection | |||
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection | ||
| Surge Protection Level | TYPE II(DC), TYPE II(AC) | ||
| Interface | |||
| LCD/LED Display | LCD+LED | ||
| Communication Interface | RS485/RS232/CAN | ||
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | ||
| General Data | |||
| Operating Temperature Range | -40℃+60℃,＞45℃ Derating | ||
| Permissible Ambient Humidity | 0-100% | ||
| Permissible Altitude | 3000m | ||
| Noise | ≤ 65 | ||
| Ingress Protection(IP) Rating | IP 65 | ||
| Inverter Topology | Non-Isolated | ||
| Over Voltage Category | OVC II(DC),OVC III(AC) | ||
| Cabinet Size (WxHxD mm) | 734×1091×344 (Excluding Connectors and Brackets) | ||
| Weight (kg) | 161.7 | ||
| Warranty | 5 Years/10 Yearsthe Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | ||
| Type Of Cooling | Intelligent Air Cooling | ||
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,OVE-Richtlinie R25, G99, VDE-AR-N 4105 | ||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||
