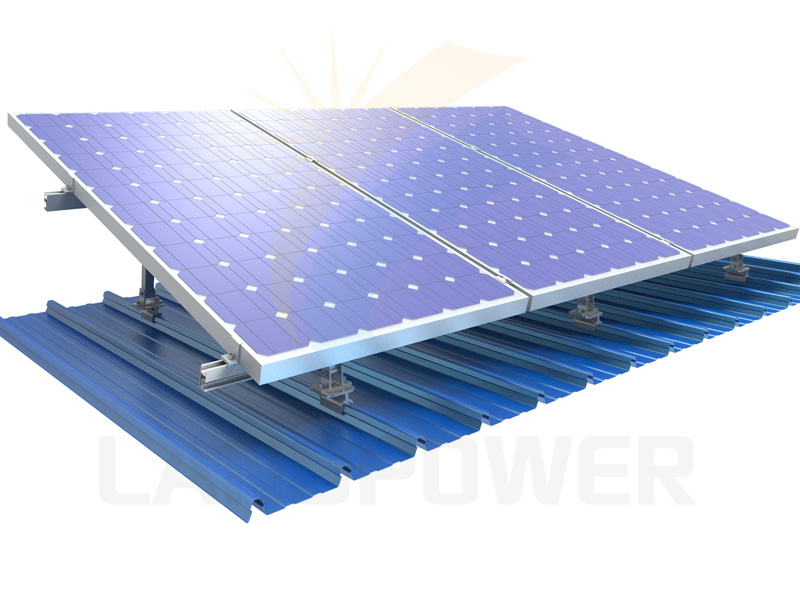

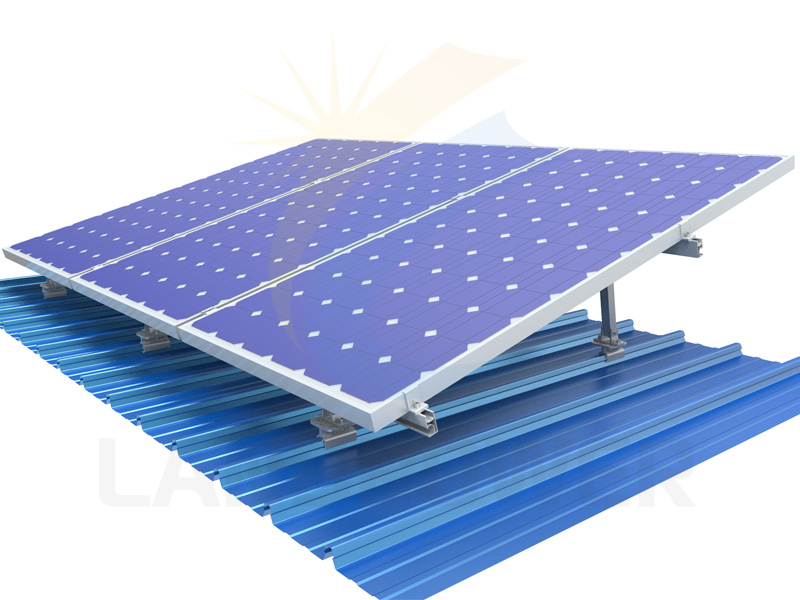

Angle Adjustable Tilt Solar Roof Mounting
Adjustable Tilt Up Roof Mounting is adjustable on tilt angle and installed tilt up on trapezoidal and corrugated roof and flat roof, it allow you to set up ideal angle on roof.
| Item No | LP-AD-T02 |
|---|---|
| Order(MOQ) | 1 PCS |
| Payment | TT,L/C |
| Product Origin | Xiamen China |
| Color | Silver,Black |
| Shipping Port | Xiamen China |
| Lead Time | 7-15 days |
Product Details

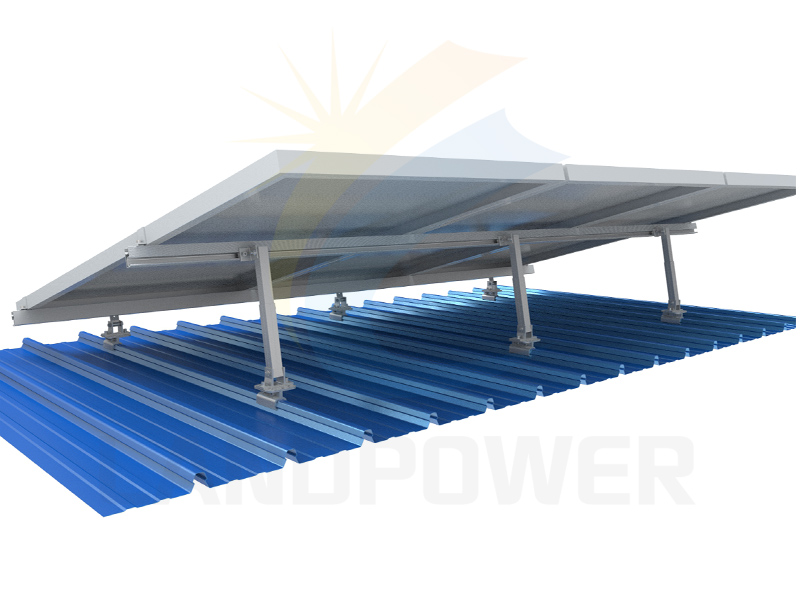

Angle Adjustable Tilt Solar Roof Mounting allows to tilt up adjustable angle on corrugated roof sheet, trapezoidal roof sheet or other metal roof and flat roof. The angle adjustable range are available at 10-15 degree,15-30 degree, and 30-60 degree, you can set up your ideal angle according different places and different seasons. By using together with metal roof attachments or mini rail, the tilt solar mounting can be installed in almost all kind of metal roof. It is easy and quick to install with competitive price.
TECHNICAL INFORMATION
Install Site: Trapezoidal, Corrugated Metal Roof or Flat Roof
Tilt Angle: 10-60 degree
Building Height: Up to 20m
Max Wind Speed: <60m/s
Snow Load:<1.4KN/m2
Standard: AS/NZS 1170, EN 1090
Material: High Class Aluminum alloy Al 6005 T5 and Stainless Steel 304
Color: Natural and Customized
Warranty: 12 years and 25 years lifespan

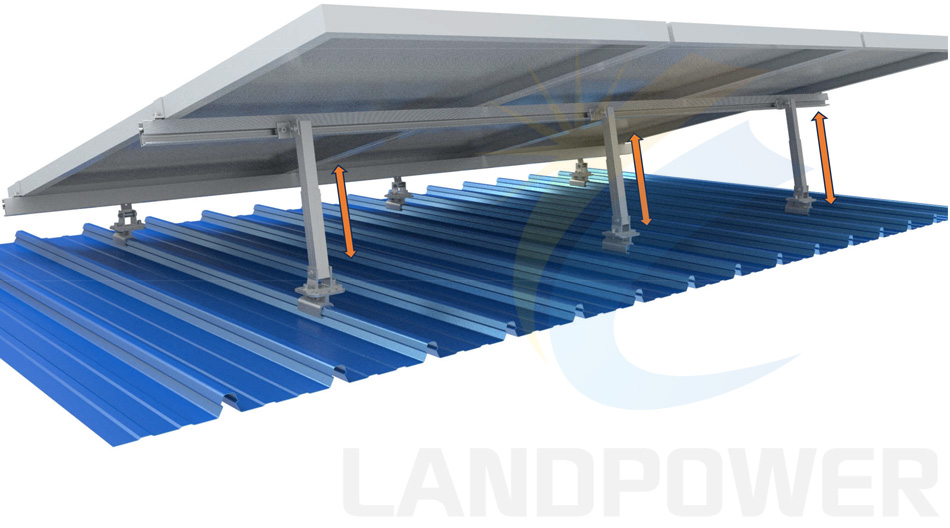

Adjustable Tilt Angle:
The angle adjustable range are available at 10-15 degree,15-30 degree, and 30-60 degree, you can set up your ideal angle according different places and different seasons.

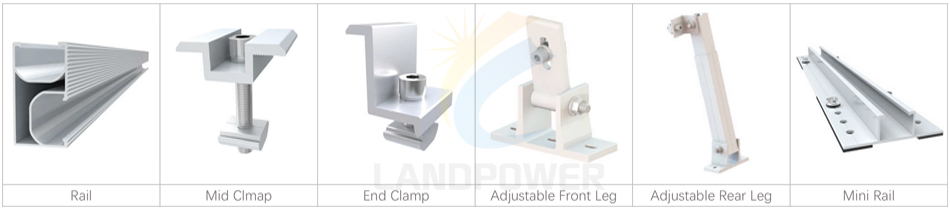

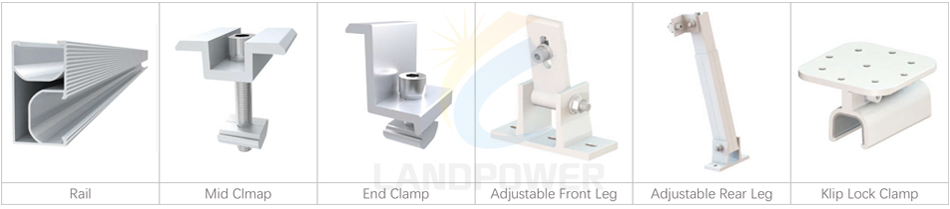

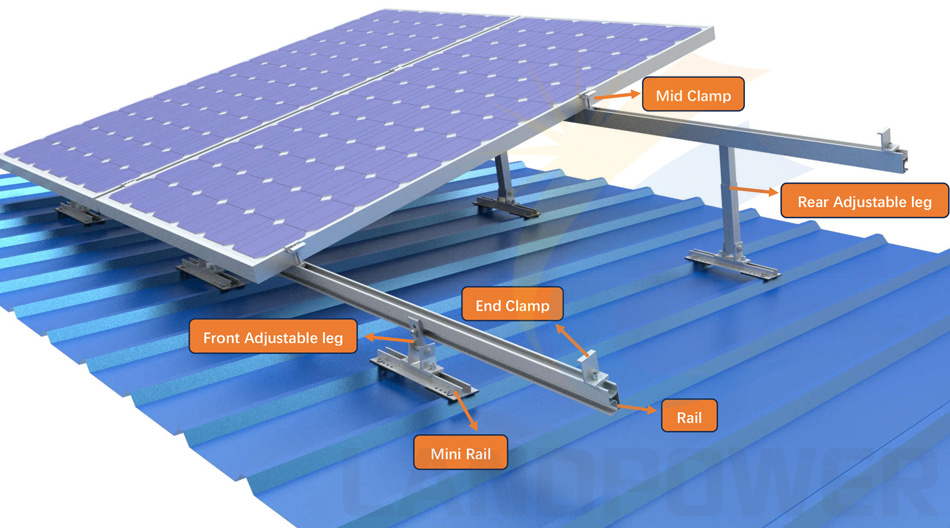

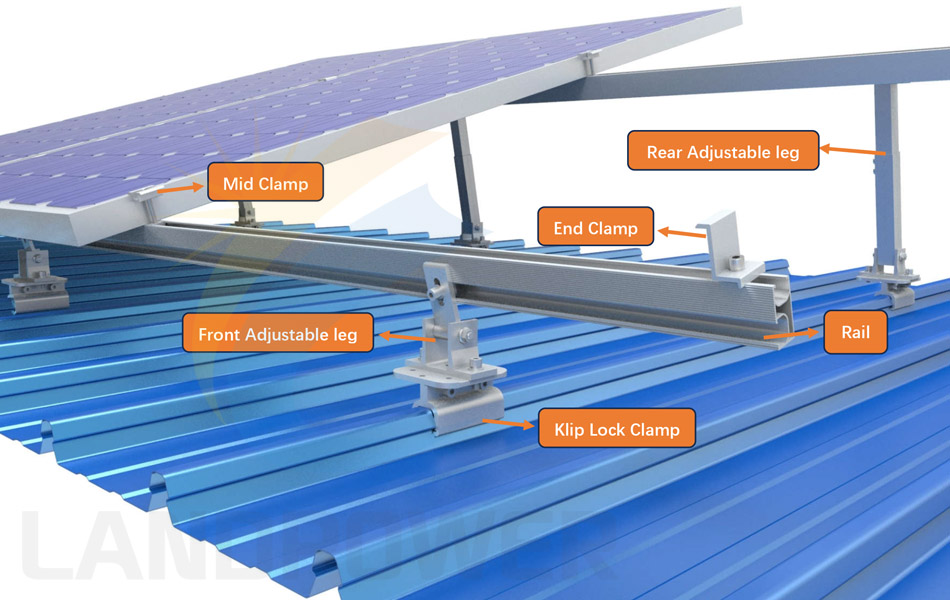

Main Component(with Metal Roof Attachment)

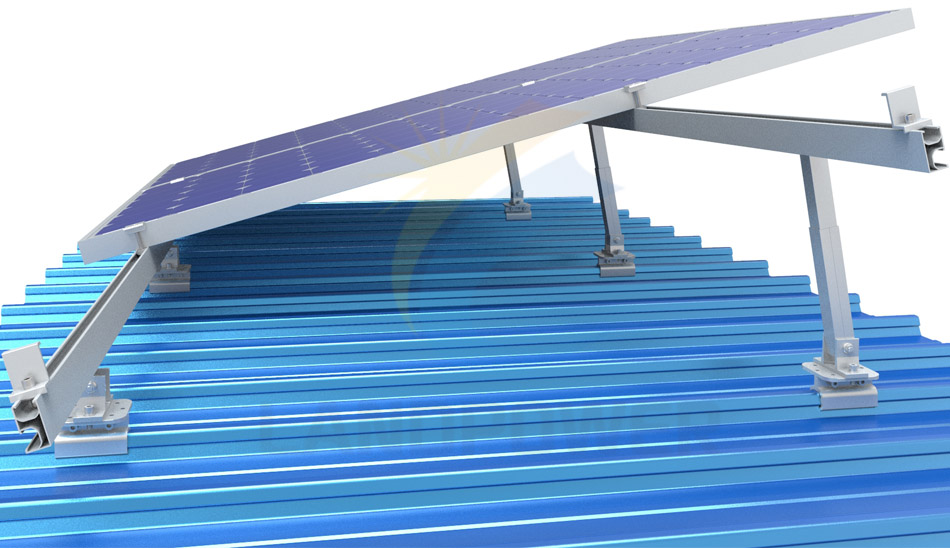

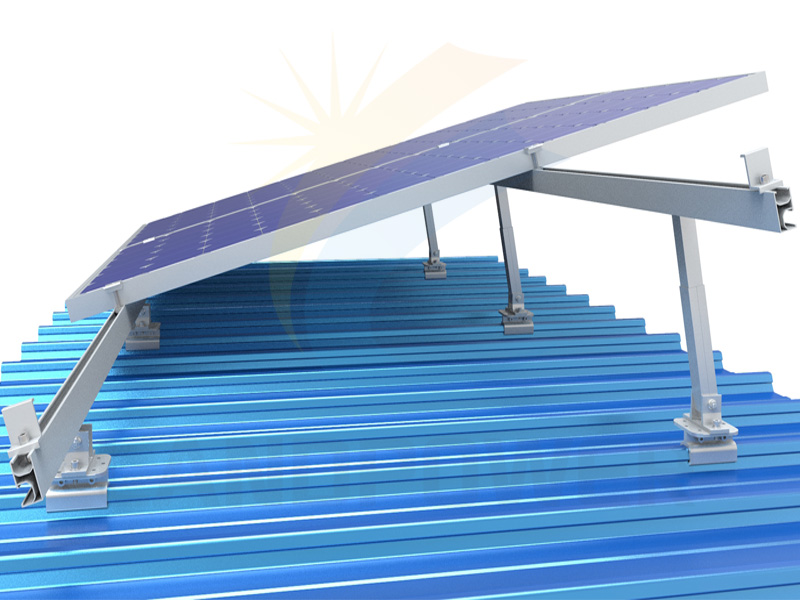

Angle Tilt Mounting with Mini Rail
By using with Mini Rail, the tilt angle mounting are widely installed on trapezoidal and corrugated metal roofs, more flexible on installation.
We have various metal roof attachments for different metal roof sheet, if you need specific tilt up angle adjustable roof mounting structure, feel free to let contact us the specific details, we will design specific mounting for your specific projects.
