Angle adjustable solar mounting

The Angle adjustable solar mounting is easy and simple structure to mount single panel,it allow tilt of angle from 0-15 degree,15-30 degree and 30-60 degree. The adjustable solar panel mounting brackets for off-grid solar systems. Widely used on RV, marine, trailer, camper, boat, marine, flat roofs, ground, garages, motorhome, shed or other flat surfaces.

TECHNICAL INFORMATION

Install site ： Flat Roof ,Trapezoidal Roof,Corrugated Roof

Tilt Angle ： Flushed with the roof （ 10~60 deg ）

Building Height ： Up to 20 m

Max Wind Speed ： <60m/s

Snow Load ： <1.4KN/m2

Standard ： EN 1090, AS/NZS 1170 and other international Standard

Material ： Aluminum alloy Al6005-T5& Stainless steel 304 (A2),EPDM

Color: Natural or Customized

Anticorrosive: Anodized aluminum & stainless steel

Warranty ： 12 years warranty and twenty- year service life

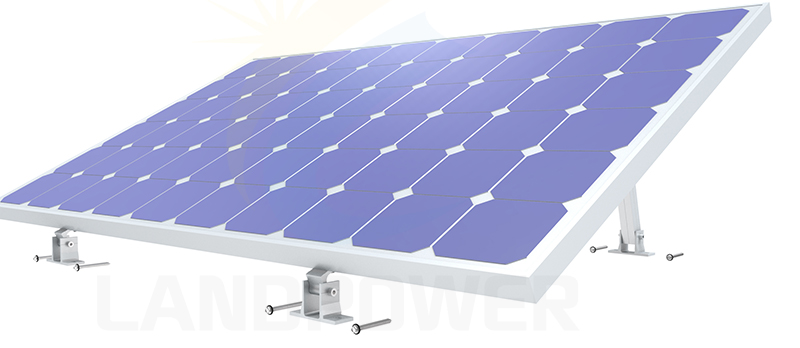

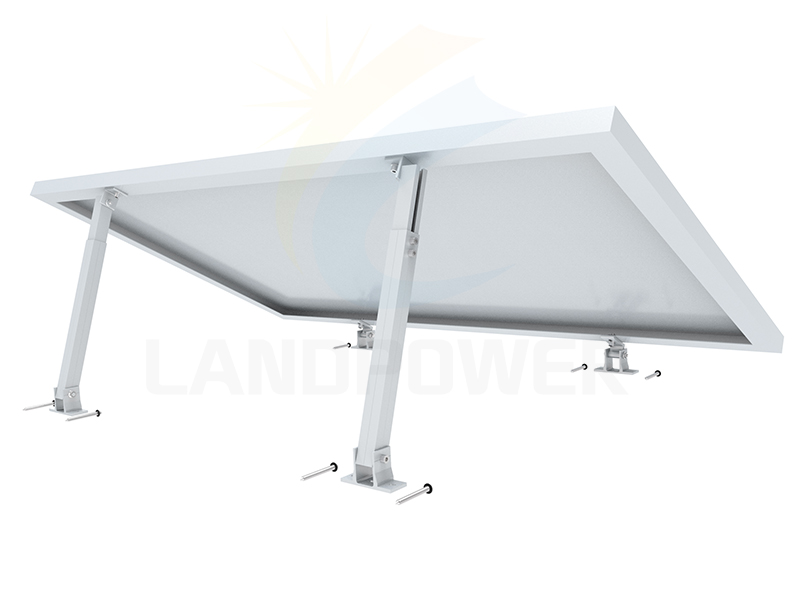

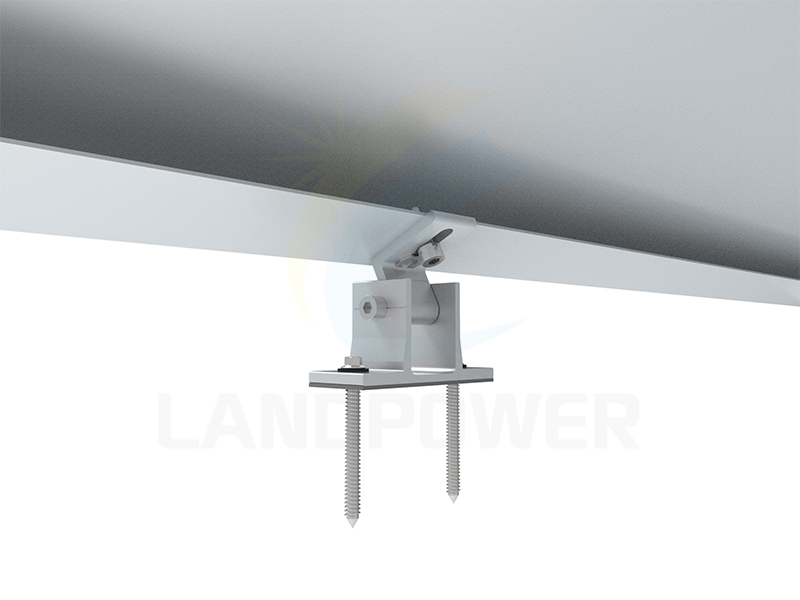

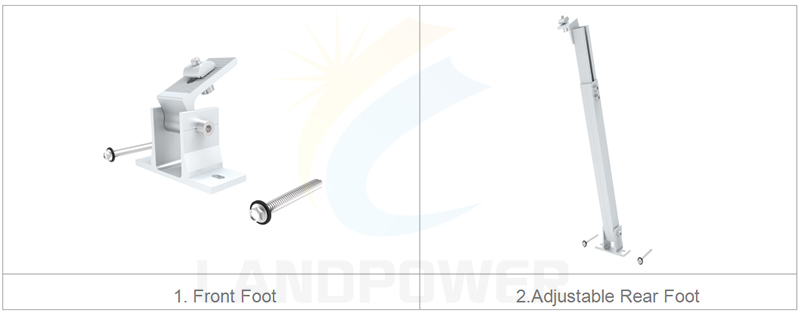

There are just only two main components as below:

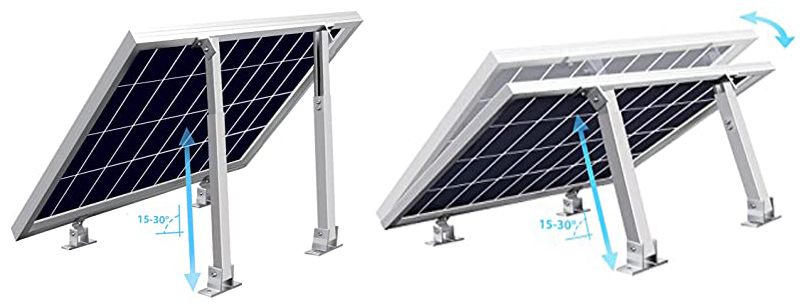

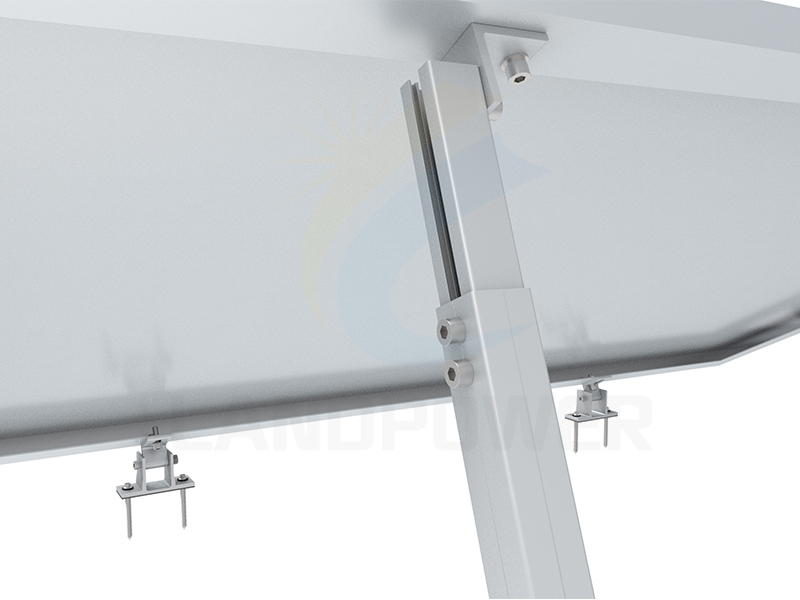

And the tilt angles are adjustable, angle from 0-15 degree,15-30 degree and 30-60 degree,15-30 degree example as below:

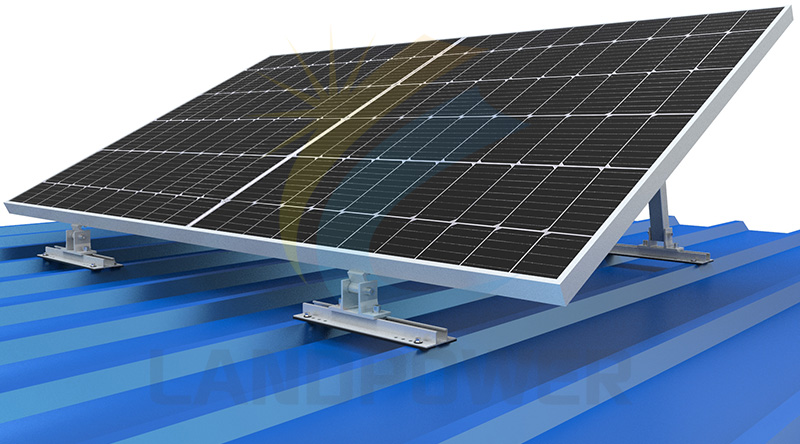

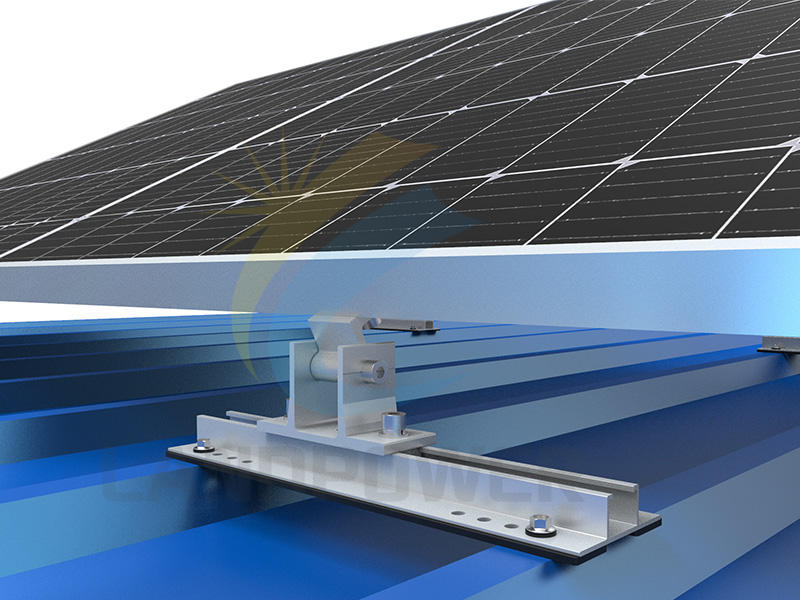

By adding Mini Rail,the tilt angle mounting can be widely used on metal roof like trapezoidal roof and corrugated roof,as show below:

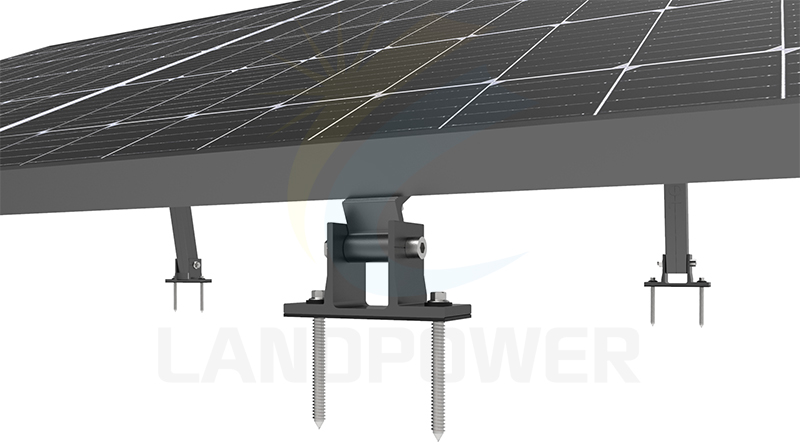

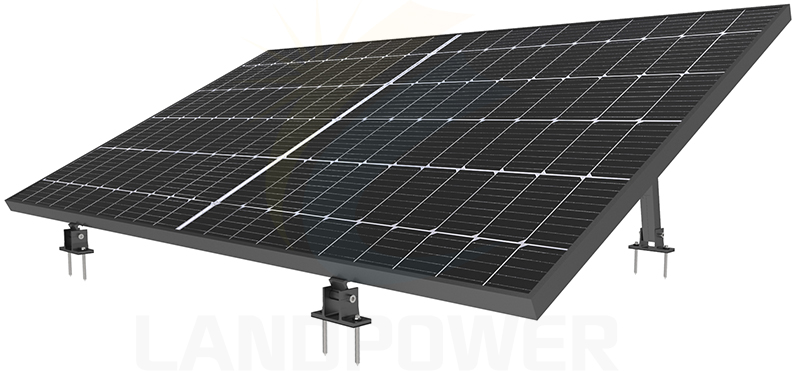

The tilt angle structure can be anodized with black colour,which make the mounting with superior aesthetics:

We engineer and design Solar Racking/Mounting Hardware for specific solar projects, there may not list all the details of racking in the web,therefore,please don't hesitate to contact us for more details for your specific projects
