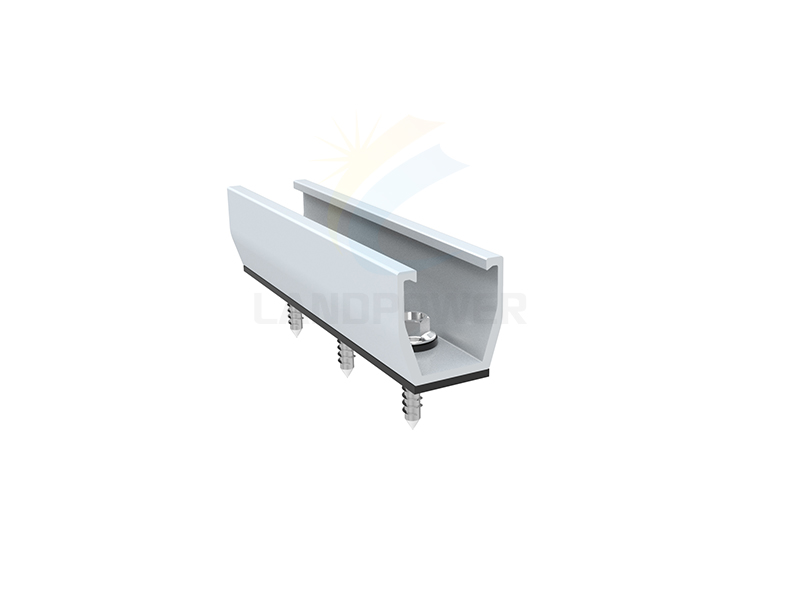

U Rail Metal Roof Solar Mounting

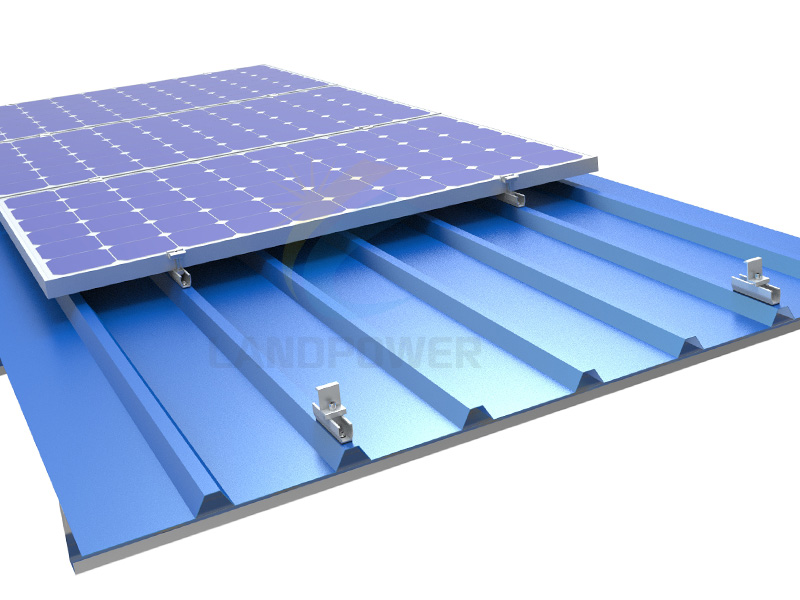

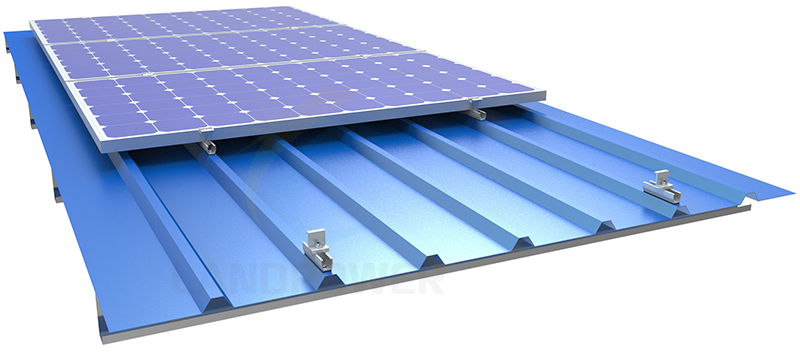

U Rail is designed for Trapezoidal metal sheet roof or Corrugated sheet metal roof ,it is simple and easy solar roof mount solution for metal roofs.
| Item No | LP-UR01-120 |
|---|---|
| Order(MOQ) | 10 PCS |
| Payment | TT, LC |
| Product Origin | Xiamen China |
| Color | Silver,Black |
| Shipping Port | Xiamen China |
| Lead Time | 7-15days |
| Weight | default |
Product Details

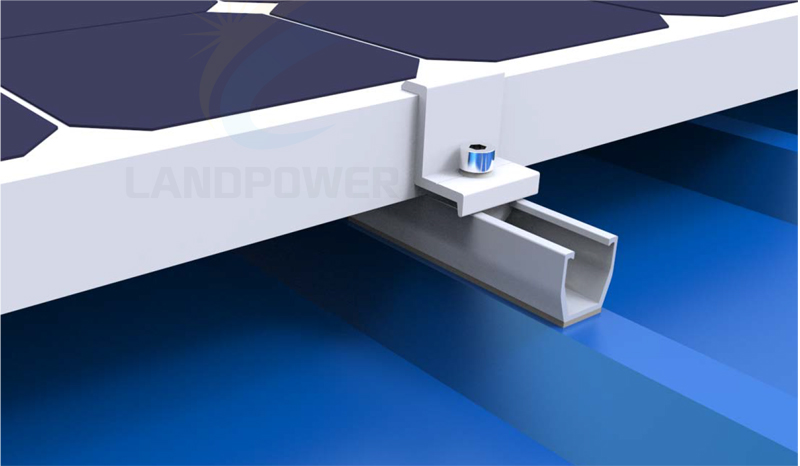

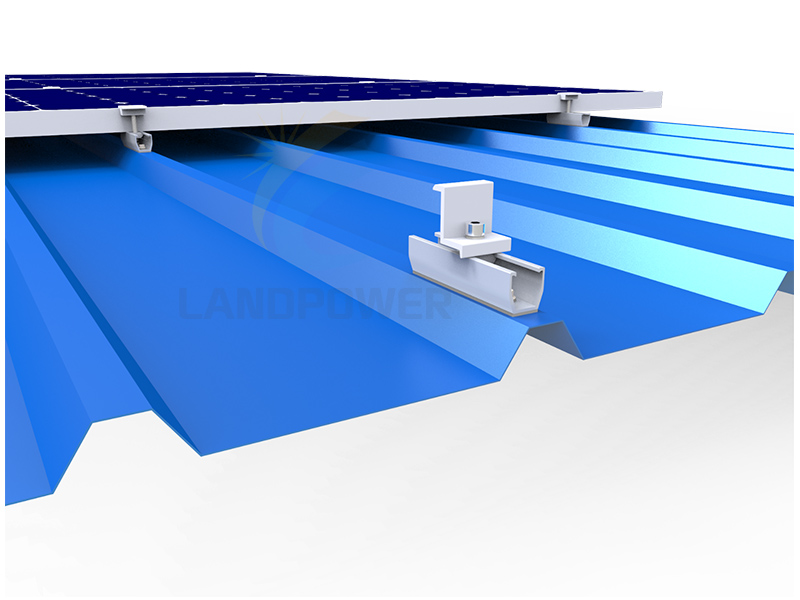

U Rail set is specially designed for solar panel landscape orientation installation in lower wind load location. It just consists of three components Mid Clamp,End Clamp, and U Rail , it is economic and simple solution for Trapezoidal/Corrugated sheet metal roofs.

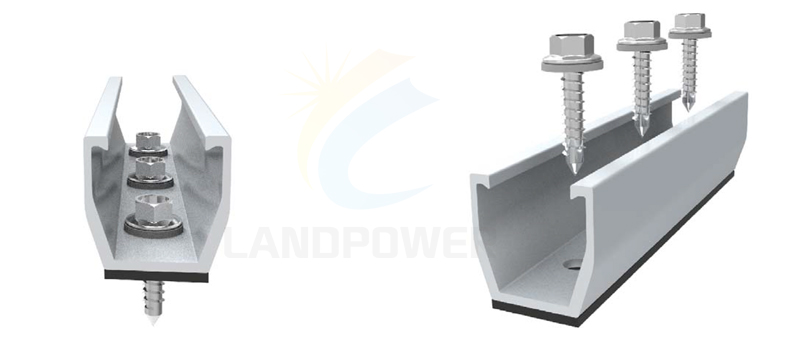

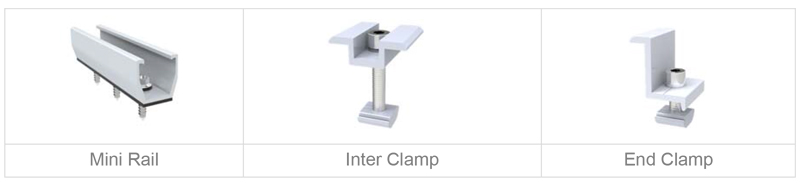

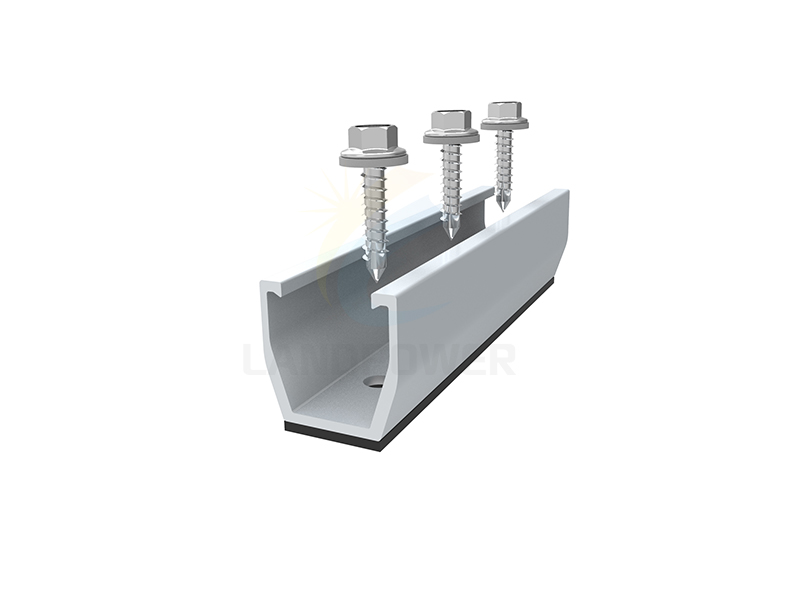

U Rail Set Main Componnets:
TECHNICAL INFORMATION Install site ：Trapezoidal/Corrugated Sheet Metal Tilt Angle ：Flushed with the roof（10~60 deg） Building Height：20 m Max Wind Speed：<60m/s Snow Load：<1.4KN/m2 Standard ：En 1090, AS/NZS 1170 and other international Standard Material ：Aluminum 6005-T5& Stainless steel A2(304) EPDM Color: Silver,Black or Customized Anti-corrosive: anodized aluminum & stainless steel Warranty：Ten years warranty and twenty- year service life
U Rail Installation Video Demo.:

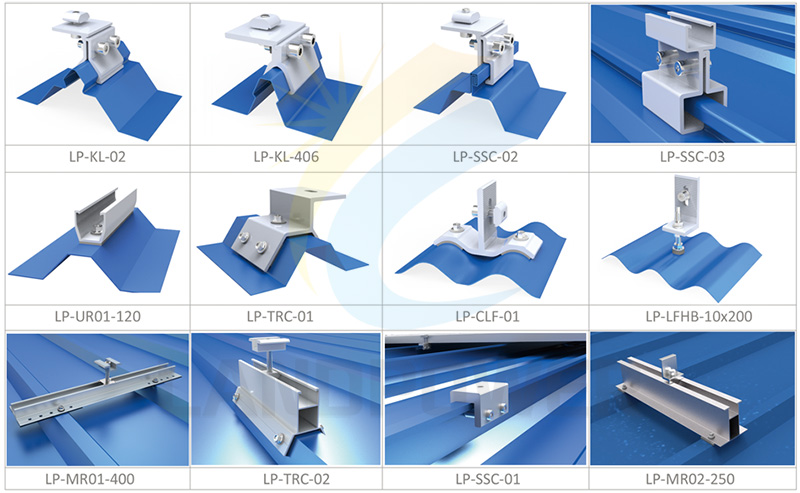

Other Metal Roof Attachment
We engineer and design Solar Racking/Mounting Hardware for specific solar projects, there may not list all thedetails of racking in the web,therefore,please don't hesitate to contact us for more details for your specific projects
Specifications
| Install site | Trapezoidal/Corrugated Sheet Metal |
|---|---|
| Tilt Angle | Flushed with the roof（10~60 deg） |
| Building Height | 20 m |
| Max Wind Speed | <60m/s |
| Snow Load | <1.4KN/m2 |
| Standard | En 1090, AS/NZS 1170 and other international Standard |
| Material | Aluminum 6005-T5& Stainless steel A2(304) EPDM |
| Color | Silver,Black or Customized |
| Anti-corrosive | anodized aluminum & stainless steel |
| Warranty | Ten years warranty and twenty- year service life |
