Solis-RSD(1-2)L-1G
The Rapid Shutdown Devices are certified to the UL 1741 PV inverter standard and comply to all 2014 National Electrical Code 690.2 Rapid Shutdown requirements. The devices are packaged inside NEMA 4X enclosures that fit neatly under the modules. When AC power to the building is cut, the RSD(s) will force the PV array to shut down.
Downloads
Reliability Safety Capacity
Reliability Safety Capacity
Solis-RSD(1-2)L-1G
(Available for Canada Only)
The Rapid Shutdown Devices are certified to the UL 1741 PV inverter standard and comply to all 2014 National Electrical Code 690.2 Rapid Shutdown requirements. The devices are packaged inside NEMA 4X enclosures that fit neatly under the modules. When AC power to the building is cut, the RSD(s) will force the PV array to shut down.
Datasheet Download More Downloads

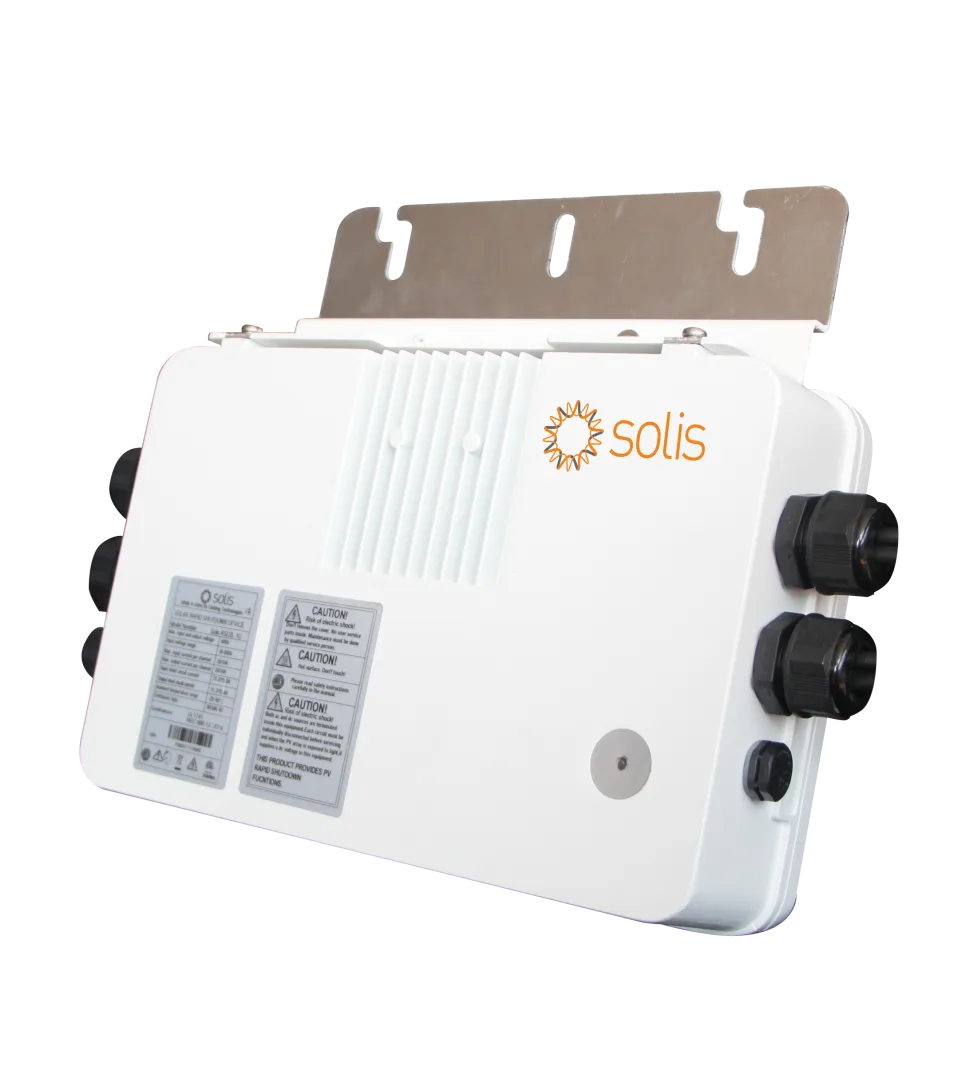

Rapid Shutdown Device
Rapid Shutdown Device
Leading Features
Seamless performance with Solis inverter AFCI Low-profile design allows for easy positioning under the PV module Certified to UL1741 standard and compliant with 2014 NEC 690.12 Rapid Shutdown NEMA 4X enclosure, conformal-coated internal components, and a wide operating temperature range Designed for Solis residential PV string inverters where the maximum system operating voltage is ≤ 550Vdc Available in either single-string output or dual-channel output allowing for perfect alignment with the number of MPPT channels in the inverter system
Related products

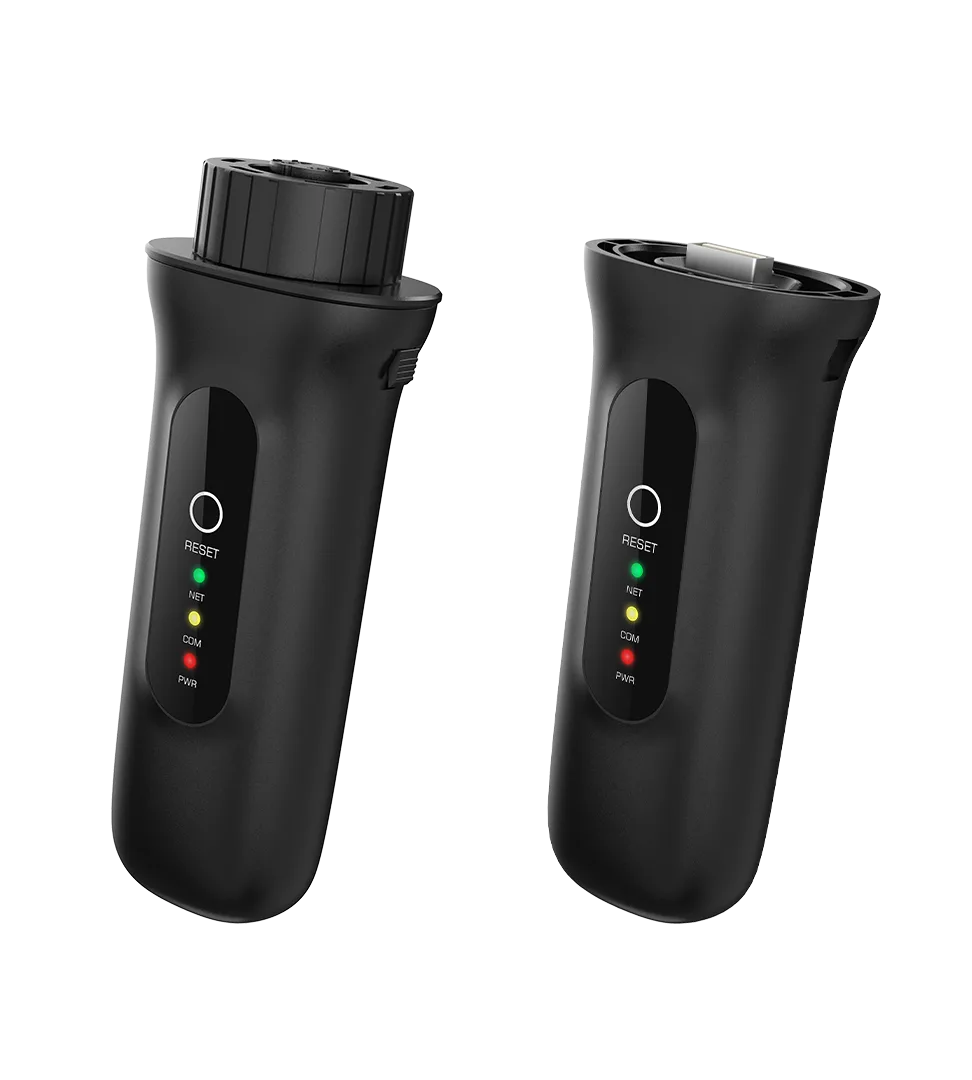

AccessoriesS1-W4G-ST
