SUN-M130/160/180/200/220G4-EU-Q0-I
Micro Inverter |1300-2200W | Single Phase | 4 MPPT
Micro Inverter1300-2200WSingle Phase4 MPPT
Downloads
Overview
SUN-M130/160/180/200/220G4-EU-Q0-I Micro Inverter |1300-2200W | Single Phase | 4 MPPT
Product Highlights
Features
01

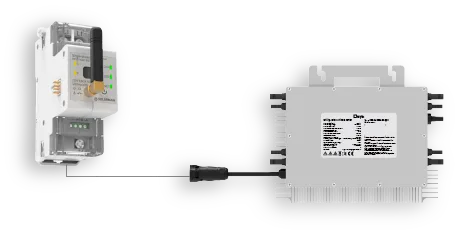

IP67 protection degree, 10 years warranty
02
Bidirectional measurement can record electricity consumption data while also preventing backflow
03
Max. DC input current of 18A, adapt to 700W PV module
04
4 MPP trackers, module level monitoring
05
Rapid shutdown function
06
Wireless wifi communication, no wiring required
Specifications
| Model | SUN-M130G4-EU-Q0-I | SUN-M160G4-EU-Q0-I | SUN-M180G4-EU-Q0-I | SUN-M200G4-EU-Q0-I | SUN-M220G4-EU-Q0-I |
|---|---|---|---|---|---|
| PV String Input Data | |||||
| Max. PV Input Power(W) | 210-460(4 Pieces) | 210-560(4 Pieces) | 210-630(4 Pieces) | 210-700(4 Pieces) | 210-770(4 Pieces) |
| Max. PV Input Voltage(V) | 60 | ||||
| Start-up Voltage(V) | 20 | ||||
| MPPT voltage range(V) | 25-55 | ||||
| Rated PV Input voltage(V) | 42.5 | ||||
| Max. Operating PV Input Current (A) | 18+18+18+18 | ||||
| Max. Input Short Circuit Current (A) | 27+27+27+27 | ||||
| No. of MPP Trackers/No. of String per MPP Tracker | 4/1 | ||||
| AC Output Side | |||||
| Rated AC Output Active Power(W) | 1300 | 1600 | 1800 | 2000 | 2200 |
| Max.AC Output Apparent Power(VA) | 1300 | 1600 | 1800 | 2000 | 2200 |
| Rated AC output current (A) | 6/5.7 | 7.3/7 | 8.2/7.9 | 9.1/8.7 | 10/9.6 |
| Max.AC Output Current(A) | 6/5.7 | 7.3/7 | 8.2/7.9 | 9.1/8.7 | 10/9.6 |
| Rated output voltage/range (V) | 220/230 0.85Un-1.1Un | ||||
| Grid Connection Form | L/N/PE | ||||
| Rated Output Grid Frequency/range(Hz) | 50/45-55, 60/55-65 | ||||
| Max. unit per branch | 5 | 4 | 3 | 3 | 3 |
| Power Factor Adjustment Range | 0.9 leading to 0.9 lagging | ||||
| Total Current Harmonic Distortion THDi | <3% | ||||
| DC Injection Current | <0.5%ln | ||||
| Efficiency | |||||
| Max. Efficiency | 96.50% | ||||
| Euro Efficiency | 96 | ||||
| MPPT Efficiency | >99% | ||||
| Equipment Protection | |||||
| DC Reverse Polarity Protection | YES | ||||
| AC Output Overcurrent Protection | YES | ||||
| AC Output Overvoltage Protection | YES | ||||
| AC Output Short Circuit Protection | YES | ||||
| Thermal Protection | YES | ||||
| Insulation Impedance Detection | YES | ||||
| Anti-islanding Protection | YES | ||||
| Surge Protection Level | TYPE II(AC) | ||||
| Interface | |||||
| Communication Interface | Wi-Fi | ||||
| General Data | |||||
| Operating Temperature Range (°C) | -40 to +65℃ | ||||
| Permissible Ambient Humidity | 0~100% | ||||
| Permissible Altitude (m) | 2000m | ||||
| Noise (dB) | ≤ 25 | ||||
| Ingress Protection(IP) Rating | IP 67 | ||||
| Inverter Topology | Isolated | ||||
| Over Voltage Category | OVC II(DC),OVC III(AC) | ||||
| Cabinet Size（W*H*D）[mm] | 311×250.5×36.5 (Excluding Connectors and Brackets) | ||||
| Weight [kg] | 4.95 | ||||
| Warranty [year] | 10 Years | ||||
| Type Of Cooling | natural cooling | ||||
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, G98, VDE-AR-N 4105 | ||||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||
