SUN-M130/160/180/200/220G4-EU-Q0
Micro Inverter |1300-2200W | 4 MPPT
Micro Inverter1300-2200W4 MPPT
Downloads
Overview
SUN-M130/160/180/200/220G4-EU-Q0 Micro Inverter |1300-2200W | 4 MPPT
Product Highlights
Features
01

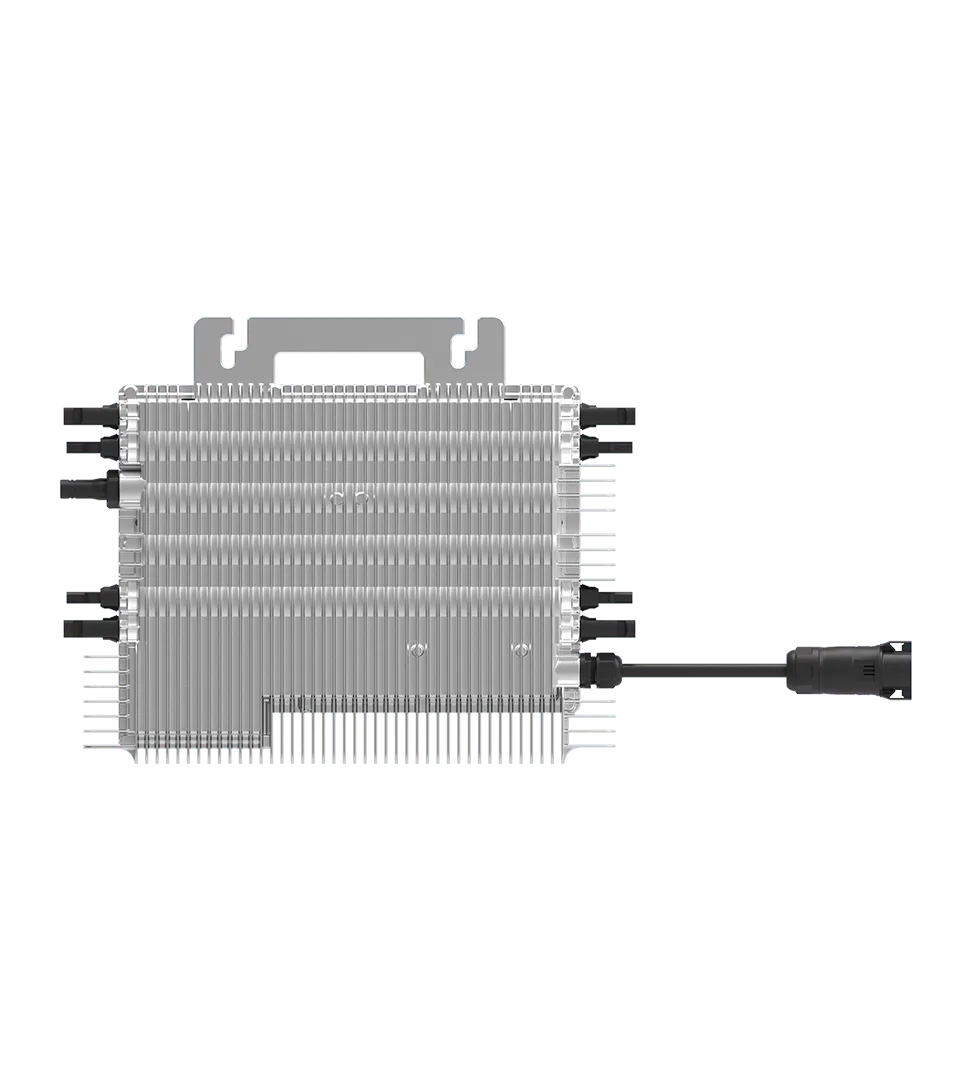

IP67 protection degree, 10 years warranty
02

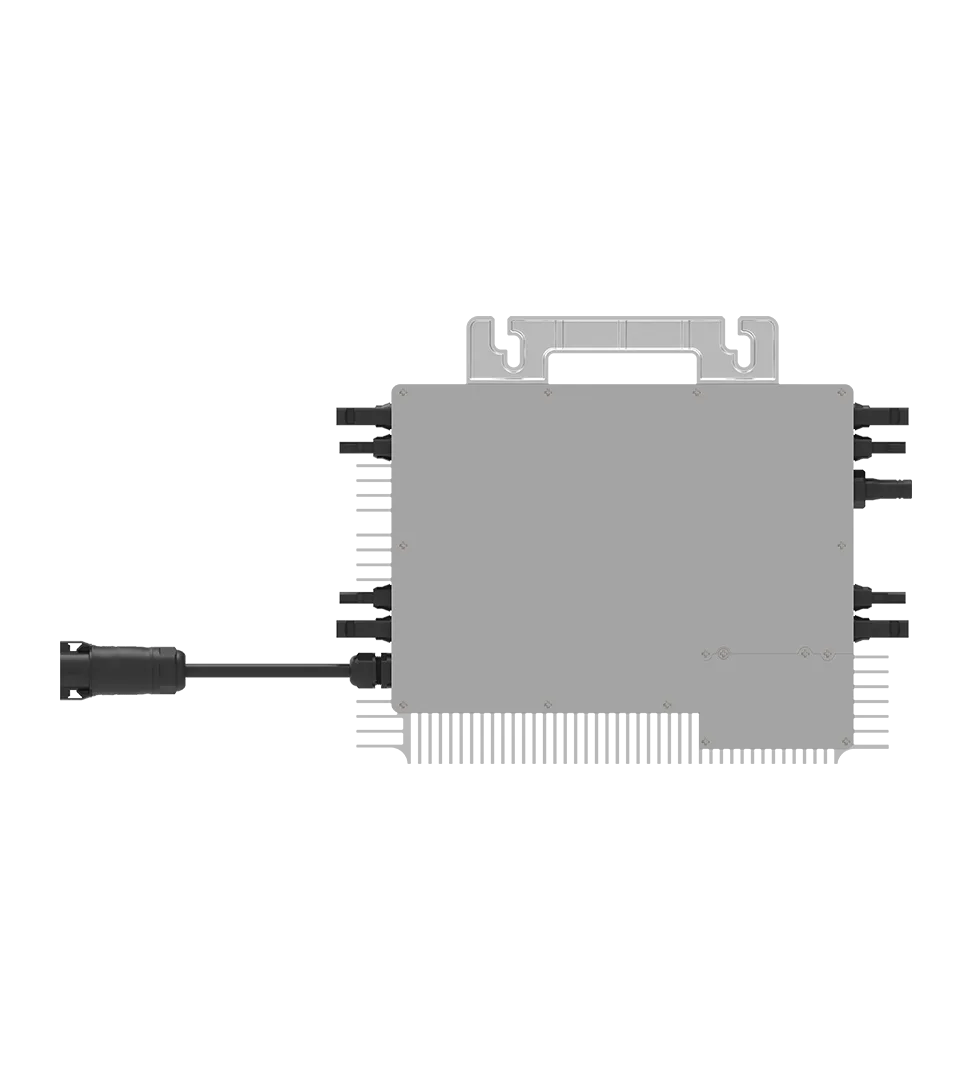

WIFI communication
03
Max. DC input current of 18A, adapt to 700W PV module
04
4 MPP trackers, module level monitoring
05
Rapid shutdown function
Specifications
| Model | SUN-M130G4-EU-Q0 | SUN-M160G4-EU-Q0 | SUN-M180G4-EU-Q0 | SUN-M200G4-EU-Q0 | SUN-M220G4-EU-Q0 |
|---|---|---|---|---|---|
| PV String Input Data | |||||
| Max. PV Input Power(W) | 210-460(4 Pieces) | 210-560(4 Pieces) | 210-630(4 Pieces) | 210-700(4 Pieces) | 210-770(4 Pieces) |
| Max. PV Input Voltage(V) | 60 | ||||
| Start-up Voltage(V) | 20 | ||||
| MPPT voltage range(V) | 25-55 | ||||
| Rated PV Input voltage(V) | 42.5 | ||||
| Max. Operating PV Input Current (A) | 15+15+15+15 | 18+18+18+18 | |||
| Max. Input Short Circuit Current (A) | 22.5+22.5+22.5+22.5 | 27+27+27+27 | |||
| No. of MPP Trackers/No. of String per MPP Tracker | 4/1 | ||||
| AC Output Side | |||||
| Rated AC Output Active Power(W) | 1300 | 1600 | 1800 | 2000 | 2200 |
| Max.AC Output Apparent Power(VA) | 1300 | 1600 | 1800 | 2000 | 2200 |
| Rated AC output current (A) | 6/5.7 | 7.3/7 | 8.2/7.9 | 9.1/8.7 | 10/9.6 |
| Max.AC Output Current(A) | 6/5.7 | 7.3/7 | 8.2/7.9 | 9.1/8.7 | 10/9.6 |
| Rated output voltage/range (V) | 220/230 0.85Un-1.1Un | ||||
| Grid Connection Form | L/N/PE | ||||
| Rated Output Grid Frequency/range(Hz) | 50/45-55, 60/55-65 | ||||
| Max. unit per branch | 5 | 4 | 3 | 3 | 3 |
| Power Factor Adjustment Range | 0.9 leading to 0.9 lagging | ||||
| Total Current Harmonic Distortion THDi | <3% | ||||
| DC Injection Current | <0.5%ln | ||||
| Efficiency | |||||
| Max. Efficiency | 96.50% | ||||
| Euro Efficiency | 96 | ||||
| MPPT Efficiency | >99% | ||||
| Equipment Protection | |||||
| DC Reverse Polarity Protection | YES | ||||
| AC Output Overcurrent Protection | YES | ||||
| AC Output Overvoltage Protection | YES | ||||
| AC Output Short Circuit Protection | YES | ||||
| Thermal Protection | YES | ||||
| Insulation Impedance Detection | YES | ||||
| Anti-islanding Protection | YES | ||||
| Surge Protection Level | TYPE II(AC) | ||||
| Interface | |||||
| Communication Interface | Wi-Fi | ||||
| General Data | |||||
| Operating Temperature Range (°C) | -40 to +65℃, >45℃ Derating | ||||
| Permissible Ambient Humidity | 0~100% | ||||
| Permissible Altitude (m) | 2000m | ||||
| Noise (dB) | ≤ 25 | ||||
| Ingress Protection(IP) Rating | IP 67 | ||||
| Inverter Topology | Isolated | ||||
| Over Voltage Category | OVC II(DC),OVC III(AC) | ||||
| Cabinet Size（W*H*D）[mm] | 311×250.5×36.5 | 358×255.5×36.5 | |||
| Weight [kg] | 5.1 | 5.2 | |||
| Warranty [year] | 10 Years | ||||
| Type Of Cooling | natural cooling | ||||
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, G99, VDE-AR-N 4105 | ||||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||
