SUN-D60/80/100/110G4-EU-Q0
Micro Inverter | 600-1100W | Single Phase | 1MPPT
Micro Inverter600-1100WSingle Phase1MPPT
Downloads
Overview
SUN-D60/80/100/110G4-EU-Q0 Micro Inverter | 600-1100W | Single Phase | 1MPPT
Product Highlights
Features
01

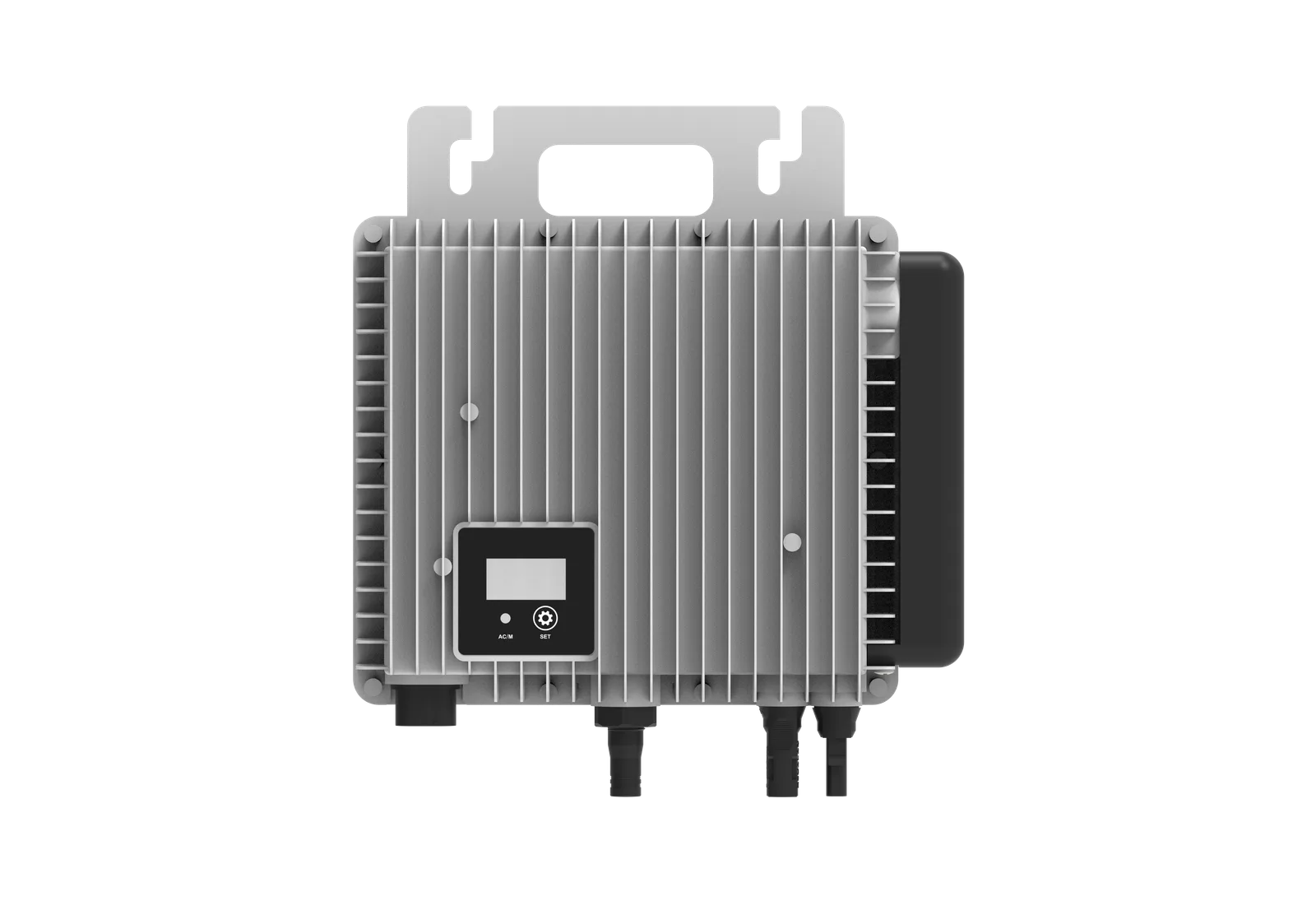

1 MPP tracker, module level monitoring
02

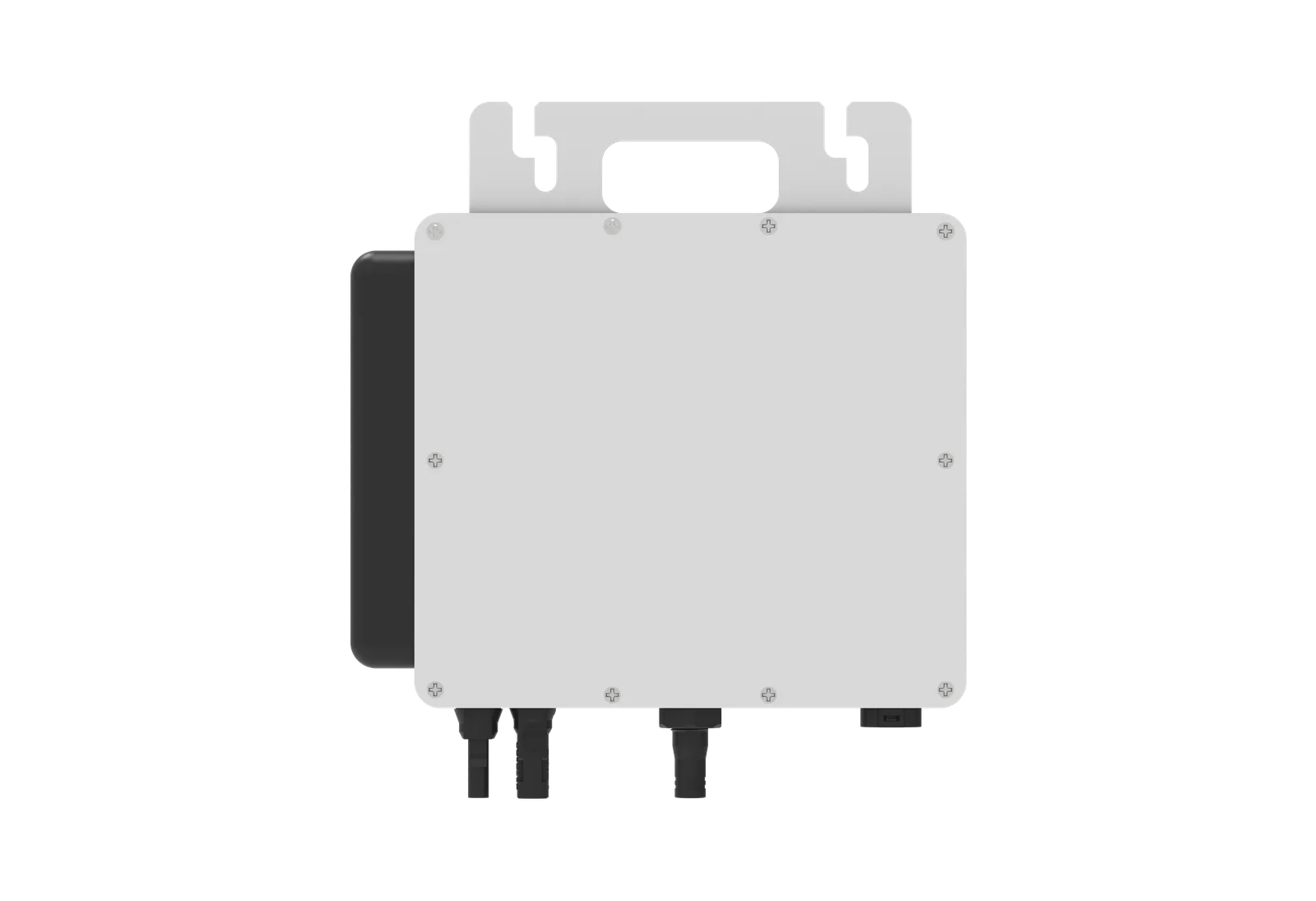

IP67 protection degree
03
Wi-Fi communication and lora communication
04
Rapid shutdown function
05
Easy installation, suitable for quick-plug balcony PV system
06
<100ms AC fast discharge, compliant with new required standard DIN VDE V 0126-95 (<200ms) to protect human safety
07
Complete NS protection with self-check function
08
25 years design lifetime and 15 years warranty
09
With integrate Wi-Fi
10
Anti backflow function
Specifications
| Model | SUN-D60G4-EU-Q0 | SUN-D80G4-EU-Q0 | SUN-D100G4-EU-Q0 | SUN-D110G4-EU-Q0 |
|---|---|---|---|---|
| PV String Input Data | ||||
| Max. PV Input Power(W) | 210-420(2 Pieces) | 210-560(2 Pieces) | 210-700(2 Pieces) | 210-770(2 Pieces) |
| Max. PV Input Voltage(V) | 120 | |||
| Start-up Voltage(V) | 20 | |||
| MPPT voltage range(V) | 45-100 | |||
| Rated PV Input voltage(V) | 85 | |||
| Max. Input Short-Circuit Current (A) | 27 | |||
| Max. Operating PV Input Current(A) | 18 | |||
| No. of MPP Trackers/No. of String per MPP Tracker | 1/1 | |||
| AC Output Side | ||||
| Rated AC Output Active Power(W) | 600 | 800 | 1000 | 1100 |
| Max.AC Output Apparent Power(VA) | 600 | 800 | 1000 | 1100 |
| Rated AC output current (A) | 2.8/2.7 | 3.7/3.5 | 4.6/4.4 | 5/4.8 |
| Max.AC Output Current(A) | 2.8/2.7 | 3.7/3.5 | 4.6/4.4 | 5/4.8 |
| Rated output voltage/range (V) | 220/230 0.85Un-1.1Un | |||
| Grid Connection Form | L/N/PE | |||
| Rated Output Grid Frequency/range(Hz) | 50/45-55, 60/55-65 | |||
| Power Factor Adjustment Range | 0.9 leading to 0.9lagging | |||
| Total Current Harmonic Distortion THDi | <3% | |||
| DC Injection Current | <0.5%ln | |||
| Efficiency | ||||
| Max. Efficiency | 96.50% | |||
| Euro Efficiency | 96.00% | |||
| MPPT Efficiency | >99% | |||
| Equipment Protection | ||||
| DC Reverse Polarity Protection | YES | |||
| AC Output Overcurrent Protection | YES | |||
| AC Output Overvoltage Protection | YES | |||
| AC Output Short Circuit Protection | YES | |||
| Thermal Protection | YES | |||
| Insulation Impedance Detection | YES | |||
| Anti-islanding Protection | YES | |||
| Surge Protection Level | TYPE II(AC) | |||
| Interface | ||||
| Communication Interface | WiFi | |||
| General Data | ||||
| Operating Temperature Range (°C) | -40 to -65℃ | |||
| Permissible Ambient Humidity | 0~100% | |||
| Permissible Altitude (m) | 2000m | |||
| Noise (dB) | ≤ 25 | |||
| Ingress Protection(IP) Rating | IP 67 | |||
| Inverter Topology | Isolated | |||
| Over Voltage Category | OVC II(DC),OVC III(AC) | |||
| Cabinet Size（W*H*D）[mm] | 212*190*40（Excluding connectors and brackets） | |||
| Weight [kg] | 2.7 | |||
| Warranty [year] | 15 Years | |||
| Type Of Cooling | natural cooling | |||
| Grid Regulation | IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002, G98,VDE-AR-N 4105 | |||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||
