Micro Hybrid ESSMicro Hybrid Inverter
SUN-BK(60-100)-2.0KWH-EU-AM2
Suitable for on-grid, off-grid, and portable use
Suitable for on-grid, off-grid, and portable use
Send InquiryOverview
SUN-BK(60-100)-2.0KWH-EU-AM2 Suitable for on-grid, off-grid, and portable use
Product Highlights
Features
01

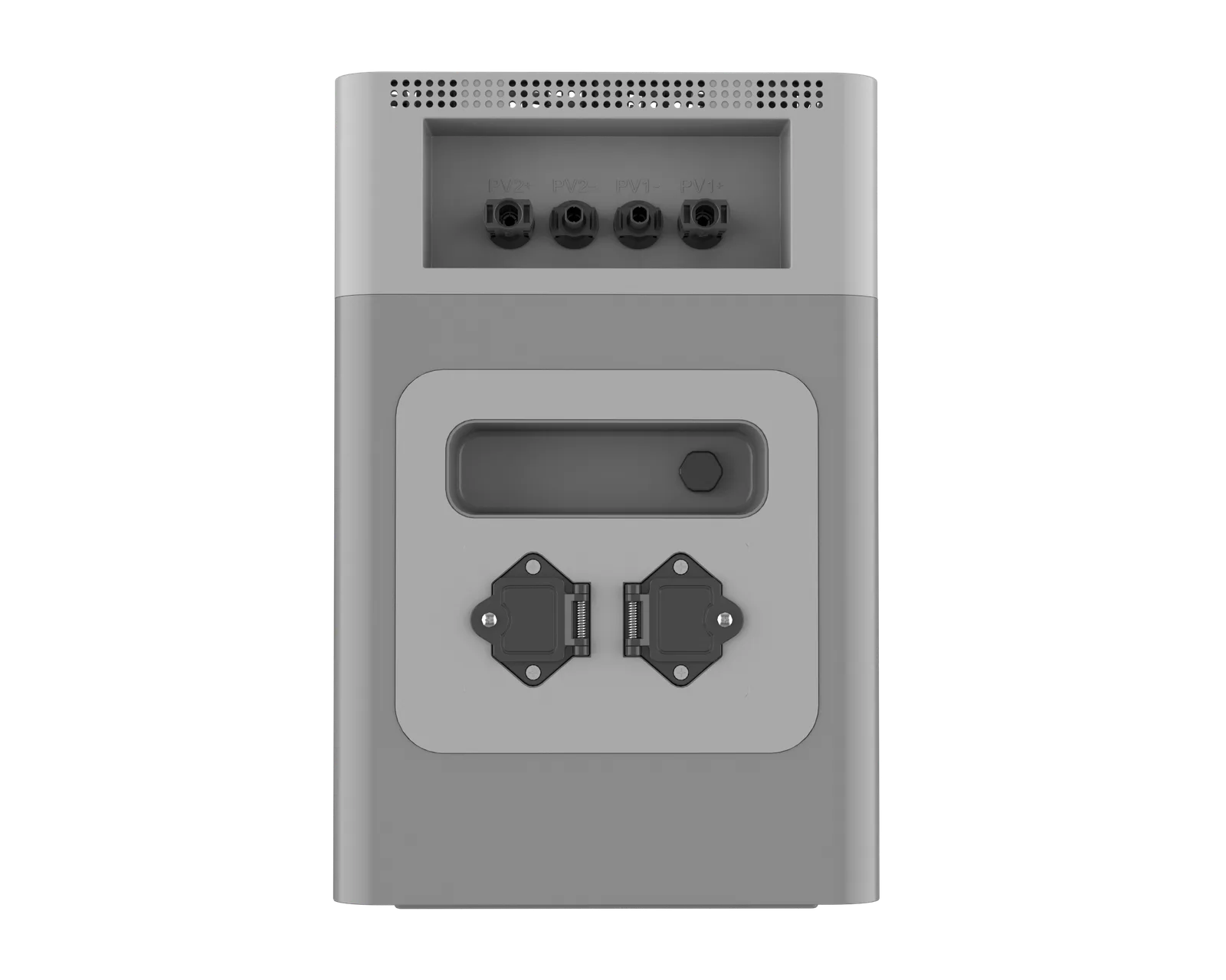

• Plug & Play
02

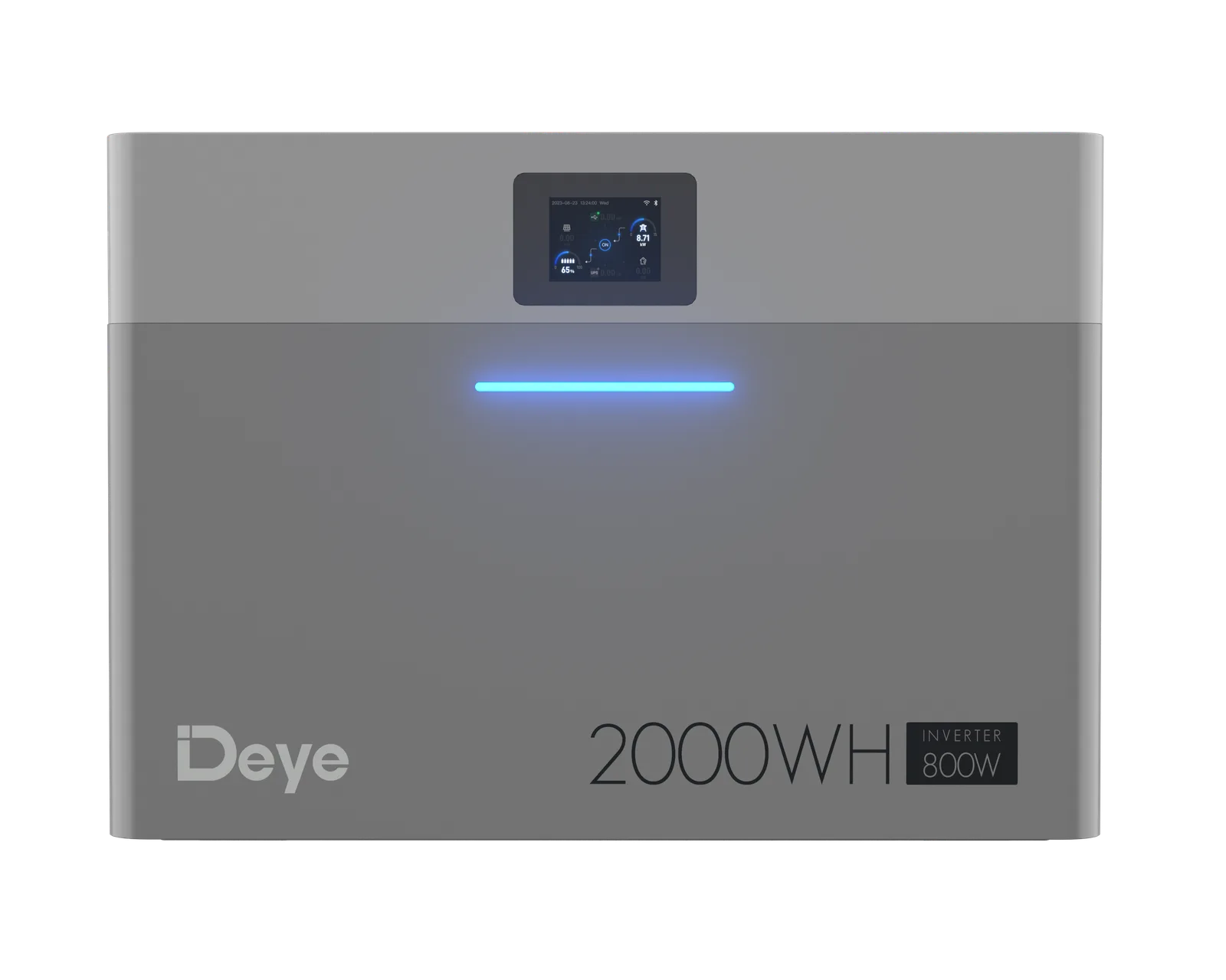

• All-in-One Design: Integrated Inverter & Battery
03

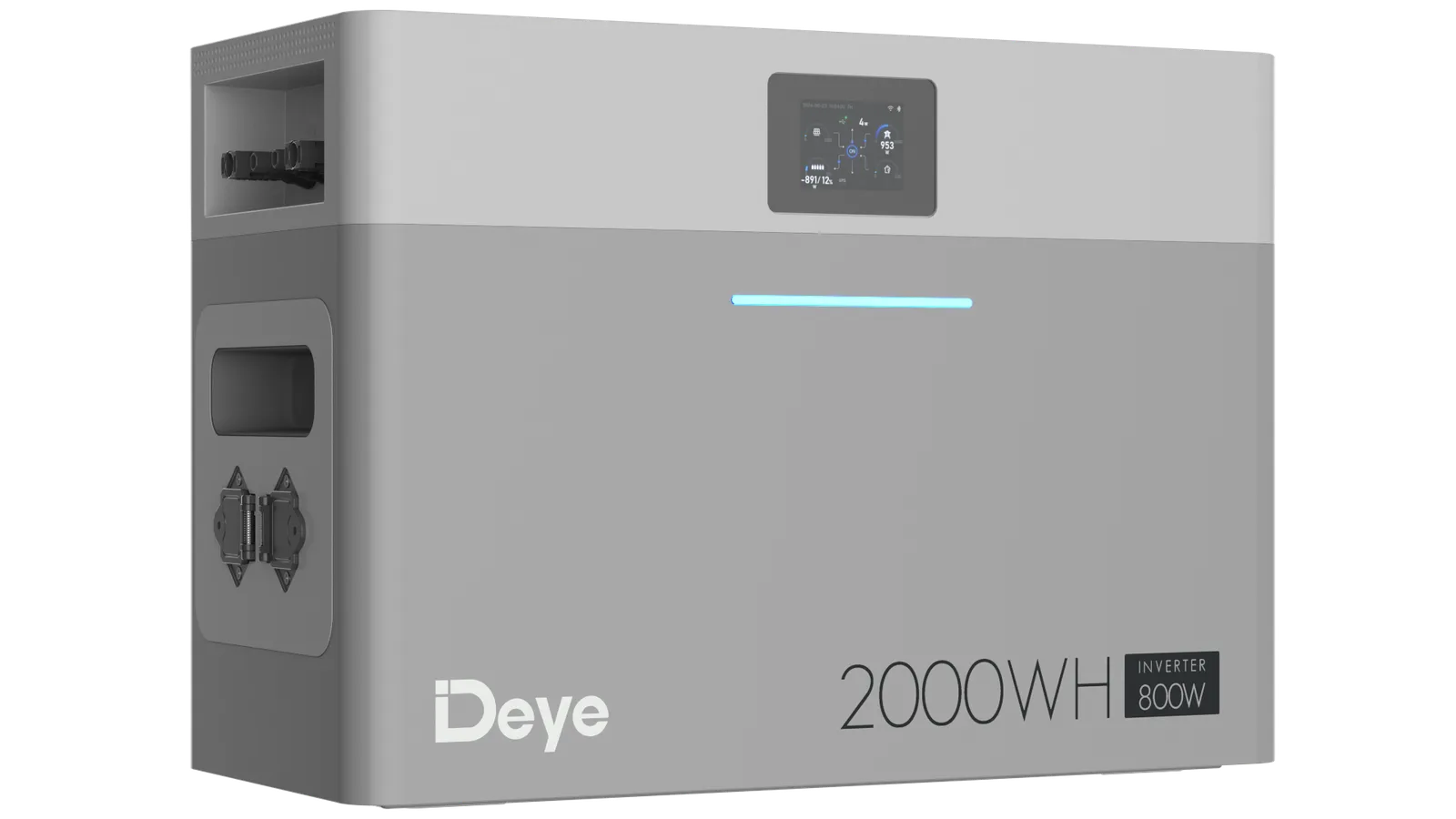

• Versatile Power Options: 600W/800W/1000W
04
• Dual Independent MPPTs
05
• Compatible with 18A PV modules
06
• 4ms On/Off-Grid Switching
07
• Multiple Operating Modes: Grid-Tied, Off-Grid, AC-Coupled
Specifications
| Model | SUN-BK60-2.0KWH-EU-AM2 | SUN-BK80-2.0KWH-EU-AM2 | SUN-BK100-2.0KWH-EU-AM2 |
|---|---|---|---|
| AC Technical Specification | |||
| Rated AC Input / Output Active Power | 600W | 800W | 1000W |
| Max. AC Input / Output Active Power | 660W | 880W | 1100W |
| AC Input / Output Frequency and Voltage | 50Hz ( 45Hz ~ 55Hz ) , 60Hz ( 55Hz ~ 65Hz ) , L +N +PE , 220 / 230 Vac | ||
| Grid Type | Single phase | ||
| Rated Grid Input / Output Current | 2.8A / 2.7A | 3.7A / 3.5A | 4.6A / 4.4A |
| Max.Grid Input / Output Current | 3.0A / 2.9A | 4.0A / 3.9A | 5.0A / 4.8A |
| Peak Power ( off-grid ) | 2 time of rated power, 10s | ||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||
| Max. Continuous AC Passthrough (grid to load) | 10A | ||
| DC Injection Current | <0.5%In | ||
| PV String Input Data | |||
| Max. PV Access Power | 1320W | 1760W | 2200W |
| Max. PV Input Power | 960W | 1280W | 1600W |
| Max. Operating PV Input Current | 18A+18A | ||
| Max. Input Short-Circuit Current | 27A+27A | ||
| Rated PV Input Voltage | 42.5V ( 20V ~ 55V ) | ||
| Start-up Voltage | 25Vdc | ||
| MPPT Voltage Range | 20 ~ 55V | ||
| No. of MPP Trackers/No. of Strings MPP Tracker | 2/1+1 | ||
| Battery Input Data | |||
| Battery Type | LiFePO4 | ||
| Max.Charging/Discharging Current | 25A | ||
| Battery Nominal Energy | 2000Wh | ||
| Battery Voltage Range | 44.8V ~57.6V | ||
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||
| General Data | |||
| Communication Interfaces | Wi-Fi, Bluetooth | ||
| Dimension ( W × D × H ) | 450 × 210 × 321mm | ||
| Weight Approximate | 26kg | ||
| Operating Temperature Range | -10°C ~ 50°C | ||
| Max. Operating Altitude | 2000m | ||
| Permissible Ambient Humidity | 15%~85%(No Condensing) | ||
| Safety EMC / Standard | IEC/EN62109-1, IEC/EN 62109-2, IEC/EN 621000-6-1/2/3/4 | ||
| Grid Regulation | VDE 4105,IEC 61727/62116,VDE 0126,AS 4777.2,CEI0-21,EN 50549-1,G98,G99,C10-11, UNE217002,NBR16149/NBR 16150 | ||
| Battery Certification | UN38.3, IEC 62619 | ||
| Installation Style | Floor-Mounted | ||
| Warranty | 10 years | ||
| Model | AE-F2.0 | ||
| Battery Technical Specification | |||
| Battery Chemistry | LiFePO4 | ||
| Battery Nominal Voltage | 51.2V | ||
| Battery Nominal Energy | 2000Wh | ||
| Max. Charging / Discharging Current | 40A | ||
| Battery Operating Voltage | 44.8V ~ 57.6V | ||
| Battery Cycle Life | ≥6000 ( @25°C±2°C, 0.5C / 0.5C, 70%EOL ) | ||
| Parallel Capability | 5 pcs* | ||
| Other Technical Specification | |||
| Display | LED ( SOC, Alarm ) | ||
| Communication Interfaces | CAN2.0, LoRa | ||
| Dimension ( W × D × H ) | 450 × 210 × 244mm | ||
| Weight Approximate ( kg ) | 20 | ||
| Operating Temperature Range | -10°C ~ 50°C | ||
| Max. Operating Altitude | 2000m | ||
| Relative Humidity | 0% ~ 95% ( No Condensing ) | ||
| Certification | UN38.3, IEC 62619, CE | ||
| Installation Style | Floor-Mounted | ||
| Warranty | 10 years | ||
