Stainless Steel Solar Panel Water Drain Clip
The Stainless-Steel Solar Panel Drainage Clamp is effectively way to drain the water and dirt off the panel, make the panel surface clean, enhances panel energy conversion. It is easy to clip on the frame of panel with competitive prices.
Item No
LP-WDC-02
MOQ
1PCS
Color
Natural
Lead Time
7-15 days
Product Details

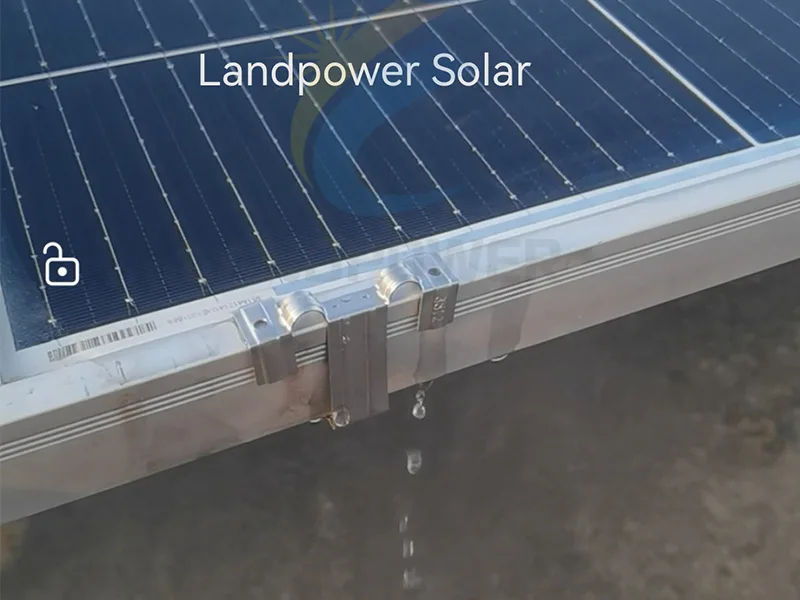

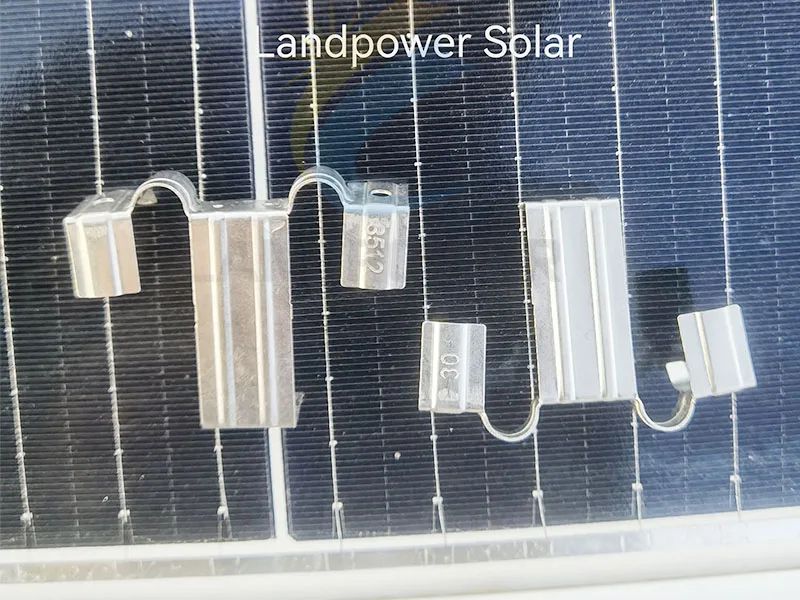

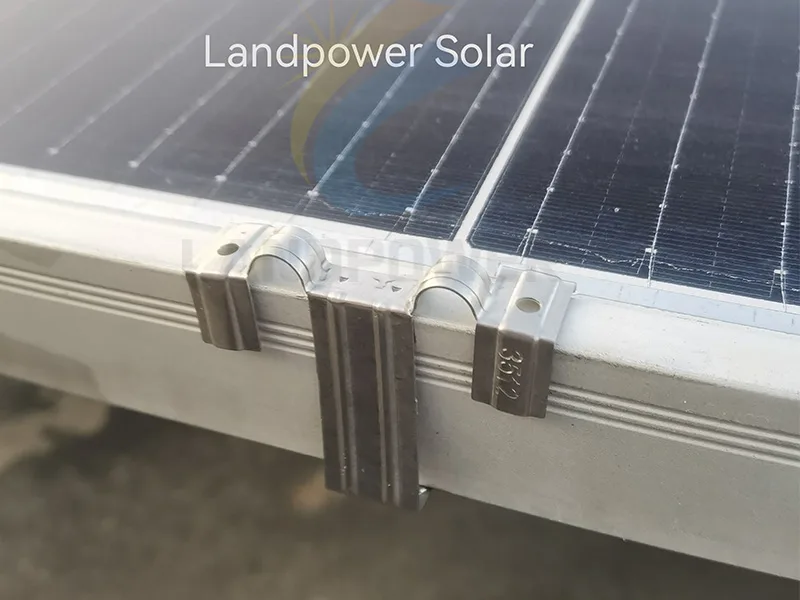

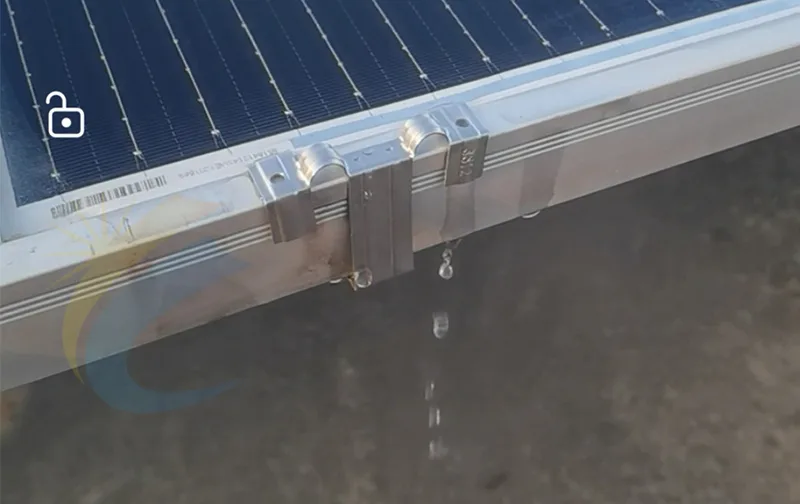

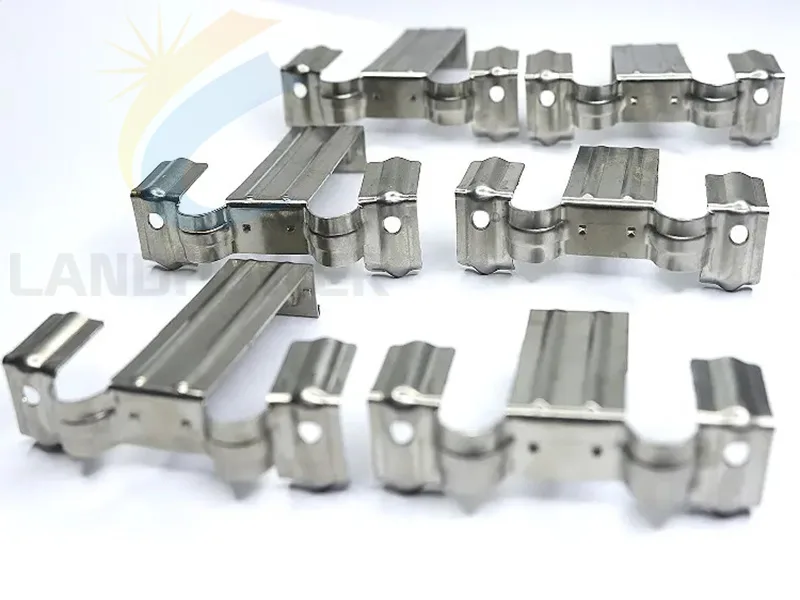

The Stainless-Steel Solar Panel Water Drain Clip is used to clip on the lower frame of solar panel to drain off the dirt and the water, this will help to remove the water, and dirt from the edge and corners of panels, it always keeping panels clean and free of obstructions, which enhances energy conversion. And reduce the times to clean the solar arrays. Better material Stainless Steel 304 to withstand outdoor conditions, and ensure long-lasting performance and resistance to corrosion.
TECHNICAL INFORMATION
Install site: Clip on Aluminum Frame of Solar Panel
Function: Drain the water, dirt off the solar panel
Wind Load: Up to 60m/s
Suitable Panel:30mm,32mm,35mm
Material: Stainless Steel 304
Standard: En 1090,AS/NZS 1170,Din 1055,IBC 2006 and other Internation Standard
Warranty: 12 years warranty and twenty-year service life.
The solar panel water drain clip effectively guide the water and mud drain off the solar panel, this function avoid accumulation of forming mud belts over solar panel. It greatly enhances the life service and efficiency of panels.
Installation Video Reference
