Ground Screw Steel Mounting Structure
The Ground Screw Pile Mounting Structure is strength mounting solution for open area, they are coming with ground screw with higher pulling out capacity, and super anti-corrosion performant, quick installation and competitive on prices.
Item No
LP-GR-02
MOQ
1KW
Lead Time
7-15 days
Product Details
Ground Screw Steel Mounting Structure is using spiral ground screw piles as the foundation, strong structure, easy to install, and competitive prices. It is made of magnesium -plated and aluminum zinc material. It has strong anti -corrosion capacity and is 5 times that of hot -dip galvanized steel. The ground mount structures are widely used in large ground commercial installation. The pulling of ground screw piles is stronger traditional pile, and anti -corrosion capabilities is better, so they are durable to use.
TECHNICAL INFORMATION
Install site ： Open Field
Wind Load: Up to 60m/s
Snow load: <1.4KN/m2
Module Type: Framed or Frame-less
Module Arrangement: Portrait or Landscape
Tilt Angle:0-65 deg. Design on request
Foundation: Pile Driven
Main Material ： Zn-Al-Coated Steel
Anti-corrosive: Zn-Al-Coated Steel
Standard ： En 1090, AS/NZS 1170,DIN 1055, IBC 2006 and other international Standard
Warranty ： 12 years warranty and twenty- year service life

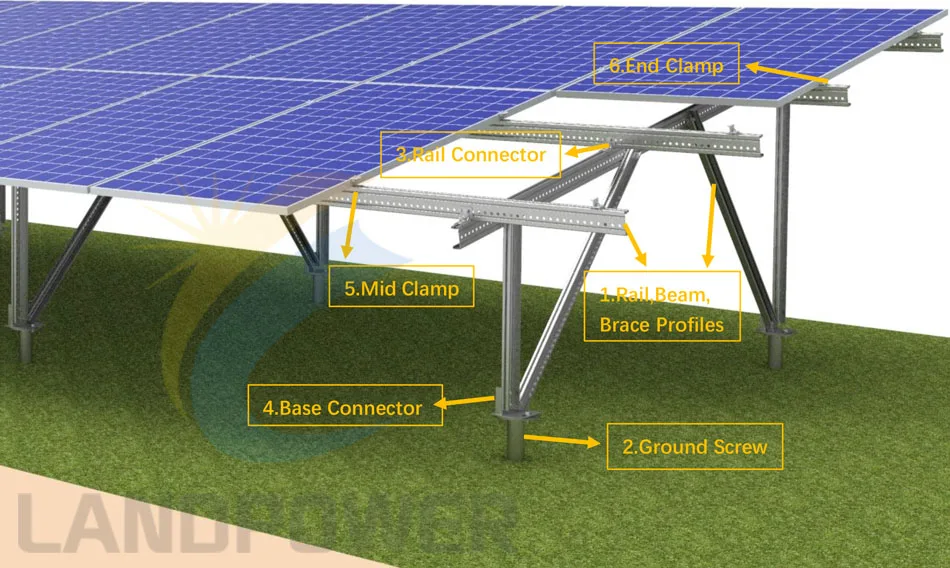

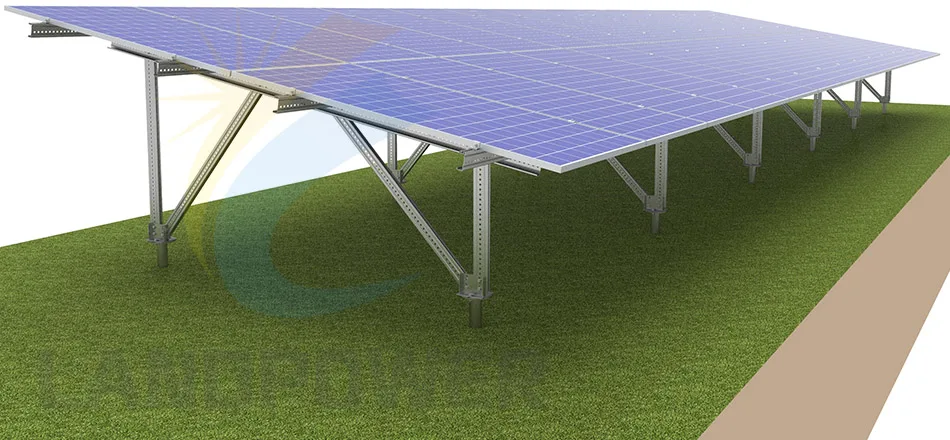

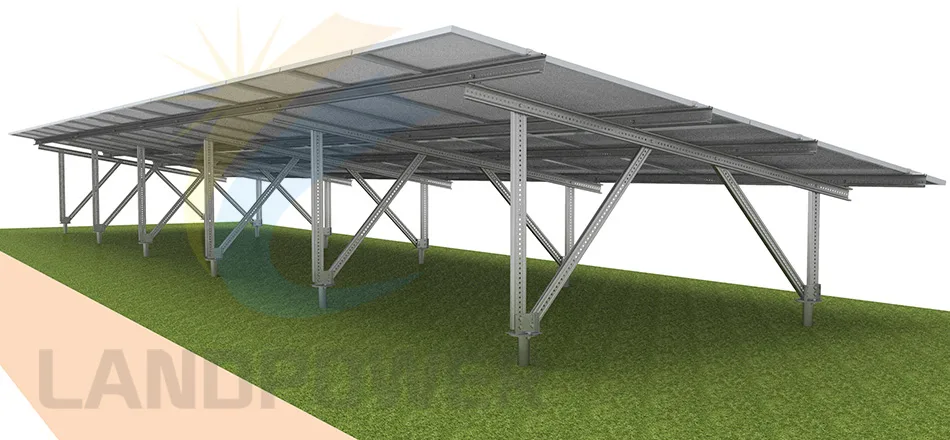

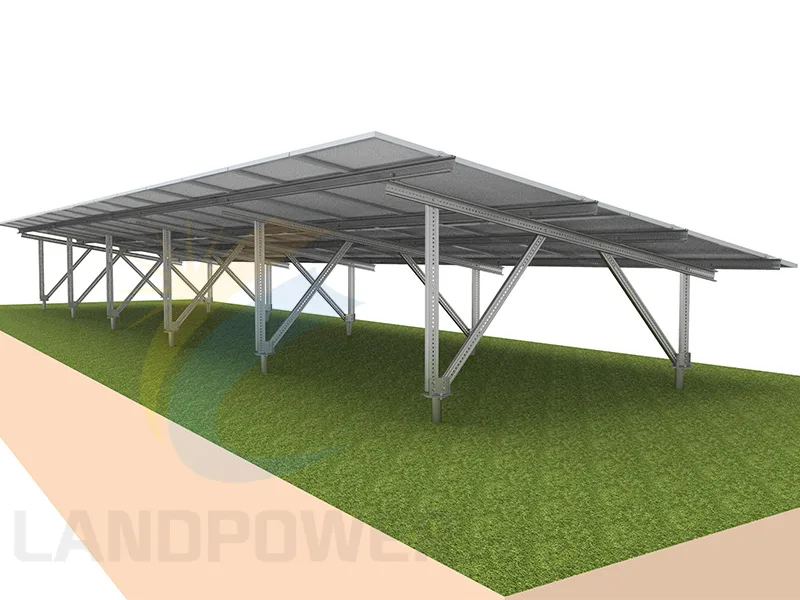

The Over View of the Steel Ground Mounting Structure

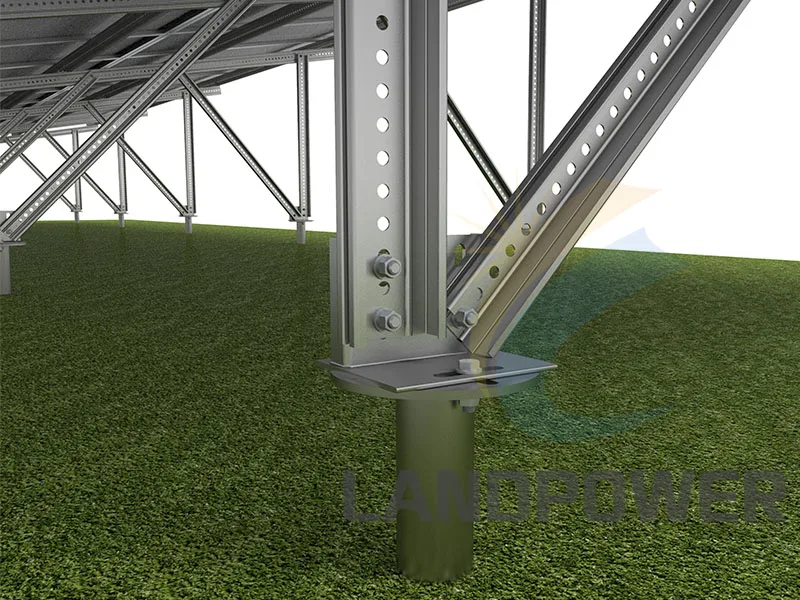

Ground Screw Foundation

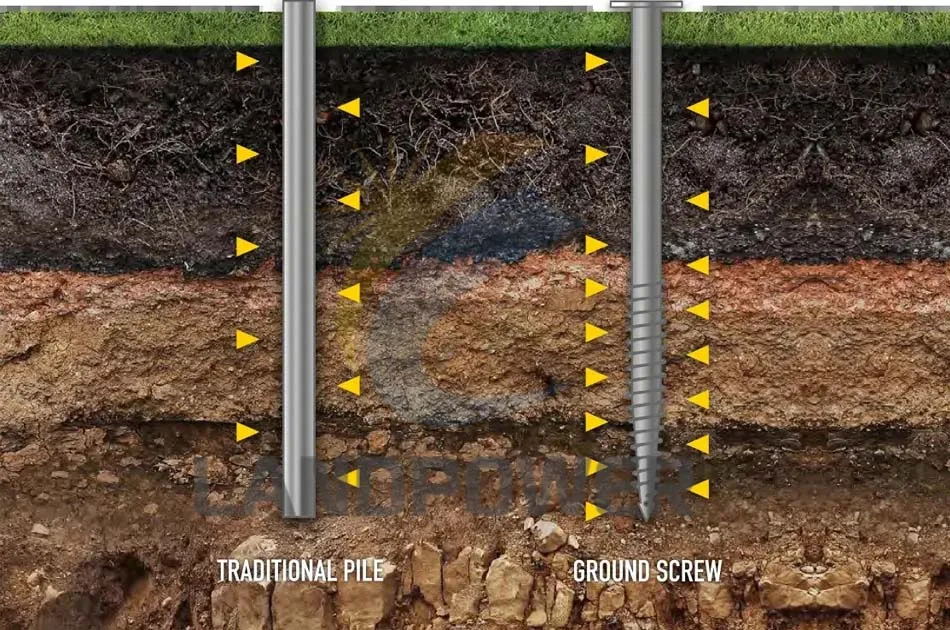

The pulling out capacity of the ground screw anchor is better than traditional pile due to the continuous helix design on the ground pile, which made greater friction underground to ensure more strength on the mounting structure.

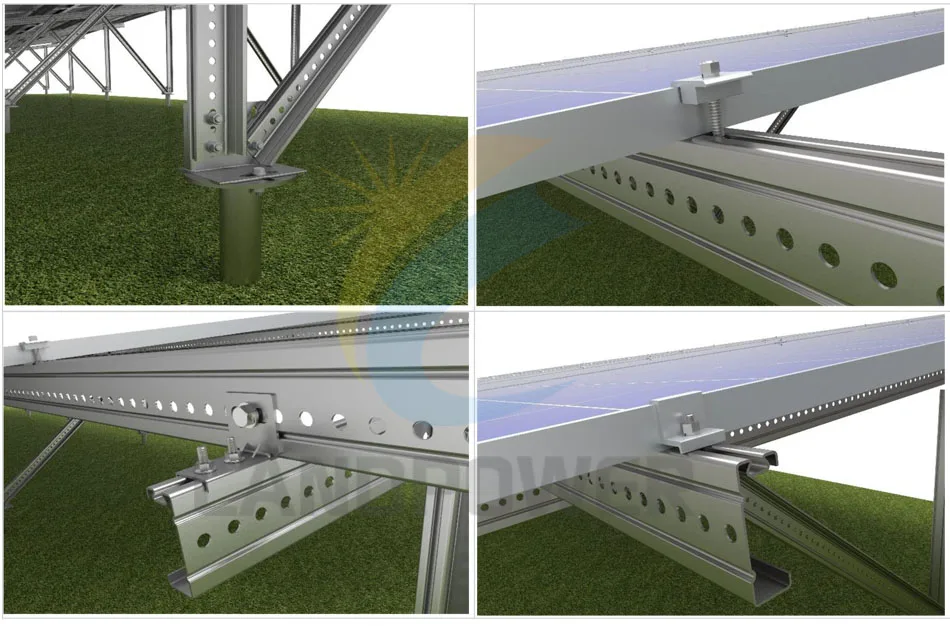

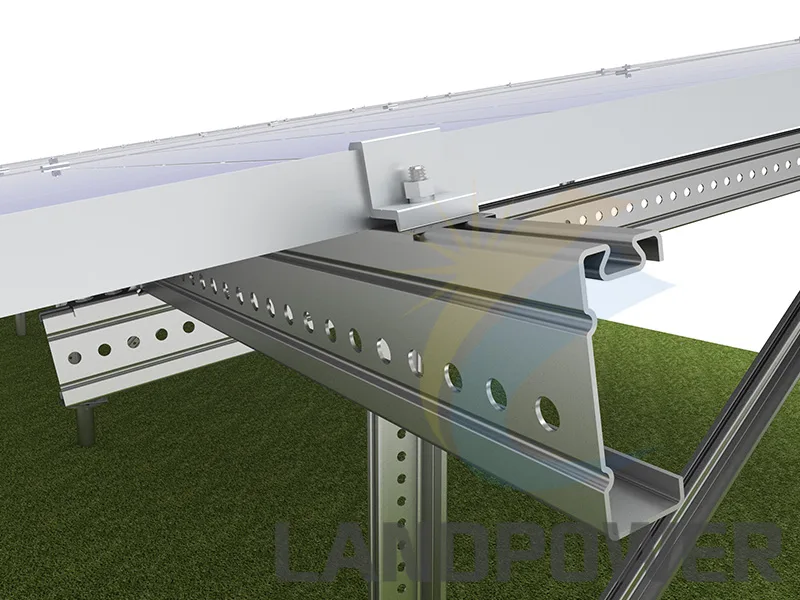

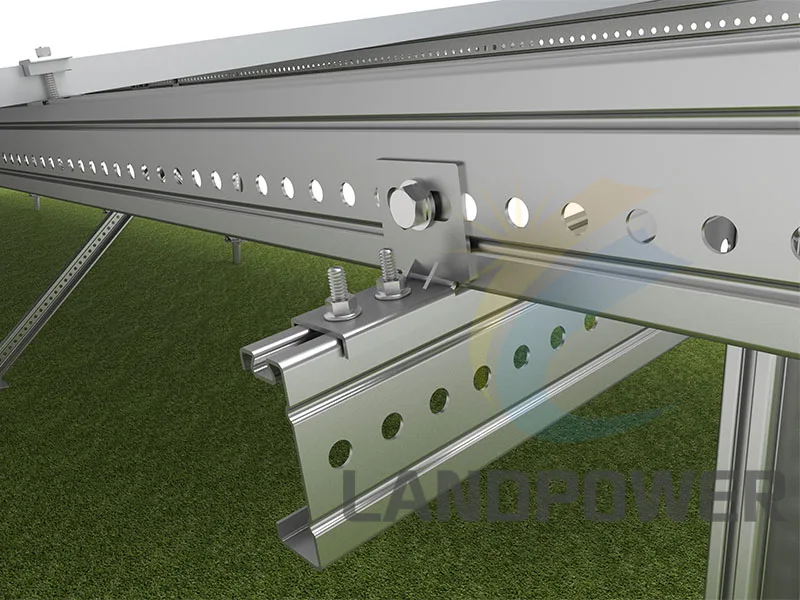

The Details of Steel Ground Mounting System
