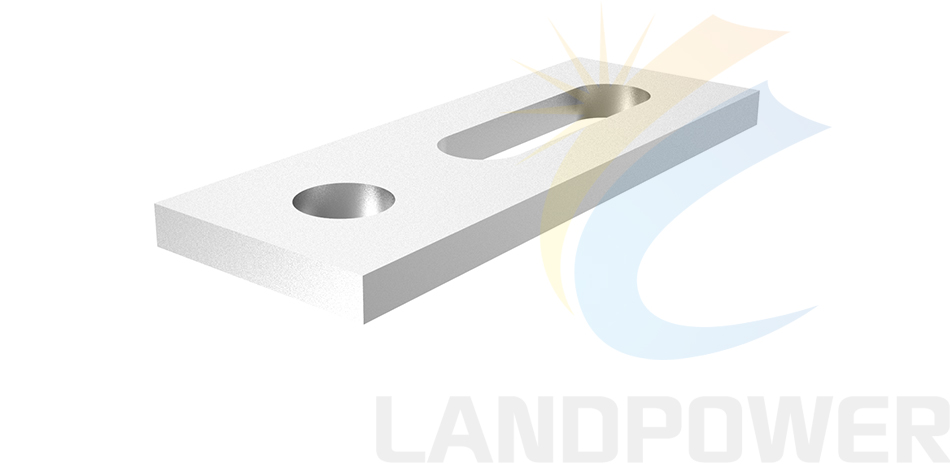

Stainless Steel Solar Panel Adapter Plate

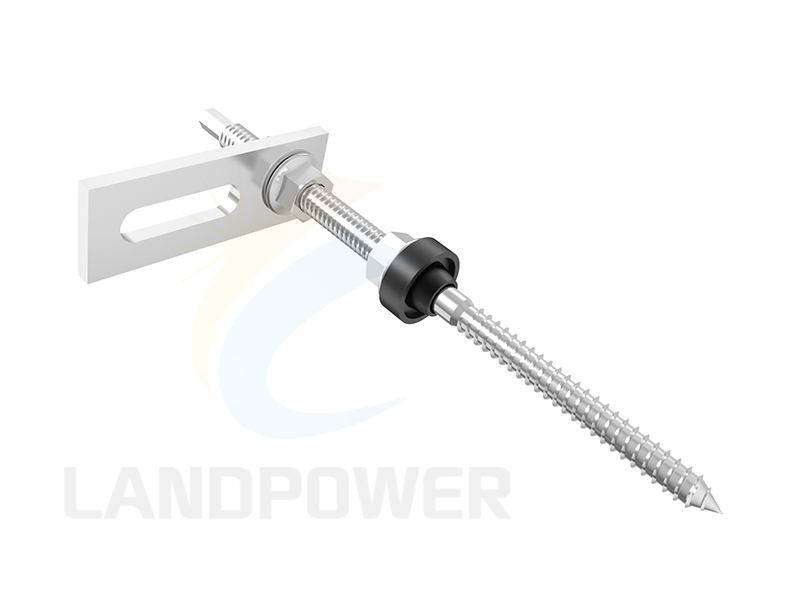

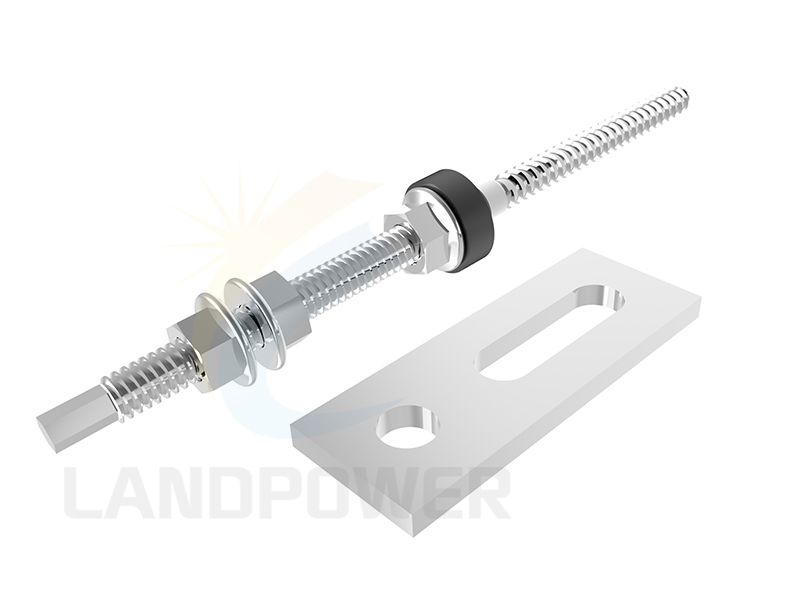

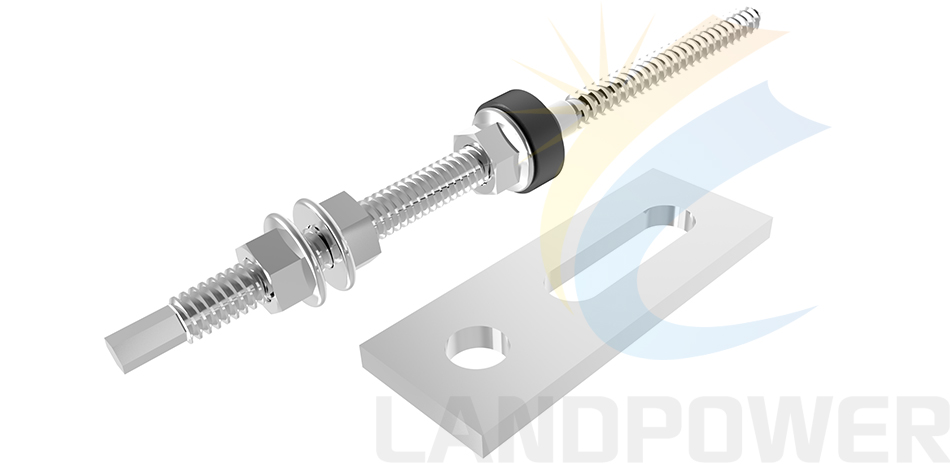

The Stainless Steel Adapter Plates are make of stainless steel 304, used for M10 and M12 hanger bolt for connection between solar panel and roof. The stainless steel fasteners can be used at low and high temperatures without worrying about reducing their strength or cracking.
| Item No | LP-AP-01 |
|---|---|
| Order(MOQ) | 1PCS |
| Payment | TT,L/C |
| Product Origin | Xiamen China |
| Color | Silver,Black |
| Shipping Port | Xiamen China |
| Lead Time | 7-15 days |
Product Details
The Stainless Steel Solar Panel Adapter Plates are essential parts for assembling photovoltaic panels, they are mostly used for hanger bolts to connect the solar panel to roof. The adapter plate is made of high-quality stainless steel 304, with dimensions 82*30*5mm, suitable for hanger bolts M10 and M12.The dimensions also can be specific according to your drawing.
TECHNICAL INFORMATION Application : M10/M12 Hanger Bolt Dimensions ： 82*30*5mm or Customized Building Height ： 20 m Max Wind Speed ： <60m/s Snow Load ： <1.4KN/m2 Standard ： En 1090, AS/NZS 1170 and other international Standard Material ： Aluminum 6005-T5& Stainless steel A2(304)
Color: Silver, Black or Customized Anti-corrosive: Stainless Steel Warranty ： 12 years warranty and twenty- year service life

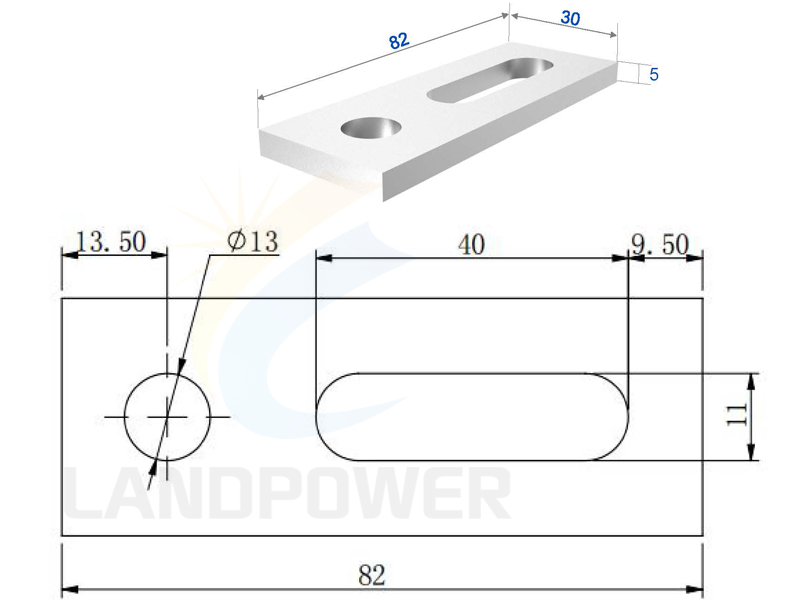

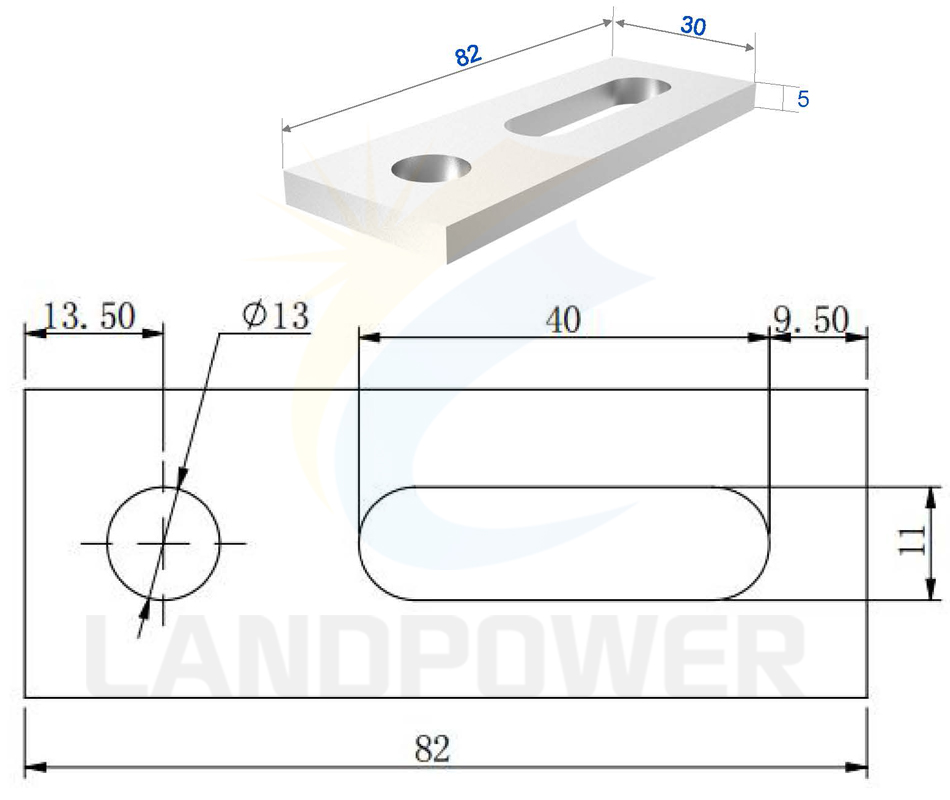

The Dimension of Adapter Plate for M10 Hanger Bolt

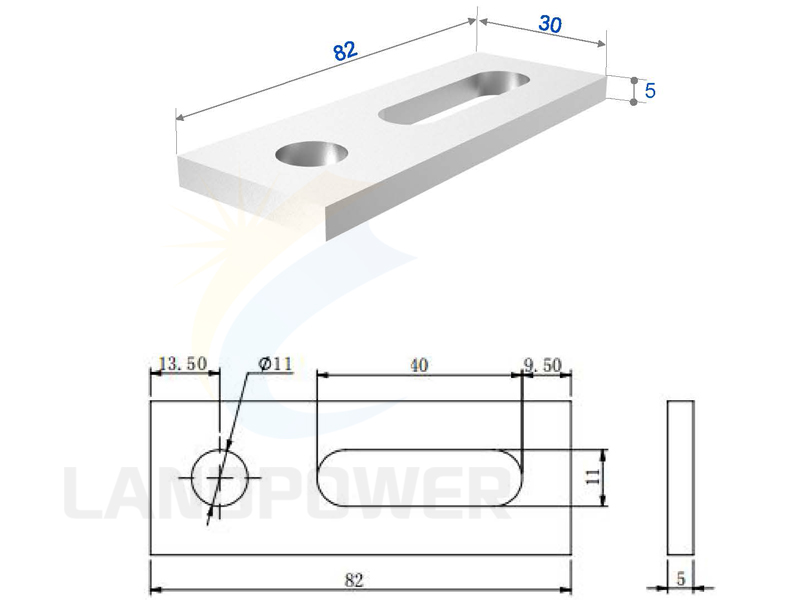

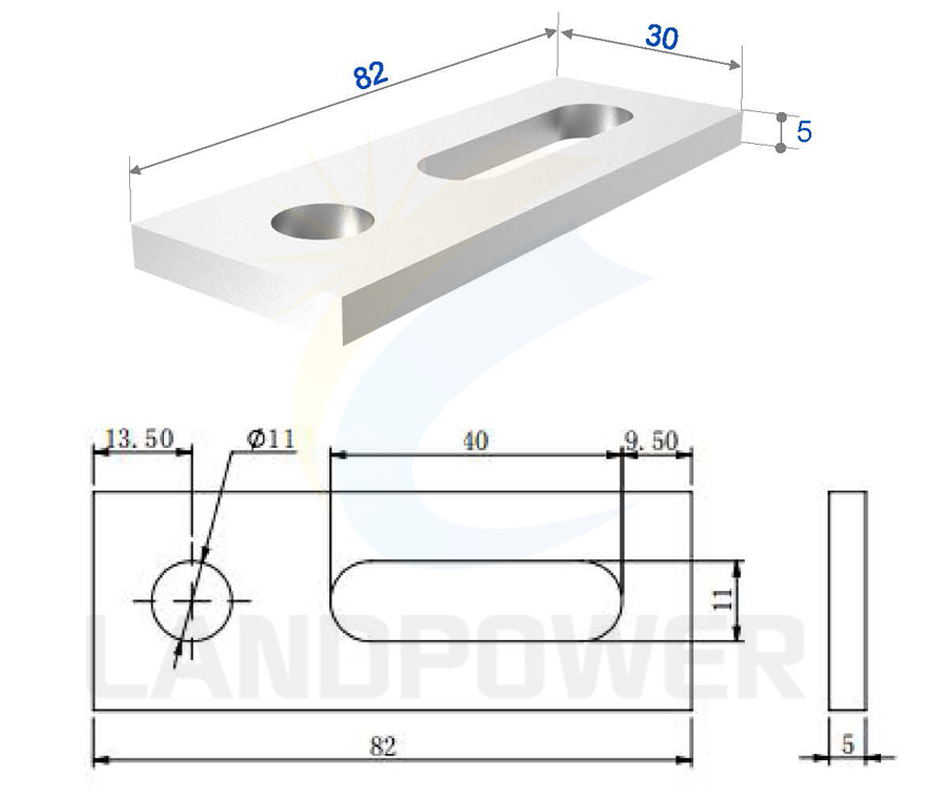

The Dimension of Adapter Plate for M12 Hanger Bolt
We are design various stainless steel for mounting rail, please feel free to contact us for more further details.
Specifications
| Application | M10/M12 Hanger Bolt |
|---|---|
| Dimensions | 82*30*5mm or Customized |
| Building Height | 20 m |
| Max Wind Speed | <60m/s |
| Snow Load | <1.4KN/m2 |
| Standard | En 1090, AS/NZS 1170 and other international Standard |
| Material | Aluminum 6005-T5& Stainless steel A2(304) |
