Pile Driven Ramming Ground Mount
Pile Driven Ramming Ground Mount is strength and cost effective mounting solution for ground mounted projects, fast ramming and 5 times anti-corrosion preformation than galvanized steel materials, better solution for open field.
| Item No | LP-GR-01 |
|---|---|
| Order(MOQ) | 10kw |
| Payment | TT,L/C |
| Product Origin | Xiamen China |
| Shipping Port | Xiamen China |
| Lead Time | 7-15 days |
Product Details
The Single Pole Driven Ramming Ground Mounting is strength ground mounting structure systems for open field, it is easy to and save cost structure thanks to fast installation of the poles. The material of Zn-Al-Mg, similar like Magnelis and Zam, which are better performant on anti-corrosion, and 5 times better than galvanized steel materials in Anti-corrosion .
TECHNICAL INFORMATION
Install site ： Open Field
Wind Load: Up to 60m/s
Snow load: <1.4KN/m2
Module Type: Framed or Frame-less
Module Arrangement: Portrait or Landscape
Tilt Angle:0-65 deg. Design on request
Foundation: Pile Driven
Main Material ： Zn-Al-Mg Coated Steel
Anti-corrosive: Zn-Al-Mg Coated Steel
Standard ： En 1090, AS/NZS 1170,DIN 1055, IBC 2006 and other international Standard
Warranty ： 12 years warranty and twenty- year service life

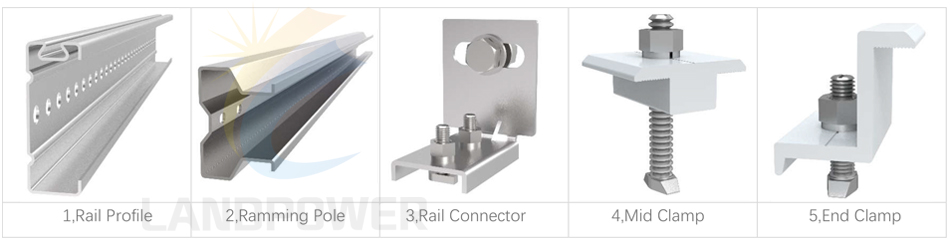

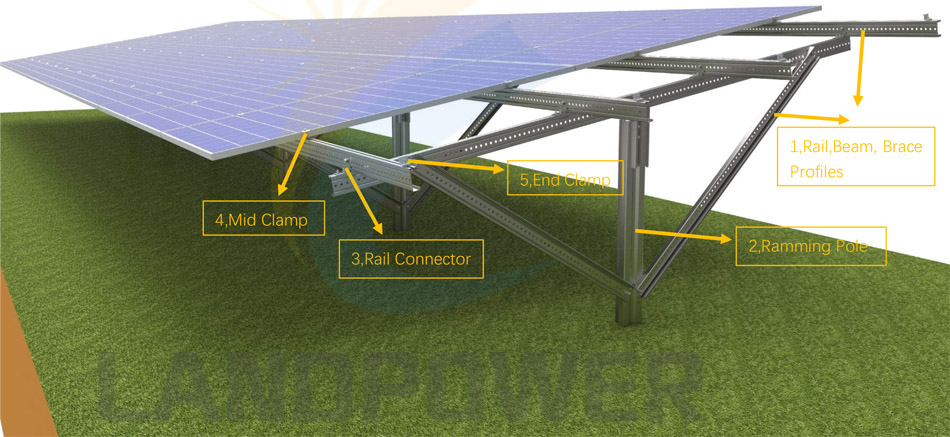

System Overview&Main Components
We will see the different instillation site to adjustable the mounting structure to make solution for your specific projects, please don’t hesitate to contact us when you have specific request.
