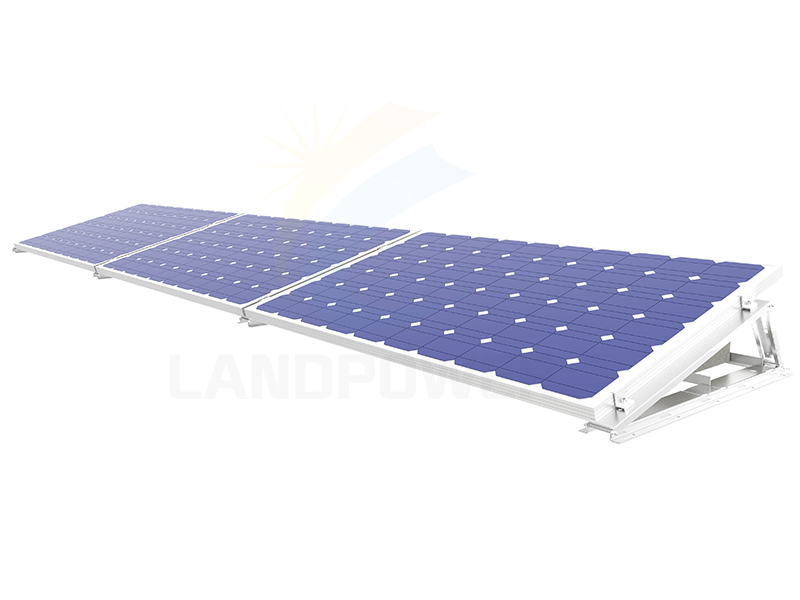

Flat Roof Ballasted Mounting V2
The Ballasted Flat Roof Mounting are easy solution to mount the panel,with anti-slide design,pre-assembled triangle,they are less components for easy to keep store.
| Item No | LP-FRL-02 |
|---|---|
| Order(MOQ) | 1PCS |
| Payment | TT,L/C |
| Product Origin | China |
| Color | Black,Silver |
| Shipping Port | Xiamen China |
| Lead Time | 7-15days |
Product Details

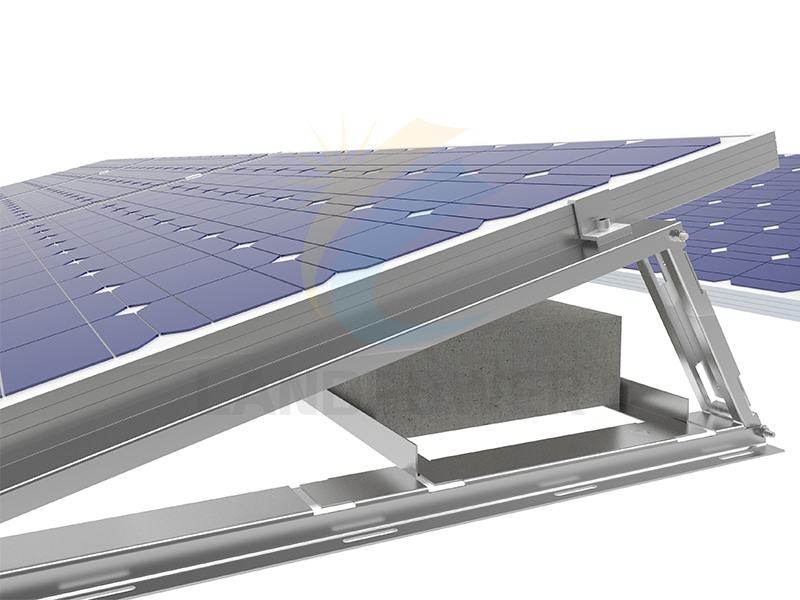

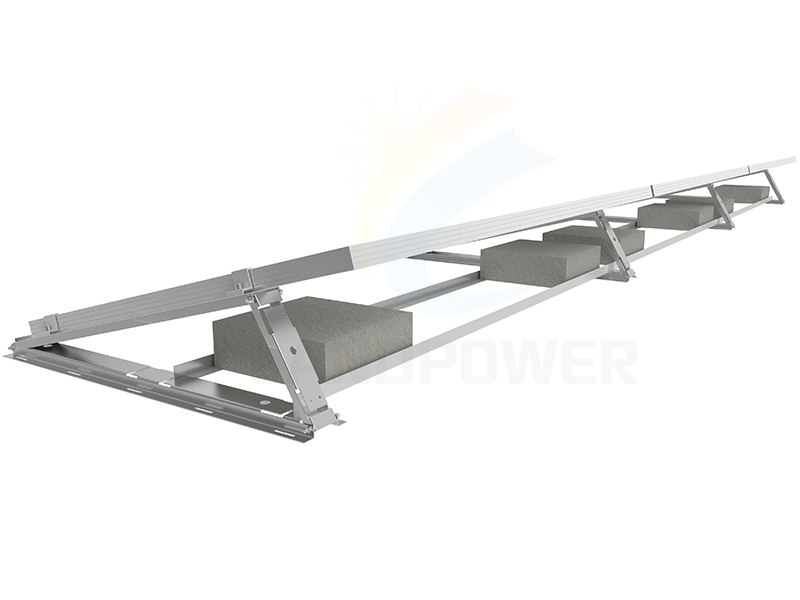

The Flat Roof Ballasted Structure is with fixed triangle,end clamp and mid clamp are quick mounting solution for residential and commercial flat roof installation,the triangle are design with anti-slip stop which make placing solar panel more easier,there ballasted mounting also have two ways to connection to roofs,the ballasted objects under the panel to save space,also can be place on side.

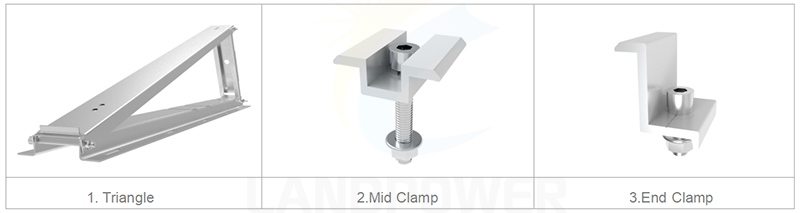

Main Components
TECHNICAL INFORMATION
Install site ： Flat Roof ,Low Pitched Roof
Tilt Angle ： 5 ~ 60 deg
Building Height ： Up to 20 m
Max Wind Speed ： <60m/s
Snow Load ： <1.4KN/m2
Standard ： EN 1090, AS/NZS 1170 and other international Standard
Material ： Aluminum alloy Al6005-T5& Stainless steel 304 (A2),EPDM
Color: Natural or Customized
Anticorrosive: Anodized aluminum & stainless steel
Warranty ： 12 years warranty and twenty- year service life

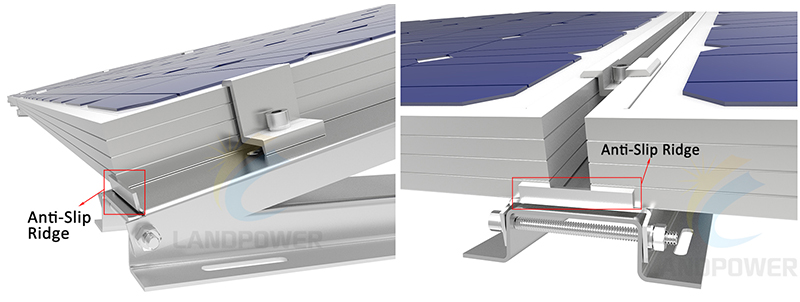

Anti-Slip Design
There are anti-slip design on triangle which make placing solar panel, more easy.

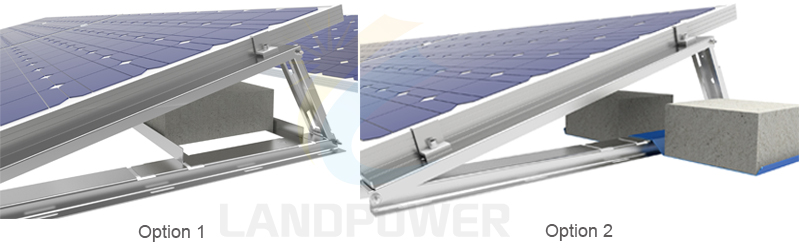

Two Ballsted Way Options
For the Flat Roof Ballasted Mounting,we are engineering various solutions for different conditions,like south facing flat roof ballasted mounting, east west facing mounting structure and more simple flat roof mounting,feel free to contact us for special projects.
