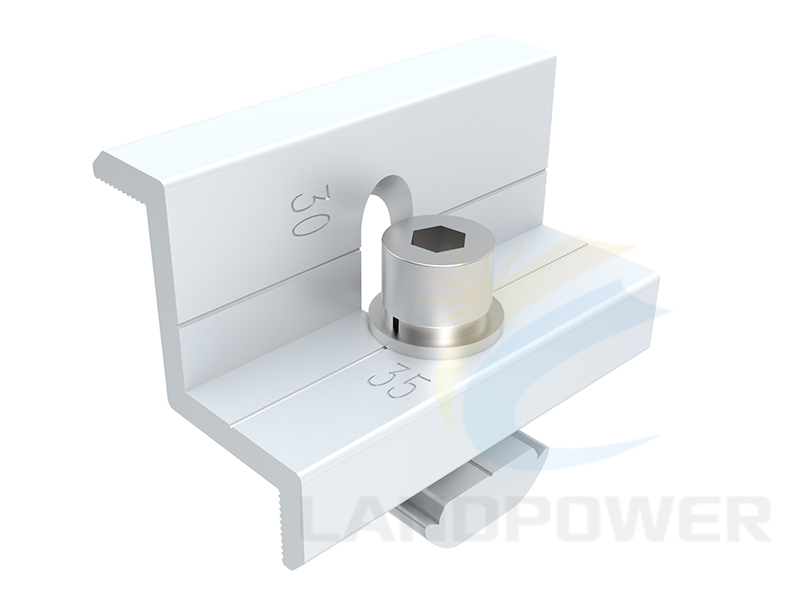

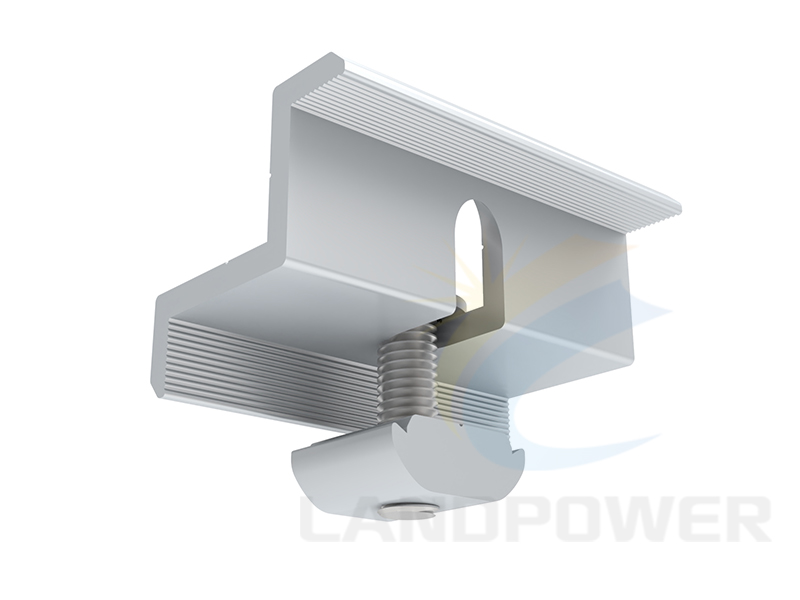

Exchange End Clamp 30mm and 35mm
Exchange End Clamp allows you to convert from 30mm to 35mm, just keep this clamp which can suitable for most of panel in the markets.
| Item No | LP-EEC-30-35 |
|---|---|
| Order(MOQ) | 1PCS |
| Payment | TT,L/C |
| Product Origin | Xiamen China |
| Color | Silver/Black |
| Shipping Port | Xiamen China |
| Lead Time | 7-15 days |
Product Details
The Exchange End Clamp can fast and easily exchange between 30mm and 35mm without disassembling the bolt and nut, just hold one clamp suitable for most populous panel 30mm and 35mm currently. Easy to keep stocks with competitive prices.

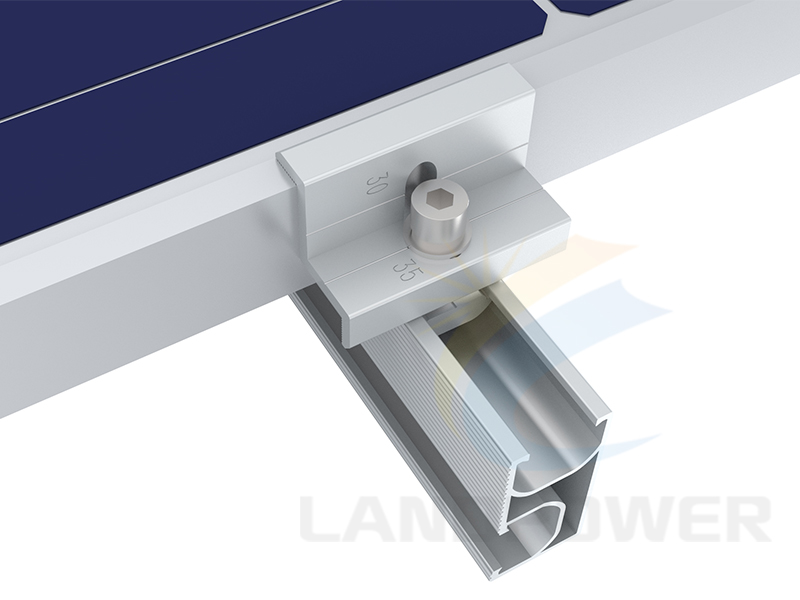

TECHNICAL INFORMATION Application: Roof Mount, Ground Mount, Mini Rial etc
Function: Converting between 30mm and 35mm Length ： Customized Building Height ： 20 m Max Wind Speed ： <60m/s Snow Load ： <1.4KN/m2 Standard ： En 1090, AS/NZS 1170 and other international Standard Material ： Aluminum 6005-T5& Stainless steel A2(304)
Color: Silver, Black or Customized Anti-corrosive: Anodized aluminum & stainless steel Warranty ： 12 years warranty and twenty- year service life

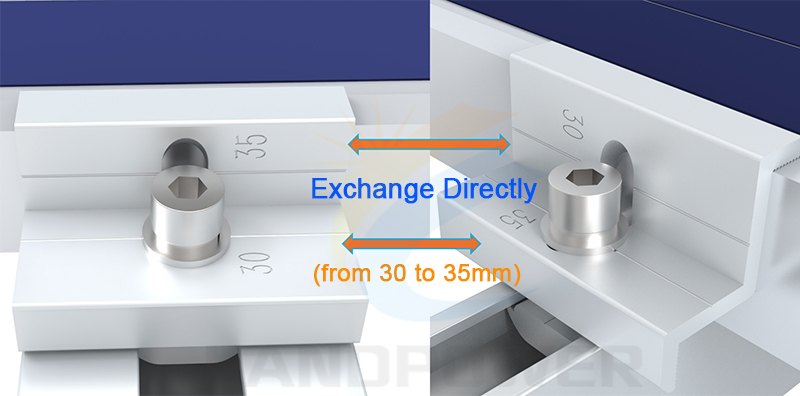

Convert directly and easily from 30mm to 35mm or 35mm to 30mm, no need extra work to disassembling the bolt and nut.

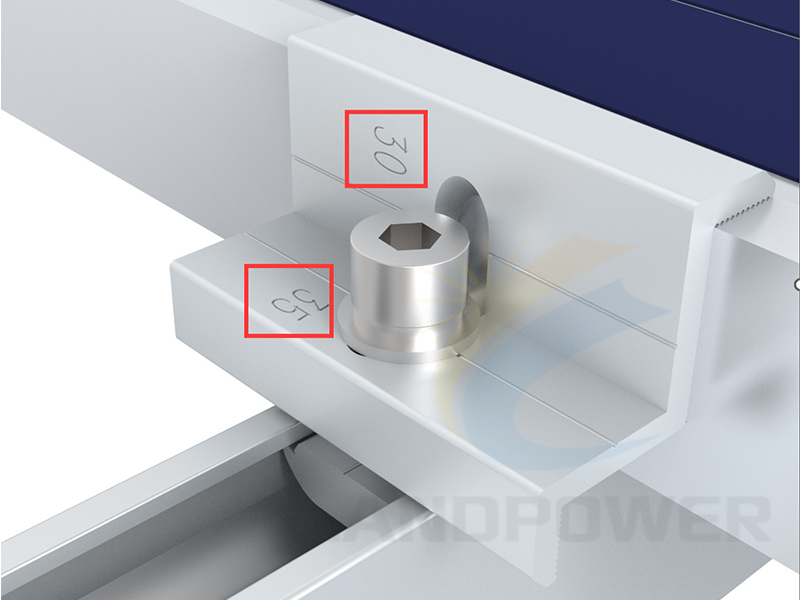

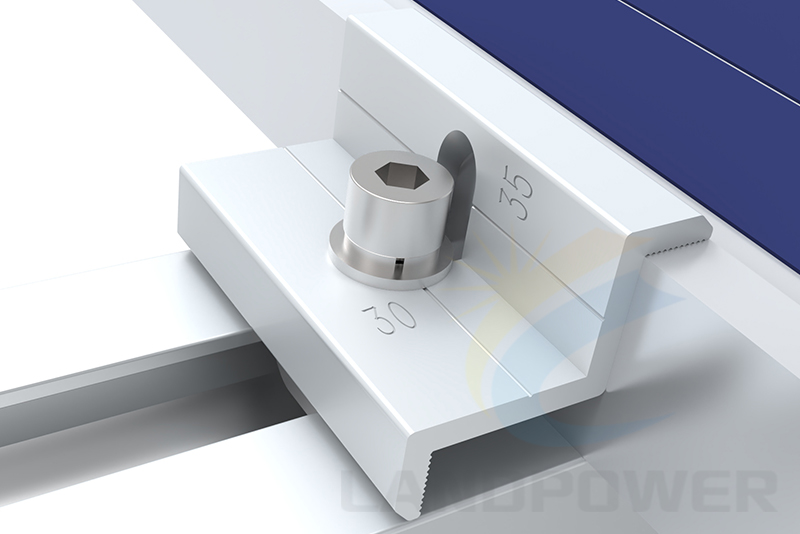

There are indicative word “30” and “35” on the each sides of end clamp, you will easily to know the right thickness of the clamp.
Please refer to below video showing how easily to used the exchange end clamp from 30mm to 35mm.
Specifications
| Application | Roof Mount, Ground Mount, Mini Rial etc |
|---|
