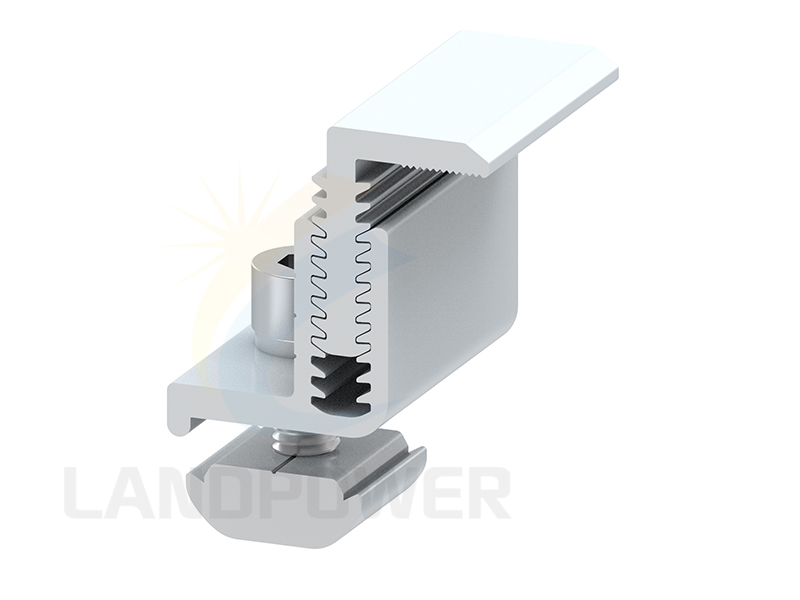

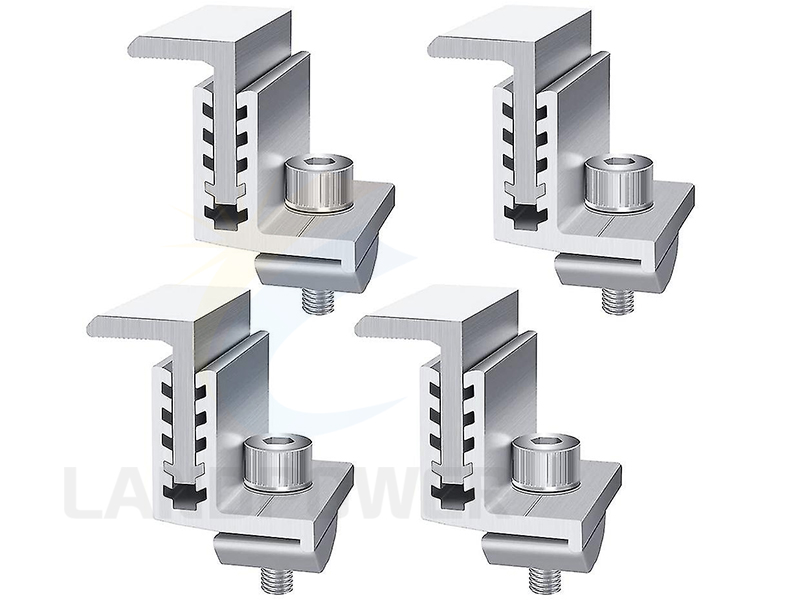

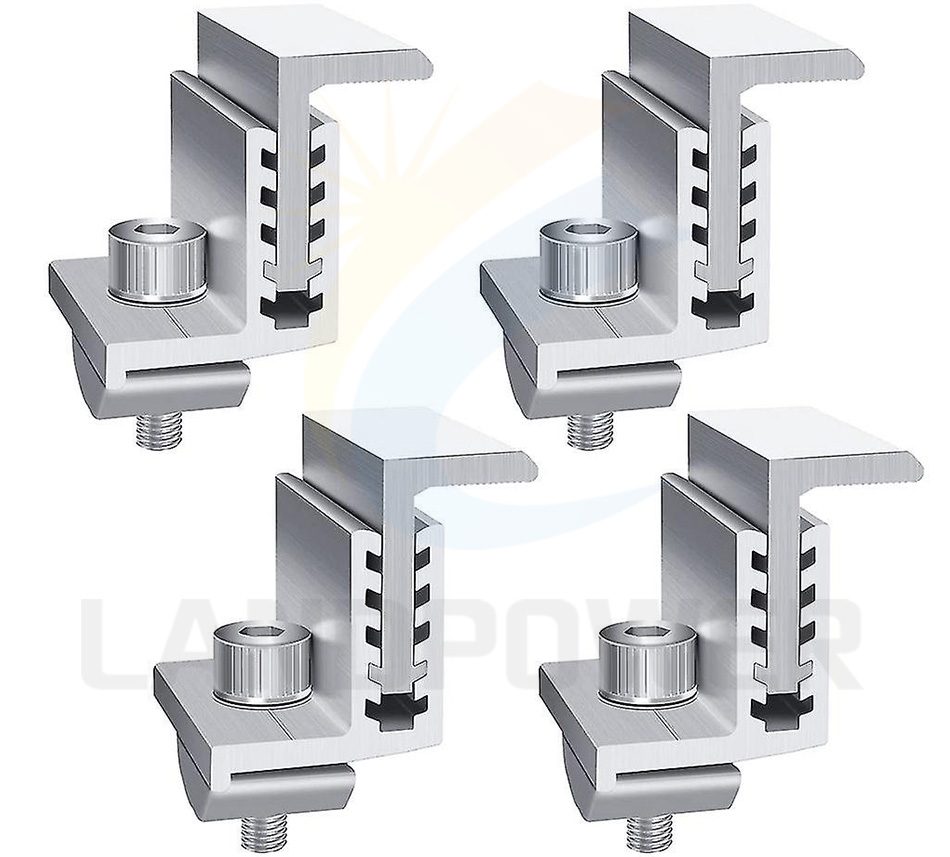

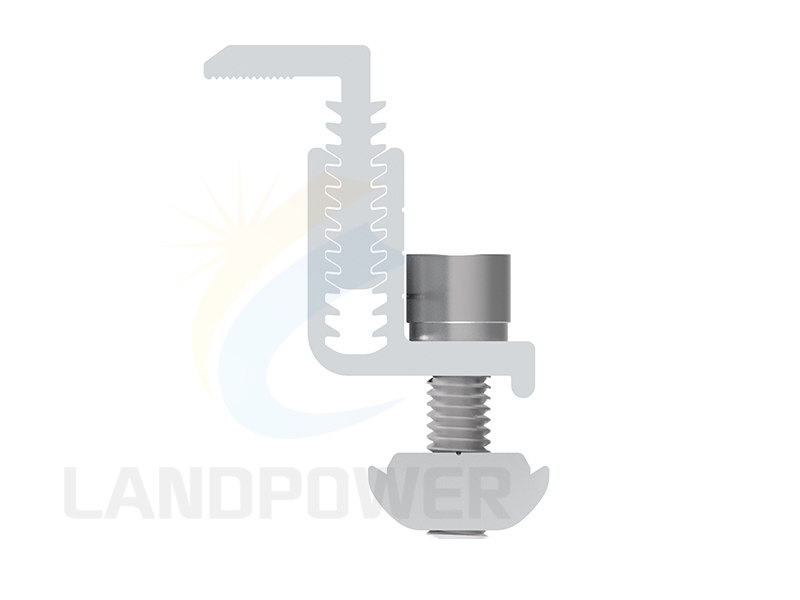

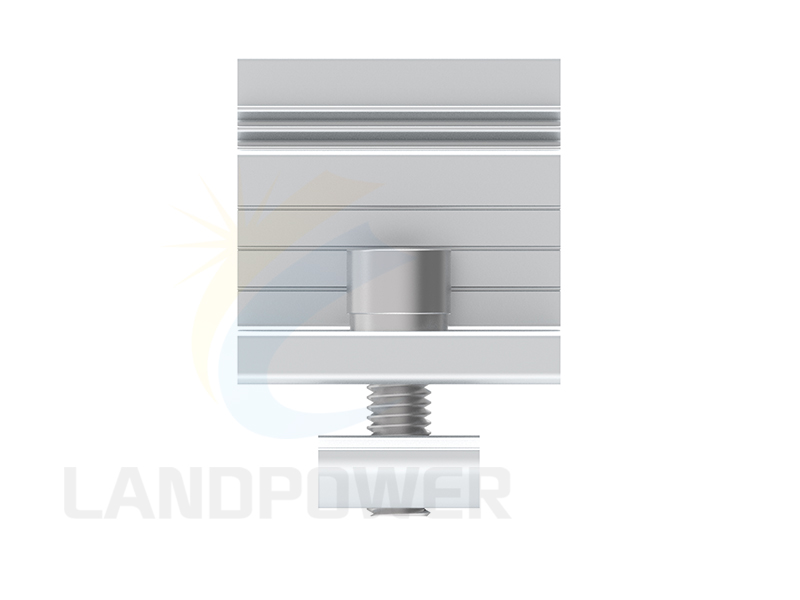

Adjustable Solar Panel End Clamp
The Adjustable End Clamp kit is universal clamp for solar panel 30-50mm,it can be black anodized or silver anodized, with stainless steel 304,competitive prices, easy to keep stock.
| Item No | LP-AEC-01 |
|---|---|
| Order(MOQ) | 1PCS |
| Payment | TT,L/C |
| Product Origin | Xiamen China |
| Color | Black,Silver |
| Shipping Port | Xiamen China |
| Lead Time | 7-15 days |
Product Details
Adjustable Solar Panel End Clamp is universal end clamp for solar panels, it is allow adjustable to clamp panel thickness from 30-35 mm. material is aluminum 6005 T5 with stainless steel 304 bolt. The nut can be customized, and color can be black or silvery anodized.
TECHNICAL INFORMATION Application :Roof Mount, Ground Mount, Mini Rial etc Adjustable Length: 30-50mm
Length ： Customized Building Height ： 20 m Max Wind Speed ： <60m/s Snow Load ： <1.4KN/m2 Standard ： En 1090, AS/NZS 1170 and other international Standard Material ： Aluminum 6005-T5& Stainless steel A2(304)
Color: Silver, Black or Customized Anti-corrosive: Anodized aluminum & stainless steel Warranty ： 12 years warranty and twenty- year service life

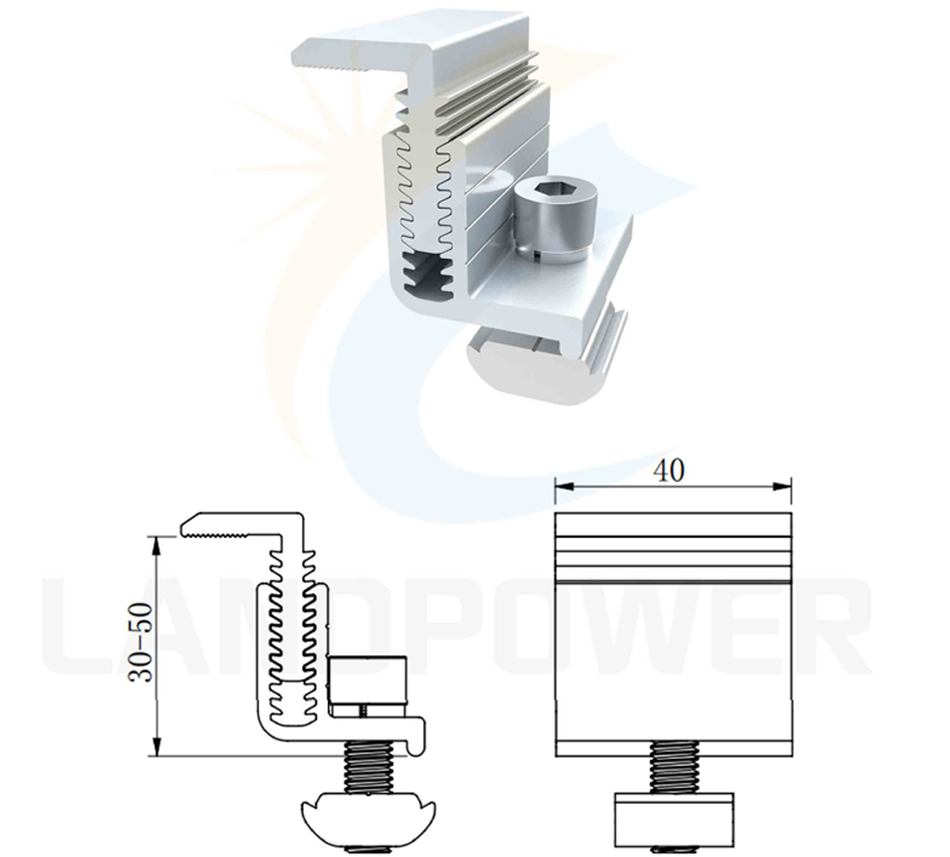

Dimension of Adjustable End Clamp
We design various Adjustable end clamp for mounting rail, with different color and length. If you have any further specific request, please feel free to contact us for more further details.
Specifications
| Application | Roof Mount, Ground Mount, Mini Rial etc |
|---|---|
| Adjustable Length | 30-50mm |
